Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace, Bontrager -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Red Carbon
Suspension Fork
Bontrager Race XXX Lite, full carbon w/E2 carbon steerer
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace
Shift Levers
Shimano Dura-Ace STI, 10 speed
Cassette
SRAM OpenGlide 1070 11-26, 10 speed
Crank
Bontrager Race X Lite 50/34
Pedals
n/a
Wheels
Rims
Bontrager Race XXX Lite, carbon
Tires
Bontrager Race X Lite Pro, 700x23c, folding
Brakes
Brakes
Shimano Dura-Ace w/Shimano Dura-Ace STI levers
Cockpit
Stem
Bontrager Race XXX Lite Carbon, 7 degree, 31.8mm
Handlebar
Bontrager Race XXX Lite VR, 31.8mm
Headset
Cane Creek IS-8 Integrated w/cartridge bearings, sealed, alloy; 1.125" top, 1.5" bottom
Seat
Saddle
Bontrager Race X Lite
Seatpost
Carbon seat mast cap
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview

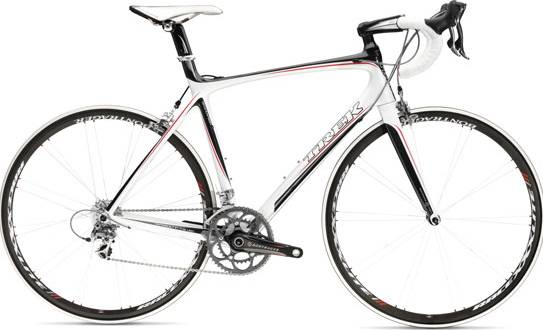

Madone 6.9 completes the Trek Madone model. Trek launched 360 bikes of this model so far. You can easily view all of the Trek Madone bikes models from 2008, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Madone 6.9 components
Fork material
Madone 6.9 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Madone 6.9 bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Madone 6.9 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Trek Madone 6.9 bike has 7 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
