Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, E2, BB90, internal cable routing, DuoTrap compatible
Suspension Fork
Bontrager Race XXX Lite, full carbon w/E2 asymmetrical steerer, carbon dropouts
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace, braze-on
Shift Levers
Shimano Dura-Ace STI, 10 speed
Cassette
Shimano Dura-Ace 11-25, 10 speed
Crank
Shimano Dura-Ace, 53/39 (double)
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Aeolus 5 D3, carbon
Tires
Bontrager R4, 700x23c
Brakes
Brakes
Shimano Dura-Ace brakes w/Shimano Dura-Ace STI levers
Cockpit
Stem
Bontrager Race XXX Lite Carbon, 7 degree, 31.8mm
Handlebar
Bontrager Race XXX Lite VR, carbon, 31.8mm
Headset
Cane Creek IS-8 integrated, stainless cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinitity RXL carbon, 138mm
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

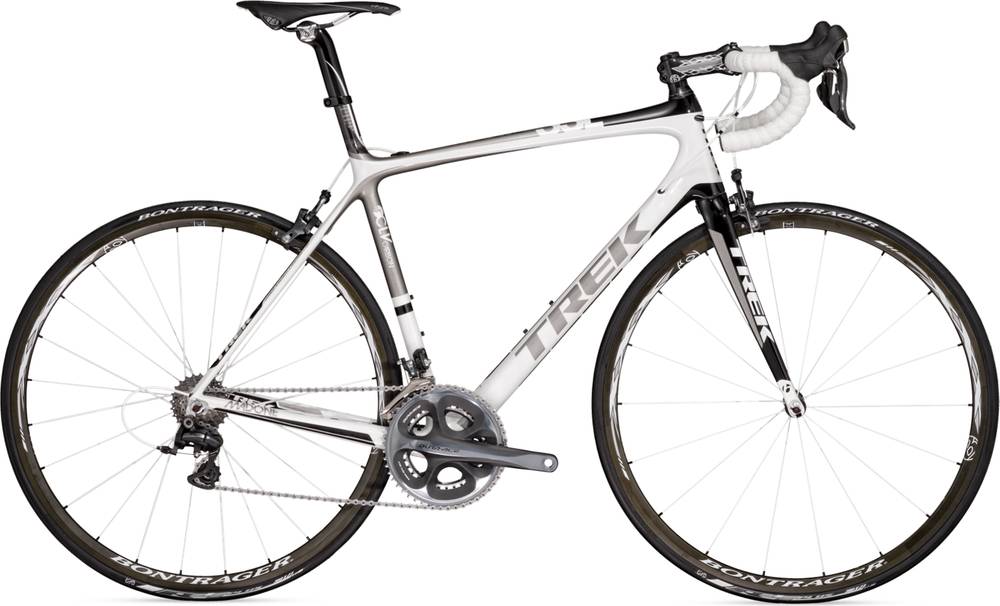

Madone 6.9 SSL H1 (Double) belongs to the Trek Madone model. There are 360 bikes that carry this model name. Take a sneak peek at all Trek Madone bikes models from 2012, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Madone 6.9 SSL H1 (Double) components
Fork material
Madone 6.9 SSL H1 (Double) has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Trek Madone 6.9 SSL H1 (Double) 2012, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Madone 6.9 SSL H1 (Double) has Rim brakes installed. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Madone 6.9 SSL H1 (Double) comes in 7 sizes, that range from 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
