Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, E2, BB90, internal cable routing, DuoTrap compatible
Suspension Fork
Bontrager Race XXX Lite, full carbon w/E2 asymmetrical steerer, carbon dropouts
Drivetrain
Bottom Bracket
BB90, 90.5mm, press-fit
Cockpit
Stem
Bontrager Race XXX Lite Carbon, 7 degree, 31.8mm
Headset
Cane Creek IS-8 integrated, stainless cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview

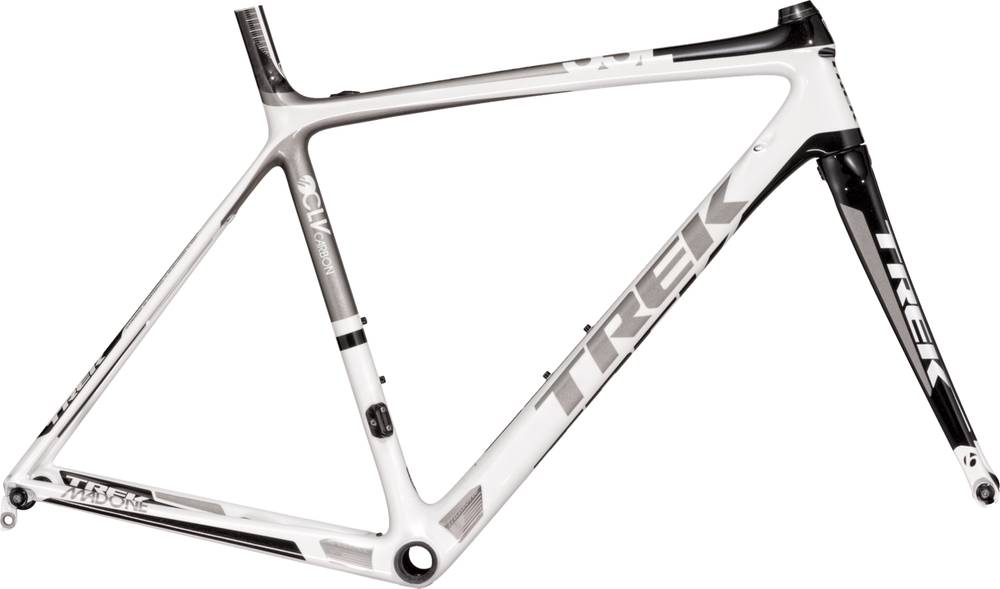

Madone 6.9 SSL H2 Frameset completes the Trek Madone model. 360 frames variations carry this model name so far. You can easily view all of the Trek Madone frames models from 2012, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Aero frames
If you want an acceptable Aero frame you should know that the average price is 2657$. However, you could also get a good Aero frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
Trek Madone 6.9 SSL H2 Frameset frame has 7 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
