Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, E2, BB90, internal cable routing, DuoTrap compatible, Ride Tuned seatmast
Suspension Fork
Madone KVF full carbon, E2 asymmetric steerer, carbon dropouts
Drivetrain
Bottom Bracket
BB90, 90.5mm, press-fit
Brakes
Brakes
Bontrager Speed Limit integrated
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Headset
Cane Creek IS-2, integrated, cartridge bearings, sealed, alloy, 1-1/8" top, 1.5" bottom
Seat
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm |
|---|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

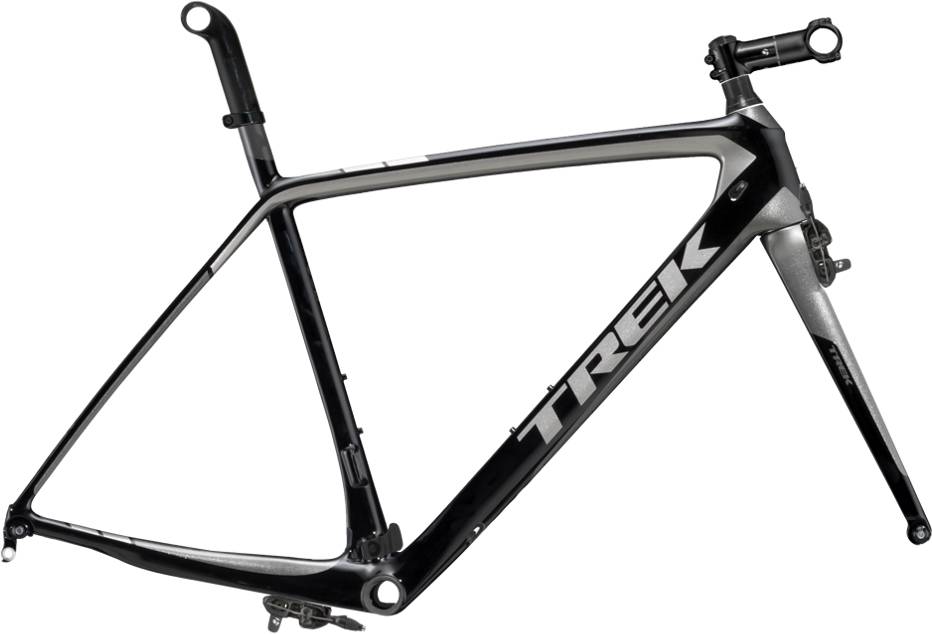

Madone 6 Series H2 Frameset is part of the Trek Madone model. 360 frames variations carry this model name so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero frames
If you want an acceptable Aero frame you should know that the average price is 2657$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Madone 6 Series H2 Frameset comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
