Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
47cm
151cm - 159cm
50cm
156cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, made in the USA, KVF (Kammtail Virtual Foil) tube shape, E2, BB90, internal cable routing, DuoTrap compatible, Ride Tuned seatmast
Suspension Fork
Madone KVF full carbon, E2, carbon dropouts
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace, braze-on
Shift Levers
Shimano Dura-Ace STI, 11 speed
Cassette
Shimano Dura-Ace 11-28, 11 speed
Crank
Shimano Dura-Ace, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Race X Lite, Tubeless Ready
Tires
Bontrager R3, 700x23c
Brakes
Brakes
Bontrager Speed Limit integrated brakes w/Shimano Dura-Ace STI levers
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race XXX Lite Aero, OCLV carbon, VR-CF, 31.8mm
Headset
Cane Creek IS-8, integrated, cartridge bearings, sealed, alloy, 1-1/8 top, 1.5" bottom
Seat
Saddle
Bontrager Affinity Race X Lite, carbon rails
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 156 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

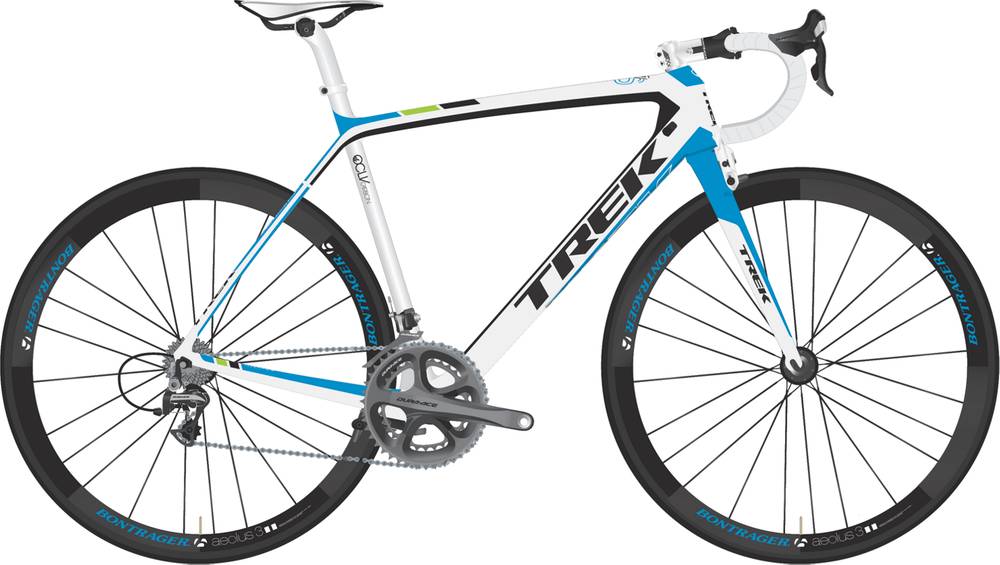

Madone 7.7 H2 (Compact) belongs to the Trek Madone model. There are 360 bikes that carry this model name. Check out the entire range from 2013 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Trek Madone 7.7 H2 (Compact) 2013, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Madone 7.7 H2 (Compact) has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 8 sizes. They vary from 151 cm – 195 cm (4.95 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
