Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
47cm
151cm - 159cm
50cm
156cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, E2, BB90, internal cable routing, DuoTrap compatible, Ride Tuned seatmast
Suspension Fork
Madone KVF full carbon, E2 asymmetric steerer, carbon dropouts
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace, braze-on
Shift Levers
Shimano Dura-Ace STI, 11 speed
Cassette
Shimano Dura-Ace 11-28, 11 speed
Crank
Shimano Dura-Ace, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Race X Lite Tubeless Ready
Tires
Bontrager R4 Hard-Case Lite, 700x23c
Brakes
Brakes
Bontrager Speed Limit integrated
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race XXX Lite Aero, OCLV carbon, VR-CF, 31.8mm
Headset
Cane Creek IS-8, integrated, cartridge bearings, sealed, alloy, 1-1/8 top, 1.5" bottom
Seat
Saddle
Bontrager Paradigm RL, titanium rails
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 156 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview

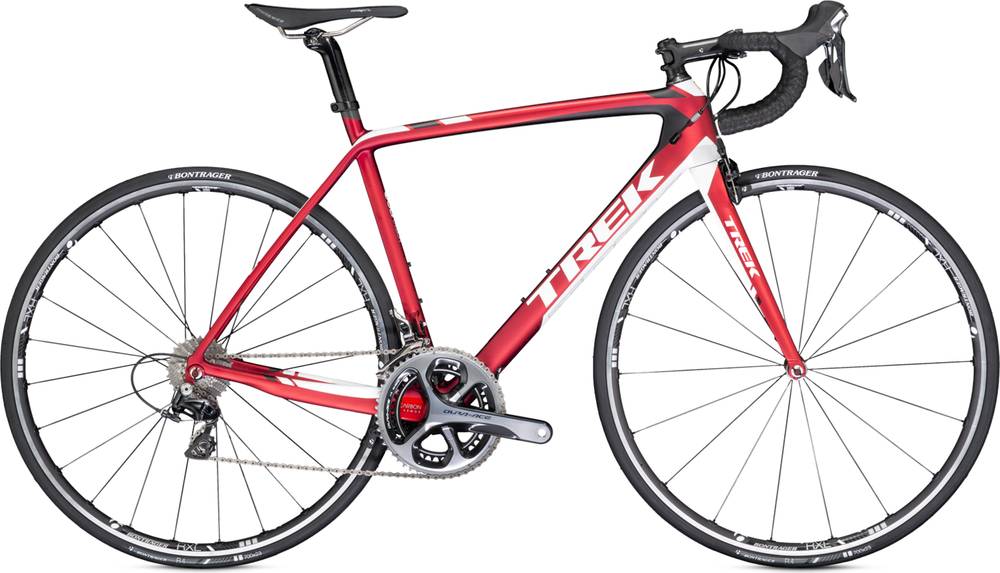

Madone 7.7 H2 Compact belongs to the Trek Madone model. 360 bikes variations carry this model name so far. Take a sneak peek at all Trek Madone bikes models from 2014, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero bikes average price
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Madone 7.7 H2 Compact bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 8 sizes. They vary from 151 cm – 195 cm (4.95 ft – 6.4 ft). In short, you can easily find one that suits you.
