Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, E2, BB90, internal cable routing, 3S chain keeper, DuoTrap compatible, Ride Tuned seatmast
Suspension Fork
Madone KVF full carbon, E2 asymmetric steerer, carbon dropouts
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace, braze-on
Shift Levers
Shimano Dura-Ace, 11 speed
Cassette
Shimano Dura-Ace, 11-28, 11 speed
Crank
Shimano Dura-Ace, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Race X Lite Tubeless Ready
Tires
Bontrager R4 Hard-Case Lite, 700x23c
Brakes
Brakes
Bontrager Speed Limit integrated
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Handlebar
Bontrager XXX Aero, OCLV Carbon, VR-CF, 31.8mm
Headset
Cane Creek IS-8, integrated, cartridge bearings, sealed, carbon, 1-1/8 top, 1.5" bottom
Seat
Saddle
Bontrager Paradigm RL, hollow titanium rails
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

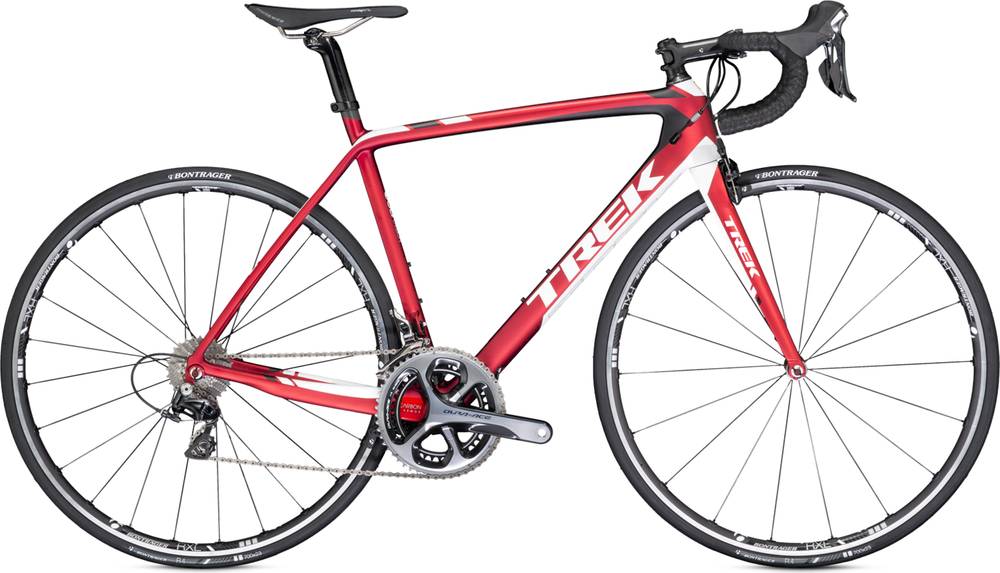

Madone 7.7 H2 Compact belongs to the Trek Madone model. Trek released 360 bikes variations of this model so far. Take a sneak peek at all Trek Madone bikes models from 2015, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Madone 7.7 H2 Compact bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Madone 7.7 H2 Compact is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
