Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone IsoSpeed, Micro-adjust seatmast, E2, BB90, invisible cable routing, Control center, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
Suspension Fork
Madone KVF full carbon, carbon E2 asymmetric steerer, carbon dropouts, integrated brake and stem
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra, braze-on
Shift Levers
Shimano Ultegra, 11 speed
Cassette
Shimano Ultegra, 11-28, 11 speed
Crank
Shimano Ultegra, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Paradigm Elite Tubeless Ready
Tires
Bontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x23c
Brakes
Brakes
Madone aero, integrated, direct mount
Cockpit
Stem
Madone XXX Integrated bar/stem, OCLV Carbon, 7 degree, aero top cap pocket, w/Blendr computer & light mounts
Handlebar
Madone XXX Integrated Bar/Stem, KVF profile, Invisible cable routing, OCLV carbon, VR-CF
Headset
Madone integrated, stainless cartridge bearings, sealed, 1-3/8" top, 1.5" bottom
Seat
Saddle
Bontrager Paradigm RL, hollow titanium rails
Seatpost
Madone micro-adjust carbon seatmast cap, 25mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview

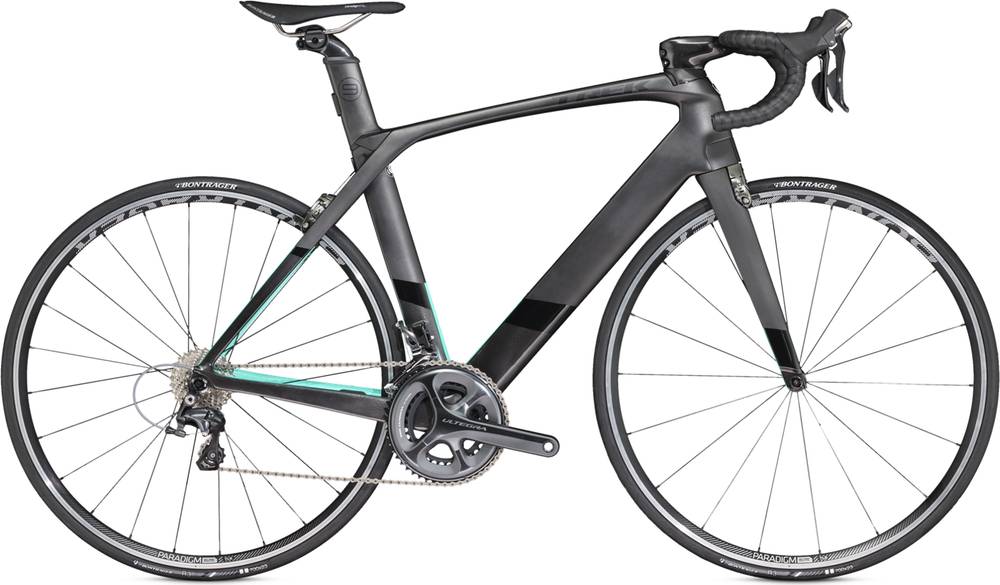

Madone 9.2 H2 Compact completes the Trek Madone model. Trek released 360 bikes variations of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Madone 9.2 H2 Compact components
Fork material
Madone 9.2 H2 Compact has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Madone 9.2 H2 Compact model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Madone 9.2 H2 Compact is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
