Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone IsoSpeed, Micro-adjust seatmast, E2, BB90, invisible cable routing, Control center, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
Suspension Fork
Madone KVF full carbon, carbon E2 asymmetric steerer, carbon dropouts, integrated brake and stem
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace, braze-on
Shift Levers
Shimano Dura-Ace, 11 speed
Cassette
Shimano Dura-Ace, 11-28, 11 speed
Crank
Shimano Dura-Ace, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Aura Tubeless Ready
Tires
Bontrager R4 Hard-Case Lite, 220tpi, aramid bead, 700x23c
Brakes
Brakes
Madone aero, integrated, direct mount
Cockpit
Stem
Madone XXX Integrated bar/stem, OCLV Carbon, 7 degree, aero top cap pocket, w/Blendr computer & light mounts
Handlebar
Madone XXX Integrated Bar/Stem, KVF profile, Invisible cable routing, OCLV carbon, VR-CF
Headset
Madone integrated, stainless cartridge bearings, sealed, 1-3/8" top, 1.5" bottom
Seat
Saddle
Bontrager Paradigm RXL, carbon rails
Seatpost
Madone micro-adjust carbon seatmast cap, 25mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

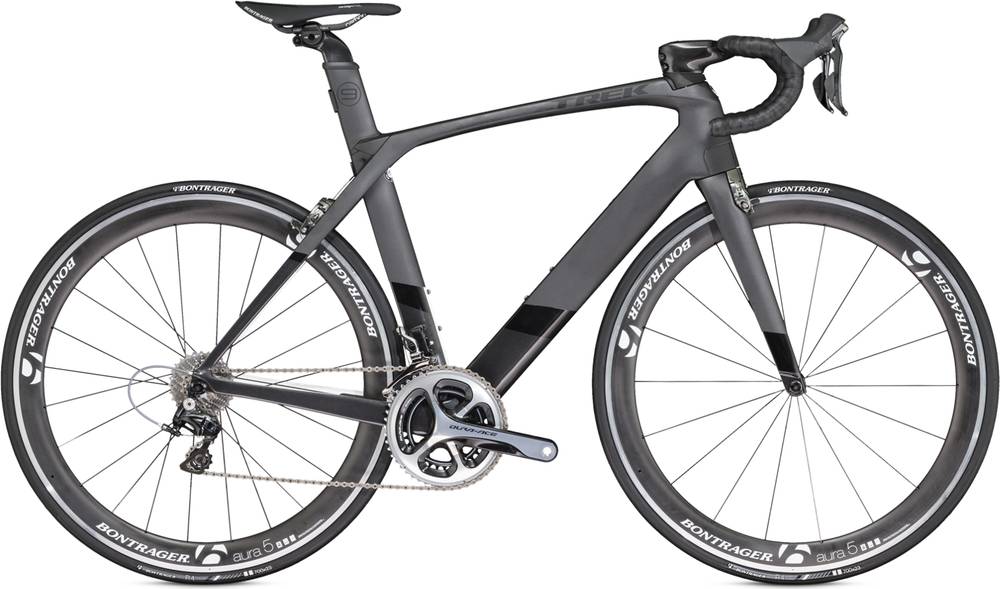

Madone 9.5 H2 Compact belongs to the Trek Madone model. There are 360 bikes that carry this model name. Take a sneak peek at all Trek Madone bikes models from 2016, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Madone 9.5 H2 Compact bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Madone 9.5 H2 Compact has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
