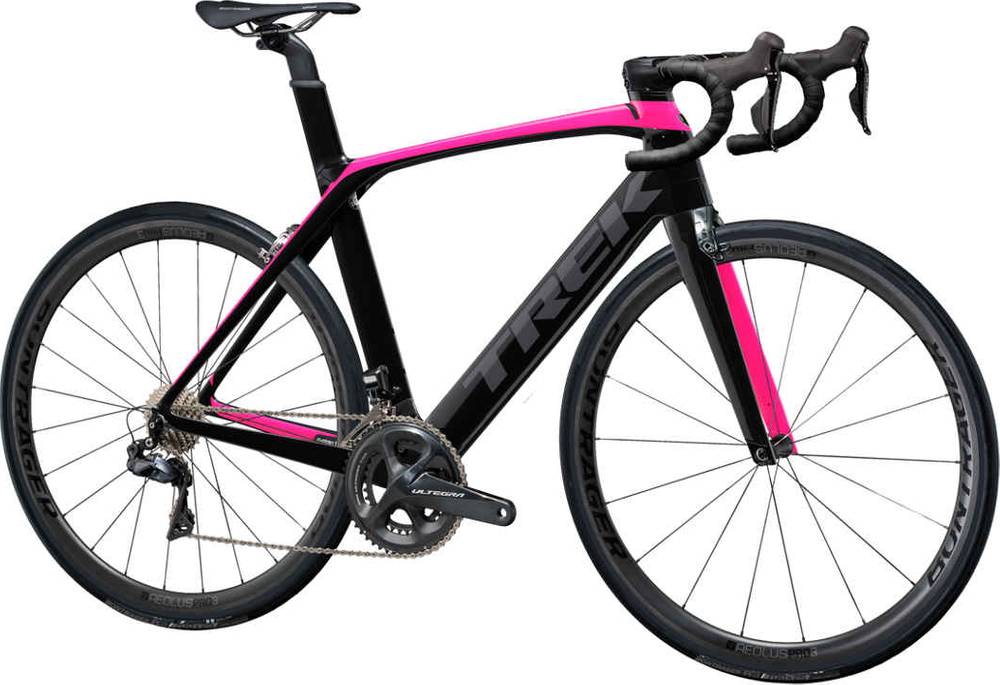

Trek Madone 9.5 Women’s 2018
2018 Road
Estimate price |
7,999$
Weight | 7.43 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone IsoSpeed, Micro-adjust seatmast, E2 tapered head tube, BB90, invisible cable routing, control center, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
Suspension Fork
Madone KVF full carbon, carbon E2 steerer, carbon dropouts, integrated brake & stem
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2, braze-on
Shift Levers
Shimano Ultegra Di2, 11 speed
Cassette
Shimano Ultegra, 11-28, 11 speed
Crank
Shimano Ultegra, 50/34 (compact)
Bottom Bracket
BB90
Chain
Shimano Ultegra
Pedals
Not included
Wheels
Rims
Bontrager Aeolus Pro 3 Tubeless Ready
Tires
Bontrager R3 Hard-Case Lite, 120 tpi, aramid bead, 700x25c
Brakes
Brakes
Madone aero, integrated
Cockpit
Stem
Madone Integrated bar/stem, OCLV Carbon, 7 degree, aero top cap pocket, w/computer & light mounts
Handlebar
Madone Integrated Bar/Stem, KVF Profile, invisible cable routing, OCLV Carbon, VR-CF
Grips
Bontrager tape
Headset
Madone integrated, stainless cartridge bearings, sealed, 1-3/8? top, 1.5? bottom
Seat
Saddle
Bontrager Ajna Elite, titanium rails
Seatpost
Madone Micro-adjust carbon seatmast cap, 25mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm |
| Front Center | 575 mm | 578 mm | 581 mm | 583 mm |
| Rake | 43 mm | 44 mm | 44 mm | 39 mm |
| Trail | 61 mm | 57 mm | 56 mm | 58 mm |
| Stack | 531 mm | 543 mm | 551 mm | 573 mm |
| Reach | 365 mm | 370 mm | 372 mm | 378 mm |
| Top Tube Length | 512 mm | 523 mm | 534 mm | 551 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° |
| Seat Tube Length | 476 mm | 493 mm | 506 mm | 533 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm |
| Wheelbase | 965 mm | 968 mm | 972 mm | 974 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 698 mm | 720 mm | 733 mm | 758 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
Madone 9.5 Women’s belongs to the Trek Madone model. Trek released 360 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Trek Madone 9.0 2018 is the most economical model, with a starting price of 4499$. Trek Madone 9.9 2018 on the other hand costs 12499$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2018 and its price was 7999$. Comparing the average cost of an Aero bike to this one, you will see that Madone 9.5 Women’s price is 89.95% more expensive.
Average weight for Aero bikes
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Madone 9.5 Women’s weighs 7.43 kg (16.38 lbs) and is slightly heavier than the average. To sum up, it’s 1.23% heavier than the average weight of Aero bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Madone 9.5 Women’s model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Madone 9.5 Women’s has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
