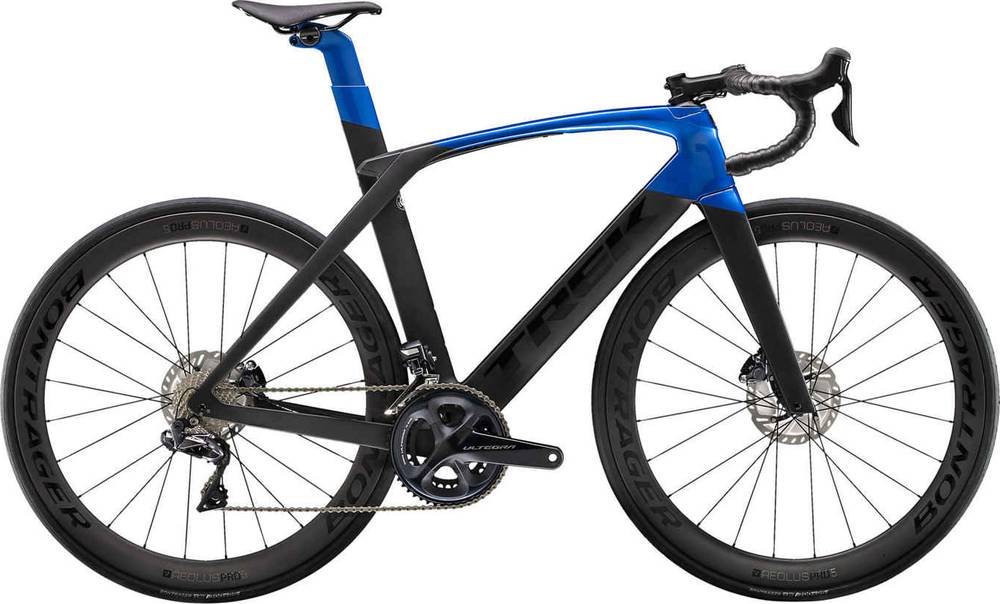

Trek Madone SL 7 Disc 2020
2020 Road
Estimate price |
6,499$
Weight | 8.25 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, flat mount disc, Duo Trap S compatible, 142x12mm thru axle
Suspension Fork
Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Ultegra R8050 Di2, short cage, 30T max cog
Front Derailleur
Shimano Ultegra R8050 Di2, braze-on
Shift Levers
Shimano Ultegra Di2, R8070, 11-speed
Cassette
Shimano Ultegra R8000, 11-30, 11 speed
Crank
Size: 50, 52, Shimano Ultegra R8000, 50/34 (compact), 170mm length; Size: 54, 56, Shimano Ultegra R8000, 50/34 (compact), 172.5mm length; Size: 58, 60, 62, Shimano Ultegra R8000, 50/34 (compact), 175mm length
Bottom Bracket
Trek BB90
Chain
Shimano Ultegra HG701, 11-speed
Wheels
Rims
Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 100x12 thru axle
Tires
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Brakes
Brakes
Size: 50, 52, 54, 56, 58, 60, 62, Shimano Ultegra hydraulic disc, flat mount; Size: 50, 52, 54, 56, 58, 60, 62, Shimano Dura-Ace hydraulic disc, flat mount
Disk Rotors
Shimano RT800, 160mm, centerlock
Cockpit
Stem
Size: 50, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 60, 62, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 50, 52, Bontrager Elite Aero VR-CF, alloy, 31.8mm, invisible cable routing, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Bontrager Elite Aero VR-CF, alloy, 31.8mm, invisible cable routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 60, 62, Bontrager Elite Aero VR-CF, alloy, 31.8mm, invisible cable routing, 93mm reach, 123mm drop, 44cm width
Seat
Saddle
Bontrager Aeolus Comp, steel rails, 145mm width
Seatpost
Size: 50, 52, 54, 56, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, short length; Size: 58, 60, 62, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.4 mm | 1.44 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 523 mm | 535 mm | 543 mm | 565 mm | 583 mm | 603 mm | 622 mm |
| Reach | 380 mm | 385 mm | 388 mm | 393 mm | 398 mm | 401 mm | 405 mm |
| Top Tube Length | 523 mm | 536 mm | 545 mm | 561 mm | 576 mm | 588 mm | 600 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 413 mm | 413 mm | 414 mm |
| Wheelbase | 976 mm | 979 mm | 983 mm | 985 mm | 994 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 713 mm | 734 mm | 746 mm | 770 mm | 795 mm | 813 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 162 cm | 167 cm | 172 cm | 178 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 196 cm |
Model Overview
Madone SL 7 Disc is a Trek Madone model. Trek released 360 bikes variations of this model so far. You can easily view all of the Trek Madone bikes models from 2020, here.
Model range prices
Trek Madone SL 6 2020 is the cheapest bike model and costs 4699$. Trek Madone SLR 9 Disc eTap 2020 is the most expensive one and costs 12499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 6499$. Comparing this to the average Aero bike price, we see that the price is 54.33% higher.
Average weight for Aero bikes
If we make a quick analysis of the average weight of an Aero bike, we get 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Trek Madone SL 7 Disc it’s weighing 8.25 kg (18.19 lbs). At this weight, is considerably heavier than average. In other words, this model is 12.4% heavier than the average Aero bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Madone SL 7 Disc components
Fork material
Madone SL 7 Disc has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Madone SL 7 Disc bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Madone SL 7 Disc is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Madone SL 7 Disc comes in 7 sizes, that range from 157 cm – 196 cm (5.15 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
