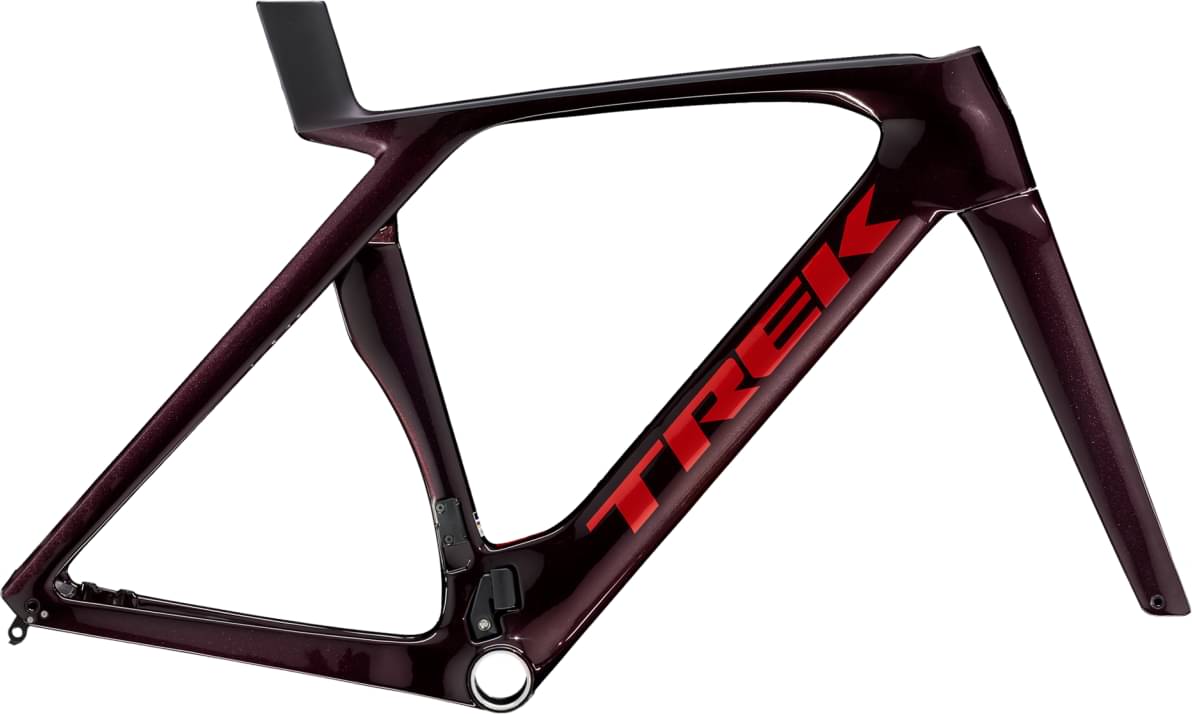

Trek Madone SL Gen 7 Frameset 2024
2024 Road
Estimate price |
3,799$
Weight | 1.2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
Suspension Fork
Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Drivetrain
Bottom Bracket
T47, threaded
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.37 mm | 1.38 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 573 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 52 mm | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 68 mm | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 514 mm | 528 mm | 540 mm | 548 mm | 570 mm | 588 mm | 608 mm | 627 mm |
| Reach | 380 mm | 385 mm | 390 mm | 393 mm | 398 mm | 403 mm | 406 mm | 410 mm |
| Top Tube Length | 519 mm | 528 mm | 541 mm | 550 mm | 566 mm | 581 mm | 593 mm | 605 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 424 mm | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 100 mm | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 418 mm | 418 mm | 419 mm |
| Wheelbase | 979 mm | 981 mm | 984 mm | 988 mm | 990 mm | 999 mm | 1008 mm | 1017 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 699 mm | 718 mm | 739 mm | 751 mm | 775 mm | 800 mm | 818 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview
Madone SL Gen 7 Frameset completes the Trek Madone model. Trek launched 360 frames of this model so far. You can easily view all of the Trek Madone frames models from 2024, here.
Model range prices
Trek Madone SL Gen 7 Frameset 2024 is the most economical model, with a starting price of 3799$. Trek Madone SLR Gen 6 BB90 Rim Frameset 2024 on the other hand costs 6157$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Aero frames
According to our calculations, the average cost of an Aero frame that is reliable is 2657$. However, this doesn’t mean that if you spend less money on an Aero frame, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3799$. If we compare this with the average Aero frame cost we notice that the price is 42.98% higher.
Average weight for Aero frames
Aero frames weigh an average of 1.87 kg (4.12 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Madone SL Gen 7 Frameset weighs 1.2 kg (2.65 lbs) and is much lighter than the average. To sum up, it’s 55.83% lighter than the average weight of Aero frames.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
