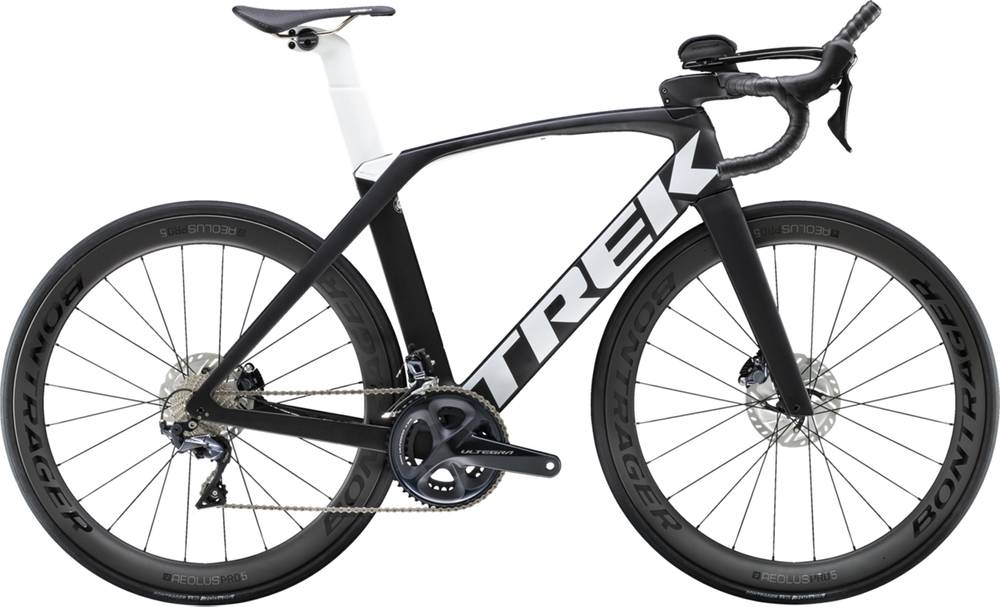

Trek Madone SLR 6 Disc Speed 2020
2020 Road
Estimate price |
6,499$
Weight | 8.72 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
158cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control center, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Ultegra R8000, short cage, 30T max cog
Front Derailleur
Shimano Ultegra R8000, braze-on
Shift Levers
Shimano Ultegra R8020, 11 speed
Cassette
Shimano Ultegra R8000, 11-28, 11 speed
Crank
Shimano Ultegra R8000, 50/34 (compact)
Bottom Bracket
Trek BB90
Chain
Shimano Ultegra HG701, 11 speed
Wheels
Rims
Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 21mm rim width, 50mm rim depth, 100x12 thru axle front, 142x12mm thru axle rear
Tires
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Brakes
Brakes
Shimano Ultegra R8070 hydraulic disc
Cockpit
Stem
Trek Madone aero, invisible cable routing, 7 degree
Handlebar
Trek Madone adjustable aero VR-CF, OCLV Carbon, internal cable routing
Grips
Bontrager Supertack Perf tape
Headset
Madone integrated, stainless cartridge bearings, sealed, 1-3/8? top, 1.5? bottom
Seat
Saddle
Bontrager Montrose Elite, titanium rails
Seatpost
Madone aero carbon seatmast cap, integrated light mount, 25mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.4 mm | 1.44 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 523 mm | 535 mm | 543 mm | 565 mm | 583 mm | 603 mm | 622 mm |
| Reach | 380 mm | 385 mm | 388 mm | 393 mm | 398 mm | 401 mm | 405 mm |
| Top Tube Length | 523 mm | 536 mm | 545 mm | 561 mm | 576 mm | 588 mm | 600 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 413 mm | 413 mm | 414 mm |
| Wheelbase | 976 mm | 979 mm | 983 mm | 985 mm | 994 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 713 mm | 734 mm | 746 mm | 770 mm | 795 mm | 813 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview
Madone SLR 6 Disc Speed completes the Trek Madone model. Trek launched 360 bikes of this model so far. Take a sneak peek at all Trek Madone bikes models from 2020, by clicking here.
Model range prices
Trek Madone SL 6 2020 is the cheapest bike model and costs 4699$. Trek Madone SLR 9 Disc eTap 2020 is the most expensive one and costs 12499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 6499$. Comparing the average cost of an Aero bike to this one, you will see that Madone SLR 6 Disc Speed price is 54.33% higher.
Aero bikes average weight
Aero bikes weigh an average of 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Trek Madone SLR 6 Disc Speed it’s weighing 8.72 kg (19.22 lbs). At this weight, is much heavier than average. In conclusion, the average Aero bike weighs 18.8% less than Madone SLR 6 Disc Speed.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Madone SLR 6 Disc Speed components
Fork material
Madone SLR 6 Disc Speed has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Madone SLR 6 Disc Speed model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Madone SLR 6 Disc Speed comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 7 sizes. They vary from 158 cm – 195 cm (5.18 ft – 6.4 ft). In short, you can easily find one that suits you.
