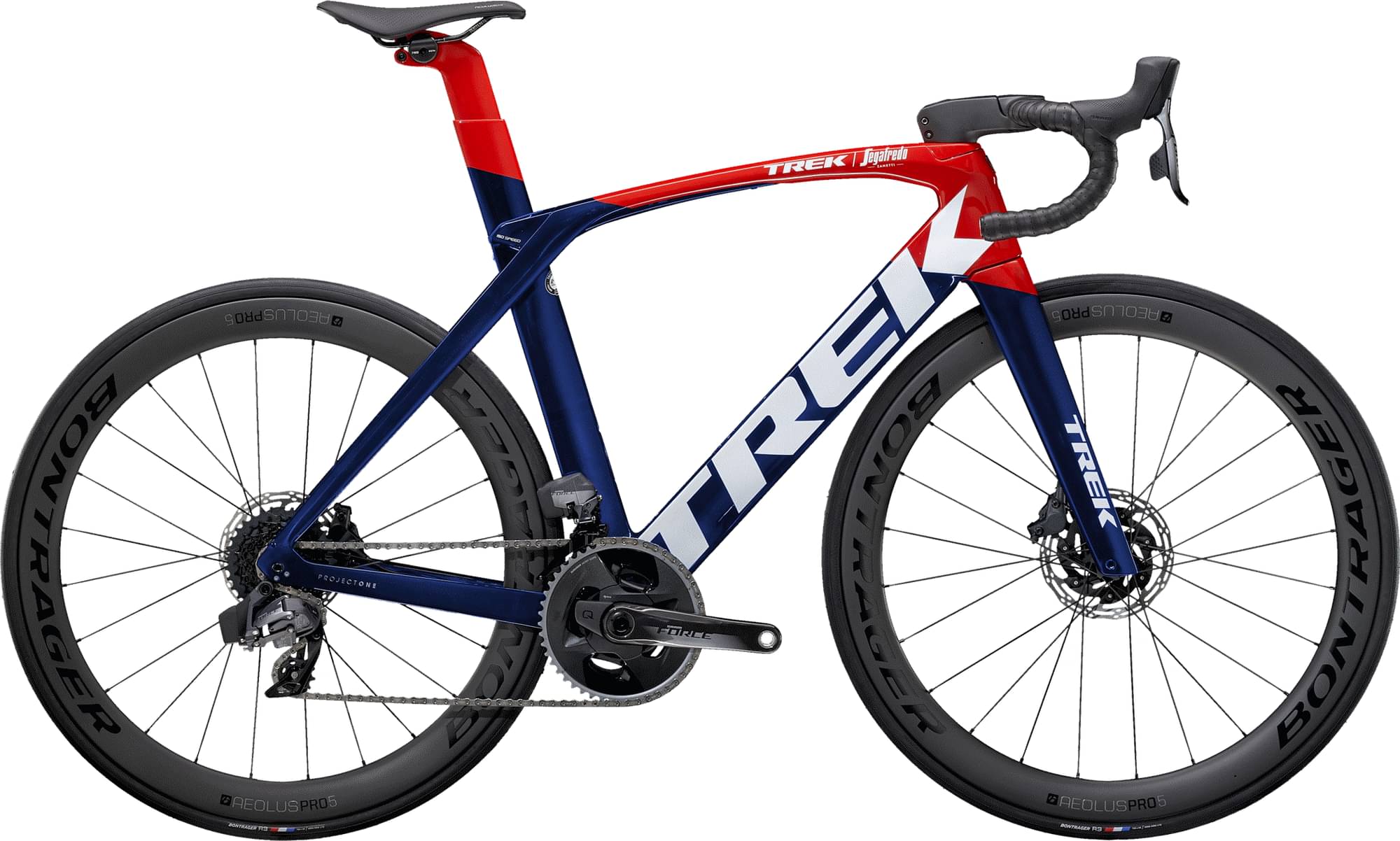

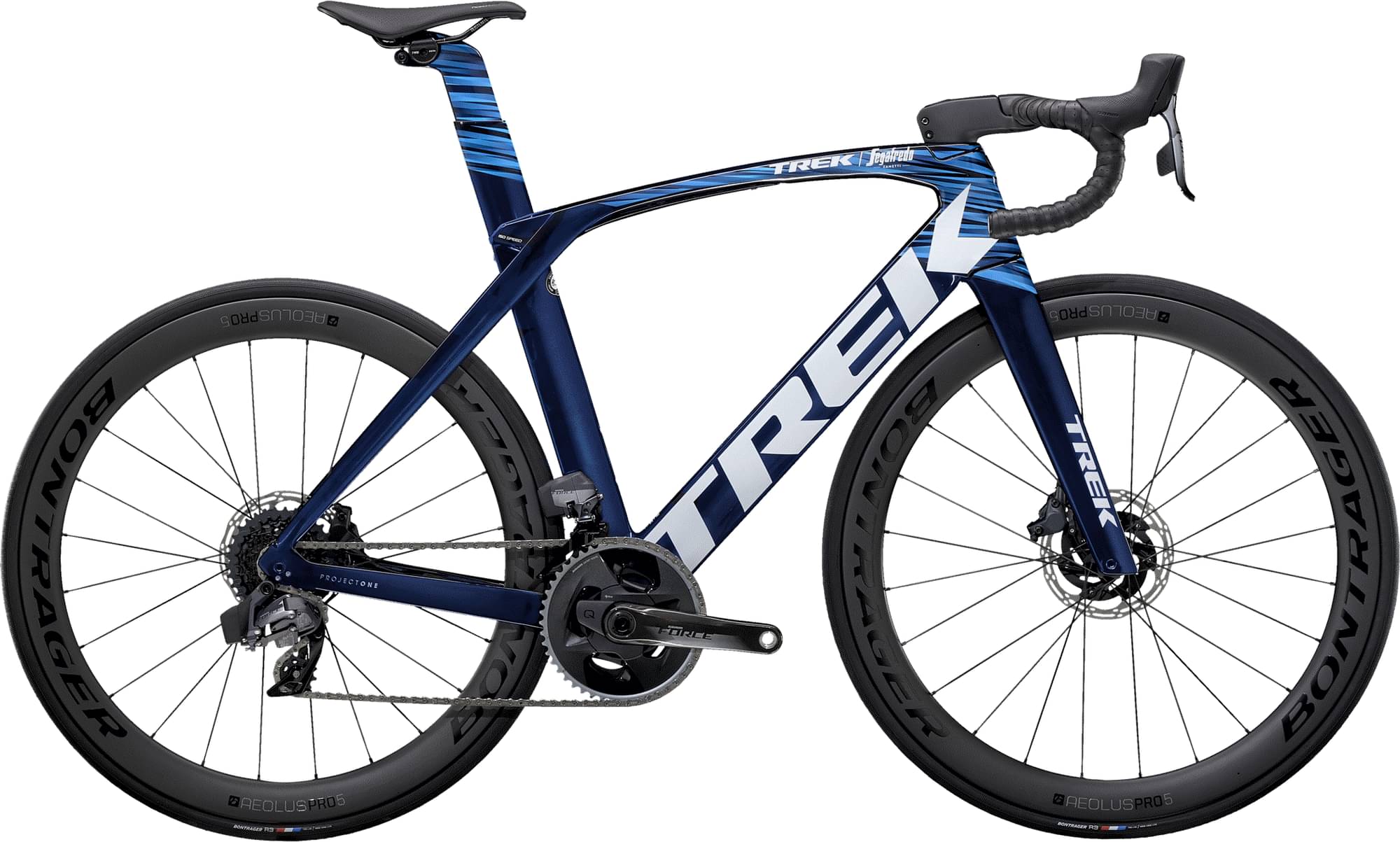

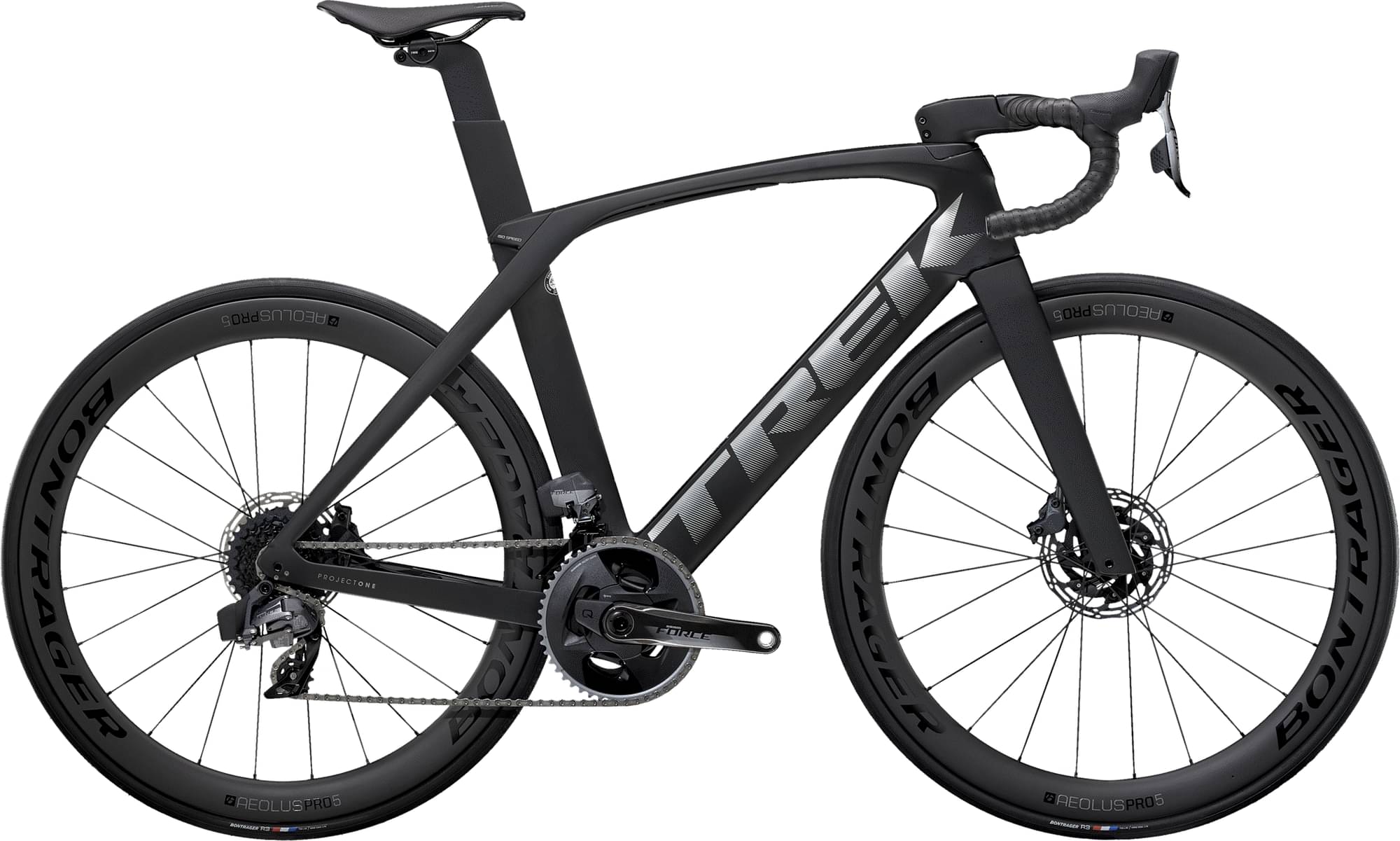

Trek Madone SLR 7 AXS Gen 6 2021
2021 Road
Estimate price |
11,239$
Weight | 8.32 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Suspension Fork
Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Drivetrain
Rear Derailleur
SRAM Force eTap AXS, 36T max cog
Front Derailleur
SRAM Force eTap AXS, braze-on
Shift Levers
SRAM Force eTap AXS, 12-speed
Cassette
SRAM Force XG-1270, 10-33, 12 speed
Crank
Size: 47, SRAM Force AXS Power Meter, 48/35, DUB, 165 mm length; Size: 50, 52, SRAM Force AXS Power Meter, 48/35, DUB, 170 mm length; Size: 54, 56, SRAM Force AXS Power Meter, 48/35, DUB, 172.5 mm length; Size: 58, 60, 62, SRAM Force AXS Power Meter, 48/35, DUB, 175 mm length
Bottom Bracket
SRAM DUB, T47 threaded, internal bearing
Chain
SRAM Force, 12-speed
Wheels
Rims
Front: Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5 mm rim width, 50 mm rim depth, 100x12 thru axle, Rear: Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 142x12 thru axle
Tires
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
Brakes
Brakes
SRAM Force eTap AXS hydraulic disc
Cockpit
Stem
Size: 47, 50, 52, 54, Trek Madone aero, invisible cable routing, 7-degree, 90 mm length; Size: 56, 58, Trek Madone aero, invisible cable routing, 7-degree, 100 mm length; Size: 60, 62, Trek Madone aero, invisible cable routing, 7-degree, 110 mm length
Handlebar
Size: 47, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 38 cm width; Size: 50, 52, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 40 cm width; Size: 54, 56, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 42 cm width; Size: 58, 60, 62, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 44 cm width
Seat
Saddle
Bontrager Aeolus Elite, austenite rails, 145 mm width
Seatpost
Size: 47, 50, 52, 54, 56, Madone aero carbon internal seat mast cap, integrated light mount, 25 mm offset, short length; Size: 58, 60, 62, Madone aero carbon internal seat mast cap, integrated light mount, 25 mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.37 mm | 1.38 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 573 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 52 mm | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 68 mm | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 514 mm | 528 mm | 540 mm | 548 mm | 570 mm | 588 mm | 608 mm | 627 mm |
| Reach | 380 mm | 385 mm | 390 mm | 393 mm | 398 mm | 403 mm | 406 mm | 410 mm |
| Top Tube Length | 519 mm | 528 mm | 541 mm | 550 mm | 566 mm | 581 mm | 593 mm | 605 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 424 mm | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 100 mm | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 418 mm | 418 mm | 419 mm |
| Wheelbase | 979 mm | 981 mm | 984 mm | 988 mm | 990 mm | 999 mm | 1008 mm | 1017 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 699 mm | 718 mm | 739 mm | 751 mm | 775 mm | 800 mm | 818 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview
Madone SLR 7 AXS Gen 6 is part of the Trek Madone model. There are 360 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Trek Madone SL 6 2021 is the most economical model, with a starting price of 4699$. Trek Madone SLR 9 Gen 6 2021 on the other hand costs 14333$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 10404$. Comparing this to the average Aero bike price, we see that the price is 147.07% more expensive.
Aero bikes average weight
Aero bikes weigh an average of 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 8.32 kg (18.34 lbs), the Madone SLR 7 AXS Gen 6 model is considerably heavier than average. In short, the average Aero bike weight is 13.35% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Madone SLR 7 AXS Gen 6 components
Fork material
Madone SLR 7 AXS Gen 6 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Madone SLR 7 AXS Gen 6 2021 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Madone SLR 7 AXS Gen 6 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 8 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
