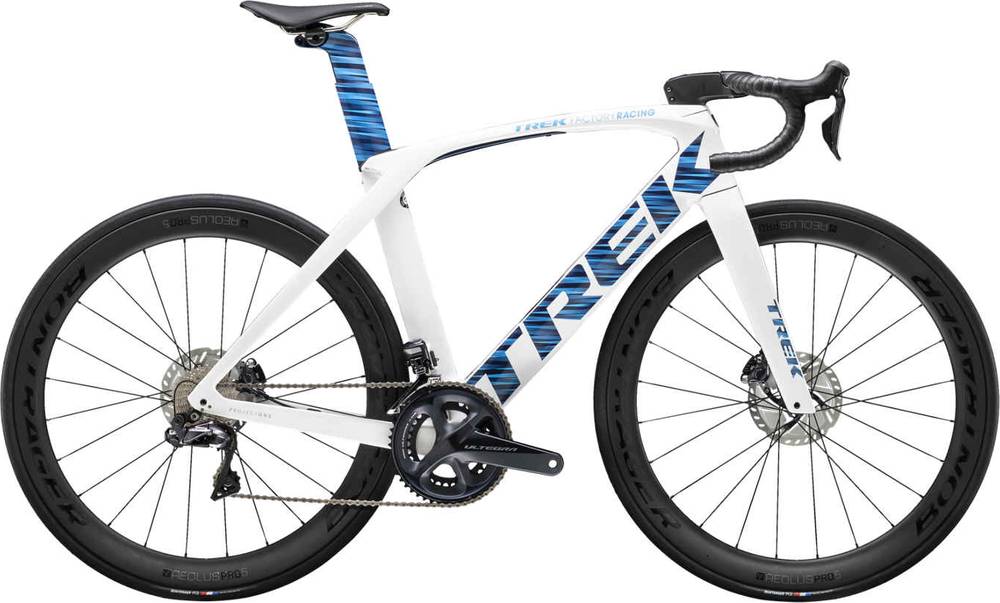

Trek Madone SLR 7 Disc 2020
2020 Road
Estimate price |
8,299$
Weight | 8.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control center, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Ultegra R8050 Di2, short cage, 30T max cog
Front Derailleur
Shimano Ultegra R8050 Di2, braze-on
Shift Levers
Shimano Ultegra Di2, R8070, 11-speed
Cassette
Shimano Ultegra R8000, 11-28, 11 speed
Crank
Size: 50, 52, Shimano Ultegra R8000, 50/34 (compact), 170mm length; Size: 54, 56, Shimano Ultegra R8000, 50/34 (compact), 172.5mm length; Size: 58, 60, 62, Shimano Ultegra R8000, 50/34 (compact), 175mm length
Bottom Bracket
Trek BB90
Chain
Shimano Ultegra HG701, 11-speed
Wheels
Rims
Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 100x12 thru axle
Tires
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Brakes
Brakes
Shimano Ultegra hydraulic disc, flat mount
Disk Rotors
Shimano RT800, 160mm, centerlock
Cockpit
Stem
Size: 50, 52, 54, Trek Madone aero, invisible cable routing, 7 degree, 90mm length; Size: 56, 58, Trek Madone aero, invisible cable routing, 7 degree, 100mm length; Size: 60, 62, Trek Madone aero, invisible cable routing, 7 degree, 110mm length
Handlebar
Size: 50, 52, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 60, 62, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 44cm width
Seat
Saddle
Bontrager Aeolus Elite, austenite rails, 145mm width
Seatpost
Size: 50, 52, 54, 56, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, short length; Size: 58, 60, 62, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.4 mm | 1.44 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 523 mm | 535 mm | 543 mm | 565 mm | 583 mm | 603 mm | 622 mm |
| Reach | 380 mm | 385 mm | 388 mm | 393 mm | 398 mm | 401 mm | 405 mm |
| Top Tube Length | 523 mm | 536 mm | 545 mm | 561 mm | 576 mm | 588 mm | 600 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 413 mm | 413 mm | 414 mm |
| Wheelbase | 976 mm | 979 mm | 983 mm | 985 mm | 994 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 713 mm | 734 mm | 746 mm | 770 mm | 795 mm | 813 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 162 cm | 167 cm | 172 cm | 178 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 196 cm |
Model Overview
Madone SLR 7 Disc completes the Trek Madone model. 360 bikes variations carry this model name so far. You can easily view all of the Trek Madone bikes models from 2020, here.
Model range prices
Trek Madone SL 6 2020 is the most economical model, with a starting price of 4699$. Trek Madone SLR 9 Disc eTap 2020 on the other hand costs 12499$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek Madone SLR 7 Disc price was 8299$. Comparing the average cost of an Aero bike to this one, you will see that Madone SLR 7 Disc price is 97.08% more expensive.
Average weight for Aero bikes
Aero bikes have an average weight of 7.34 kg (16.18 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Madone SLR 7 Disc weighs 8.1 kg (17.86 lbs) and is considerably heavier than the average. In other words, this model is 10.35% heavier than the average Aero bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Madone SLR 7 Disc components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Madone SLR 7 Disc 2020 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Madone SLR 7 Disc has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Madone SLR 7 Disc comes in 7 sizes, that range from 157 cm – 196 cm (5.15 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
