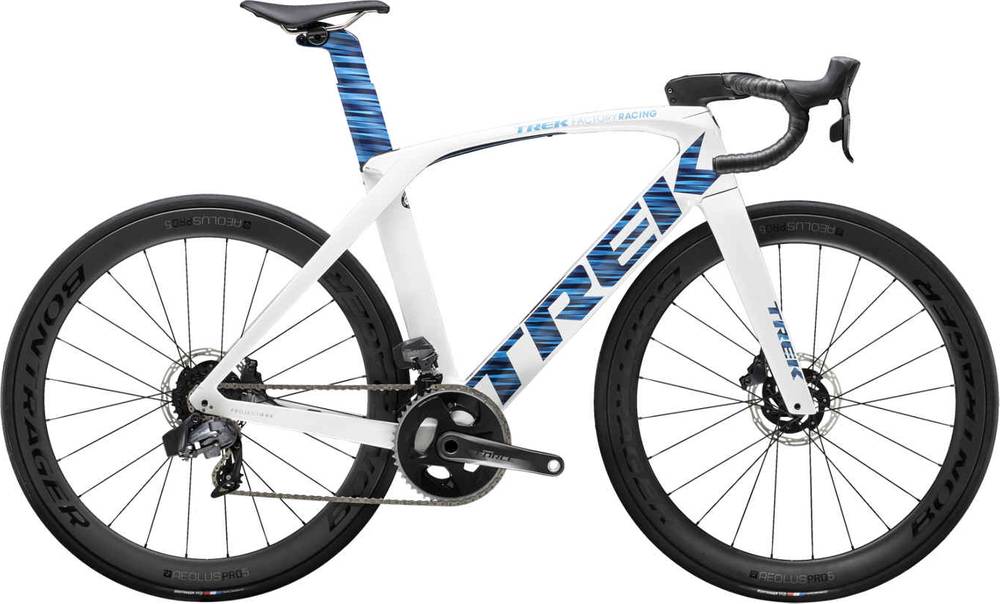

Trek Madone SLR 7 Disc eTap 2020
2020 Road
Estimate price |
8,499$
Weight | 8.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
158cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control center, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Drivetrain
Rear Derailleur
SRAM Force eTap AXS, Orbit chain management, 33T max cog
Front Derailleur
SRAM Force eTap AXS, braze-on
Shift Levers
SRAM Force eTap AXS, 12 speed
Cassette
SRAM Force XG-1270, 10-28, 12 speed
Crank
Size: 50, 52, SRAM Force, 48/35, 24mm spindle, 170mm length; Size: 54, 56, SRAM Force, 48/35, 24mm spindle, 172.5mm length; Size: 58, 60, 62, SRAM Force, 48/35, 24mm spindle, 175mm length
Bottom Bracket
BB90
Chain
SRAM Force, 12 speed
Wheels
Rims
Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 100x12 thru axle
Tires
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Brakes
Brakes
SRAM Force eTap AXS hydraulic disc, flat mount
Disk Rotors
SRAM CenterLine X, CenterLock, round edge, 160 mm
Cockpit
Stem
Size: 50, 52, 54, Trek Madone aero, invisible cable routing, 7 degree, 90mm length; Size: 56, 58, Trek Madone aero, invisible cable routing, 7 degree, 100mm length; Size: 60, 62, Trek Madone aero, invisible cable routing, 7 degree, 110mm length
Handlebar
Size: 50, 52, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 60, 62, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 44cm width
Seat
Saddle
Bontrager Aeolus Elite, austenite rails, 145mm width
Seatpost
Size: 50, 52, 54, 56, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, short length; Size: 58, 60, 62, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.4 mm | 1.44 mm | 1.46 mm | 1.5 mm | 1.54 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 523 mm | 535 mm | 543 mm | 565 mm | 583 mm | 603 mm | 622 mm |
| Reach | 380 mm | 385 mm | 388 mm | 393 mm | 398 mm | 401 mm | 405 mm |
| Top Tube Length | 523 mm | 536 mm | 545 mm | 561 mm | 576 mm | 588 mm | 600 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 413 mm | 413 mm | 414 mm |
| Wheelbase | 976 mm | 979 mm | 983 mm | 985 mm | 994 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 713 mm | 734 mm | 746 mm | 770 mm | 795 mm | 813 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Madone SLR 7 Disc eTap belongs to the Trek Madone model. 360 bikes variations carry this model name so far. You can easily view all of the Trek Madone bikes models from 2020, here.
Model range prices
Trek Madone SL 6 2020 is the most economical model, with a starting price of 4699$. Trek Madone SLR 9 Disc eTap 2020 on the other hand costs 12499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 8499$. Doing a quick comparison, we notice that Madone SLR 7 Disc eTap price is 101.83% higher than the average cost of an Aero bike.
Average weight for Aero bikes
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, Madone SLR 7 Disc eTap has a weight of 8.2 kg (18.08 lbs). In other words, this model is 11.72% heavier than the average Aero bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Madone SLR 7 Disc eTap components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Madone SLR 7 Disc eTap bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Madone SLR 7 Disc eTap comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 7 sizes. They vary from 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
