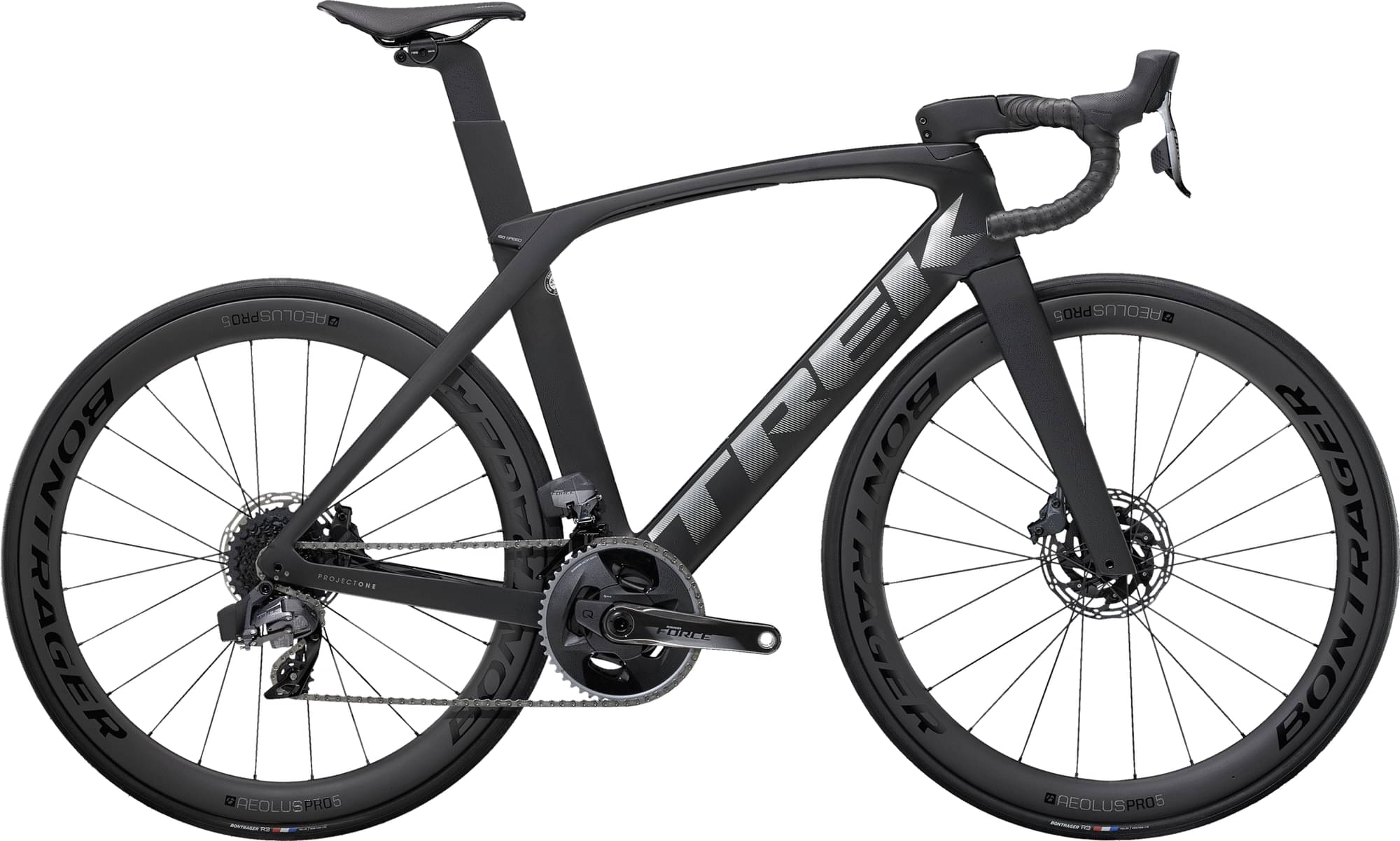

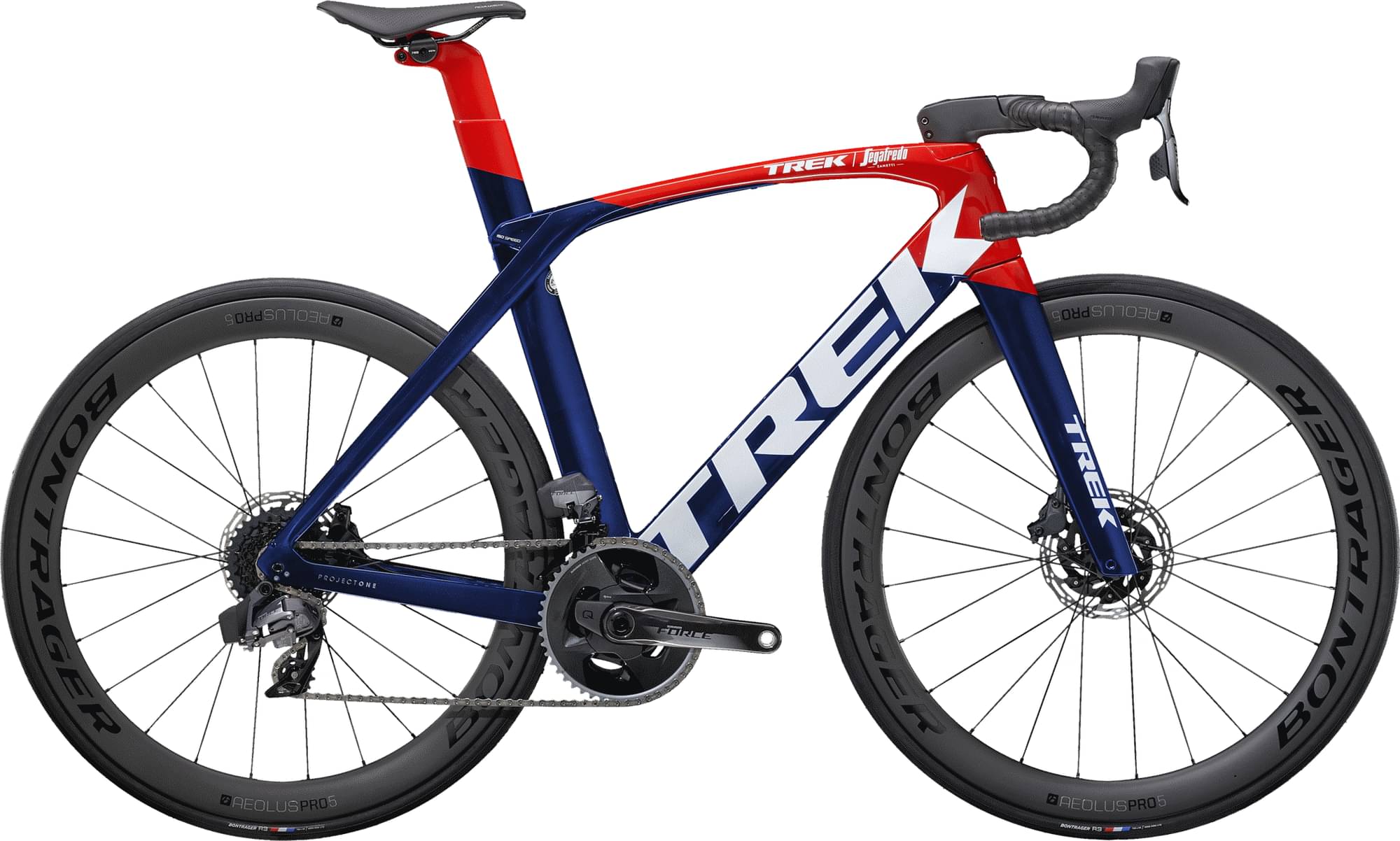

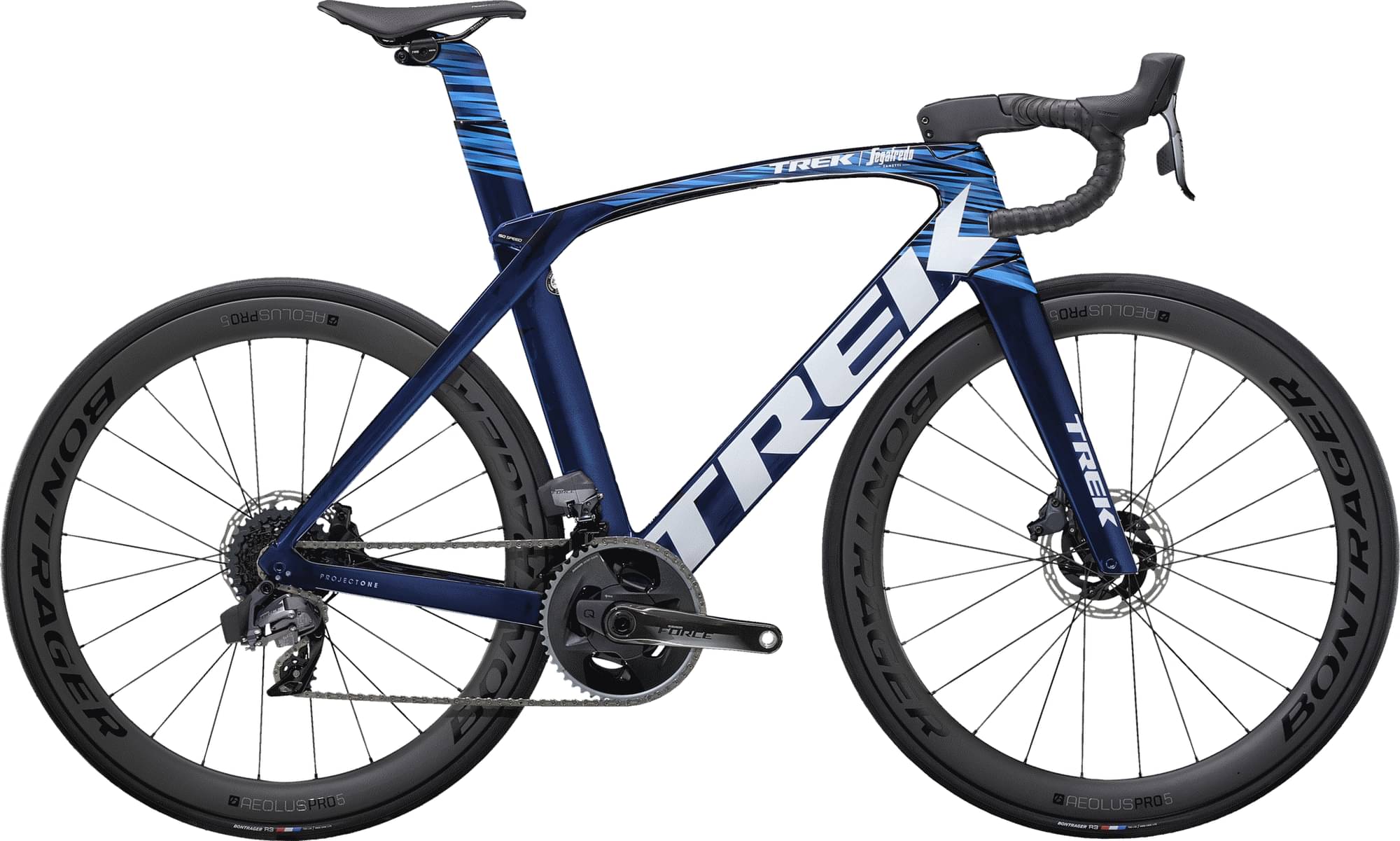

Trek Madone SLR 7 eTap Gen 6 2021
2021 Road
Estimate price |
7,499$
Weight | 8.32 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Drivetrain
Rear Derailleur
SRAM Force eTap AXS, 36T max cog
Front Derailleur
SRAM Force eTap AXS, braze-on
Shift Levers
SRAM Force eTap AXS, 12 speed
Cassette
SRAM Force XG-1270, 10-33, 12 speed
Crank
Size: 47, SRAM Force AXS Power Meter, 48/35, DUB, 165mm length; Size: 50, 52, SRAM Force AXS Power Meter, 48/35, DUB, 170mm length; Size: 54, 56, SRAM Force AXS Power Meter, 48/35, DUB, 172.5mm length; Size: 58, 60, 62, SRAM Force AXS Power Meter, 48/35, DUB, 175mm length
Bottom Bracket
SRAM DUB, T47 threaded, internal bearing
Chain
SRAM Force, 12 speed
Wheels
Rims
Front: Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 100x12 thru axle, Rear: Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 142x12 thru axle
Tires
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Brakes
Brakes
SRAM Force eTap AXS hydraulic disc, flat mount
Cockpit
Stem
Size: 47, 50, 52, 54, Trek Madone aero, invisible cable routing, 7 degree, 90mm length; Size: 56, 58, Trek Madone aero, invisible cable routing, 7 degree, 100mm length; Size: 60, 62, Trek Madone aero, invisible cable routing, 7 degree, 110mm length
Handlebar
Size: 47, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 38cm width; Size: 50, 52, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 60, 62, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop, 44cm width
Seat
Saddle
Bontrager Aeolus Elite, austenite rails, 145mm width
Seatpost
Size: 47, 50, 52, 54, 56, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, short length; Size: 58, 60, 62, Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.37 mm | 1.38 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 573 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 52 mm | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 68 mm | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 514 mm | 528 mm | 540 mm | 548 mm | 570 mm | 588 mm | 608 mm | 627 mm |
| Reach | 380 mm | 385 mm | 390 mm | 393 mm | 398 mm | 403 mm | 406 mm | 410 mm |
| Top Tube Length | 519 mm | 528 mm | 541 mm | 550 mm | 566 mm | 581 mm | 593 mm | 605 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 424 mm | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 100 mm | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 418 mm | 418 mm | 419 mm |
| Wheelbase | 979 mm | 981 mm | 984 mm | 988 mm | 990 mm | 999 mm | 1008 mm | 1017 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 699 mm | 718 mm | 739 mm | 751 mm | 775 mm | 800 mm | 818 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Madone SLR 7 eTap Gen 6 belongs to the Trek Madone model. Trek released 360 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Trek Madone SL 6 2021 is the most affordable bike of this model and has a price of 4699$. On the other hand, Trek Madone SLR 9 Gen 6 2021, is the most expensive and costs 14333$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Trek released this model in 2021, its price was 7499$. If we compare this with the average Aero bike cost we notice that the price is 78.08% more expensive.
Aero bikes average weight
If we make a quick analysis of the average weight of an Aero bike, we get 7.34 kg (16.18 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek Madone SLR 7 eTap Gen 6 it’s weighing 8.32 kg (18.34 lbs). At this weight, is considerably heavier than average. In conclusion, the average Aero bike weighs 13.35% less than Madone SLR 7 eTap Gen 6.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Trek Madone SLR 7 eTap Gen 6 2021, has a 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Madone SLR 7 eTap Gen 6 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Trek Madone SLR 7 eTap Gen 6 bike has 8 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
