Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Groupset X4, Altus -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
15.5"
156cm - 166cm
17.5"
163cm - 174cm
19"
171cm - 182cm
21"
179cm - 189cm
23"
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 aluminum, butted and hydroformed tubing, cold-forged dropouts & bottom bracket, G2 29" geometry
Drivetrain
Rear Derailleur
SRAM X.4
Front Derailleur
Shimano Altus
Shift Levers
SRAM X.4, 8 speed
Cassette
SRAM PG-820 11-32, 8 speed
Crank
Shimano Altus, 42/32/22
Pedals
Wellgo ATB, boron axle, alloy cage
Wheels
Rims
Formula DC20 front hub, Shimano M475 rear hub; Bontrager Ranger Disc 32-hole rims
Tires
Bontrager 29-2, 29x2.1"
Brakes
Brakes
Tektro Novela mechanical disc brakes, 6-bolt; 160mm rotors
Cockpit
Stem
Bontrager Approved
Handlebar
Bontrager Approved Big Sweep, 15 degree sweep
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Evoke 1
Seatpost
Bontrager SSR, 27.2mm, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

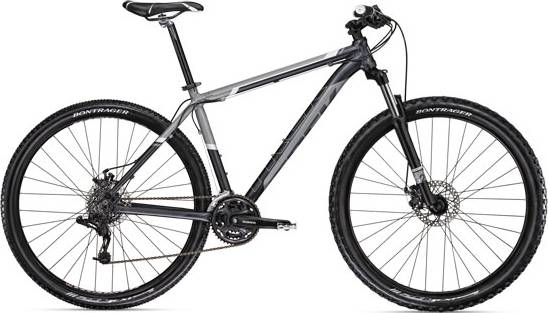

Marlin is a Trek Marlin model. 90 bikes variations carry this model name so far. You can easily view all of the Trek Marlin bikes models from 2010, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Marlin components
Wheels size
The Marlin 2010 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
