Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Groupset X4, Altus -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, butted & hydroformed tubing, cold-forged dropouts & bottom bracket, G2 Geometry
Drivetrain
Rear Derailleur
SRAM X4
Front Derailleur
Shimano Altus
Shift Levers
SRAM X4, 8 speed
Cassette
Shimano HG31 11-34, 8 speed
Crank
Shimano Altus M311, 42/32/22
Pedals
Wellgo ATB, boron axle, alloy cage
Wheels
Rims
Formula DC20 alloy front hub, Shimano M475 alloy rear hub; Bontrager AT-850 disc 29 32-hole rims
Tires
Bontrager 29-2, 29x2.1"
Brakes
Brakes
Tektro Novela mechanical disc brakes, 6-bolt, 160mm rotors
Cockpit
Stem
Bontrager Approved, 25.4mm
Handlebar
Bontrager Low Riser, 25.4mm, 5mm rise, 9 degree sweep
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Evoke 1
Seatpost
Bontrager SSR, 27.2mm, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview

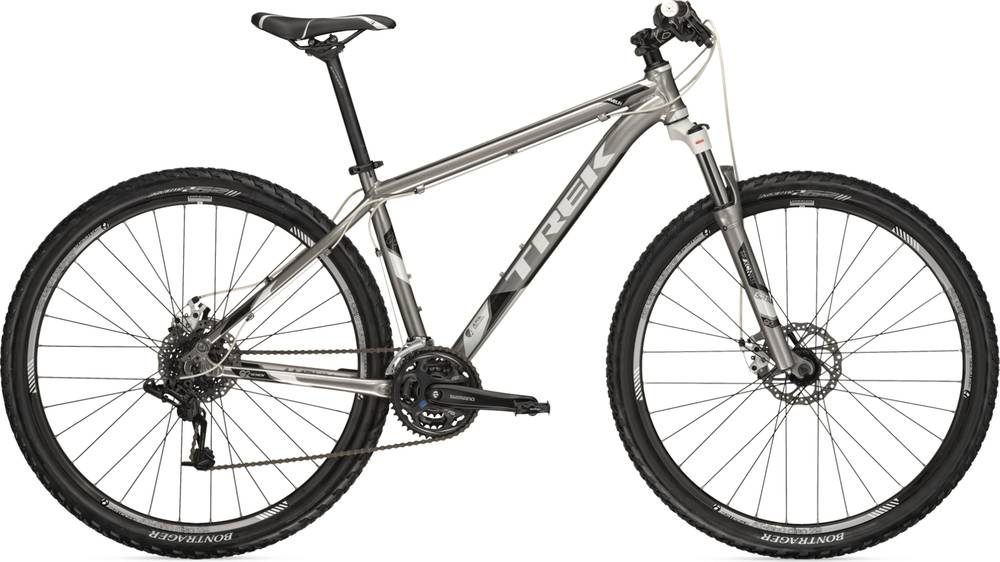

Marlin belongs to the Trek Marlin model. Trek launched 90 bikes of this model so far. Check out the entire range from 2012 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Marlin components
Wheels size
When leaving the production line, the Marlin model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Marlin has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
