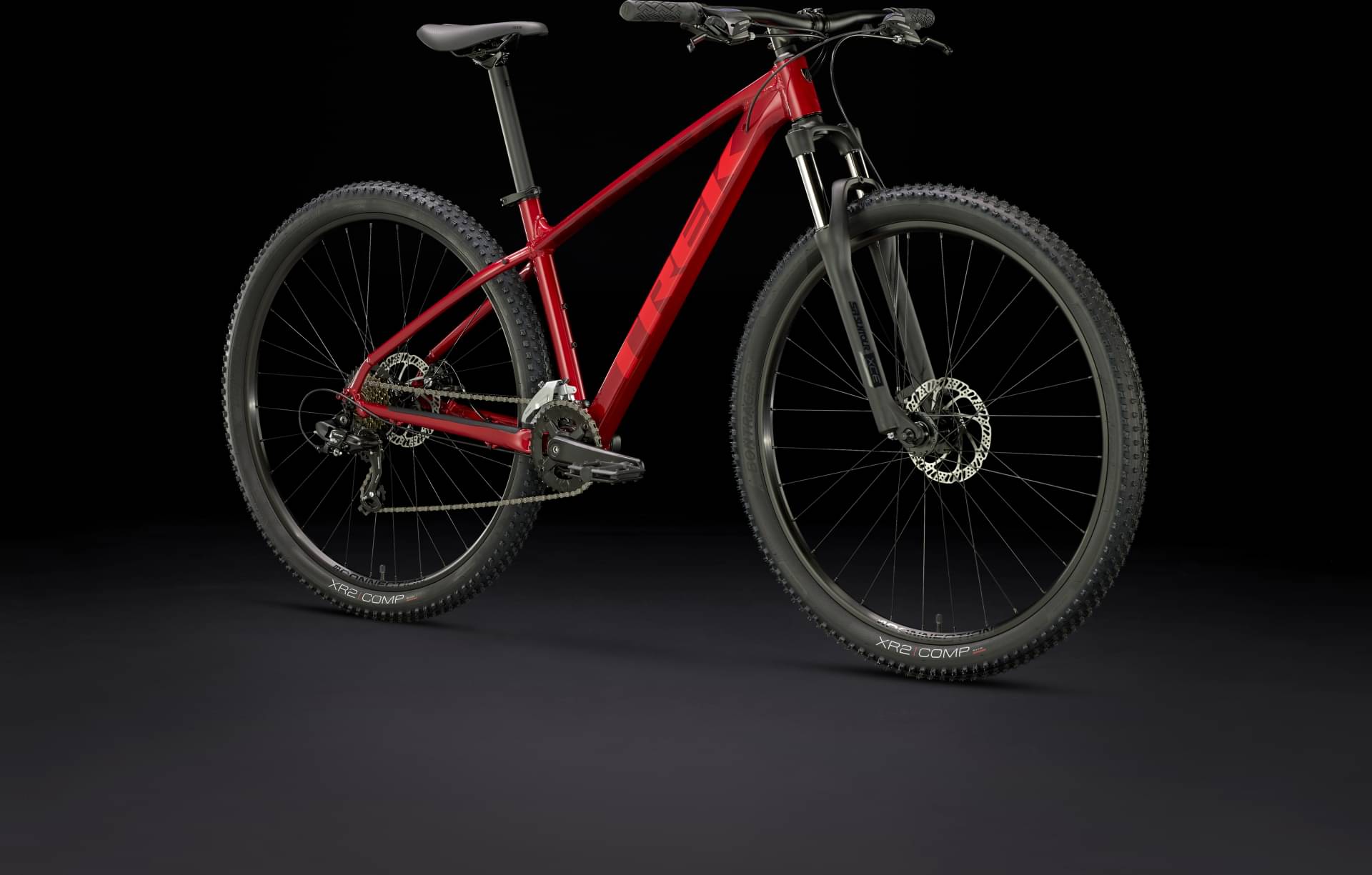

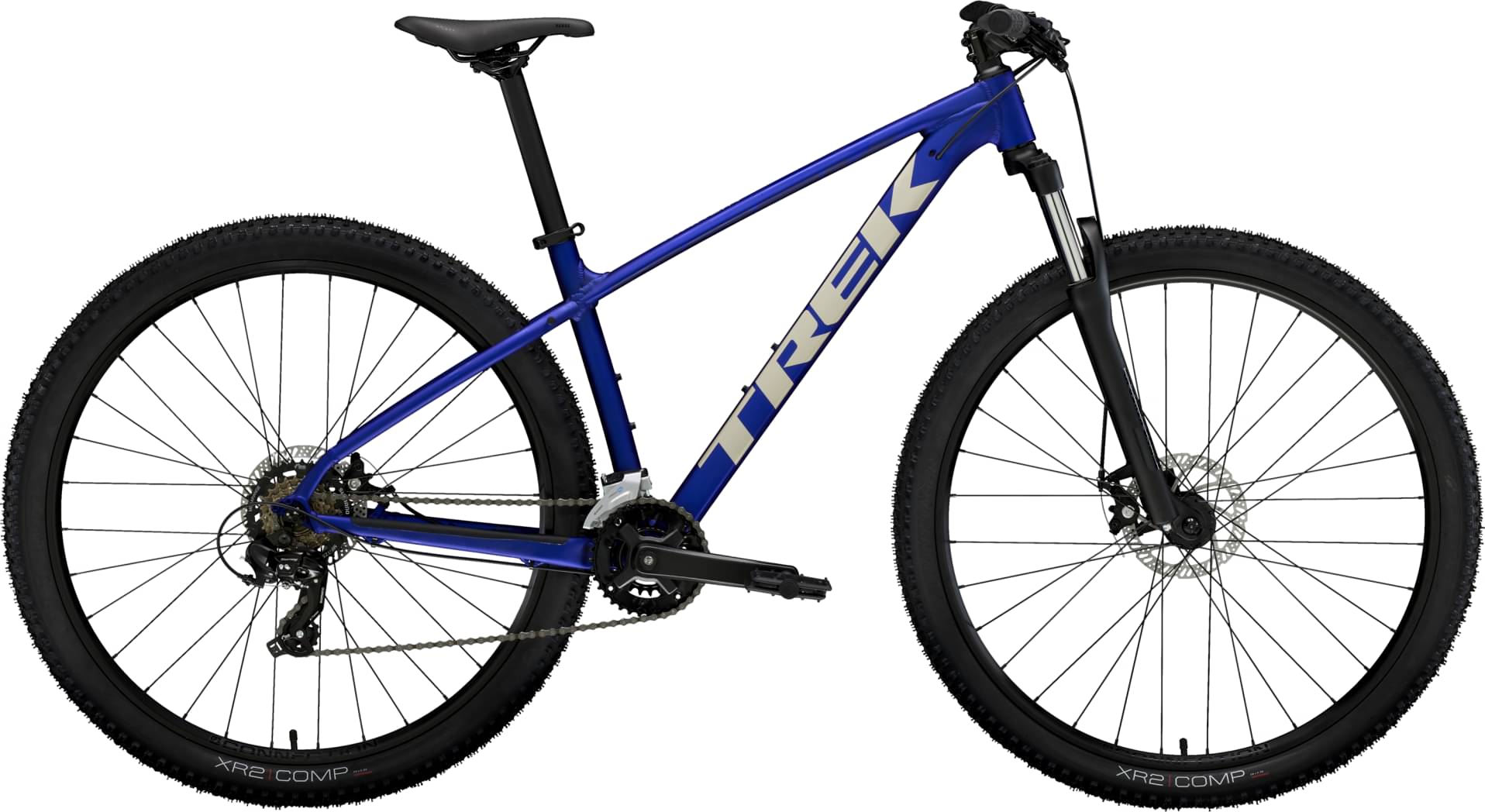

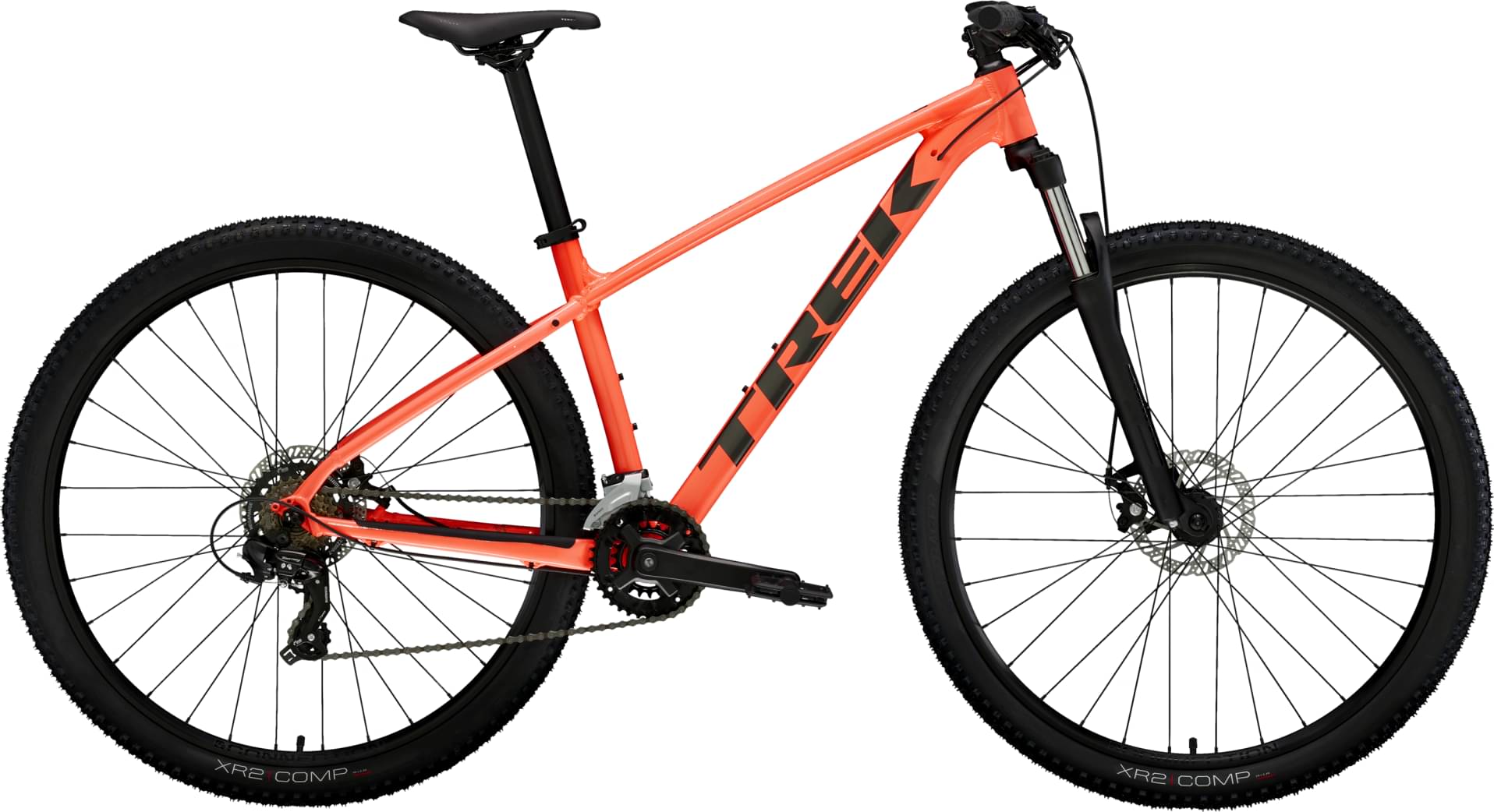

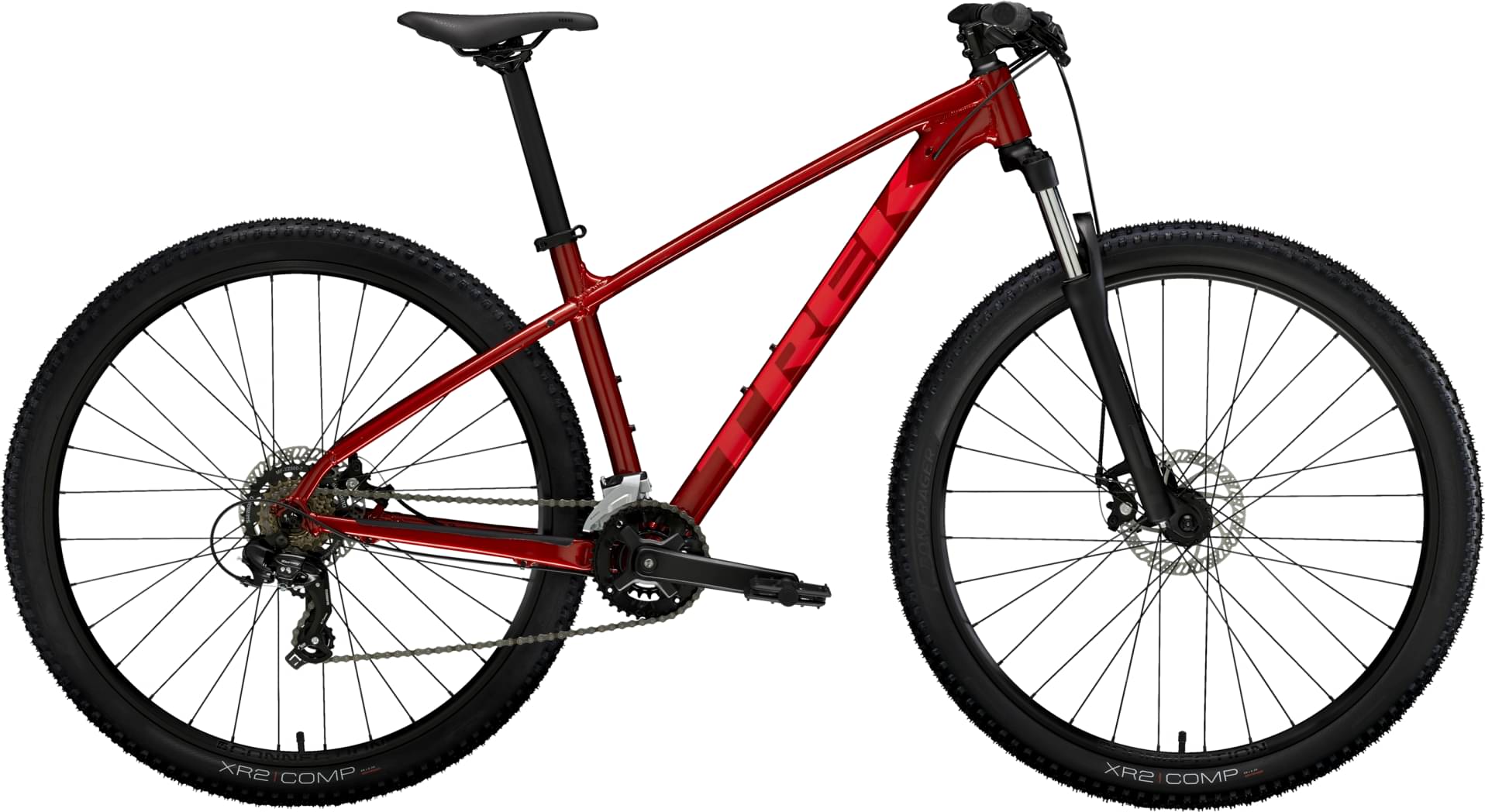

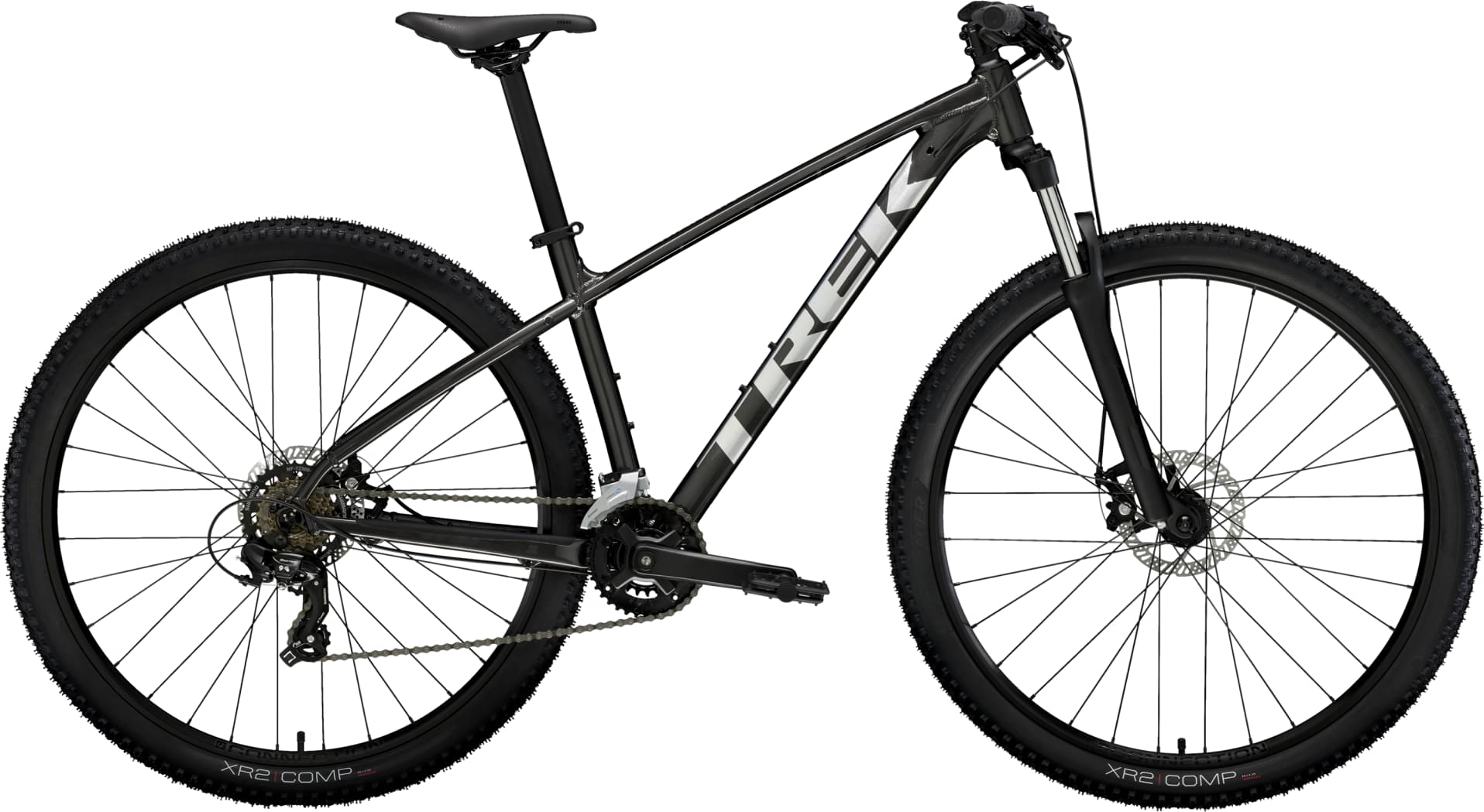

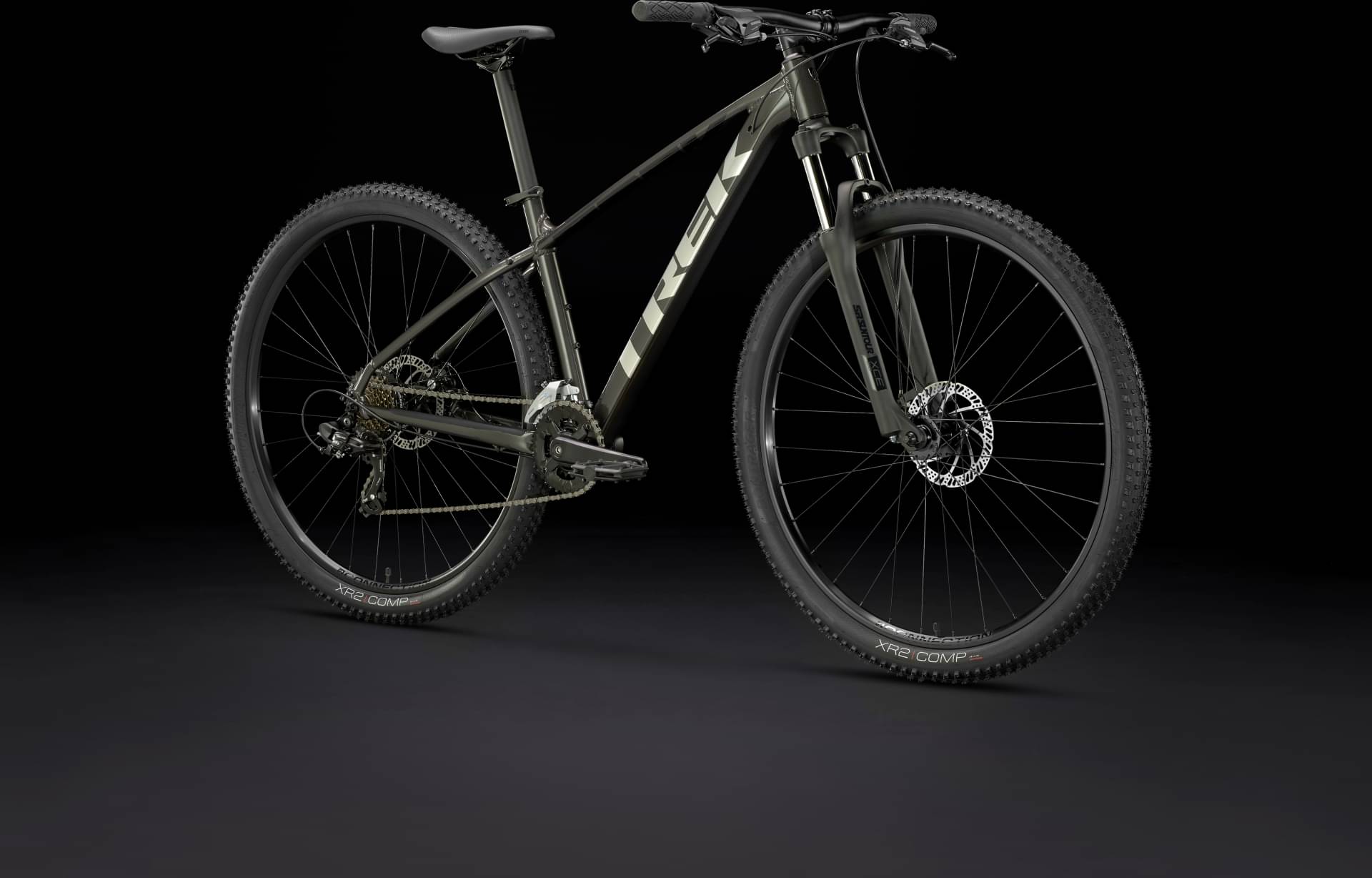

Trek Marlin 4 Gen 2 2024
2024 Mountain
Estimate price |
613$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 2 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
13.5"
145cm - 156cm
15.5"
154cm - 166cm
17.5"
164cm - 176cm
18.5"
173cm - 180cm
19.5"
177cm - 189cm
21.5"
187cm - 196cm
23"
194cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

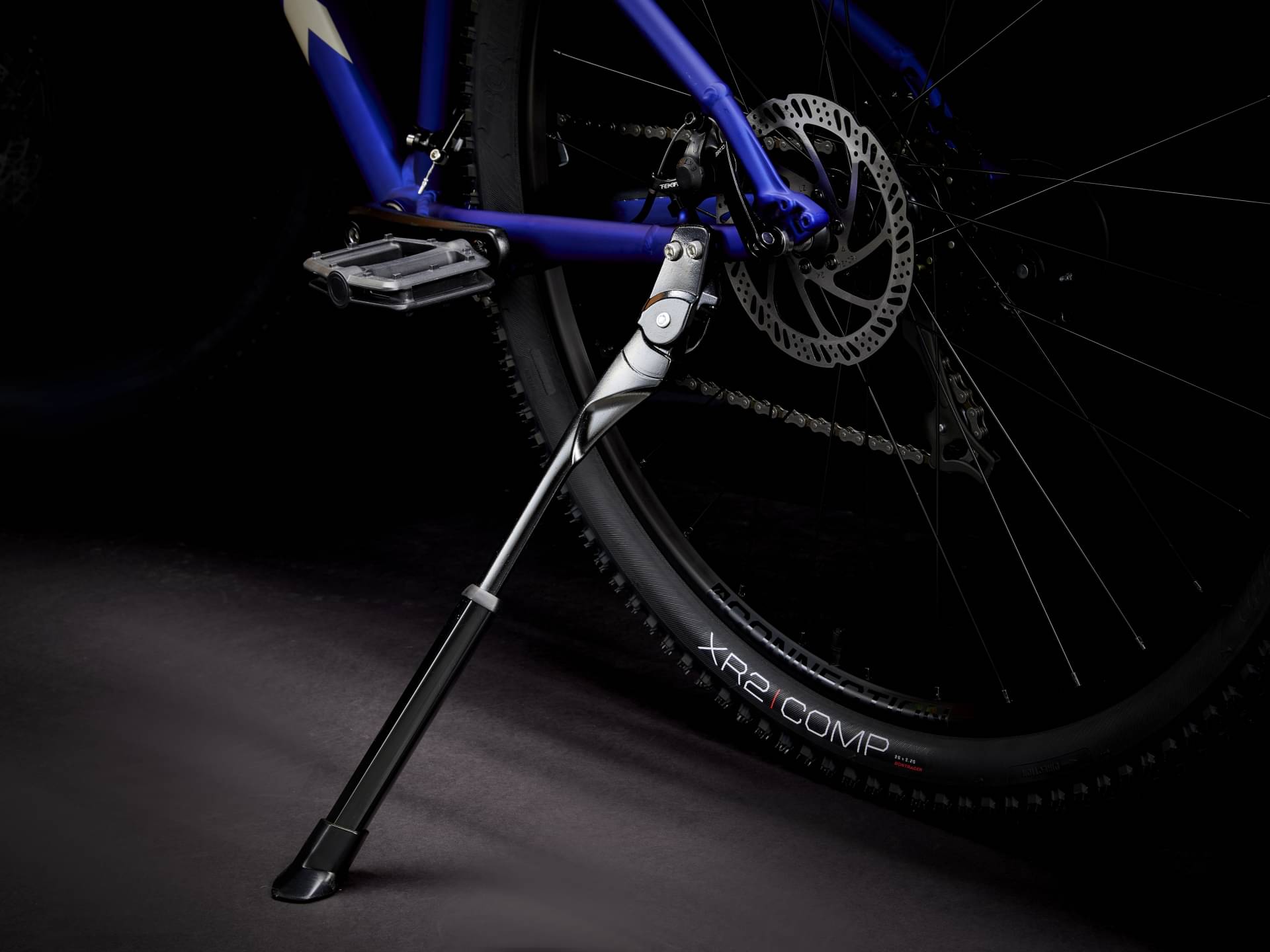

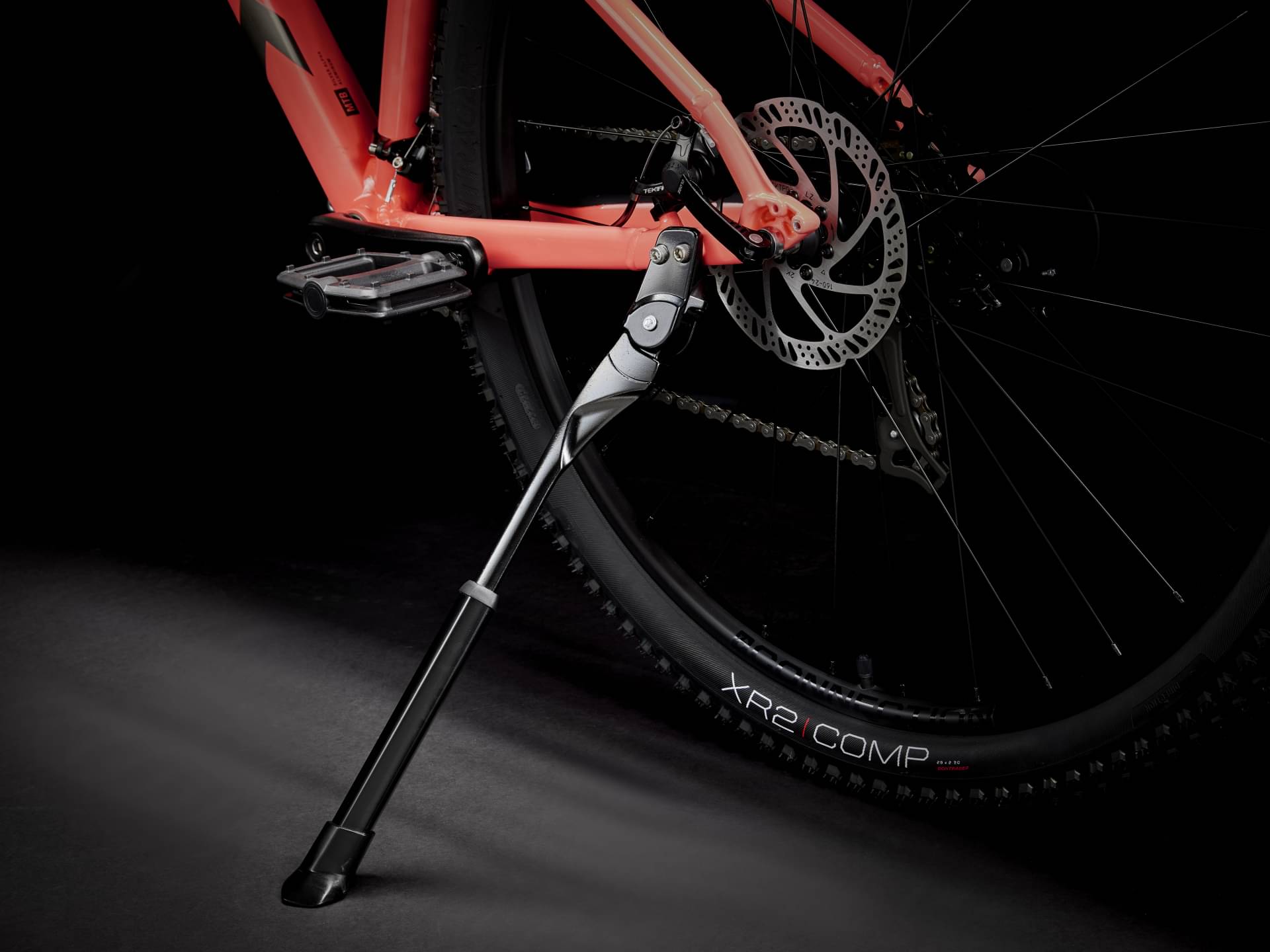

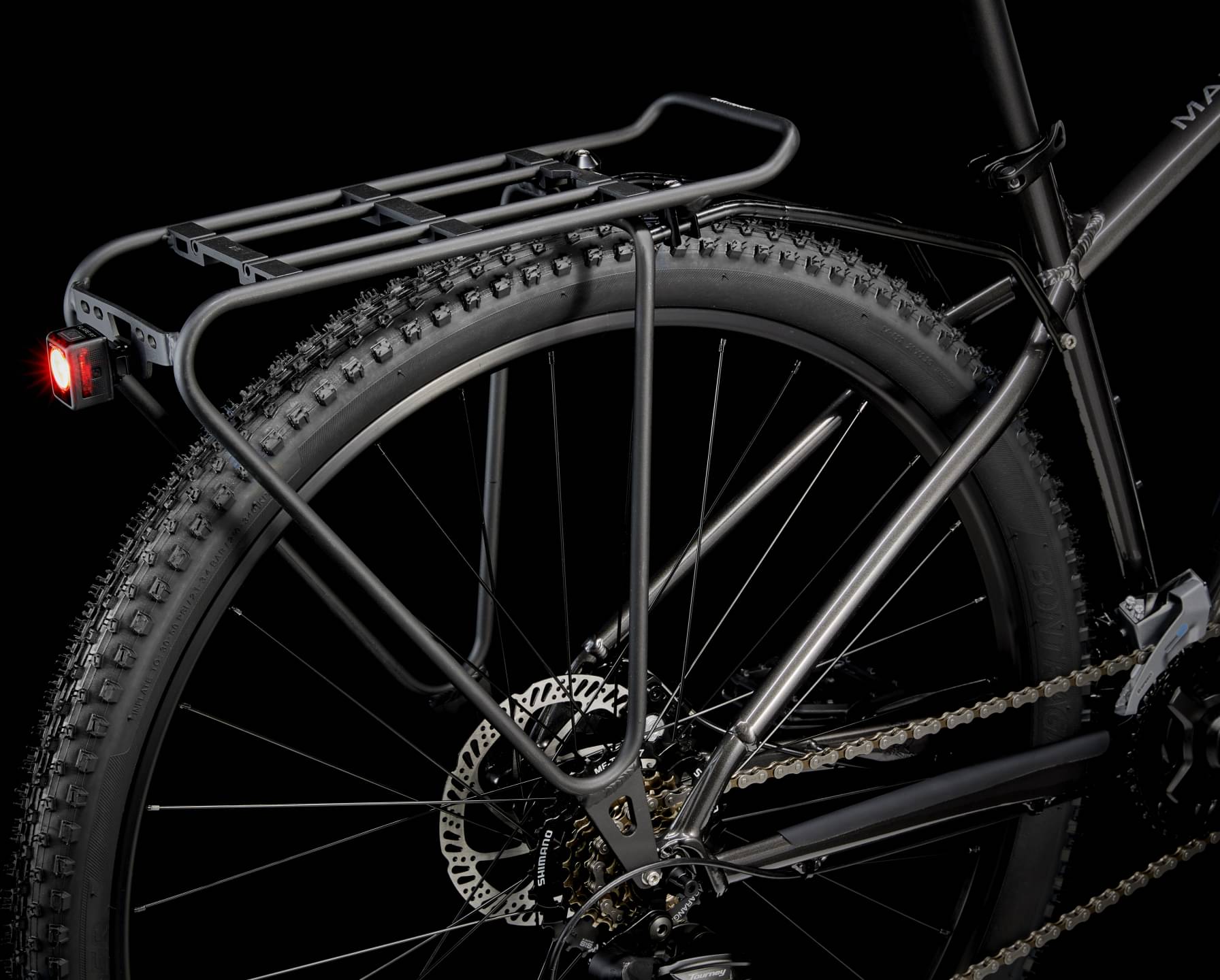

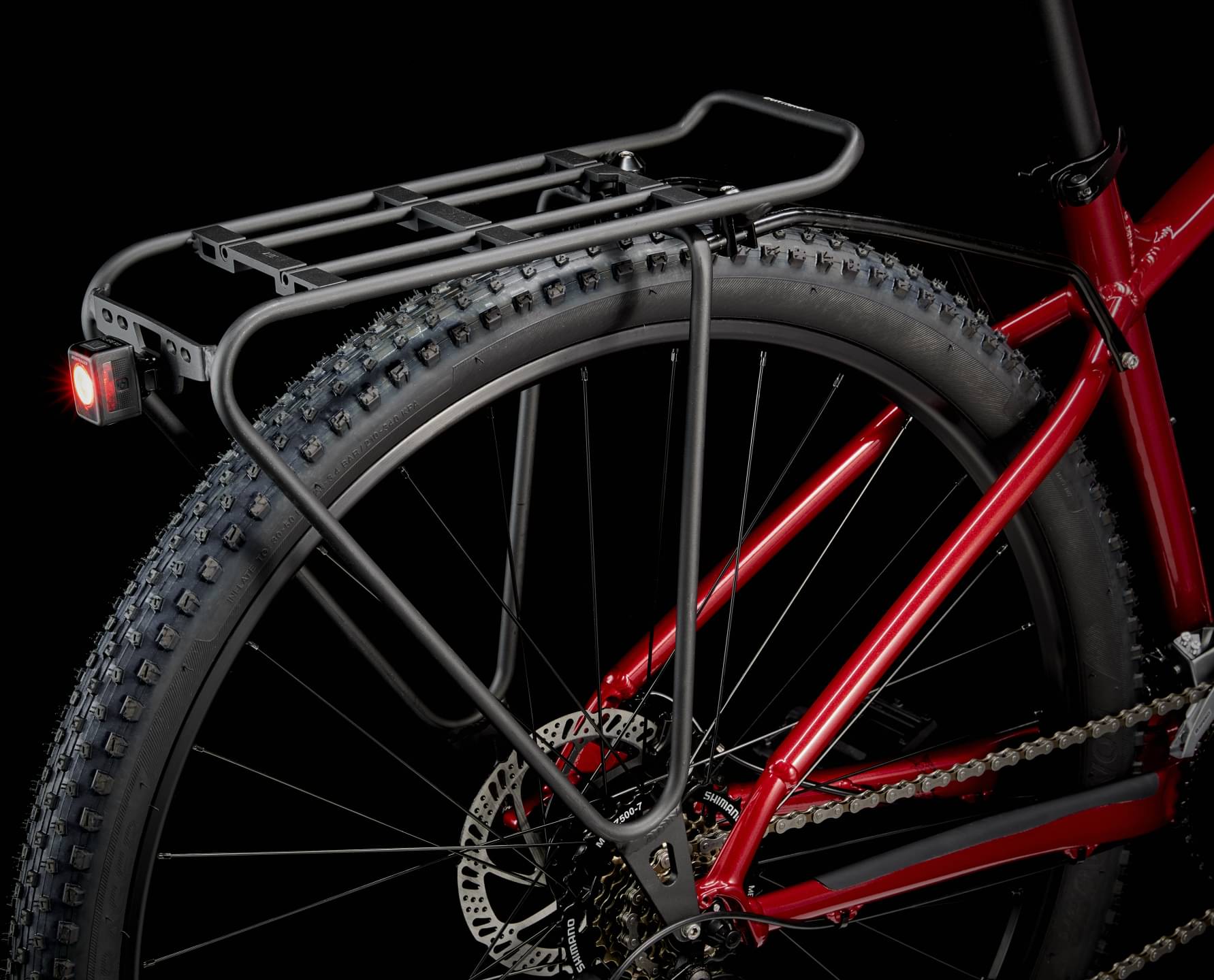

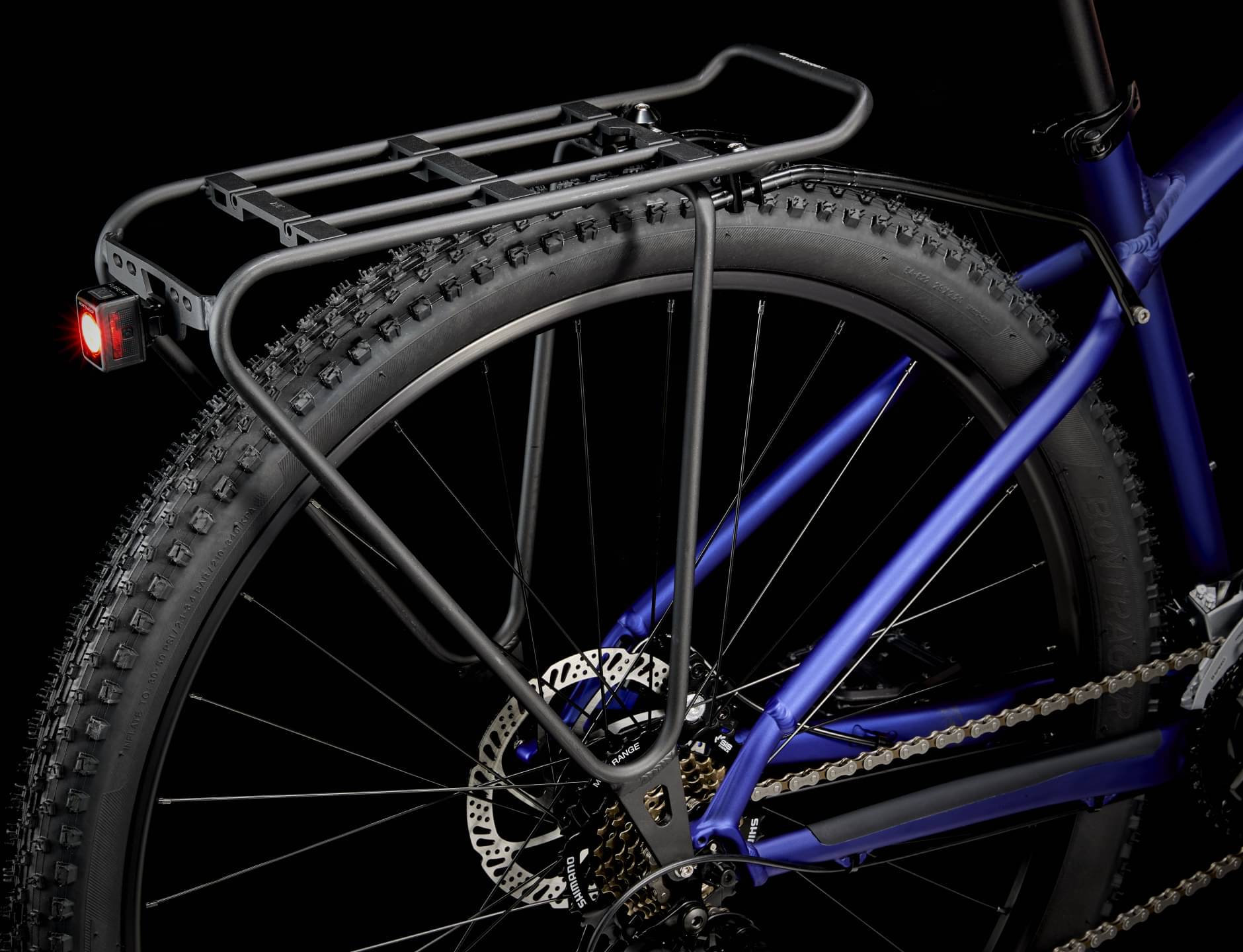

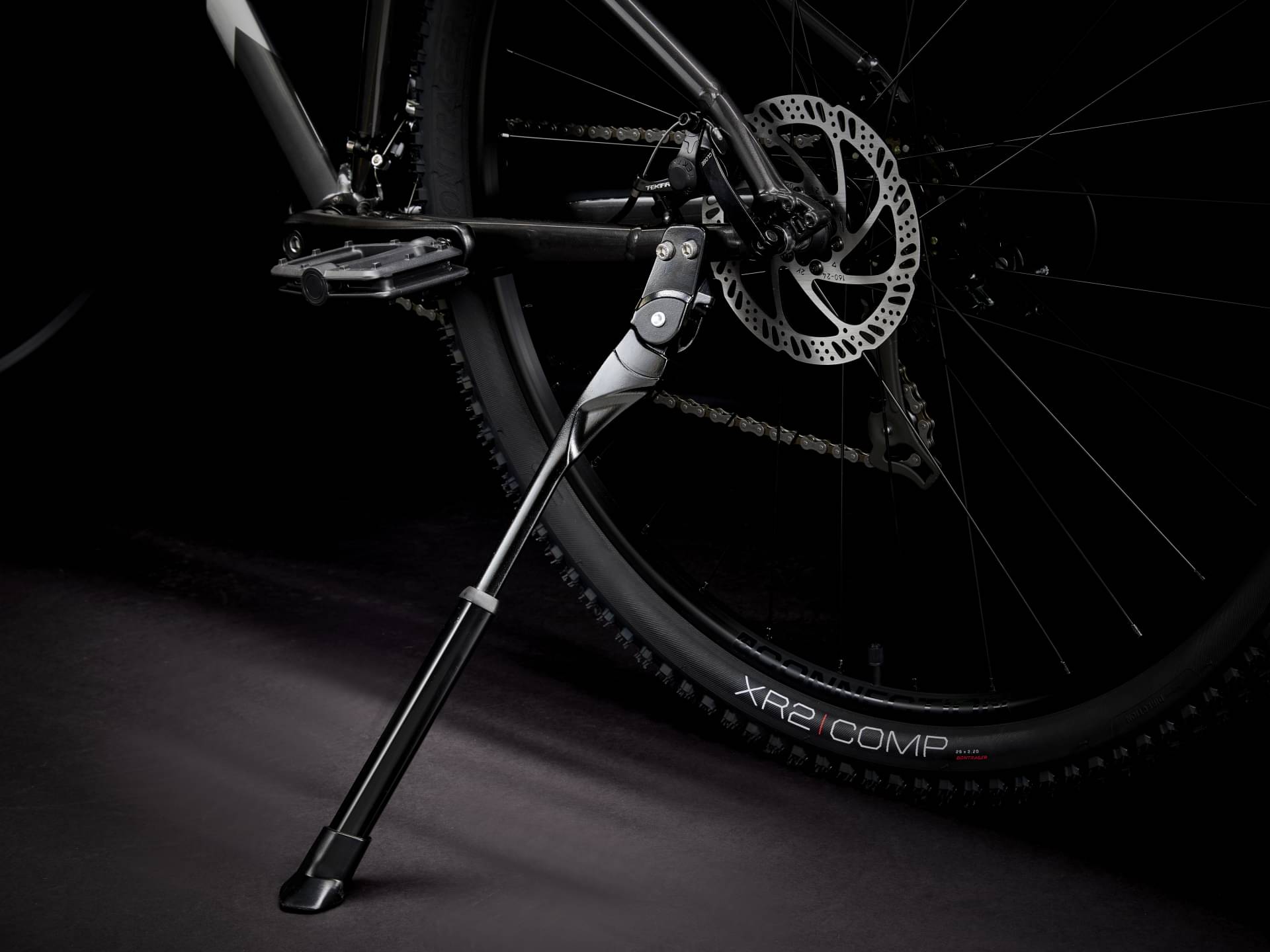

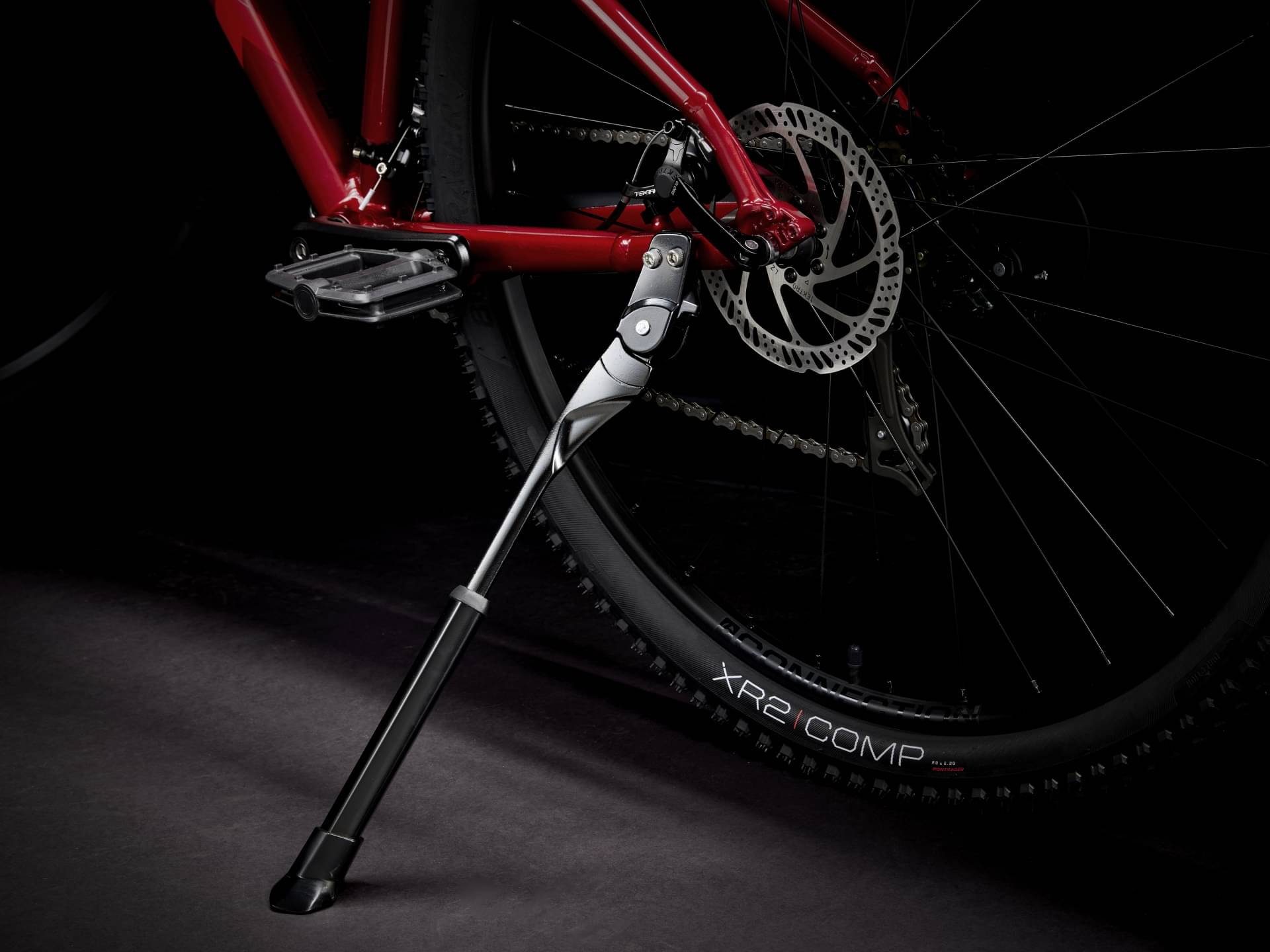

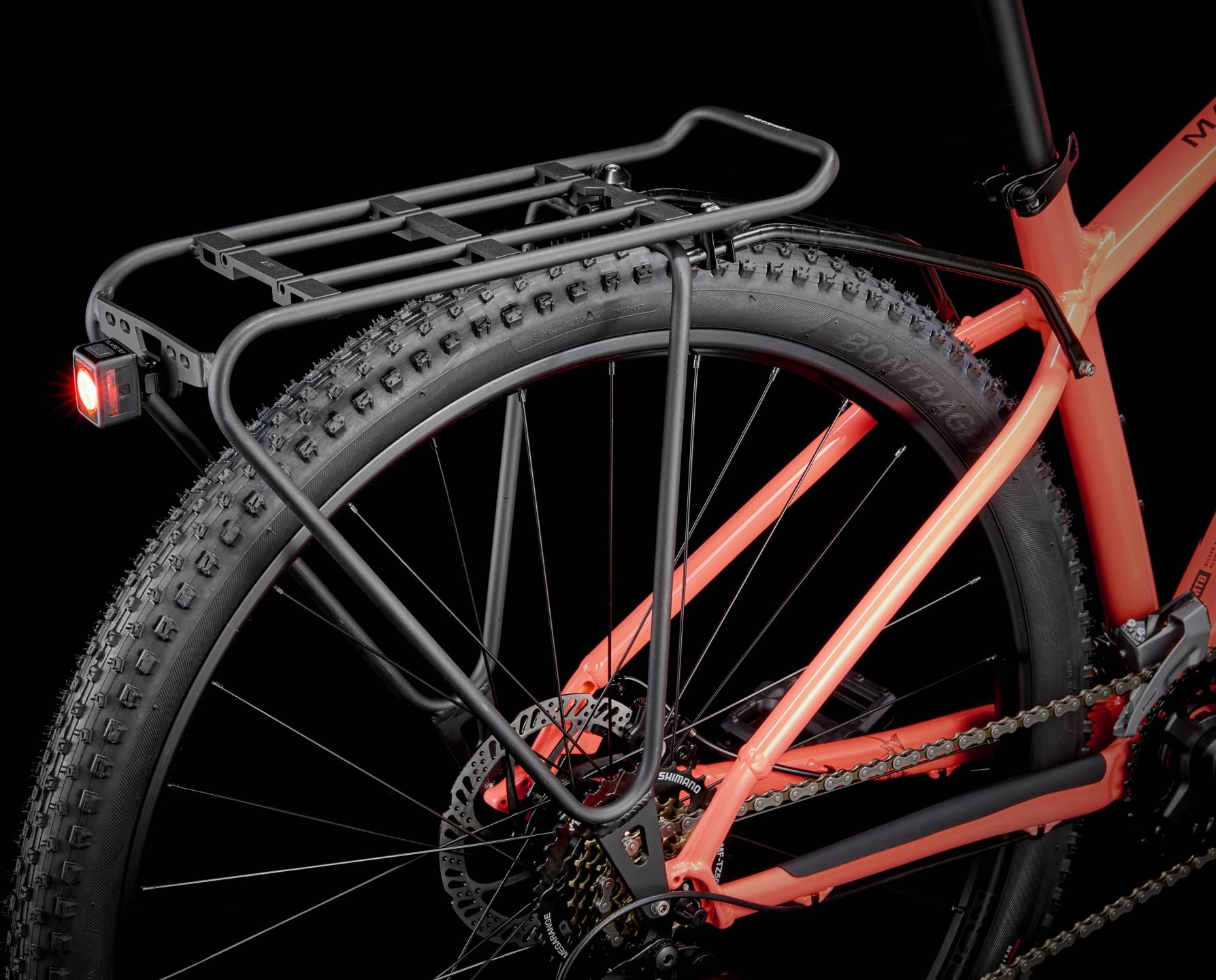

Size: XS, S, Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR; Size: M, ML, L, XL, XXL, Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR

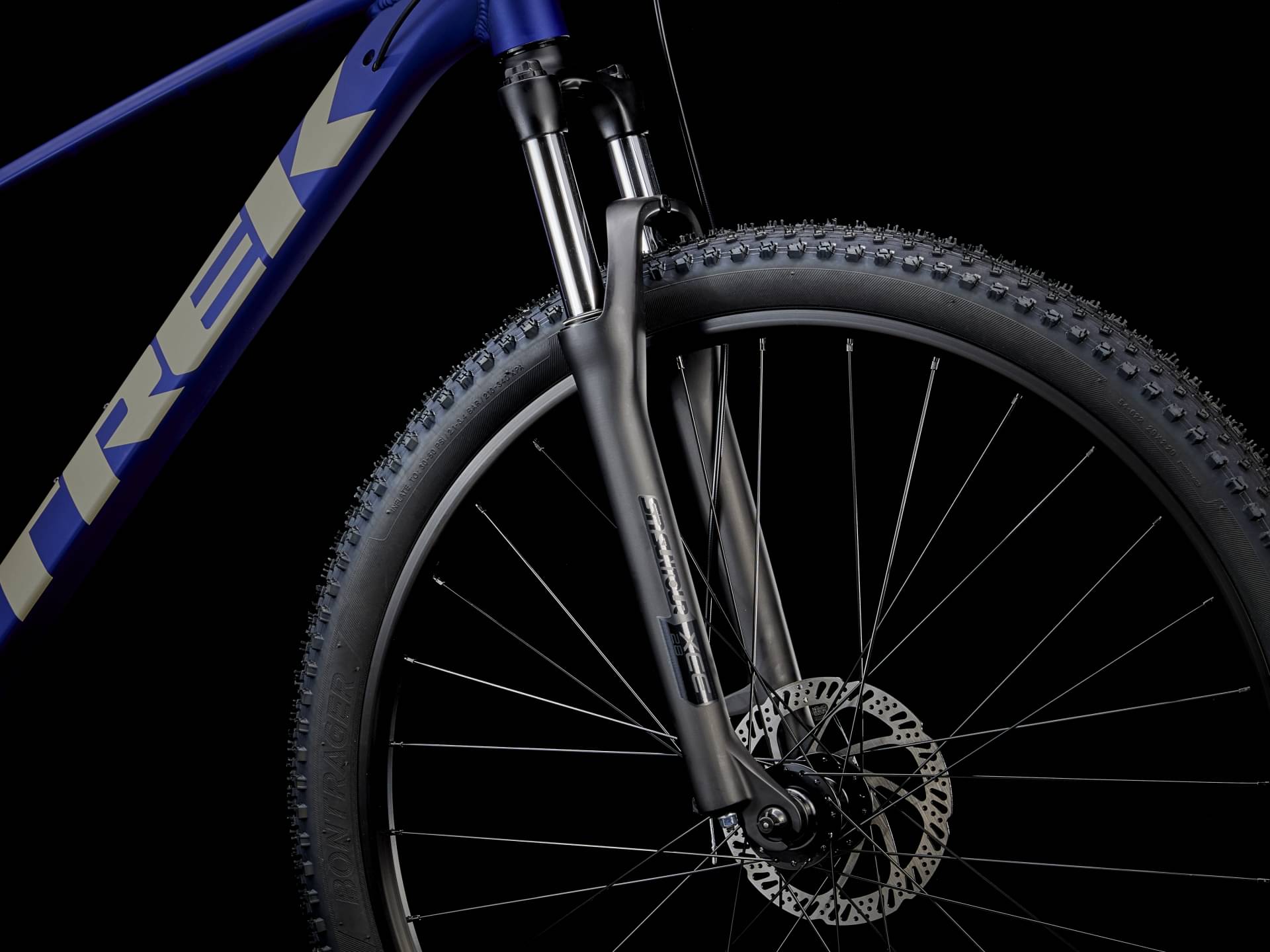

Suspension Fork
Size: XS, SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel; Size: S, SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel; Size: M, ML, L, XL, XXL, SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

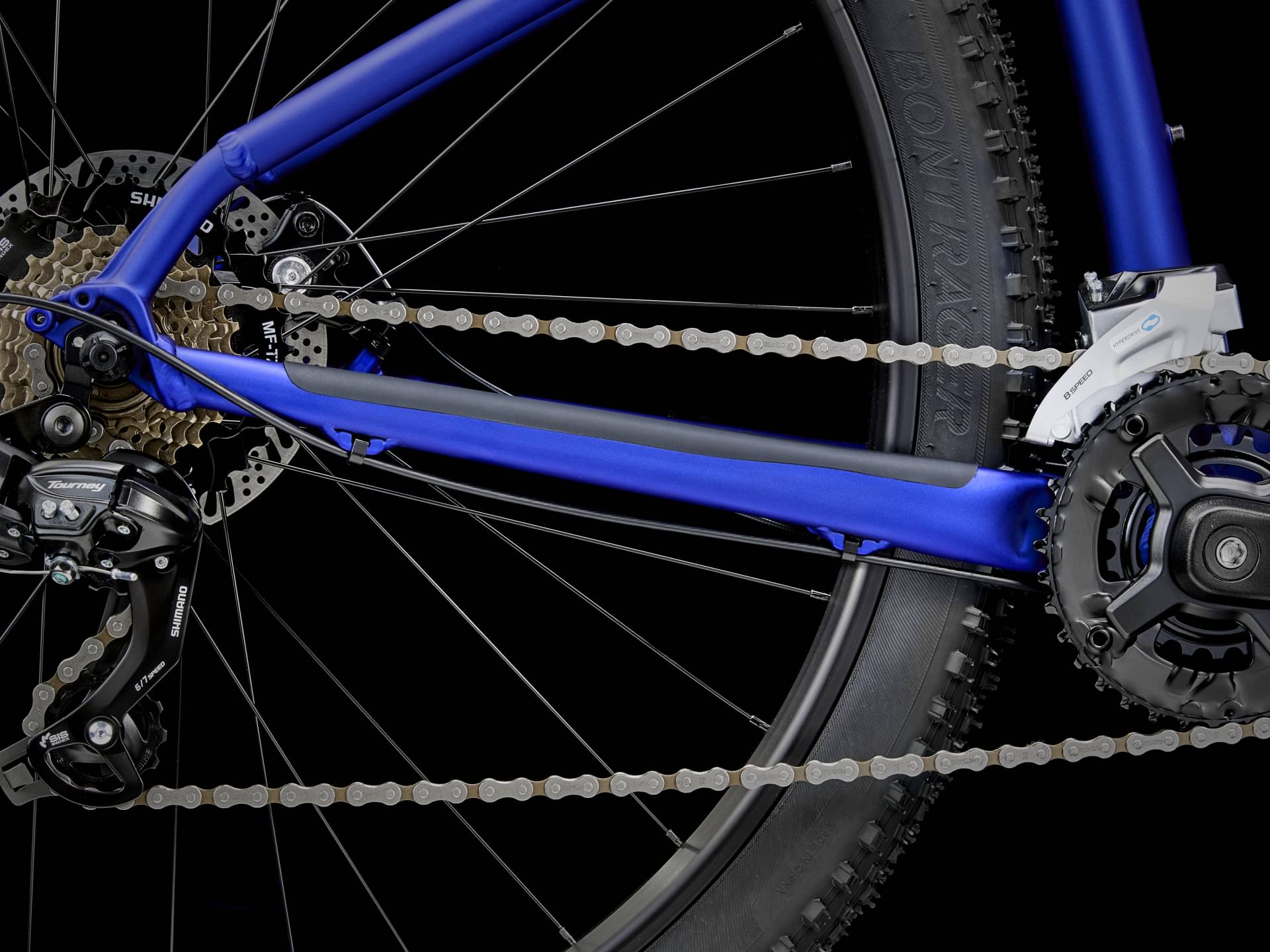

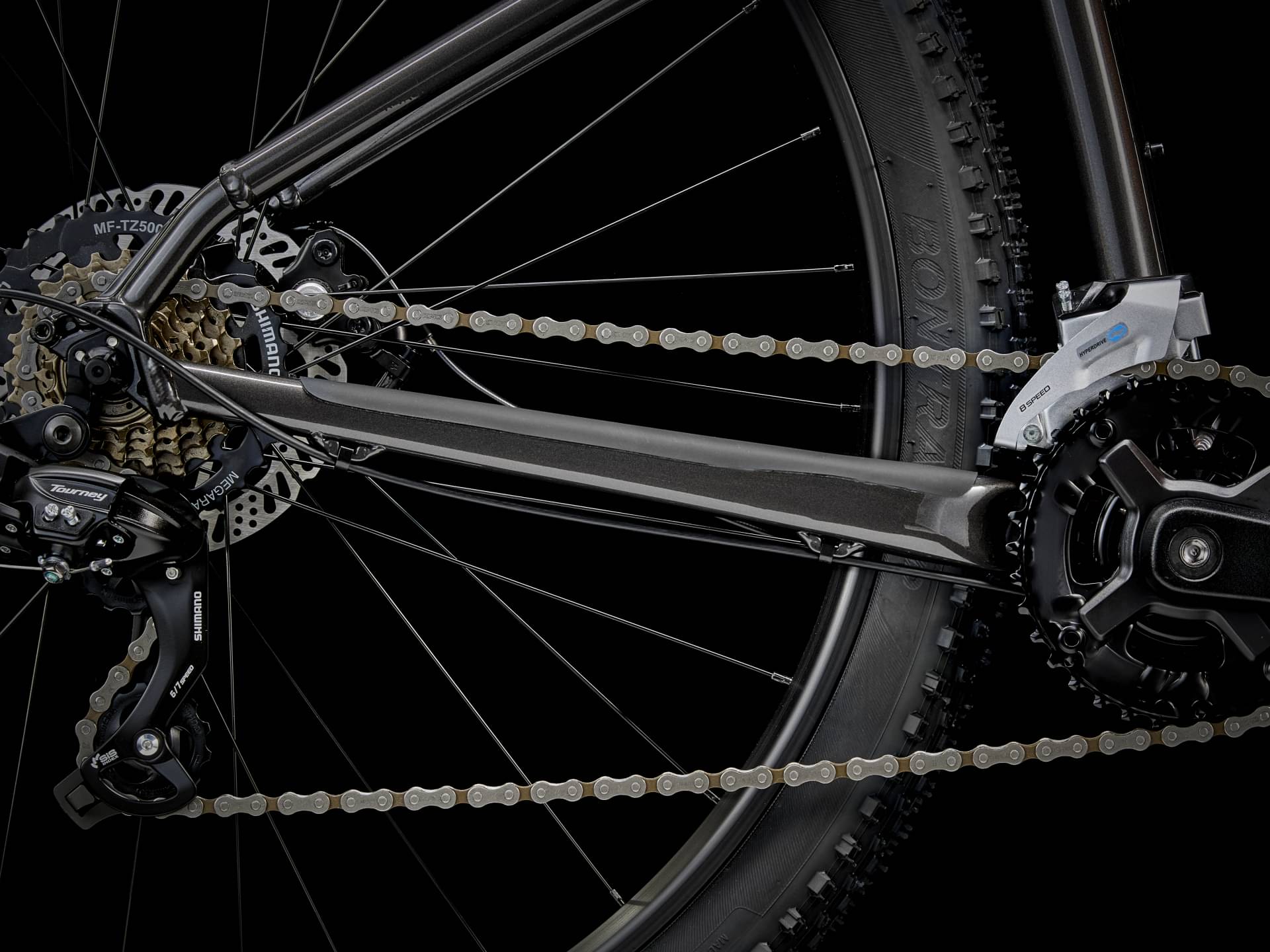

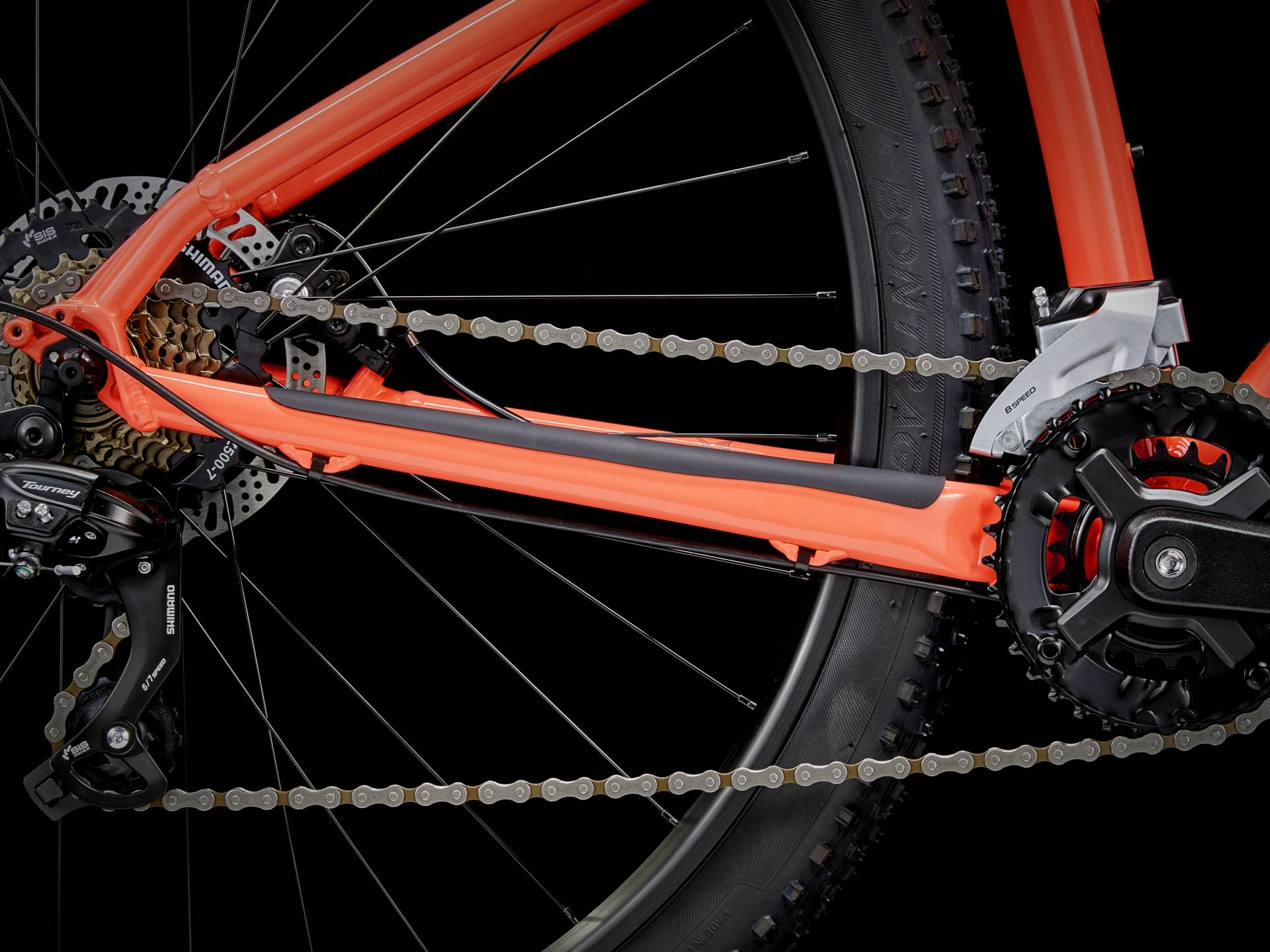

Drivetrain

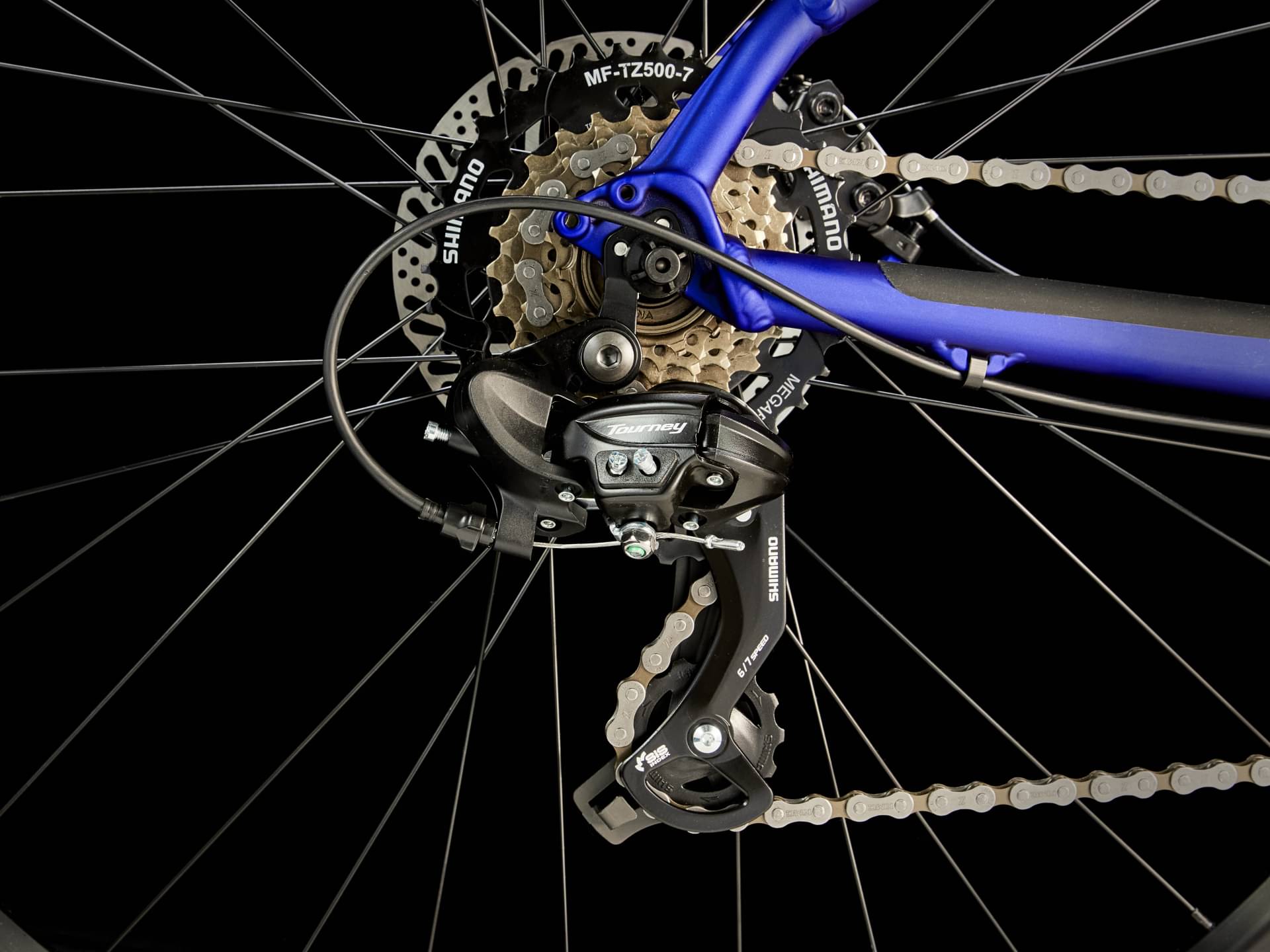

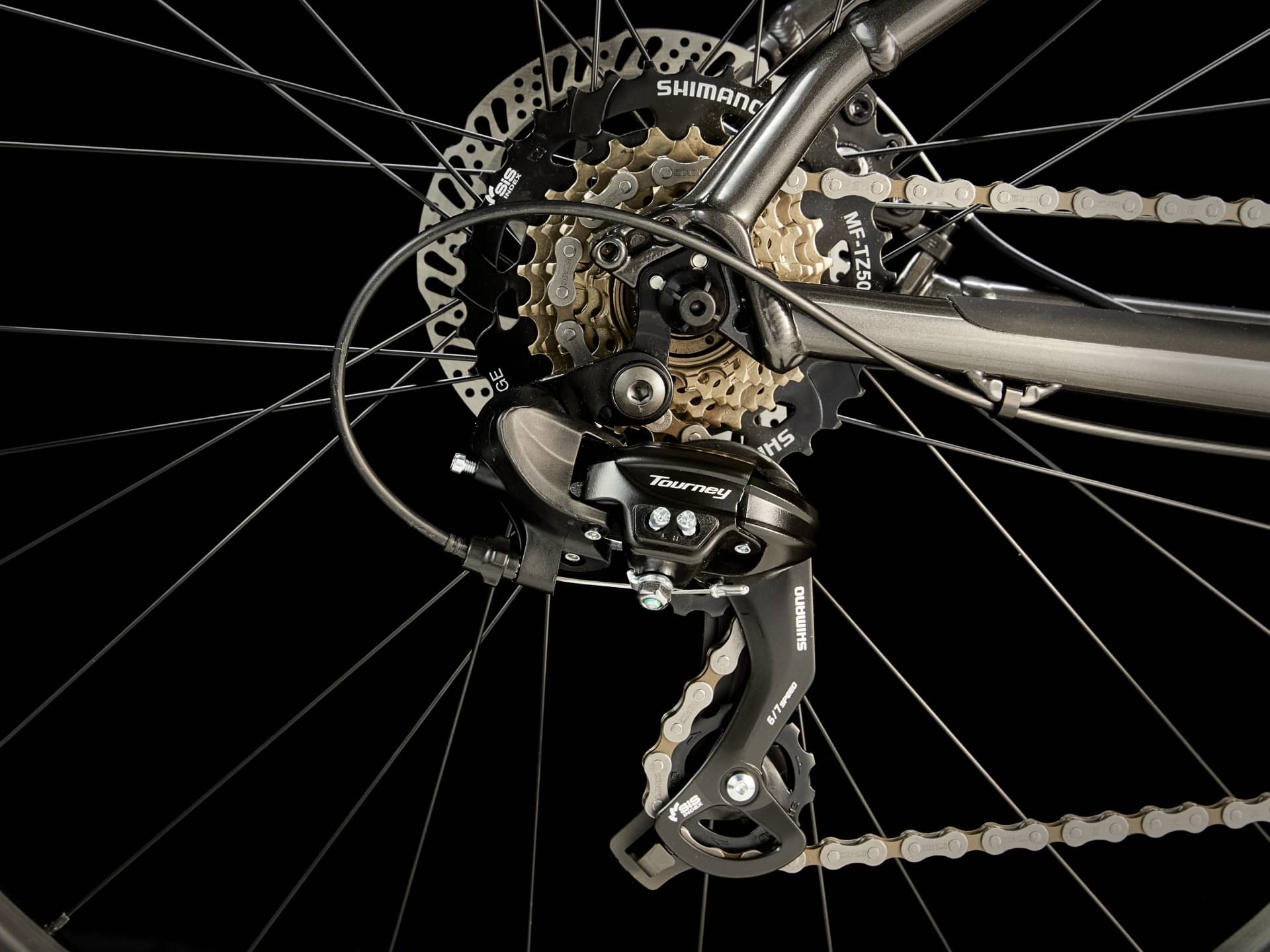

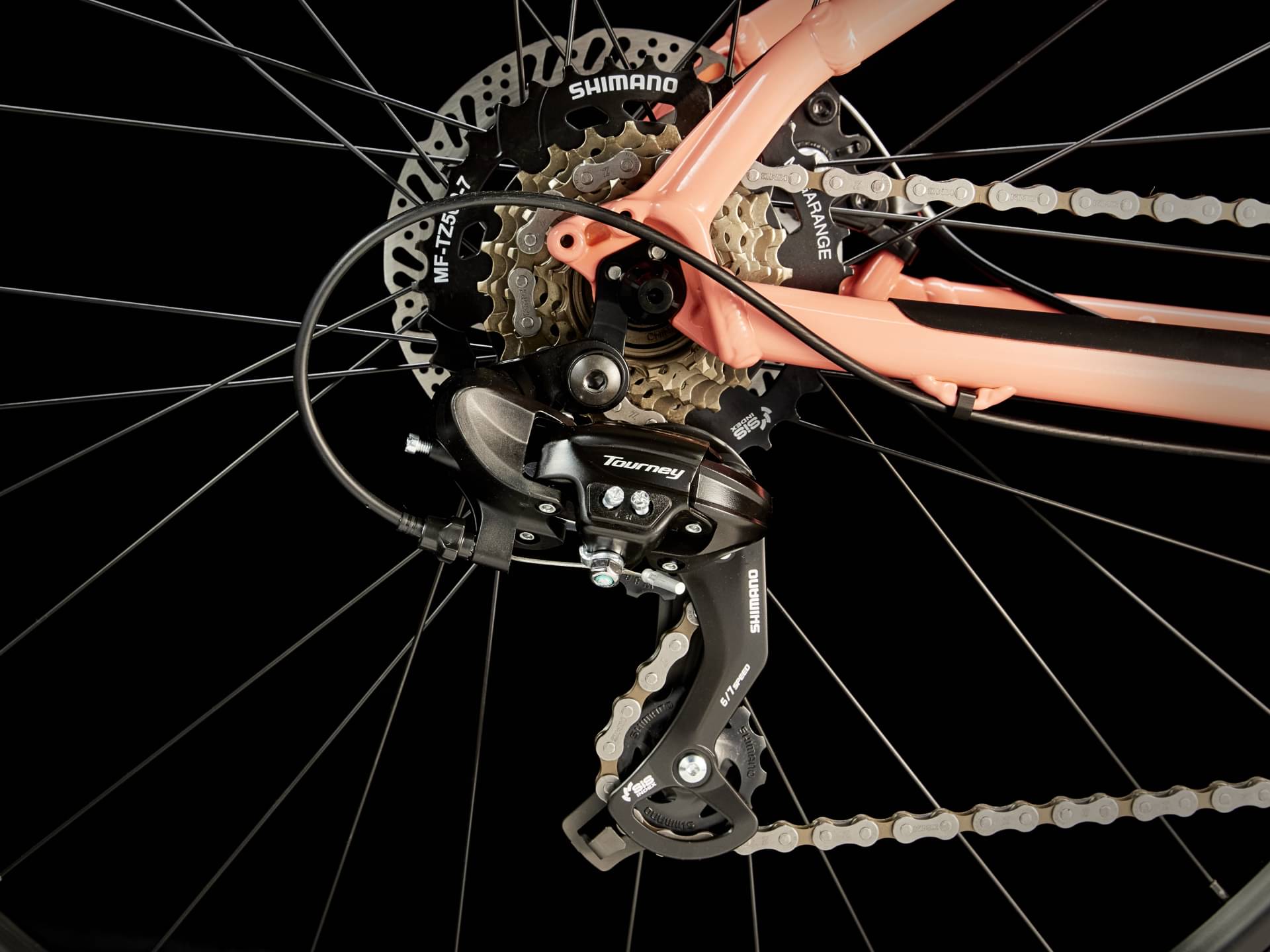

Rear Derailleur

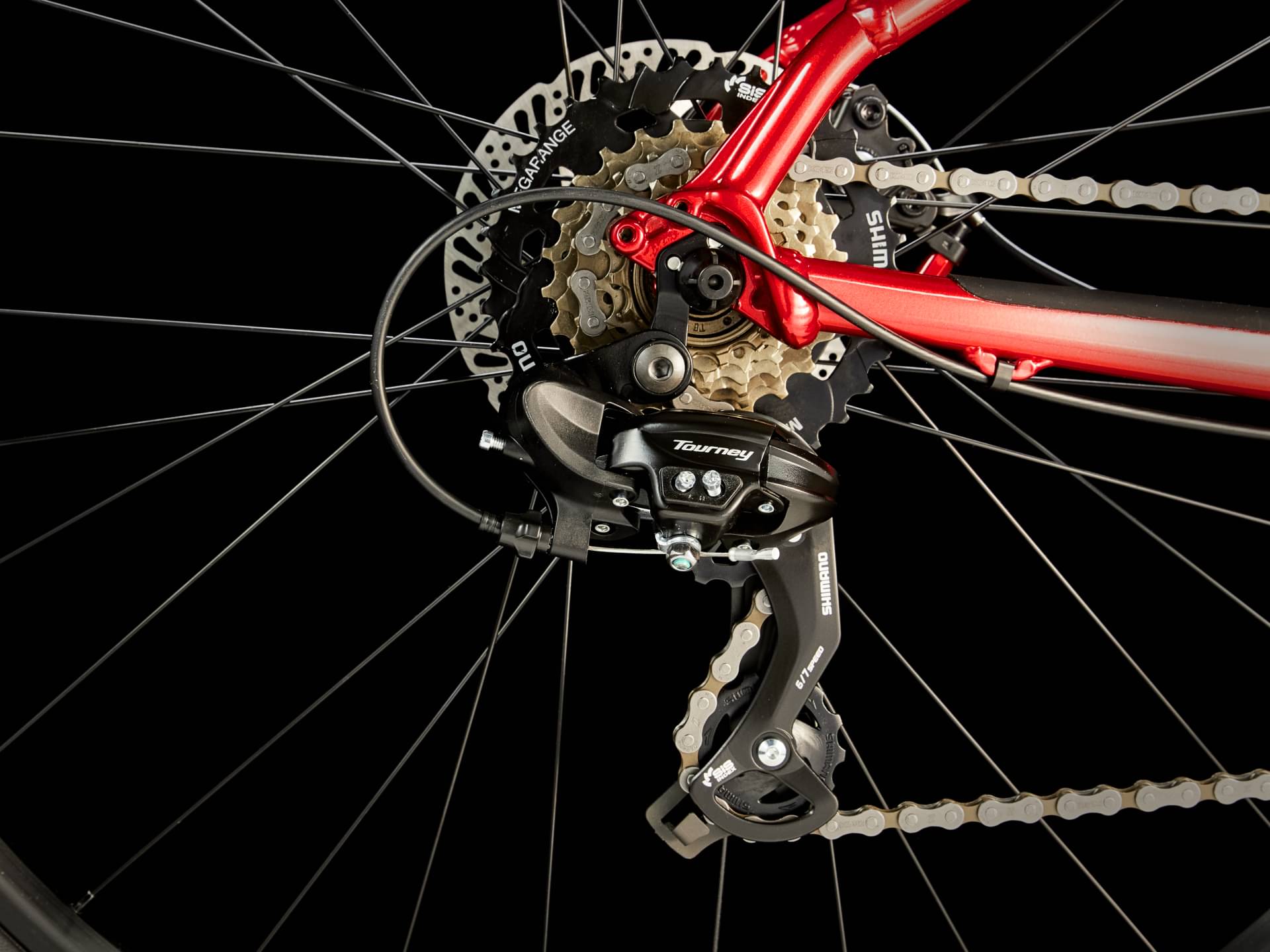

Shimano Tourney TY300
Front Derailleur
Shimano Altus M315, 34.9 mm clamp, top swing, dual pull
Shift Levers
Size: XS, S, M, ML, L, XL, XXL, Shimano EF500, 8-speed; Size: XS, S, M, ML, L, XL, XXL, Shimano Altus EF500, 7-speed
Cassette
Shimano TZ500, 14-34, 7-speed

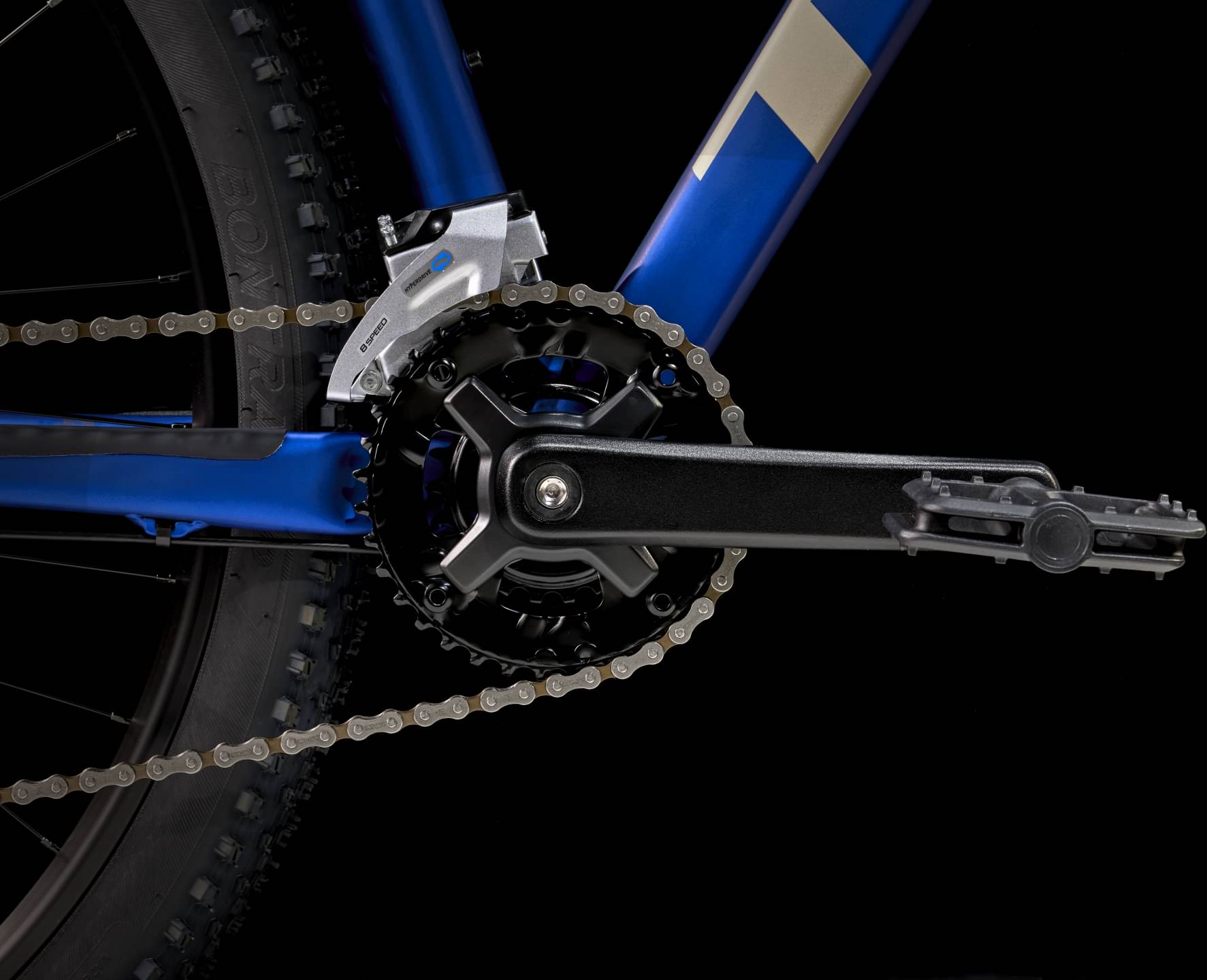

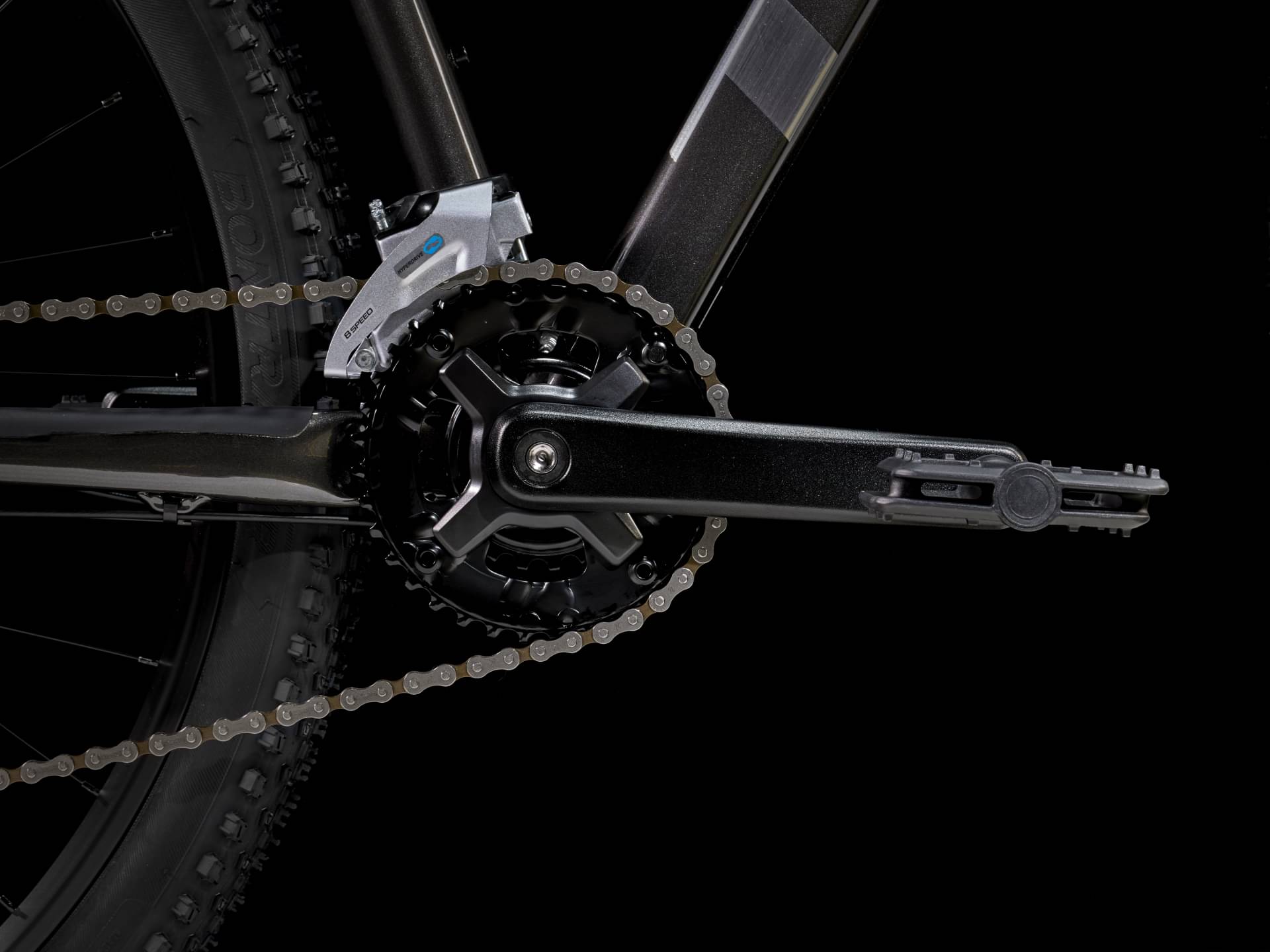

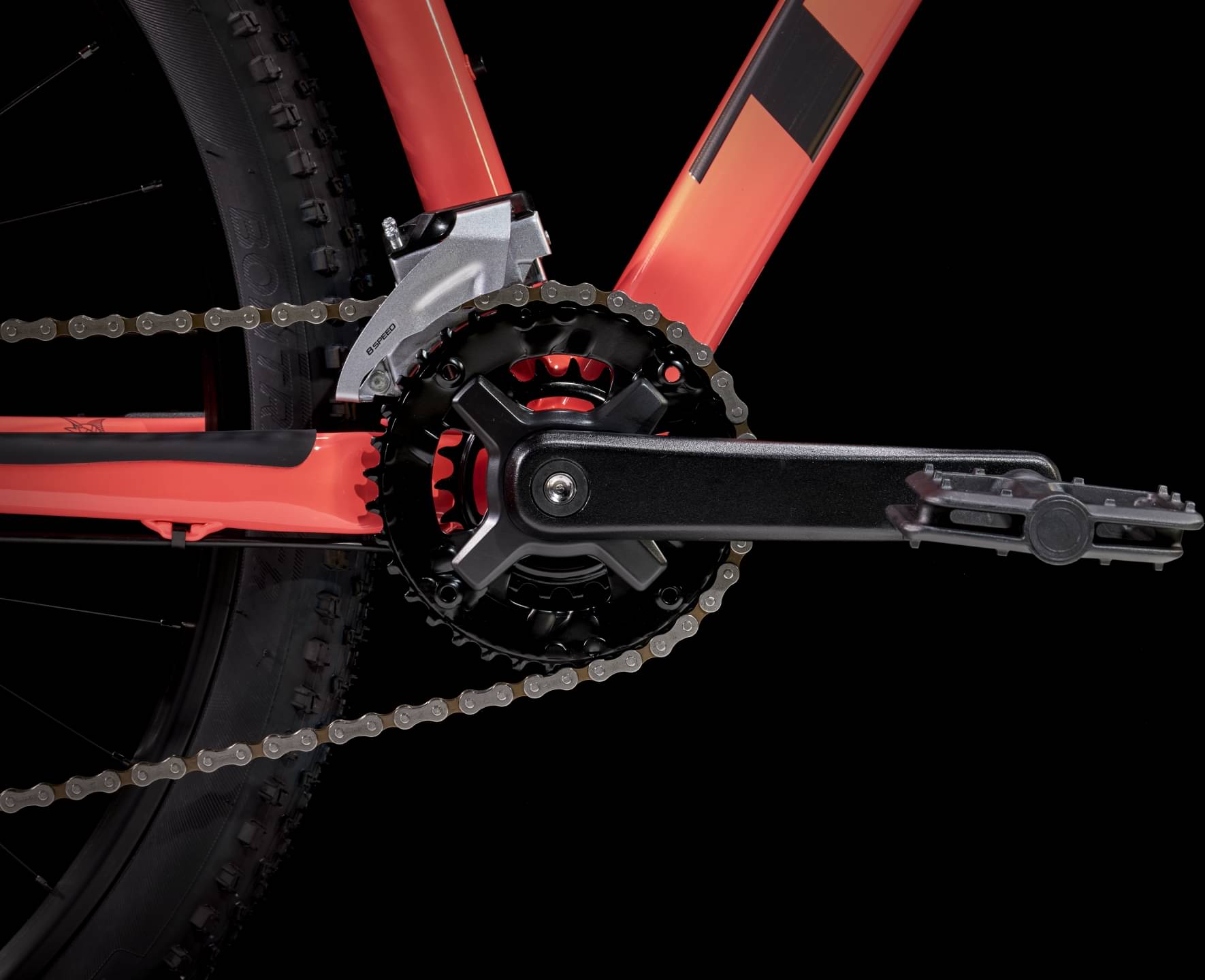

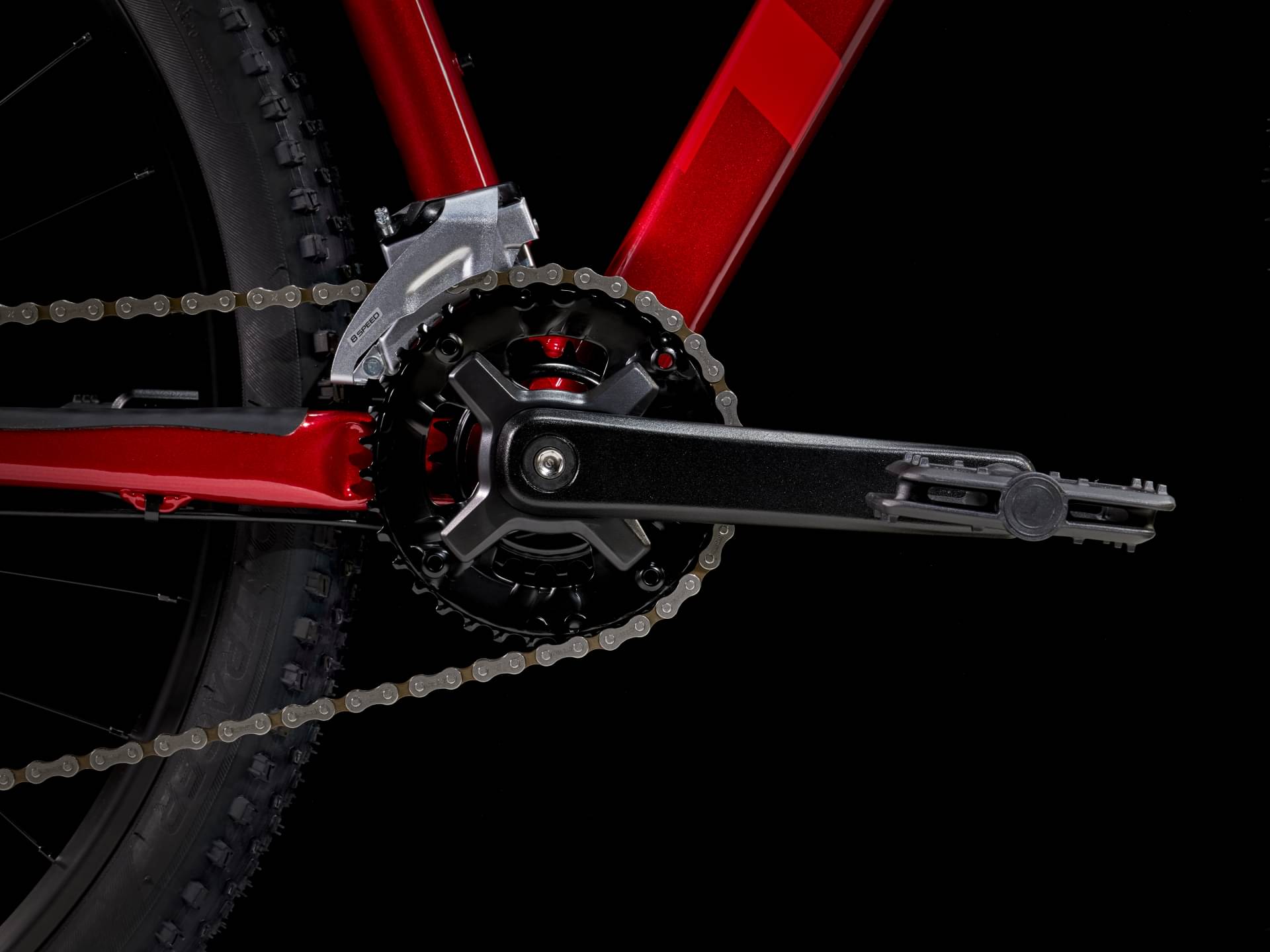

Crank
Size: XS, S, M, ProWheel TM-CY10, 36/22, 170 mm length; Size: ML, L, XL, XXL, ProWheel TM-CY10, 36/22, 175 mm length
Bottom Bracket
VP BC73, 73 mm, threaded cartridge

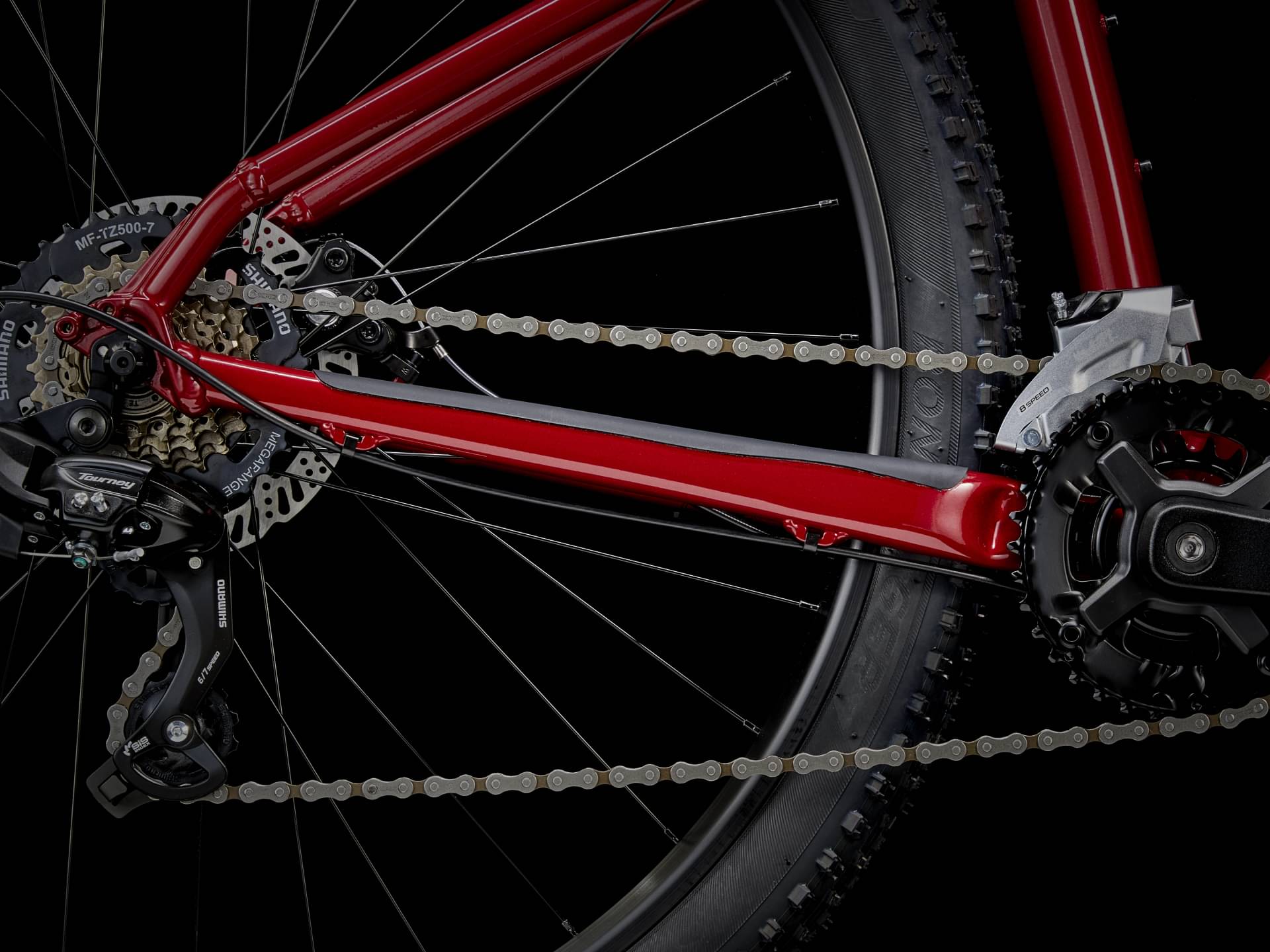

Chain
KMC Z7, 7-speed
Pedals
VP-536 nylon platform
Brakes

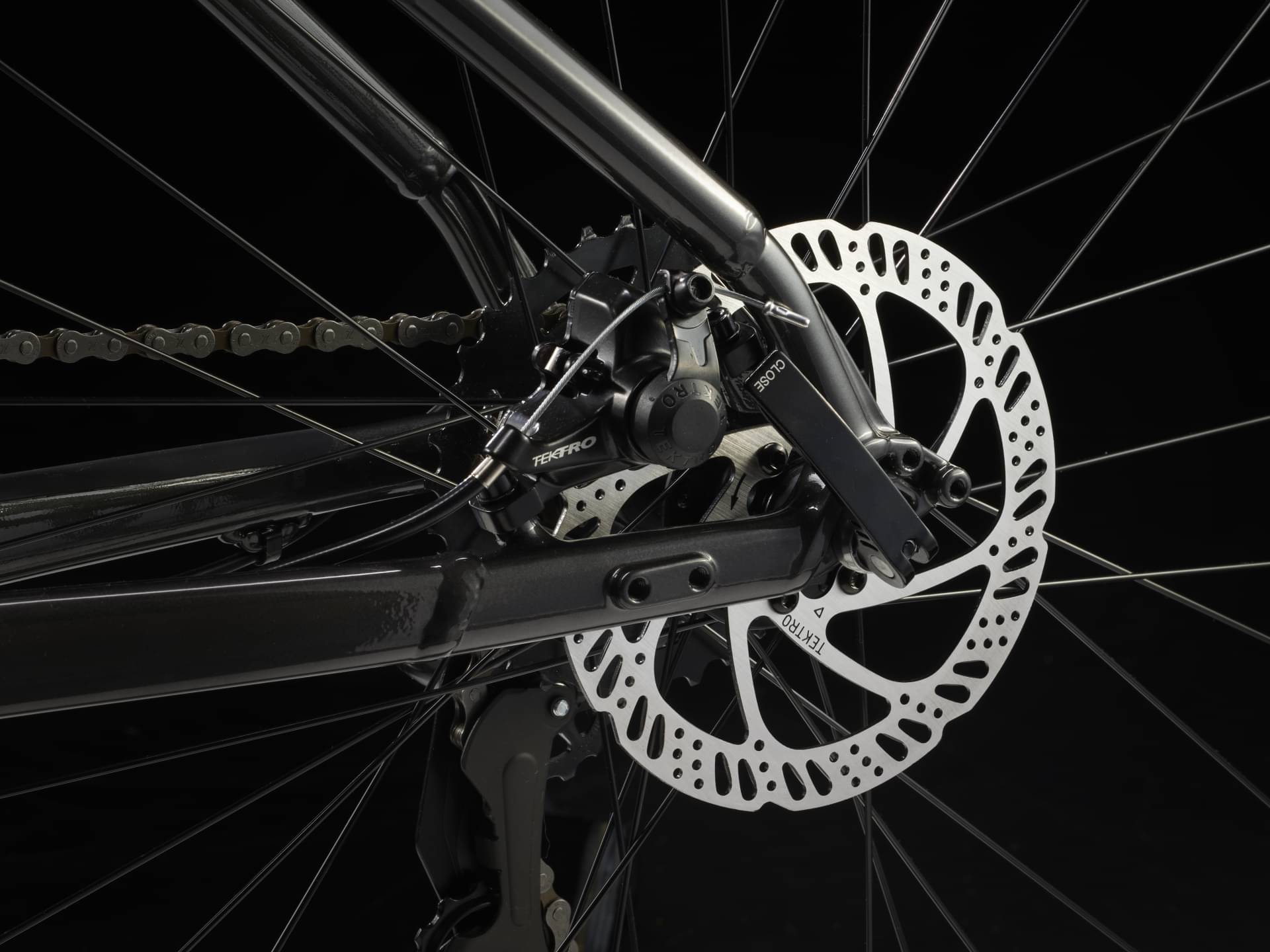

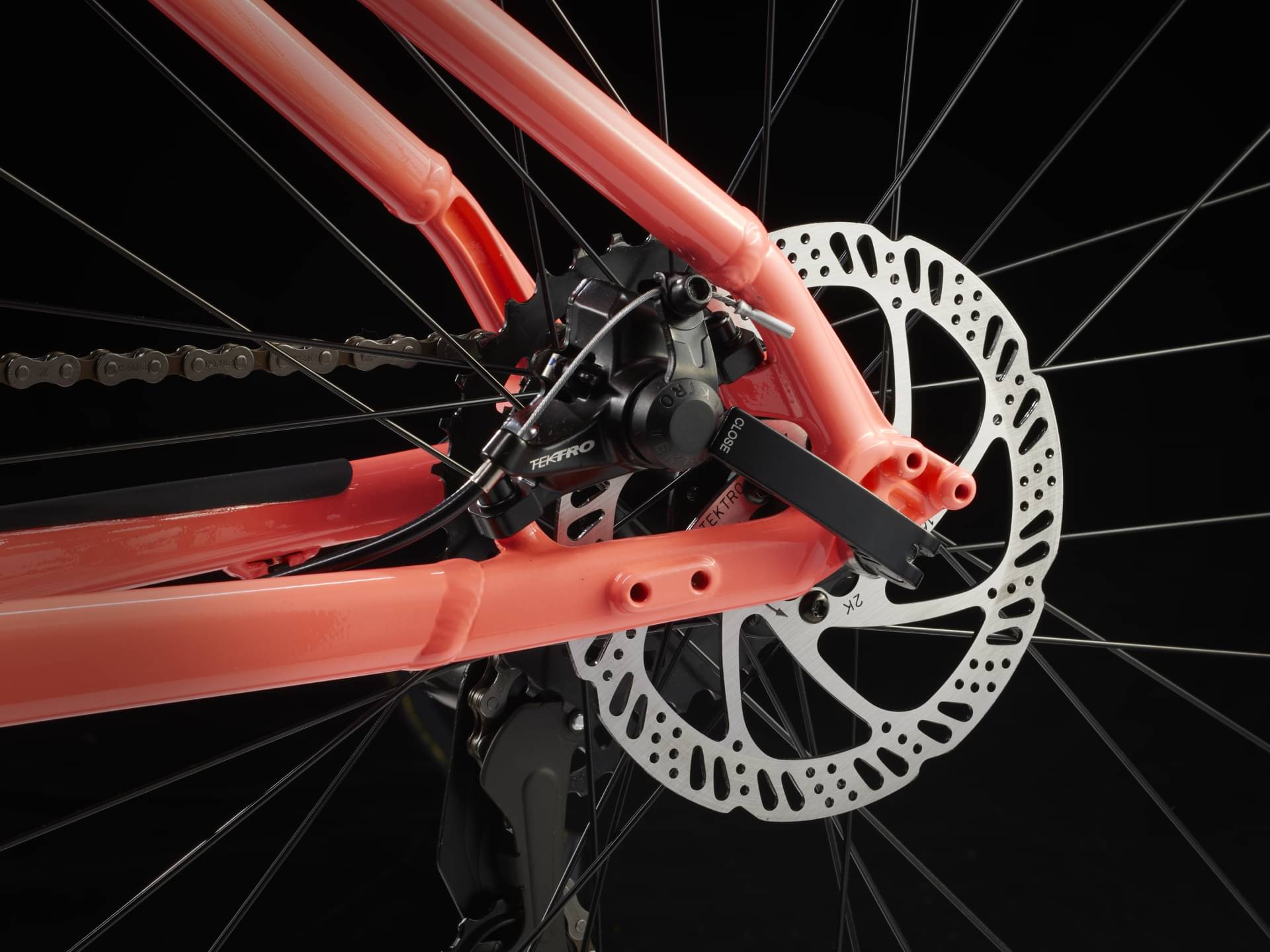

Brakes
Size: XS, S, M, ML, L, XL, XXL, Tektro MD-M280 mechanical disc; Size: XS, S, M, ML, L, XL, XXL, Tektro MD-M281 mechanical disc
Cockpit
Stem
Size: XS, S, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length; Size: M, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length; Size: ML, L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length; Size: XL, XXL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Handlebar
Size: XS, S, Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width; Size: M, ML, L, XL, XXL, Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Endurance Comp, lock-on
Seat
Saddle
Bontrager Verse Short, stainless steel rails
Seatpost
Size: XS, S, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: M, Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length; Size: ML, L, XL, XXL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.5 mm | 1.45 mm | 1.39 mm | 1.36 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 292 mm | 302 mm | 310 mm | 310 mm | 310 mm | 310 mm | 311 mm |
| Front Center | 618 mm | 632 mm | 668 mm | 684 mm | 705 mm | 727 mm | 741 mm |
| Rake | 44 mm | 44 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 88 mm | 88 mm | 93 mm | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 559 mm | 568 mm | 596 mm | 596 mm | 605 mm | 624 mm | 624 mm |
| Reach | 370 mm | 379 mm | 412 mm | 428 mm | 445 mm | 460 mm | 474 mm |
| Top Tube Length | 538 mm | 549 mm | 596 mm | 612 mm | 632 mm | 653 mm | 667 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 368 mm | 419 mm | 444 mm | 470 mm | 521 mm | 559 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1043 mm | 1060 mm | 1094 mm | 1110 mm | 1131 mm | 1153 mm | 1167 mm |
| Bottom Bracket Drop | 58 mm | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 652 mm | 680 mm | 742 mm | 752 mm | 751 mm | 763 mm | 798 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 154 cm | 164 cm | 173 cm | 177 cm | 187 cm | 194 cm |
| Rider Max Height | 156 cm | 166 cm | 176 cm | 180 cm | 189 cm | 196 cm | 203 cm |
About this model
Marlin 4 Gen 2 is a Trek Marlin model. There are 90 bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
The most economical model, the Trek Marlin 4 Gen 2 2024 has a starting price of 541$. Trek Marlin 7 Gen 3 2024 on the other hand is the most expensive at 1209$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 541$. Comparing this to the average Crosscountry bike price, we see that the price is 252.13% smaller.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.31 kg (27.14 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Marlin 4 Gen 2 weighs 14.6 kg (32.19 lbs) and is much heavier than the average. In conclusion, the average Crosscountry bike weighs 18.6% less than Marlin 4 Gen 2.

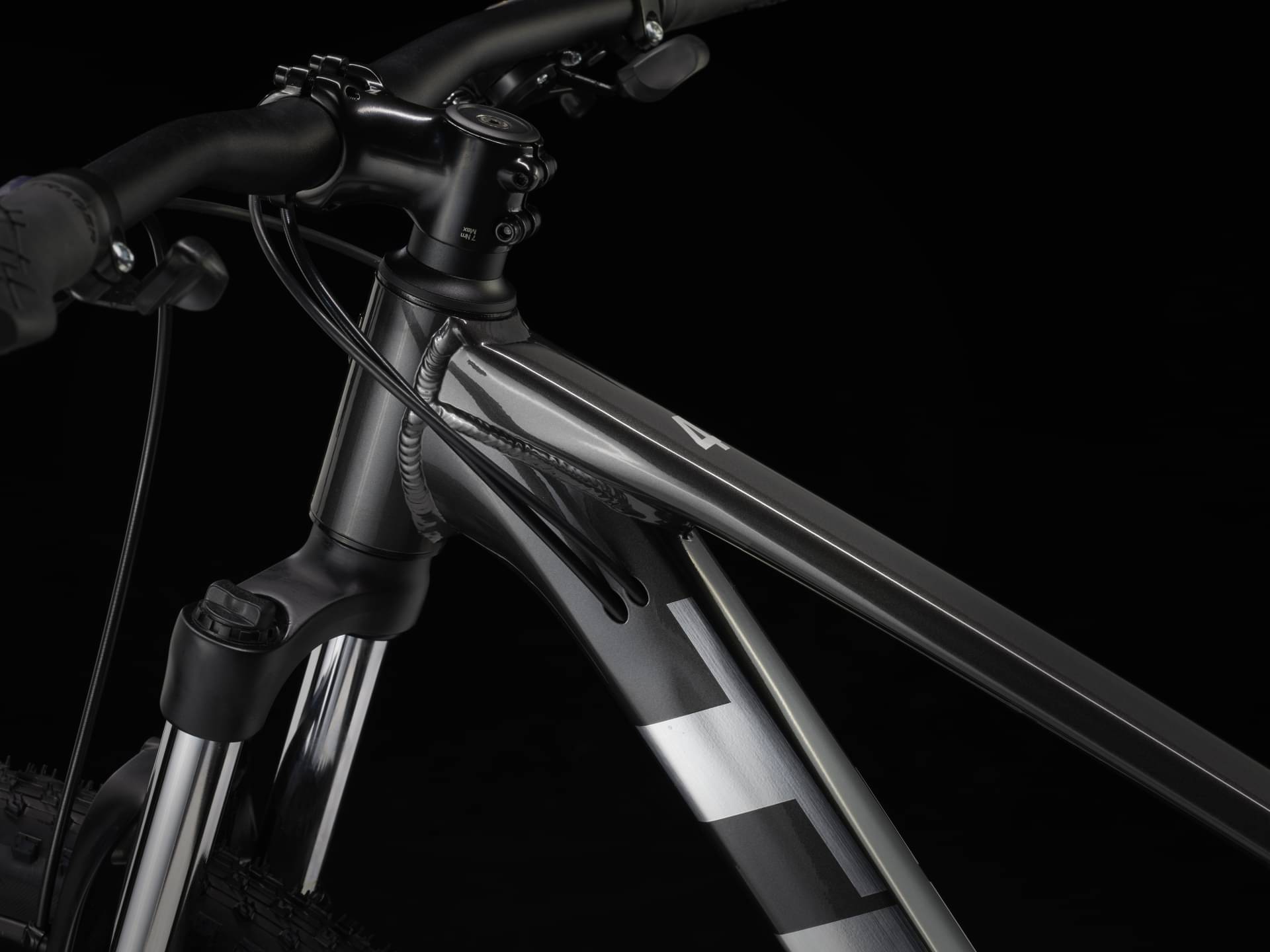

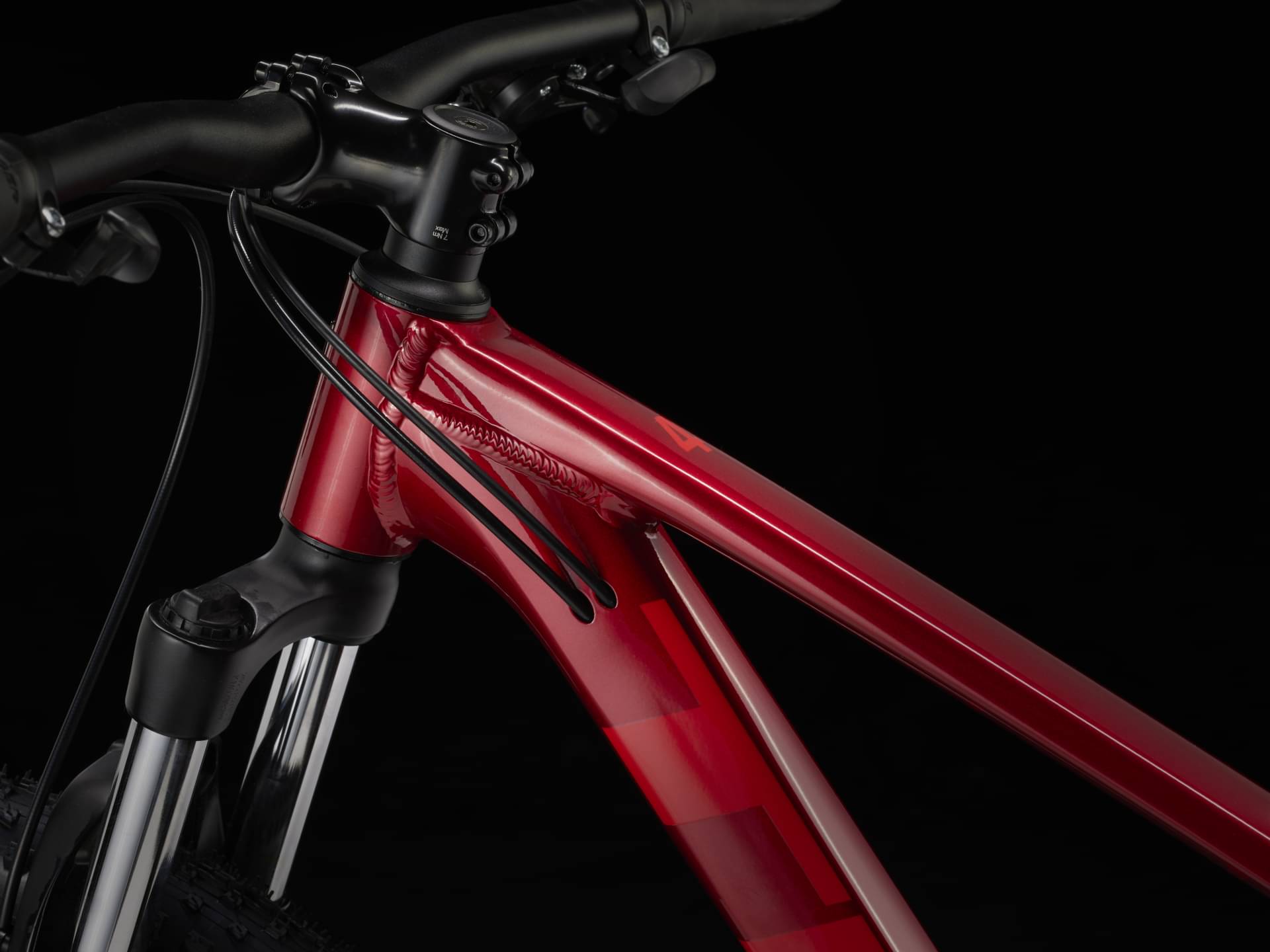

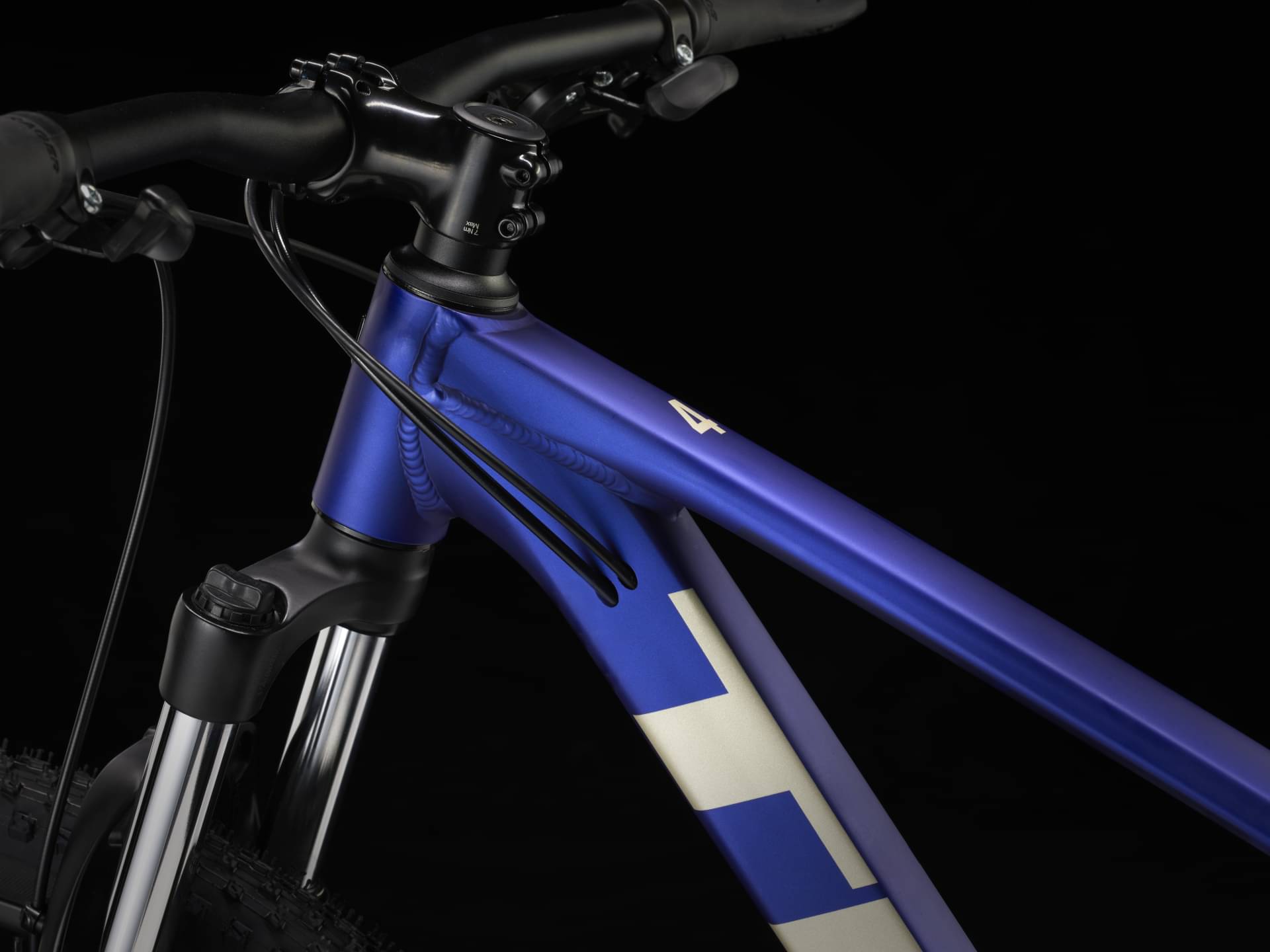

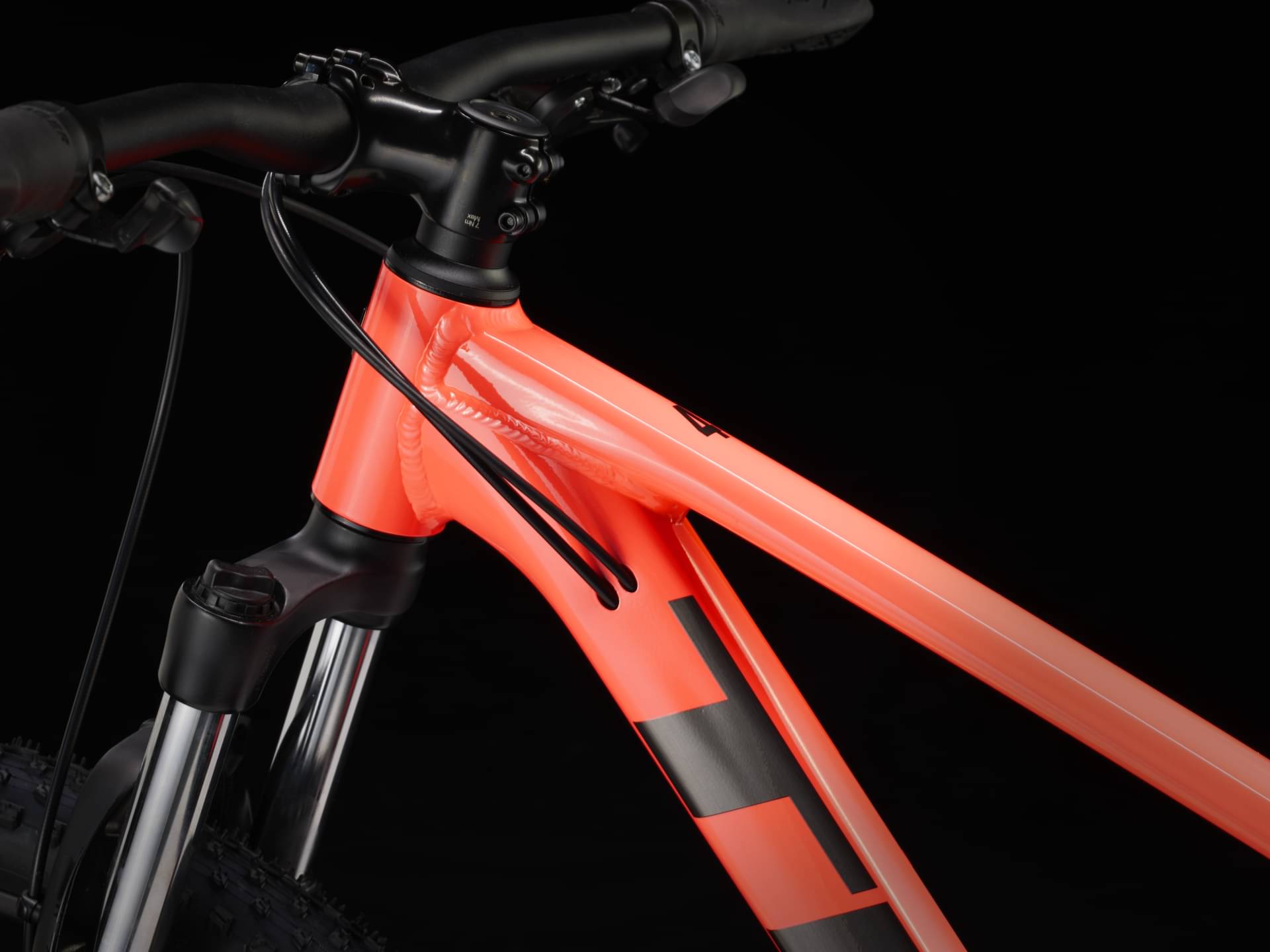

Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components

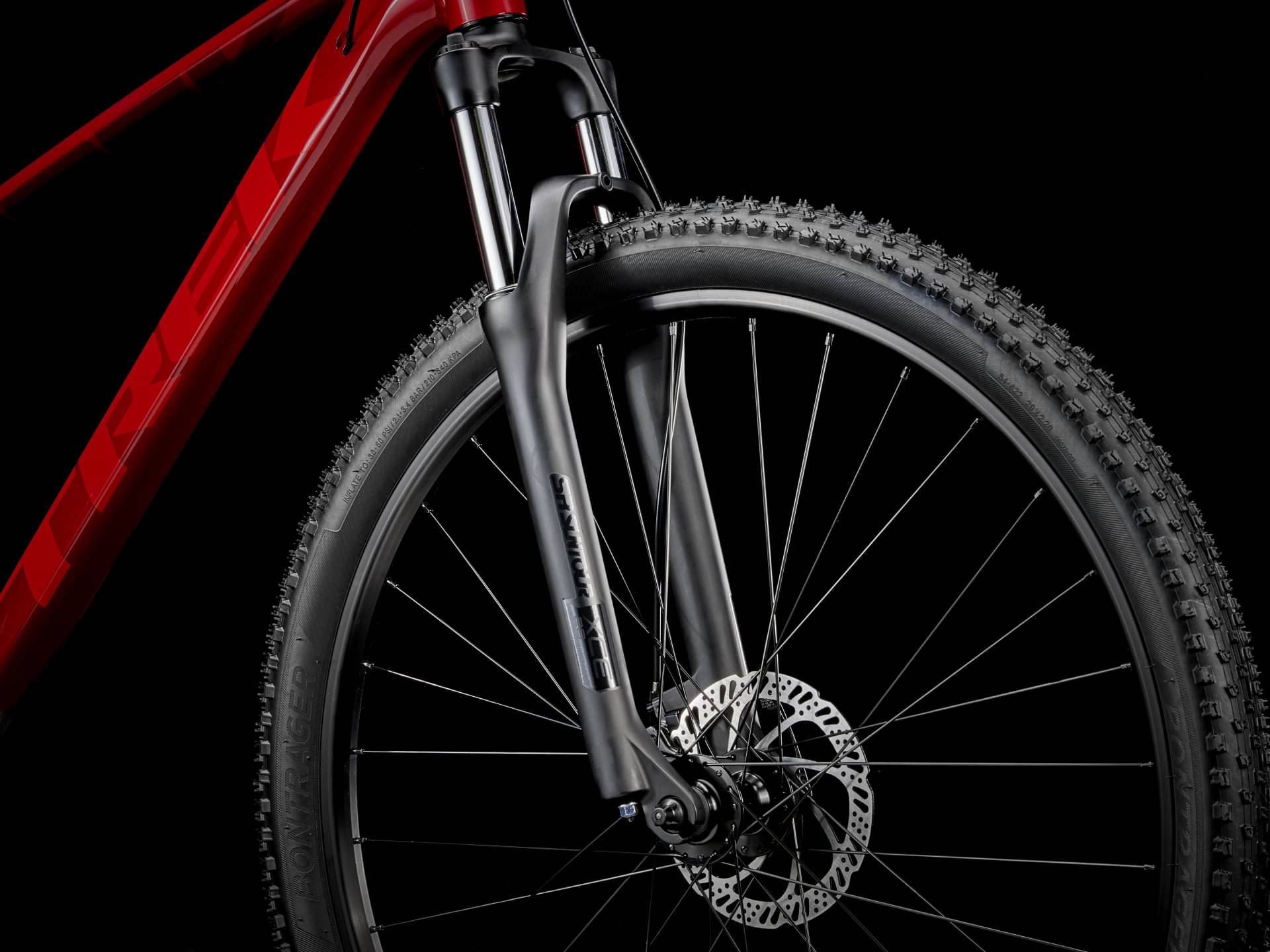

Fork

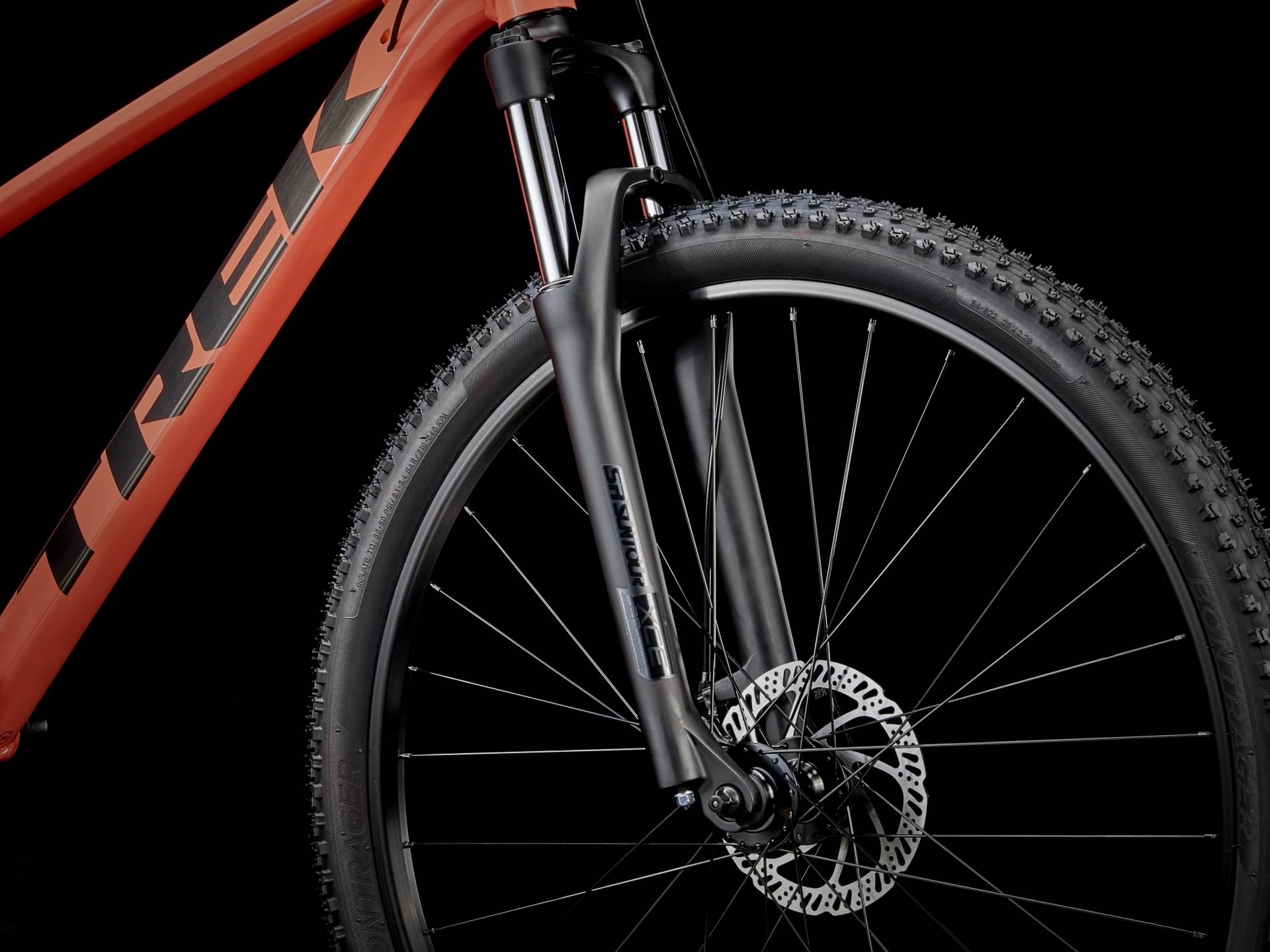

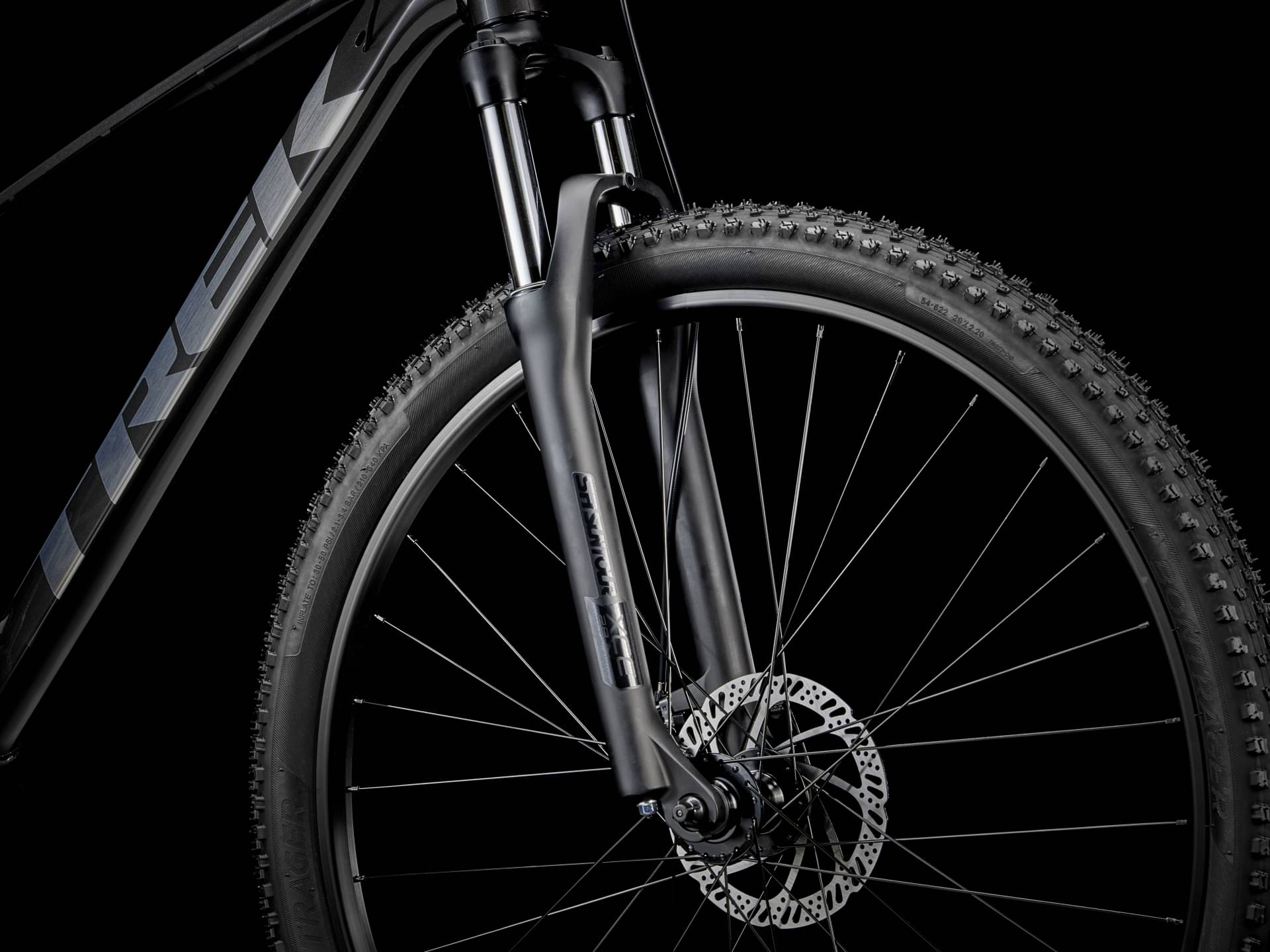

The Suntour XCE is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.

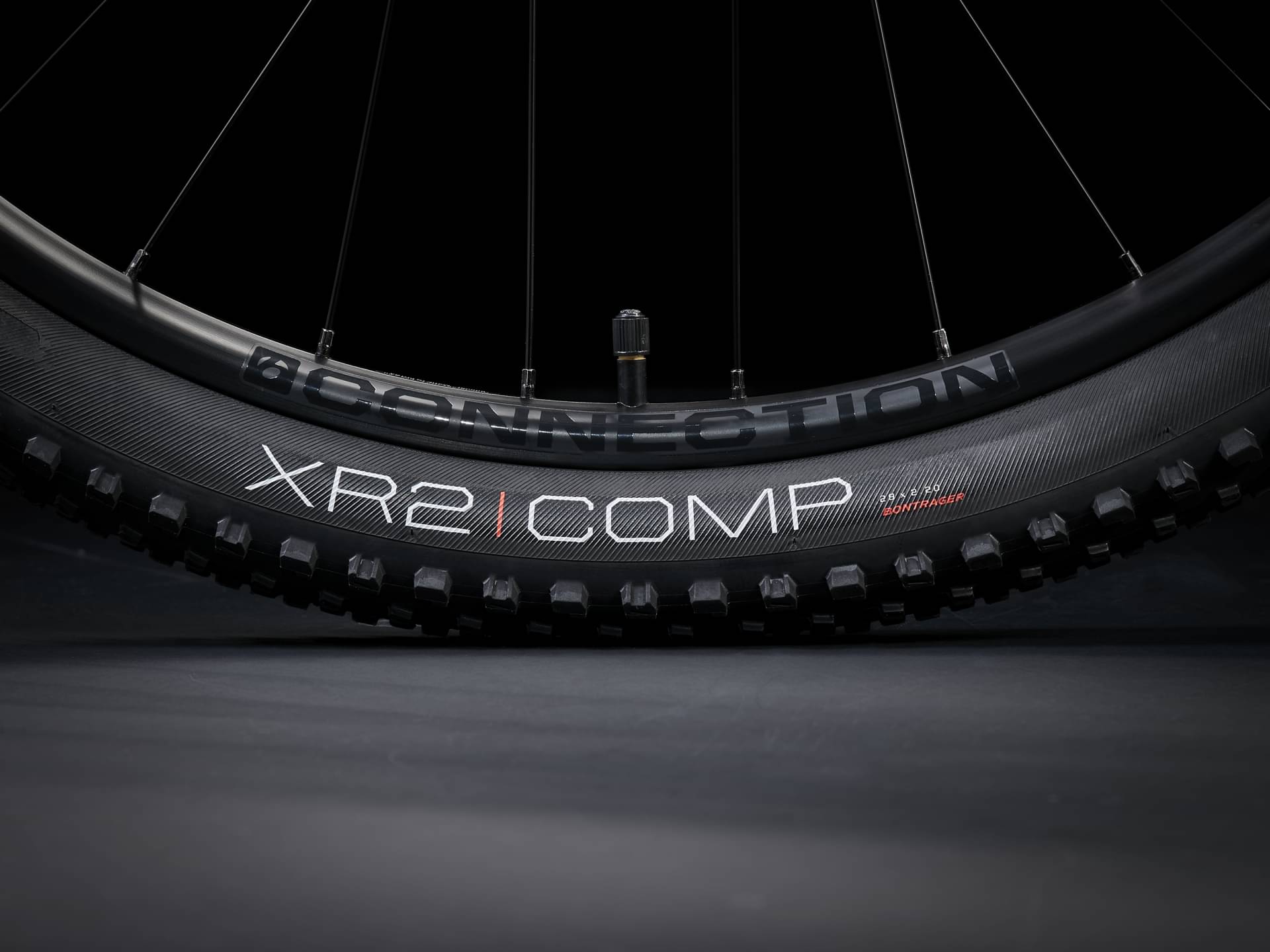

Wheels size
The Marlin 4 Gen 2 2024 bike is equipped with 27.5″ wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes

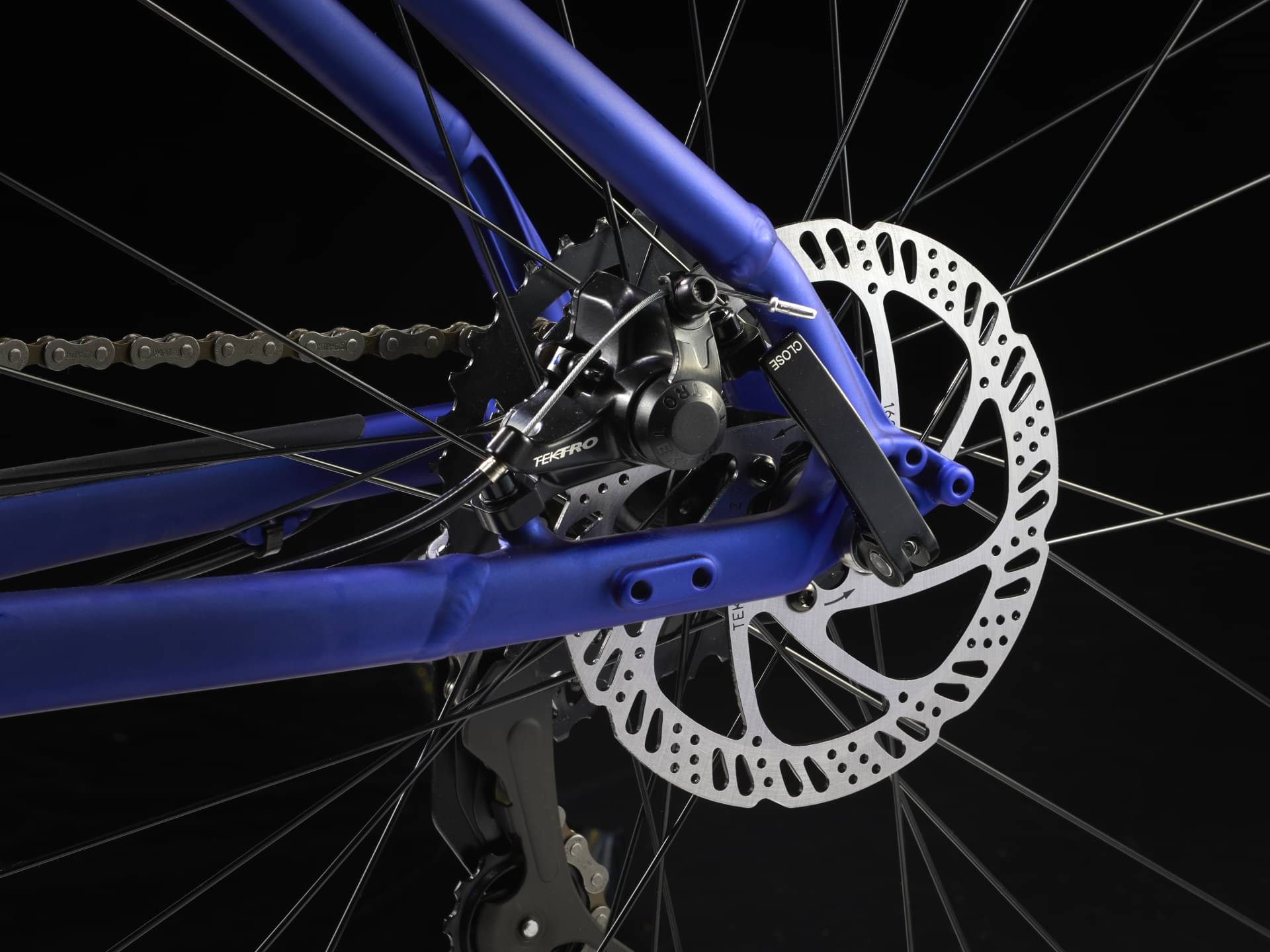

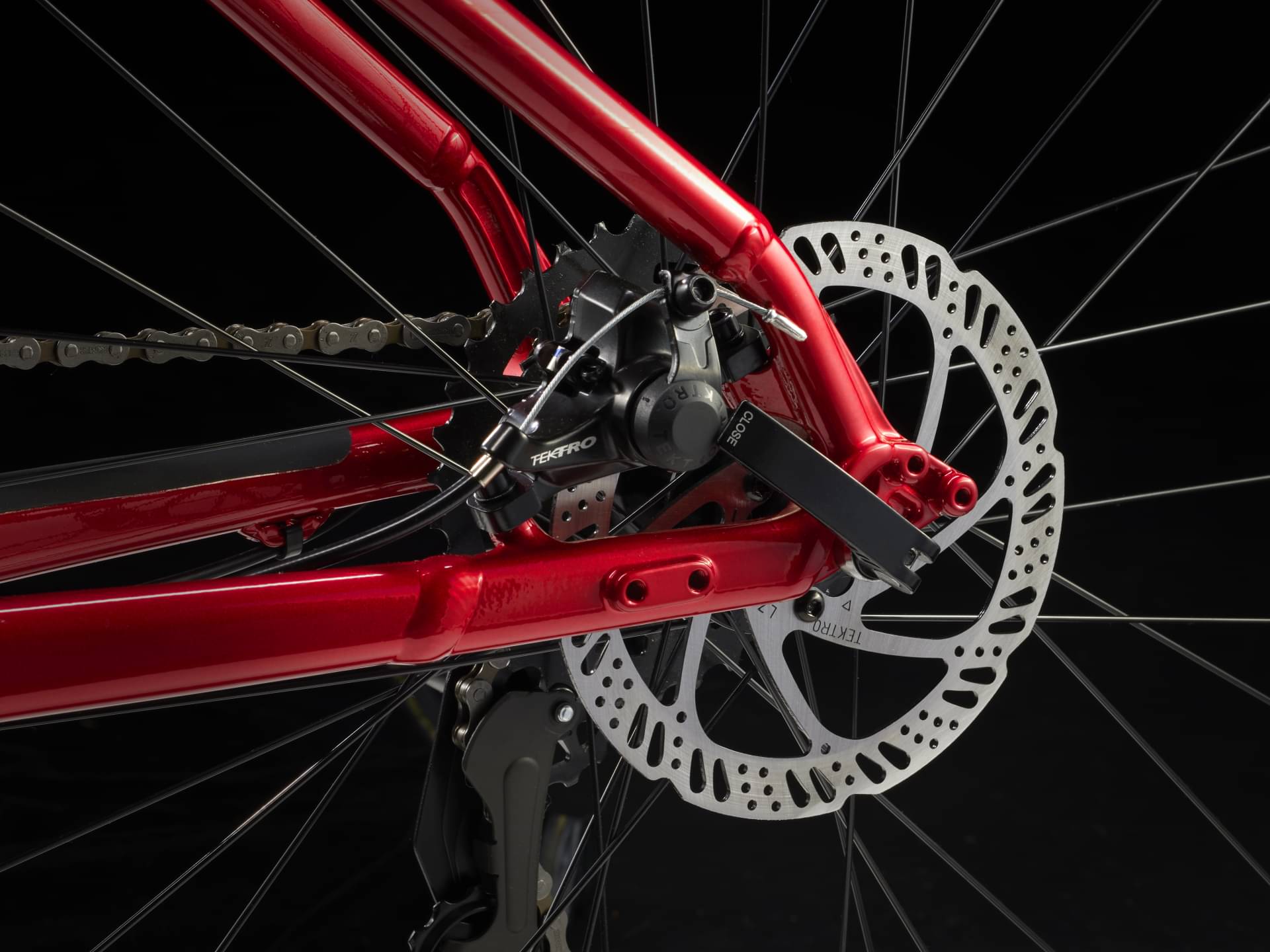

Nothing is more important on a bike than its ability to brake properly. Trek Marlin 4 Gen 2 is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Trek Marlin 4 Gen 2 bike has 7 sizes, in the range of 145 cm – 203 cm (4.76 ft – 6.66 ft). In short, you can easily find one that suits you.
