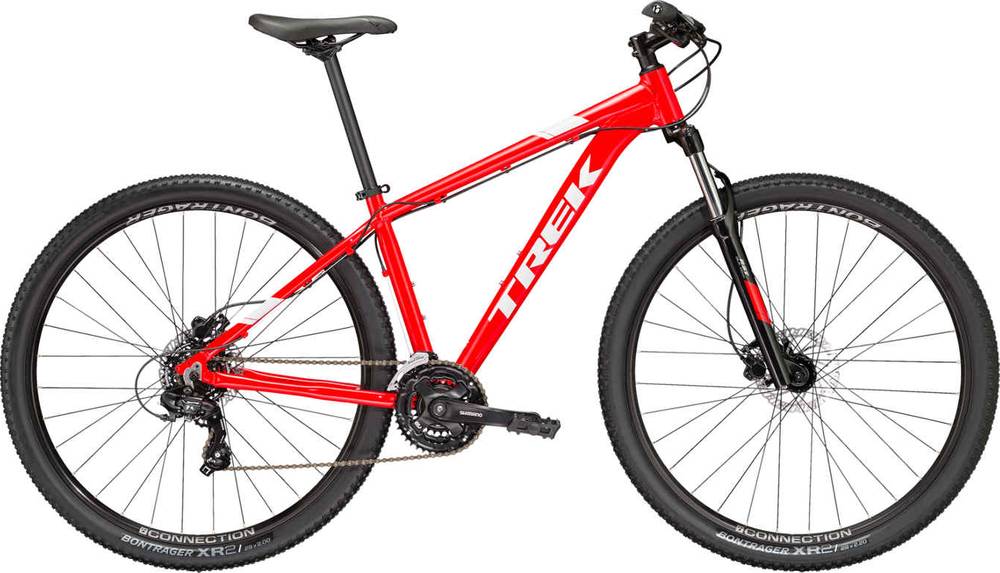

Trek Marlin 5 2018
2018 Mountain
Estimate price |
489$
Weight | 14.51 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RST
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Silver Aluminum w/semi-integrated head tube, rack & fender mounts, G2 Geometry on 29ers
Suspension Fork
RST Gila, coil spring, preload, mechanical lockout, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel)
Drivetrain
Rear Derailleur
Shimano Tourney TY300
Front Derailleur
Shimano Tourney TY500
Shift Levers
Shimano Altus M310, 7 speed
Cassette
Shimano HG20, 12-32, 7 speed
Crank
Shimano Tourney TY501, 42/34/24
Bottom Bracket
Sealed cartridge
Chain
KMC Z51
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula DC20 alloy
Rear Hub
Formula DC27 alloy
Rims
Bontrager Connection 32-hole double-walled
Tires
Bontrager XR2, 29x2.20? (13.5 & 15.5: 27.5x2.20?)
Brakes
Brakes
Tektro M285 hydraulic disc
Cockpit
Stem
Bontrager alloy, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager alloy, 31.8mm, 15mm rise
Grips
Bontrager Satellite Plus, ergonomic
Headset
Semi-integrated, 1-1/8?
Seat
Saddle
Bontrager Evoke 1
Seatpost
Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.54 mm | 1.46 mm | 1.41 mm | 1.36 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 600 mm | 632 mm | 676 mm | 688 mm | 704 mm | 725 mm | 739 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 87 mm | 85 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 559 mm | 579 mm | 594 mm | 595 mm | 595 mm | 614 mm | 614 mm |
| Reach | 346 mm | 375 mm | 407 mm | 422 mm | 438 mm | 452 mm | 466 mm |
| Top Tube Length | 519 mm | 554 mm | 596 mm | 614 mm | 633 mm | 653 mm | 667 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° | 72.3 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 343 mm | 394 mm | 419 mm | 444 mm | 470 mm | 521 mm | 559 mm |
| Head Tube Angle | 69 ° | 69.3 ° | 69.3 ° | 69.6 ° | 69.6 ° | 69.6 ° | 69.6 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1027 mm | 1060 mm | 1110 mm | 1122 mm | 1138 mm | 1159 mm | 1173 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 654 mm | 739 mm | 759 mm | 771 mm | 783 mm | 819 mm | 842 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" |
About this model
Marlin 5 is a Trek Marlin model. 90 bikes variations carry this model name so far. Take a sneak peek at all Trek Marlin bikes models from 2018, by clicking here.
Model range prices
Trek Marlin 4 2018 is the most economical model, with a starting price of 439$. Trek Marlin 7 2018 on the other hand costs 749$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2018 and its price was 489$. In conclusion, this bike price is 289.57% lower than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Trek Marlin 5 it’s weighing 14.51 kg (31.99 lbs). At this weight, is much heavier than average. To sum up, it’s 17.02% heavier than the average weight of Crosscountry bikes.
Marlin 5 components
Fork
The fork installed on this bike is the RST model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Trek Marlin 5 2018, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Marlin 5 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
