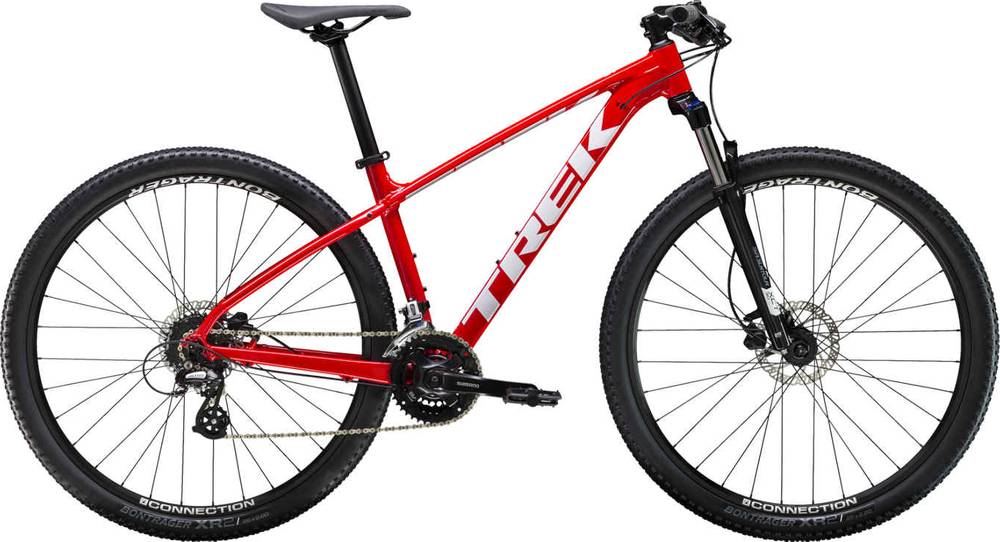

Trek Marlin 6 2019
2019 Mountain
Estimate price |
639$
Weight | 14.71 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
137cm - 155cm
SM
153cm - 163cm
MD
160cm - 172cm
MD/LG
170cm - 179cm
LG
177cm - 188cm
XL
186cm - 197cm
XXL
194cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Silver Aluminum, internal derailleur, dropper post and brake routing, chainstay brake mount, rack & kickstand mount, G2 Geometry on 29ers
Suspension Fork
SR Suntour XCT 30 HLO, coil spring, preload, hydraulic lockout, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel)
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Altus M313
Shift Levers
Shimano Altus M310, 8 speed
Cassette
Shimano HG200, 12-32, 8 speed
Crank
Shimano Tourney TY501, 42/34/24
Bottom Bracket
Sealed cartridge, 73mm
Chain
KMC Z7
Pedals
VP-536 nylon platform
Wheels
Front Hub
Formula DC20 alloy
Rear Hub
Formula DC22 alloy
Rims
Bontrager Connection 32-hole double-walled
Tires
Bontrager XR2, 29x2.20? front, 29x2.0? rear (13.5 & 15.5: 27.5x2.20?)
Brakes
Brakes
Tektro HD-275 hydraulic disc (13.5 & 15.5: Tektro HD-276 short reach lever)
Cockpit
Stem
Bontrager alloy, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager alloy, 31.8mm, 5mm rise, 720mm width (13.5: 690mm width)
Grips
Bontrager XR Endurance Comp
Headset
1-1/8? threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Arvada
Seatpost
Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.5 mm | 1.44 mm | 1.38 mm | 1.35 mm | 1.35 mm | 1.34 mm |
| Bottom Bracket Height | 292 mm | 302 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 618 mm | 632 mm | 677 mm | 693 mm | 713 mm | 735 mm | 754 mm |
| Rake | 46 mm | 46 mm | 51 mm | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 85 mm | 85 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 559 mm | 568 mm | 592 mm | 592 mm | 602 mm | 620 mm | 635 mm |
| Reach | 370 mm | 379 mm | 412 mm | 428 mm | 445 mm | 460 mm | 474 mm |
| Top Tube Length | 537 mm | 549 mm | 589 mm | 605 mm | 625 mm | 646 mm | 664 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 343 mm | 368 mm | 419 mm | 444 mm | 470 mm | 521 mm | 559 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 100 mm | 120 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1043 mm | 1060 mm | 1103 mm | 1119 mm | 1139 mm | 1161 mm | 1180 mm |
| Bottom Bracket Drop | 58 mm | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 699 mm | 722 mm | 737 mm | 744 mm | 741 mm | 744 mm | 777 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 137 cm | 153 cm | 160 cm | 170 cm | 177 cm | 186 cm | 194 cm |
| Rider Max Height | 155 cm | 163 cm | 172 cm | 179 cm | 188 cm | 197 cm | 203 cm |
About this model
Marlin 6 completes the Trek Marlin model. Trek released 90 bikes variations of this model so far. Take a sneak peek at all Trek Marlin bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Trek Marlin 4 2019 has a starting price of 469$. Trek Marlin 7 2019 on the other hand is the most expensive at 789$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Trek released this model in 2019, its price was 639$. In conclusion, this bike price is 198.12% smaller than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.71 kg (32.43 lbs), the Marlin 6 model is much heavier than average. In other words, this model is 18.63% heavier than the average Crosscountry bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Marlin 6 components
Fork
The Marlin 6 comes factory-installed with the SunTour XCT fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Marlin 6 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Marlin 6 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 7 sizes. They vary from 137 cm – 203 cm (4.49 ft – 6.66 ft). In short, it won’t be difficult to find the right one for you.
