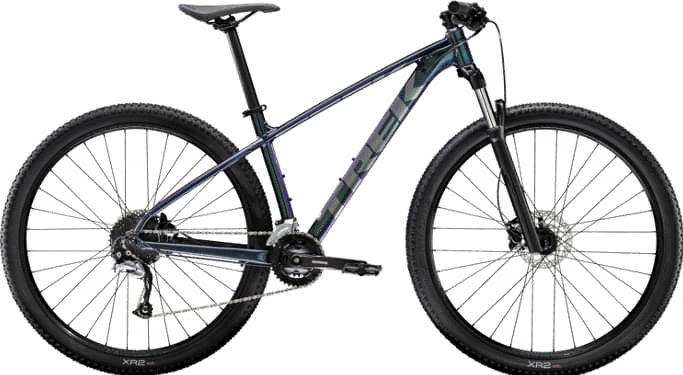

Trek Marlin 7 2020
2020 Mountain
Estimate price |
799$
Weight | 14.08 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
137cm - 155cm
SM
153cm - 166cm
MD
161cm - 172cm
MD/LG
165cm - 179cm
LG
177cm - 188cm
XL
186cm - 197cm
XXL
194cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
Suspension Fork
RockShox XC 30, coil spring, preload, TurnKey lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel
Drivetrain
Rear Derailleur
Shimano Acera M3000, Shadow design, long cage
Front Derailleur
Shimano Altus M2020, 34.9mm clamp, top swing, dual pull
Shift Levers
Shimano Altus M2010, 9 speed
Cassette
Shimano HG200, 11-36, 9 speed
Crank
Shimano MT101, 36/22
Bottom Bracket
VP BC73, 73mm, threaded cartridge
Chain
KMC X9, 9 speed
Pedals
VP-536 nylon platform
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20mm width, presta valve
Tires
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree
Handlebar
Bontrager alloy, 31.8mm, 5mm rise
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
Semi-integrated, 1-1/8"
Seat
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
Bontrager alloy, 31.6mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.5 mm | 1.45 mm | 1.39 mm | 1.36 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 292 mm | 302 mm | 311 mm | 310 mm | 310 mm | 310 mm | 311 mm |
| Front Center | 618 mm | 632 mm | 668 mm | 684 mm | 705 mm | 727 mm | 741 mm |
| Rake | 44 mm | 44 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 88 mm | 88 mm | 93 mm | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 559 mm | 568 mm | 596 mm | 596 mm | 605 mm | 624 mm | 624 mm |
| Reach | 370 mm | 379 mm | 412 mm | 428 mm | 445 mm | 460 mm | 474 mm |
| Top Tube Length | 537 mm | 549 mm | 596 mm | 612 mm | 632 mm | 653 mm | 667 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 368 mm | 419 mm | 444 mm | 470 mm | 521 mm | 559 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1043 mm | 1060 mm | 1094 mm | 1110 mm | 1131 mm | 1153 mm | 1167 mm |
| Bottom Bracket Drop | 58 mm | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 692 mm | 718 mm | 742 mm | 752 mm | 751 mm | 763 mm | 798 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 137 cm | 153 cm | 161 cm | 165 cm | 177 cm | 186 cm | 194 cm |
| Rider Max Height | 155 cm | 166 cm | 172 cm | 179 cm | 188 cm | 197 cm | 203 cm |
About this model
Marlin 7 belongs to the Trek Marlin model. 90 bikes variations carry this model name so far. Take a sneak peek at all Trek Marlin bikes models from 2020, by clicking here.
Model range prices
Trek Marlin 4 2020 is the most affordable bike of this model and has a price of 489$. On the other hand, Trek Marlin 7 2020, is the most expensive and costs 799$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Trek Marlin 7 price was 799$. Doing a quick comparison, we notice that Marlin 7 price is 138.42% lower than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 14.08 kg (31.04 lbs), the Marlin 7 model is considerably heavier than average. In short, the average Crosscountry bike weight is 13.55% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The RockShox 30 Silver TK is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Marlin 7 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 137 cm – 203 cm (4.49 ft – 6.66 ft). In conclusion, it won’t take much to find one that’s right for you.
