Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 60mm -
Groupset SRAM -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha™ Aluminum with a comfortable, upright riding position.
Suspension Fork
RS GPS Serra, adjustable preload, 60mm travel
Drivetrain
Rear Derailleur
SRAM Dual Drive
Front Derailleur
N/A
Shift Levers
SRAM Dual Drive
Cassette
SRAM 7.0 11-34, 9spd
Crank
SRAM Dual Drive 33T w/chainguard
Pedals
Dual density platform w/flashing lights
Wheels
Rims
Bontrager Corvair w/stainless steel eyelet rims; SRAM Dual Drive rear, alloy front hub; 14G stainless, black spokes
Tires
,
Brakes
Brakes
w/ levers
Cockpit
Stem
Alloy AHS adjustable rise
Handlebar
Alloy, 50mm rise
Headset
AHS 1-1/8" semi cartridge, sealed
Seat
Saddle
Trek CRZ wide
Seatpost
Alloy suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" | 16.5" | 18.5" | SM | SM | SM |
|---|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
About this model

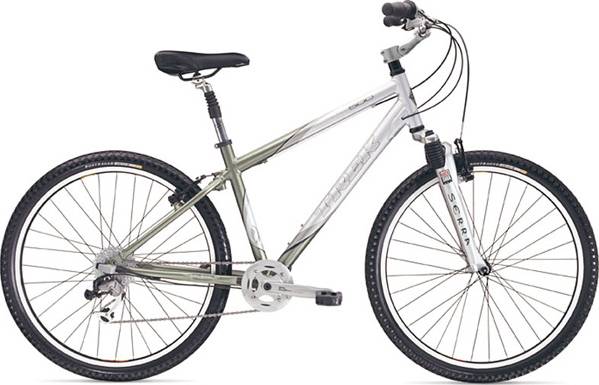

Navigator 500 is a Trek Navigator model. Trek released 66 bikes variations of this model so far. You can get a glimpse at all models from 2003, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Comfort bikes average price
If you want an acceptable Comfort bike you should know that the average price is 360$. However, you could also get a good Comfort bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Wheels size
The Navigator 500 2003 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Navigator 500 comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
