Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Tiagra -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha SL Aluminum
Suspension Fork
Bontrager Satellite Plus, carbon
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra STI, 9 speed
Cassette
Shimano HG50 12-25, 9 speed
Crank
Bontrager Select 52/42/30
Pedals
Alloy/nylon road w/clips and straps
Wheels
Rims
Bontrager SSR
Tires
Bontrager Race Lite Hardcase, 700x28c
Brakes
Brakes
Alloy dual pivot w/Shimano Tiagra STI levers
Cockpit
Stem
Bontrager Select, 7 degree
Handlebar
Bontrager Select VR w/BzzzKill damper inserts, 26.0mm
Headset
Aheadset Slimstak w/semi-cartridge bearings, sealed
Seat
Saddle
Bontrager Race Basic Lux
Seatpost
Bontrager Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 63cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

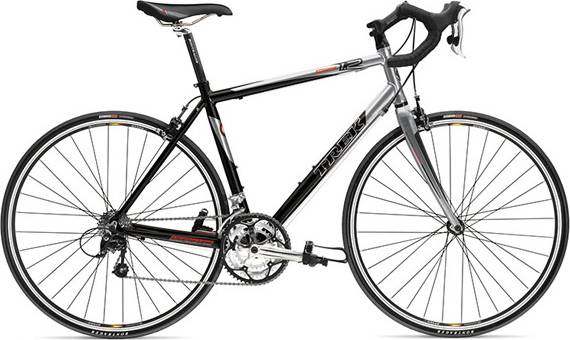

Pilot 1.2 completes the Trek Pilot model. There are 45 bikes that carry this model name. You can get a glimpse at all models from 2007, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
Pilot 1.2 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Pilot 1.2 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Pilot 1.2 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
