Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace, Bontrager -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV 110 Carbon
Suspension Fork
Bontrager Race XXX Lite Plus, carbon
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace
Shift Levers
Shimano Dura-Ace STI, 10 speed
Cassette
Shimano Dura-Ace 12-27, 10 speed
Crank
Bontrager Race X Lite Carbon 50/36
Pedals
n/a
Wheels
Rims
Bontrager Race X Lite
Tires
Bontrager Race X Lite AC, folding, 700x25c
Brakes
Brakes
Shimano R600 long reach w/Dura-Ace STI levers
Cockpit
Stem
Bontrager Race XXX Lite Carbon, 12 degree, 31.8mm
Handlebar
Bontrager Race X Lite Carbon w/BzzzKill, 31.8mm
Headset
Aheadset Slimstak w/cartridge bearings, sealed, alloy
Seat
Saddle
Bontrager Race Lite Lux
Seatpost
Bontrager Race XXX Lite Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 63cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

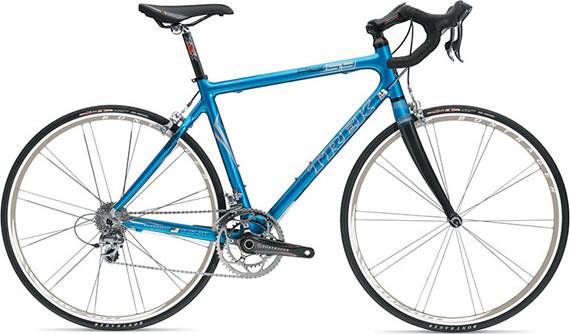

Pilot 5.9 belongs to the Trek Pilot model. 45 bikes variations carry this model name so far. Take a sneak peek at all Trek Pilot bikes models from 2006, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Pilot 5.9 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Pilot 5.9 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Pilot 5.9 comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
