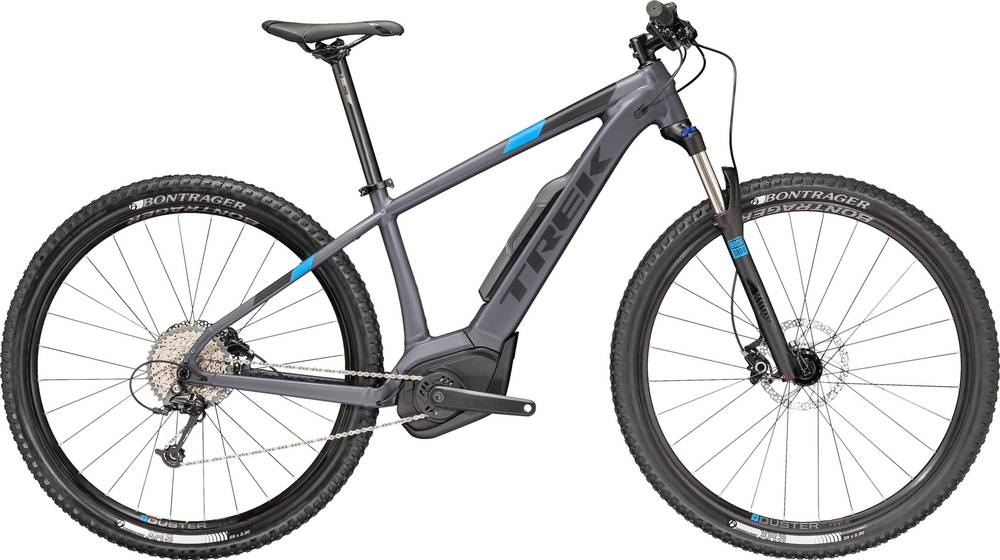

Trek Powerfly 5 2018
2018 E-bike
Estimate price |
3,499$
Weight | 22.68 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powerpack Performance 500 downtube -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
153cm - 167cm
17.5"
170cm - 184cm
19.5"
176cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, E2 tapered head tube, internal derailleur & dropper post routing, integrated battery, G2 Geometry on 29ers, Boost148
Suspension Fork
RockShox Judy Silver TK, Solo Air, TurnKey lockout, E2 tapered steerer, G2 Geometry w/51mm offset on 29ers, Boost110, 100mm travel
Drivetrain
Rear Derailleur
Shimano Deore M6000, Shadow Plus
Shift Levers
Shimano Deore M6000, 10 speed
Cassette
Shimano HG50, 11-42, 10 speed
Crank
Miranda Delta, 15T
Chain
KMC X10
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula Alloy DC511, Boost110
Rear Hub
Bontrager sealed bearing alloy axle, Boost148
Rims
Bontrager Duster Elite Tubeless Ready 32-hole, tubeless strips and valves sold separately
Tires
Bontrager XR3, 29x2.40? (15.5: 27.5x2.35?)
Brakes
Brakes
Shimano M315 hydraulic disc
Cockpit
Stem
Bontrager alloy, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager alloy, 31.8mm, 15mm rise
Grips
Bontrager Satellite Elite, lock-on
Headset
FSA IS-2, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Evoke 1.5
Seatpost
Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset
Motor & Battery
Motor
Bosch Performance CX, 250 watt, 75Nm
Battery
Bosch Powerpack Performance 500 downtube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.51 mm | 1.43 mm | 1.39 mm |
| Bottom Bracket Height | 310 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 640 mm | 680 mm | 721 mm | 754 mm |
| Rake | 43 mm | 51 mm | 50 mm | 52 mm |
| Trail | 94 mm | 83 mm | 83 mm | 83 mm |
| Stack | 591 mm | 614 mm | 632 mm | 650 |
| Reach | 369 mm | 407 mm | 442 mm | 467 mm |
| Top Tube Length | 557 mm | 589 mm | 630 mm | 661 mm |
| Seat Tube Angle | 72.5 ° | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 394 mm | 419 mm | 470 mm | 521 mm |
| Head Tube Angle | 68.5 ° | 69.6 ° | 69.6 ° | 69.6 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 459 mm | 479 mm | 479 mm | 479 mm |
| Wheelbase | 1095 mm | 1154 mm | 1195 mm | 1228 mm |
| Bottom Bracket Drop | 46 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 760 mm | 774 mm | 779 mm | 812 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 170 cm | 176 cm | 186 cm |
| Rider Max Height | 167 cm | 184 cm | 189 cm | 196 cm |
About this model
Powerfly 5 is a Trek E Powerfly model. There are 92 e-bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Trek Powerfly 5 2018 is the most economical model, with a starting price of 3499$. Trek Powerfly 7 FS Plus 2018 on the other hand costs 4999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3499$. Doing a quick comparison, we notice that Powerfly 5 price is 42.64% higher than the average cost of a Crosscountry e-bike.
Average weight for Crosscountry e-bikes
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 22.68 kg (50 lbs), the Powerfly 5 model is slightly lighter than average. In conclusion, the average Crosscountry e-bike weighs 2.34% more than Powerfly 5.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
This e-bike has the RockShox Judy Silver TK fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the Powerfly 5 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Powerfly 5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Trek Powerfly 5 e-bike has 4 sizes, in the range of 153 cm – 196 cm (5.02 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
