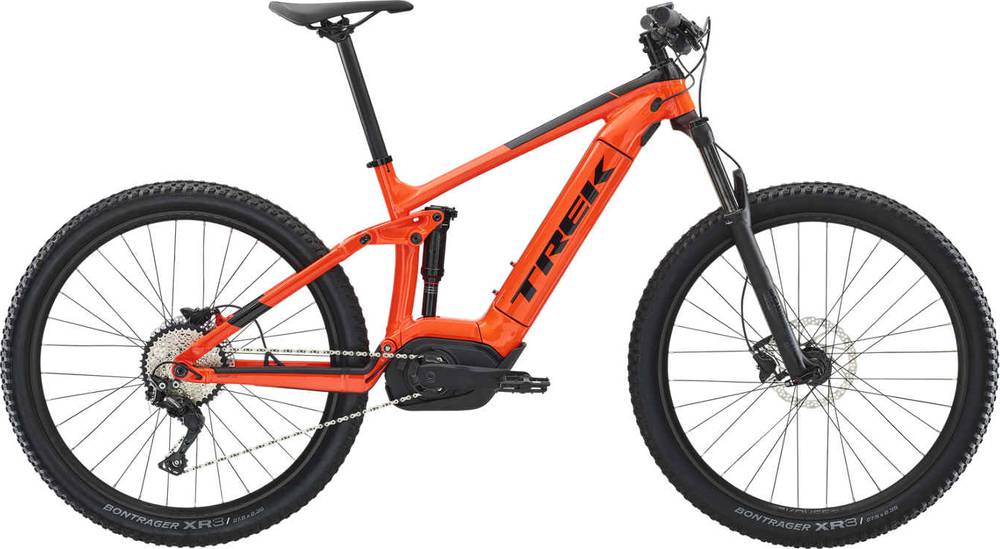

Trek Powerfly FS 5 2019
2019 E-bike
Estimate price |
4,799$
Weight | 23.81 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, EVO link, tapered head tube, Knock Block, internal derailleur & dropper post routing, Removable Integrated Battery (RIB), G2 Geometry, Boost148, 130mm travel
Suspension Fork
RockShox Recon RL, Solo Air, Motion Control damper, lockout, tapered steerer, Boost110, G2 Geometry w/51mm offset, 130mm travel
Drivetrain
Rear Derailleur
Shimano Deore M6000, Shadow Plus
Shift Levers
Shimano Deore M6000, 10 speed
Cassette
Shimano HG50, 11-42, 10 speed
Crank
FSA 310, 15T w/chainguard
Chain
KMC X10
Pedals
VP-536 nylon platform
Wheels
Front Hub
Bontrager Boost110
Rear Hub
Bontrager sealed bearing alloy axle, Boost148
Rims
Bontrager Kovee 23, Tubeless Ready, 32-hole double-walled
Tires
Bontrager XR3, 27.5x2.35
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Bontrager Rhythm Comp, Knock Block, 31.8mm clamp, 0 degree
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
Knock Block Integrated, sealed cartridge bearing, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Arvada
Seatpost
Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset
Motor & Battery
Motor
Bosch Performance CX
Battery
Bosch PowerTube 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.46 mm | 1.35 mm | 1.36 mm | 1.28 mm | 1.32 mm | 1.25 mm | 1.29 mm | 1.22 mm | 1.26 mm |
| Bottom Bracket Height | 333 mm | 327 mm | 333 mm | 327 mm | 333 mm | 327 mm | 333 mm | 327 mm | 333 mm | 327 mm |
| Front Center | 703 mm | 704 mm | 734 mm | 734 mm | 754 mm | 755 mm | 769 mm | 770 mm | 799 mm | 800 mm |
| Rake | 61 mm | 51 mm | 56 mm | 51 mm | 49 mm | 52 mm | 52 mm | 52 mm | 51 mm | 53 mm |
| Trail | 93 mm | 96 mm | 93 mm | 96 mm | 93 mm | 96 mm | 93 mm | 96 mm | 93 mm | 96 mm |
| Stack | 591 mm | 596 mm | 590 mm | 595 mm | 594 mm | 600 mm | 594 mm | 604 mm | 611 mm | 618 mm |
| Reach | 401 mm | 407 mm | 437 mm | 437 mm | 463 mm | 455 mm | 475 mm | 468 mm | 499 mm | 492 mm |
| Top Tube Length | 572 mm | 572 mm | 602 mm | 602 mm | 622 mm | 622 mm | 636 mm | 636 mm | 664 mm | 664 mm |
| Seat Tube Angle | 74.9 ° | 74.4 ° | 74.8 ° | 74.4 ° | 74.8 ° | 74.4 ° | 74.8 ° | 74.3 ° | 74.8 ° | 74.3 ° |
| Seat Tube Length | 368 mm | 368 mm | 419 mm | 419 mm | 445 mm | 445 mm | 470 mm | 470 mm | 521 mm | 521 mm |
| Head Tube Angle | 67.4 ° | 66.9 ° | 67.4 ° | 66.9 ° | 67.4 ° | 66.9 ° | 67.4 ° | 66.9 ° | 67.4 ° | 66.9 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 105 mm | 105 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm | 476 mm | 476 mm | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1178 mm | 1179 mm | 1209 mm | 1209 mm | 1229 mm | 1230 mm | 1244 mm | 1245 mm | 1274 mm | 1275 mm |
| Bottom Bracket Drop | 18 mm | 24 mm | 18 mm | 24 mm | 18 mm | 24 mm | 18 mm | 24 mm | 18 mm | 24 mm |
| Standover Height | 772 mm | 767 mm | 762 mm | 757 mm | 750 mm | 745 mm | 748 mm | 743 mm | 760 mm | 755 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Powerfly FS 5 completes the Trek E Powerfly model. Trek released 92 e-bikes variations of this model so far. Take a sneak peek at all Trek E Powerfly e-bikes models from 2019, by clicking here.
Model range prices
Trek Powerfly 5 2019 is the most economical model, with a starting price of 3999$. Trek Powerfly LT 9.9 Plus 2019 on the other hand costs 8999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Trek Powerfly FS 5 price was 4799$. Comparing the average cost of a Trail e-bike to this one, you will see that Powerfly FS 5 price is 42.62% more expensive.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 23.81 kg (52.49 lbs), the Powerfly FS 5 model is slightly heavier than average. In conclusion, the average Trail e-bike weighs 0.46% less than Powerfly FS 5.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Powerfly FS 5 components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Trek Powerfly FS 5 2019, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Powerfly FS 5 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
