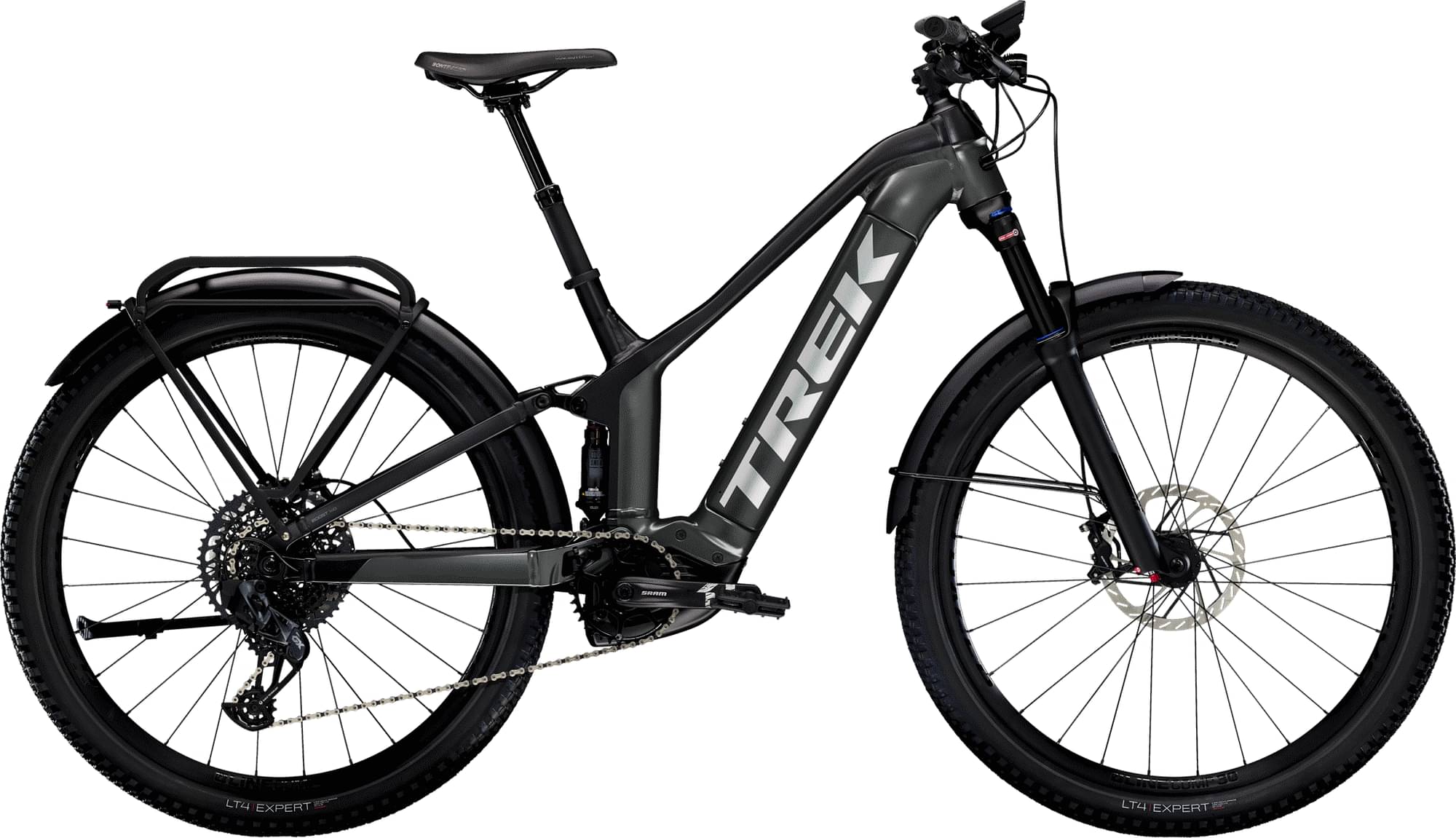

Trek Powerfly FS 9 Equipped Gen 3 2023
2023 E-bike
Estimate price |
6,499$
Weight | 26.98 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Suntour Zeron
-
Groupset GX Eagle AXS, X1 -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625Wh, smart system -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
14.5" Low
145cm - 156cm
15.5" Low
154cm - 166cm
17.5" Low
164cm - 178cm
19.5" Low
175cm - 189cm
21.5" Low
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armor, rocker link, rack and fender mount, ABP, Boost148, 100mm travel
Suspension Fork
SR Suntour Zeron 35, air spring, LO R damper, hydraulic lockout, tapered steerer, 44mm offset, Boost110, 15mm bolt-on thru axle, 120mm travel
Rear Shock
RockShox SID Lux Select+, 190 x 45mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS
Shift Levers
SRAM GX Eagle AXS, 12 speed
Cassette
SRAM Eagle XG-1275, 10-52, 12 speed
Crank
SRAM X1 1000, 165mm length
Chain
SRAM GX Eagle, 12 speed
Pedals
VP-536 nylon platform
Wheels
Rims
Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Tires
Size: XS, S, Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 27.5x2.40''; Size: M, L, XL, Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40''
Brakes
Brakes
SRAM G2 RS 4-piston hydraulic disc
Cockpit
Stem
Size: XS, S, Bontrager Elite, 31.8mm, Blendr light mount, 7 degree rise, 60mm length; Size: M, L, XL, Bontrager Elite, 31.8mm, Blendr light mount, 7 degree rise, 70mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Endurance Comp, lock-on
Headset
FSA IS-2
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Size: XS, S, M, Bontrager Line Dropper, 100mm travel, internal routing, 31.6mm, 345mm length; Size: L, XL, Bontrager Line Dropper, 150mm travel, internal routing, 31.6mm, 440mm length
Motor & Battery
Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Battery
Bosch PowerTube 625Wh, smart system
Charger
Bosch standard 4A, 110V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" Low | 15.5" Low | 17.5" Low | 19.5" Low | 21.5" Low |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.44 mm | 1.48 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 703 mm | 713 mm | 739 mm | 773 mm | 798 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 114 mm | 114 mm | 114 mm |
| Stack | 601 mm | 601 mm | 639 mm | 648 mm | 648 mm |
| Reach | 407 mm | 417 mm | 432 mm | 462 mm | 487 mm |
| Top Tube Length | 556 mm | 566 mm | 591 mm | 623 mm | 648 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 395 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 140 mm | 140 mm | 130 mm | 140 mm | 140 mm |
| Chainstay Length | 470 mm | 470 mm | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1172 mm | 1182 mm | 1208 mm | 1242 mm | 1267 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 693 mm | 693 mm | 714 mm | 718 mm | 715 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 154 cm | 164 cm | 175 cm | 187 cm |
| Rider Max Height | 156 cm | 166 cm | 178 cm | 189 cm | 195 cm |
Model Overview
Powerfly FS 9 Equipped Gen 3 belongs to the Trek E Powerfly model. Trek launched 92 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Trek Powerfly 4 Gen 4 2023 has a starting price of 3649$. Trek Powerfly FS 9 Equipped Gen 2 2023 on the other hand is the most expensive at 7750$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 6499$. Comparing this to the average Crosscountry e-bike price, we see that the price is 164.94% more expensive.
Average weight for Crosscountry e-bikes
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 26.98 kg (59.48 lbs), Trek e-bike is much heavier than average. In short, the average Crosscountry e-bike weight is 16.24% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the Suntour Zeron fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox SID Lux Select+, with a travel distance of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Powerfly FS 9 Equipped Gen 3 2023 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Powerfly FS 9 Equipped Gen 3 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Powerfly FS 9 Equipped Gen 3 comes in 5 sizes, that range from 145 cm – 195 cm (4.76 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Trek Powerfly FS 9 Equipped Gen 3 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
