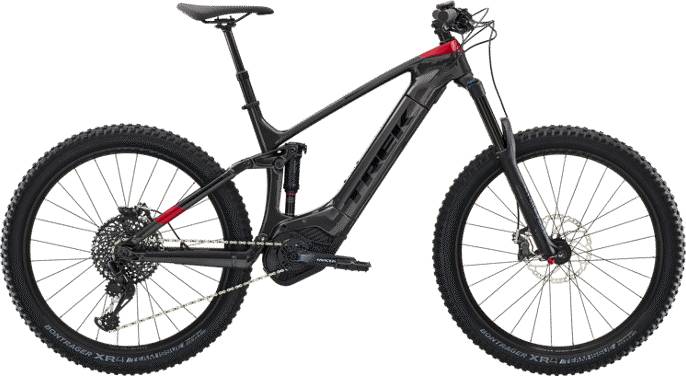

Trek Powerfly LT 9.7 2020
2020 E-bike
Estimate price |
5,999$
Weight | 23.18 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset NX Eagle, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame, alloy stays, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Suspension Fork
RockShox Yari RL, DebonAir spring, Motion Control RL damper, tapered steerer, 51mm offset, Boost110, 15mm Maxle Lite, 160mm travel
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle single-click, 12 speed
Cassette
SRAM PG-1230 Eagle, 11-50, 12 speed
Crank
Race Face Aeffect, 15T, 165mm length
Chain
SRAM NX Eagle, 12 speed
Wheels
Rims
Bontrager Line 40, Tubeless Ready, 28-hole, 40mm width, presta valve
Tires
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.80''
Brakes
Brakes
Size: S, M, M/L, L, XL, Shimano hydraulic disc, MT501 lever, MT520 4-piston caliper; Size: S, M, M/L, L, XL, Shimano MT520 4-piston hydraulic disc
Disk Rotors
Shimano RT76, 203mm, 6-bolt
Cockpit
Stem
Size: S, M, M/L, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 60mm length; Size: L, XL, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 70mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Seat
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
Size: S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, M/L, TranzX JD-YSP18, 120mm travel, internal routing, 31.6mm, 403mm length; Size: L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
Motor & Battery
Motor
Bosch Performance CX, alloy motor body, 250 watt, 75Nm, 20mph or 32km/h max assist
Battery
Bosch PowerTube 500
Charger
Bosch standard 4A (100-240V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.56 mm | 1.42 mm | 1.44 mm | 1.37 mm | 1.39 mm | 1.34 mm | 1.36 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 350 mm | 344 mm | 350 mm | 344 mm | 350 mm | 344 mm | 350 mm | 344 mm | 350 mm | 344 mm |
| Front Center | 711 mm | 711 mm | 741 mm | 741 mm | 761 mm | 761 mm | 776 mm | 776 mm | 806 mm | 806 mm |
| Rake | 52 mm | 51 mm | 51 mm | 51 mm | 50 mm | 50 mm | 50 mm | 50 mm | 51 mm | 50 mm |
| Trail | 103 mm | 106 mm | 103 mm | 106 mm | 103 mm | 106 mm | 103 mm | 106 mm | 103 mm | 106 mm |
| Stack | 600 mm | 604 mm | 601 mm | 604 mm | 605 mm | 609 mm | 610 mm | 613 mm | 623 mm | 627 mm |
| Reach | 393 mm | 388 mm | 423 mm | 418 mm | 442 mm | 437 mm | 455 mm | 450 mm | 478 mm | 474 mm |
| Top Tube Length | 572 mm | 572 mm | 602 mm | 602 mm | 622 mm | 622 mm | 636 mm | 636 mm | 664 mm | 664 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 74 ° | 73.5 ° | 73.9 ° | 73.5 ° | 73.9 ° | 73.5 ° | 73.9 ° | 73.5 ° |
| Seat Tube Length | 368 mm | 368 mm | 419 mm | 419 mm | 445 mm | 445 mm | 470 mm | 470 mm | 521 mm | 521 mm |
| Head Tube Angle | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 105 mm | 105 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 476 mm | 477 mm | 476 mm | 477 mm | 476 mm | 477 mm | 476 mm | 477 mm | 476 mm | 477 mm |
| Wheelbase | 1187 mm | 1188 mm | 1217 mm | 1218 mm | 1237 mm | 1238 mm | 1252 mm | 1253 mm | 1282 mm | 1283 mm |
| Bottom Bracket Drop | 6 mm | 12 mm | 6 mm | 12 mm | 6 mm | 12 mm | 6 mm | 12 mm | 6 mm | 12 mm |
| Standover Height | 787 mm | 782 mm | 778 mm | 773 mm | 767 mm | 762 mm | 765 mm | 760 mm | 774 mm | 773 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
Powerfly LT 9.7 belongs to the Trek E Powerfly model. Trek released 92 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Trek Powerfly 4 Women’s 2020 is the most affordable e-bike of this model and has a price of 3184$. On the other hand, Trek Powerfly LT 9.7 2020, is the most expensive and costs 5999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 5999$. Comparing this to the average Enduro e-bike price, we see that the price is 25.37% higher.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 23.18 kg (51.1 lbs), the Powerfly LT 9.7 model is slightly lighter than average. In short, the average Enduro e-bike weight is 1.04% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The RockShox Yari RC is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Powerfly LT 9.7 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
The Trek model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
