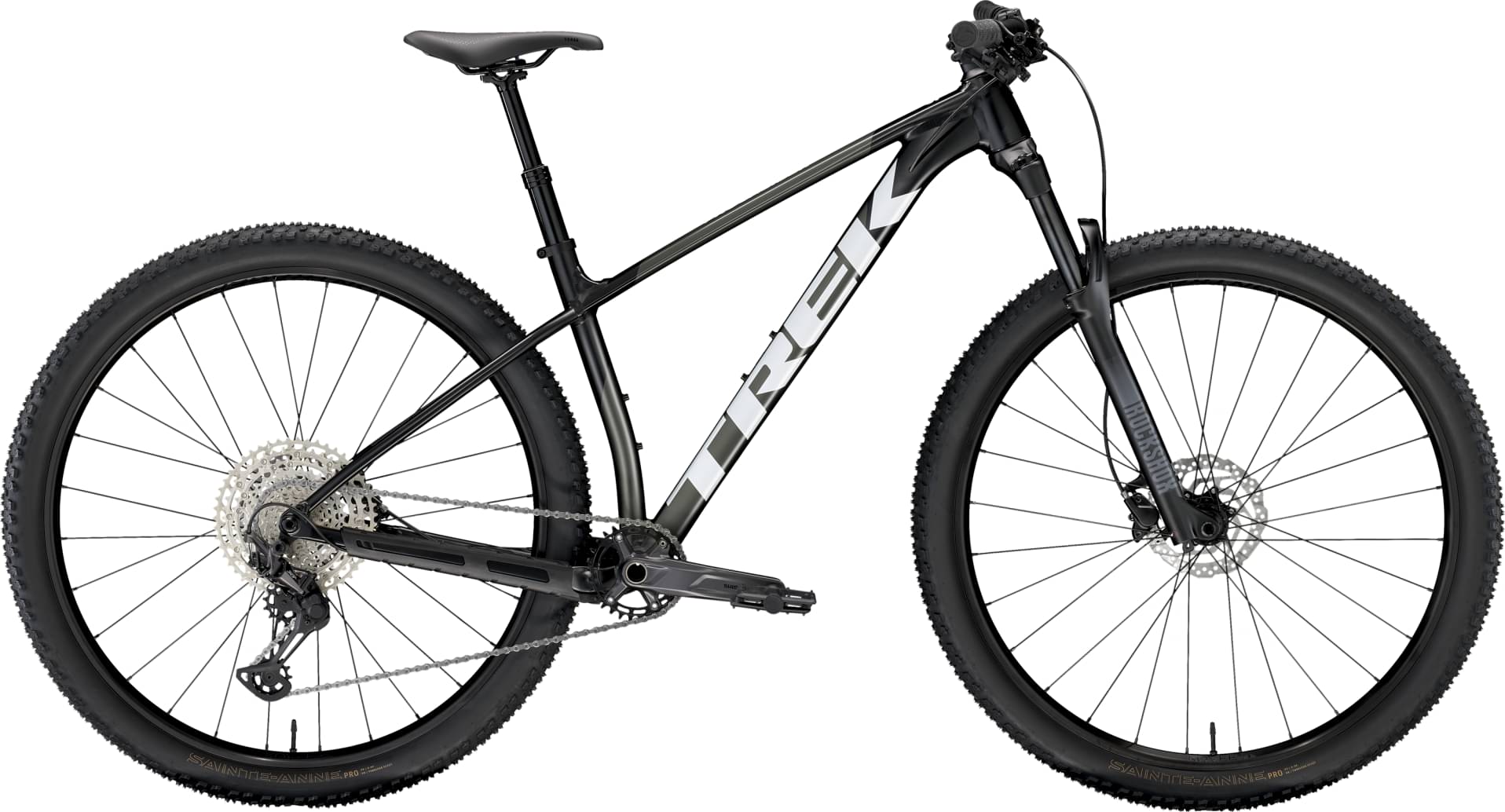

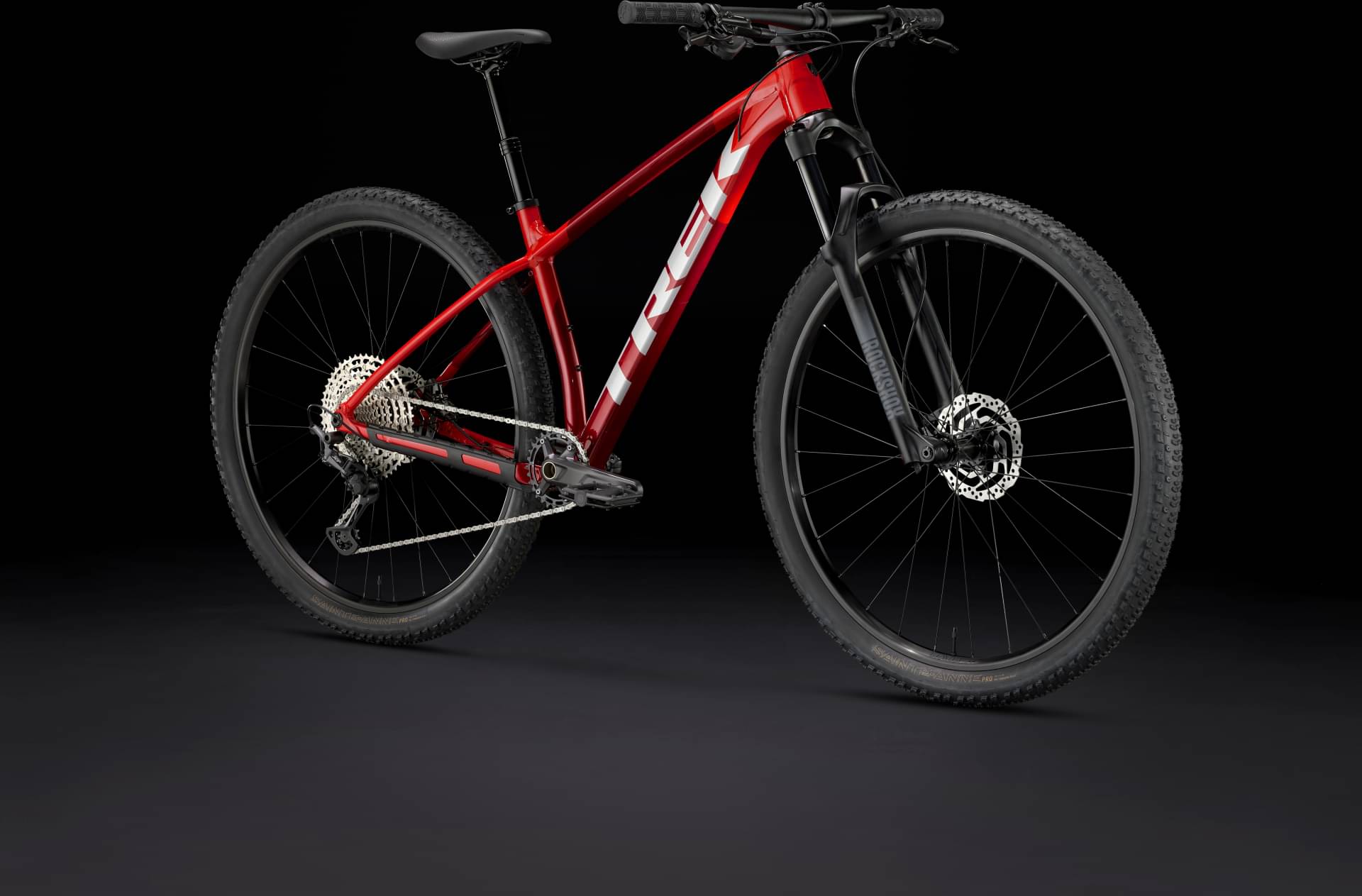

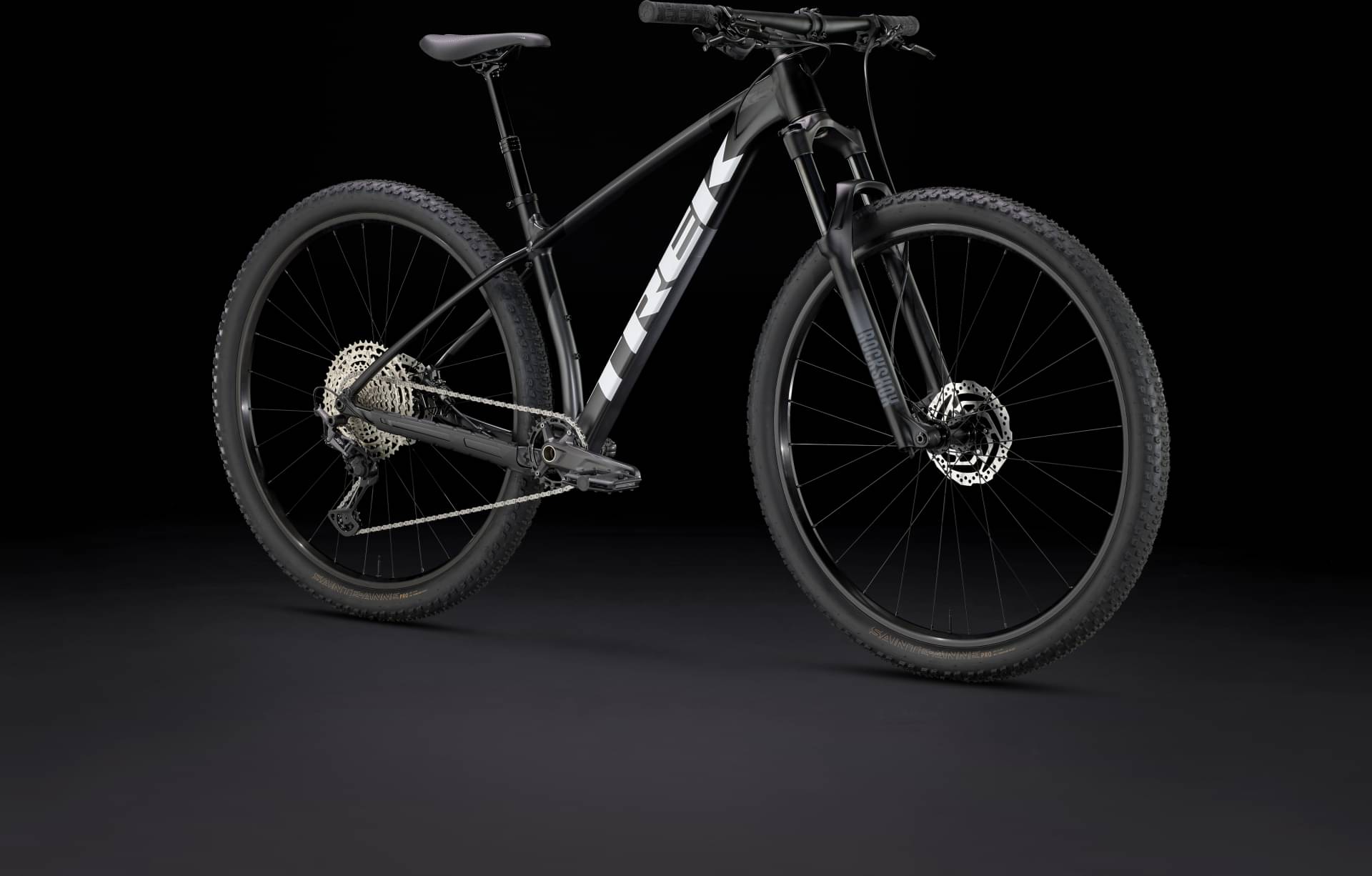

Trek Procaliber 6 2024
2024 Mountain
Estimate price |
1,490$
Weight | 12.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
MD/LG
173cm - 180cm
LG
177cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

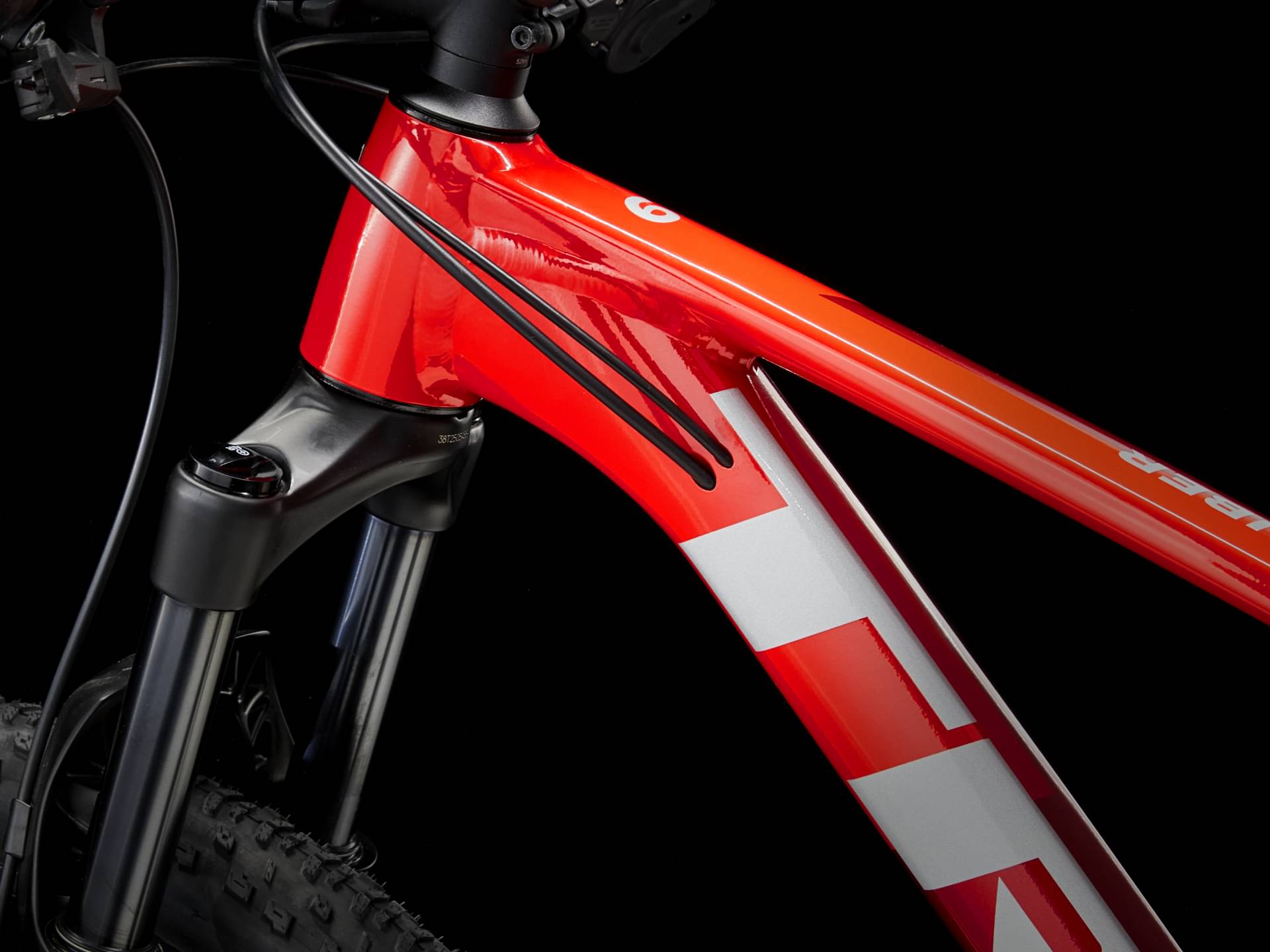

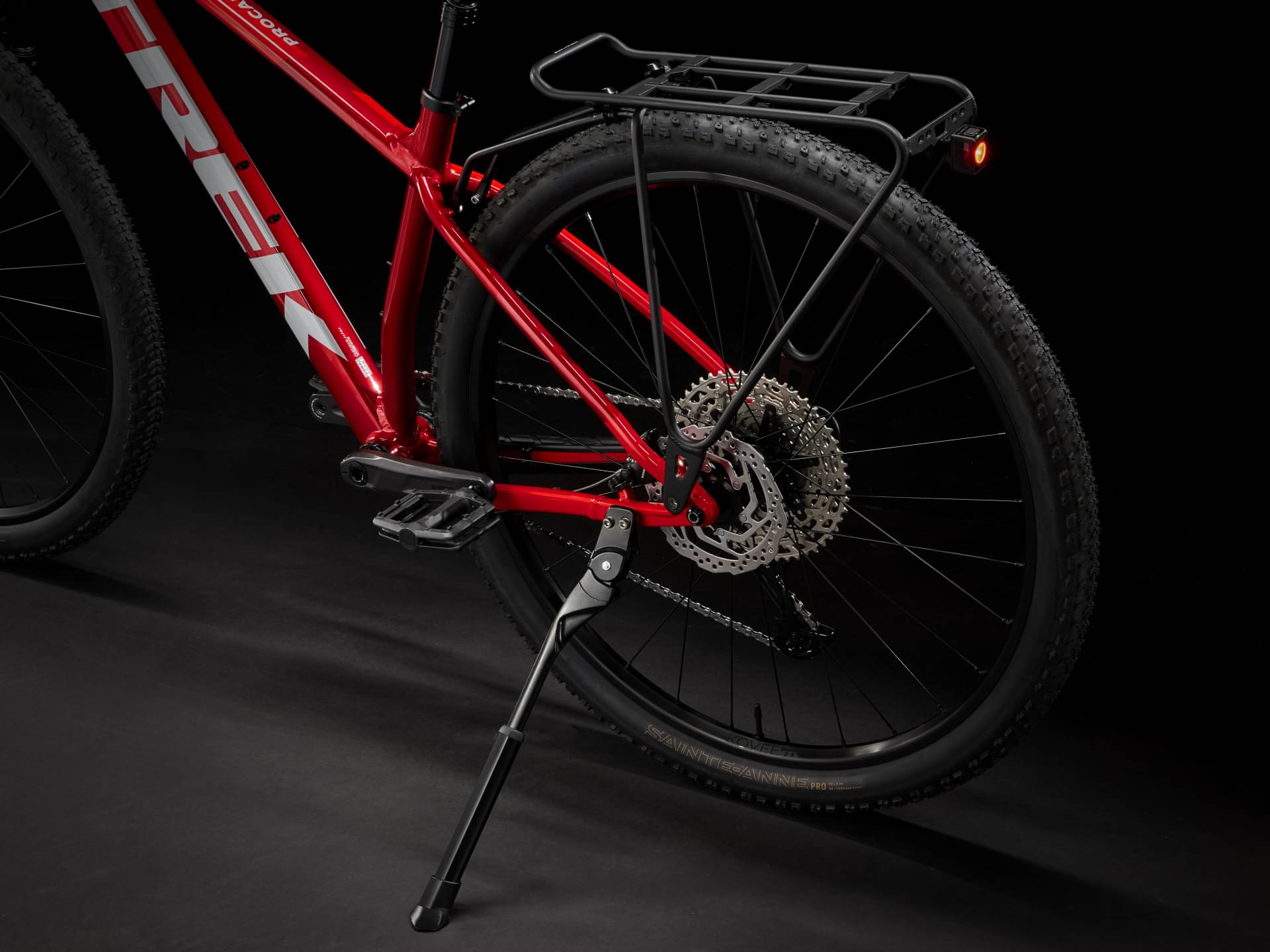

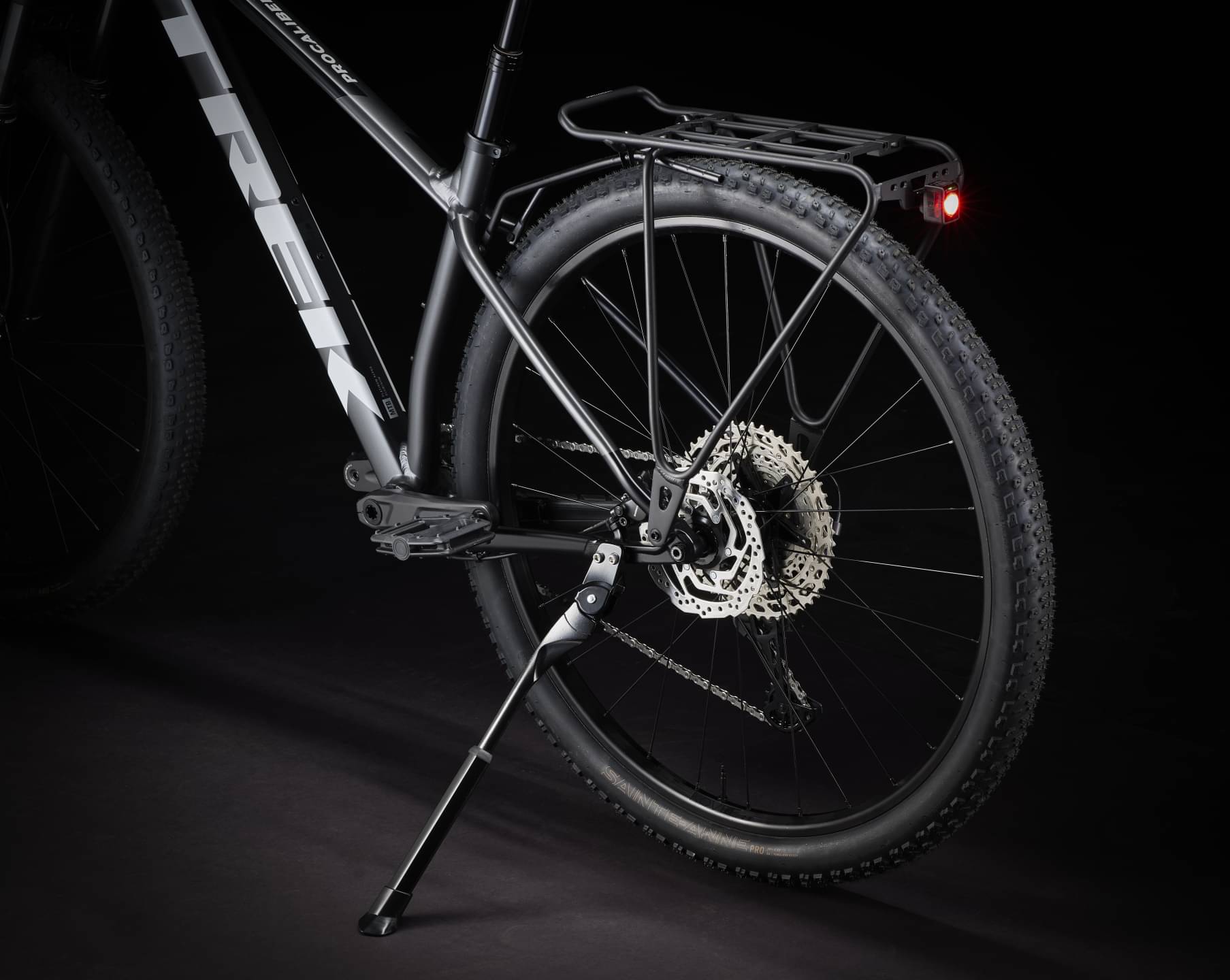

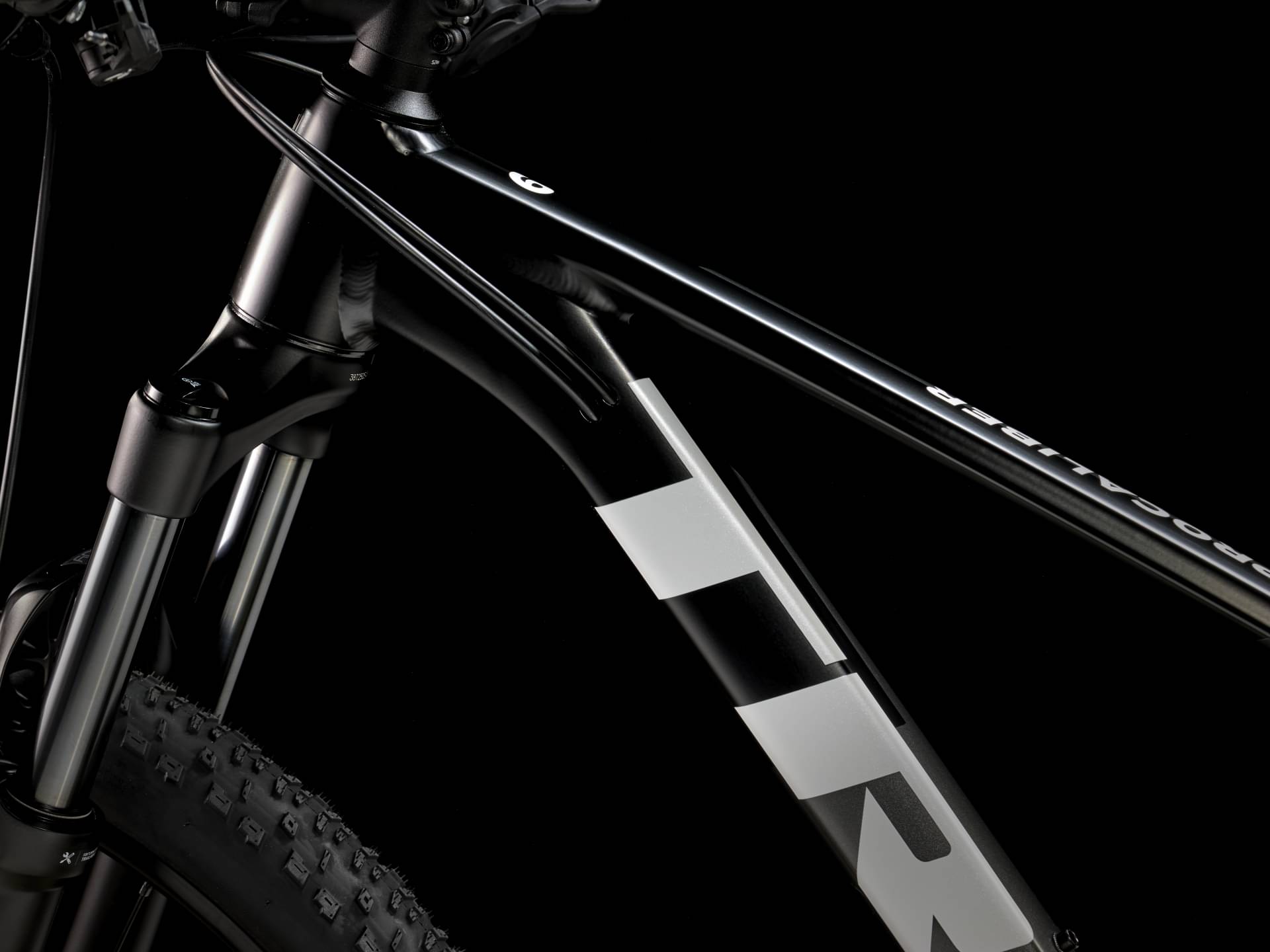

Alpha Platinum Aluminium, tapered head tube, internal routing, BSA 73, hidden rack and kickstand mounts, UDH, Boost148, 12 mm thru axle

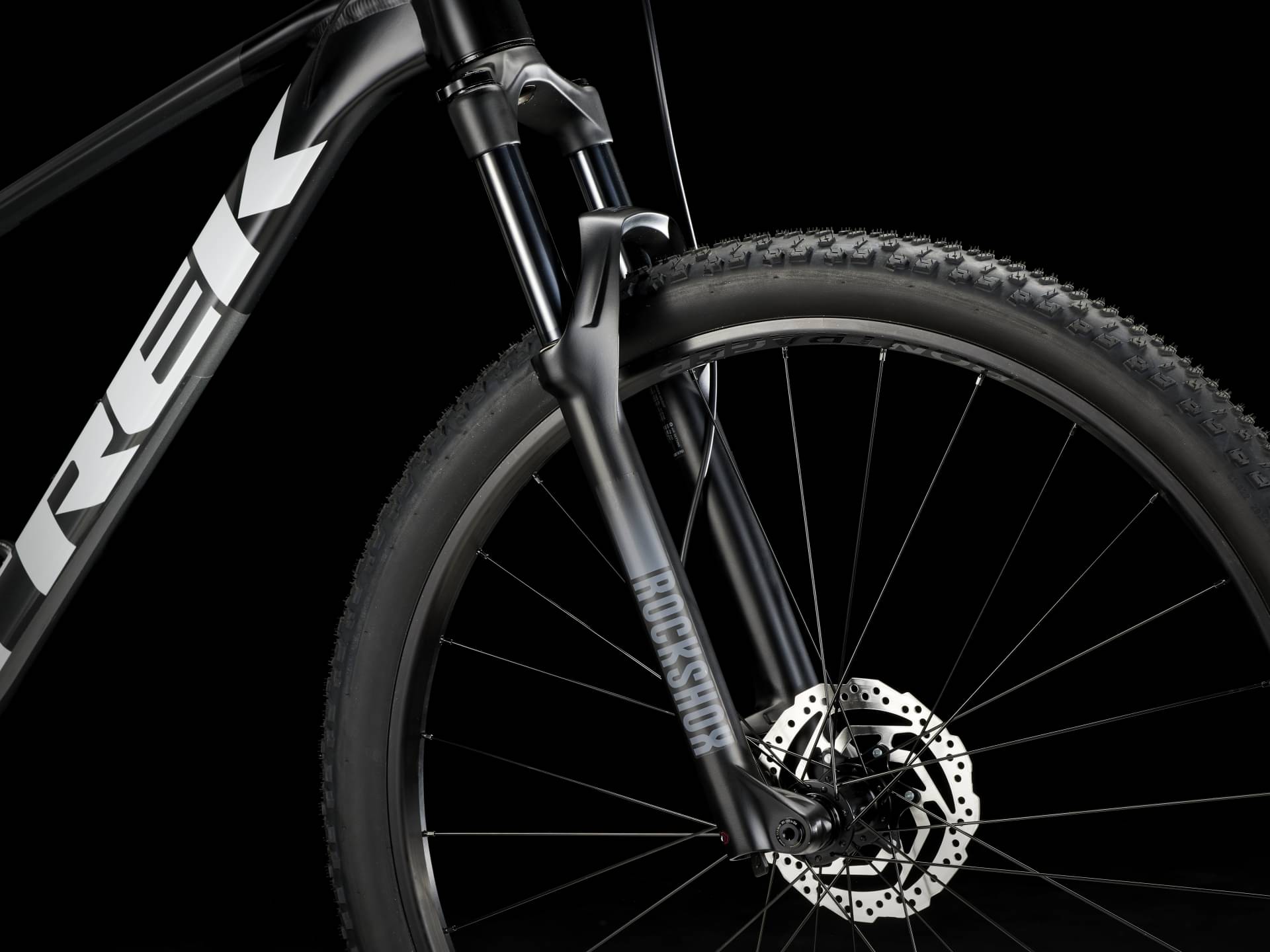

Suspension Fork

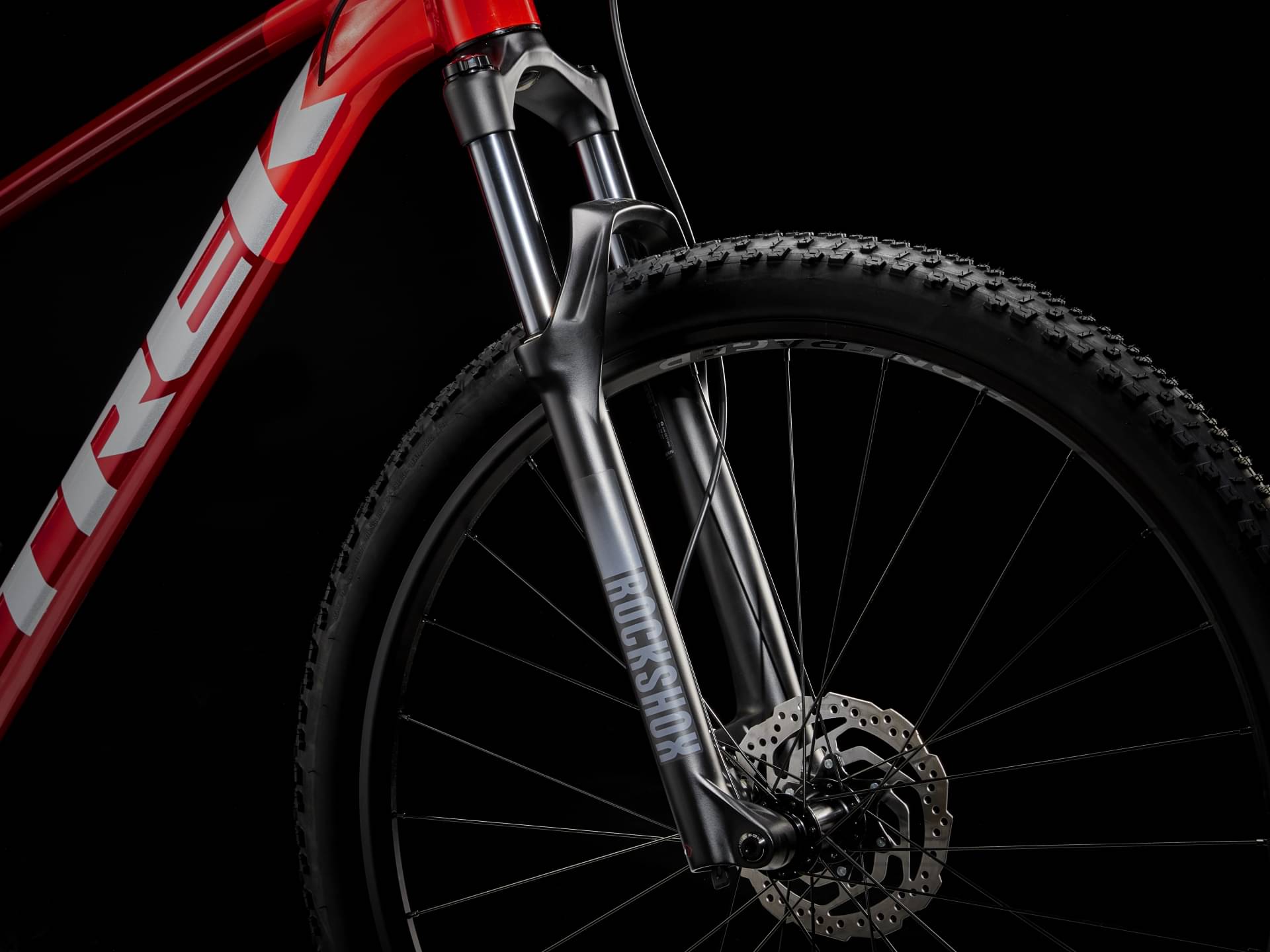

RockShox Judy Silver, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel

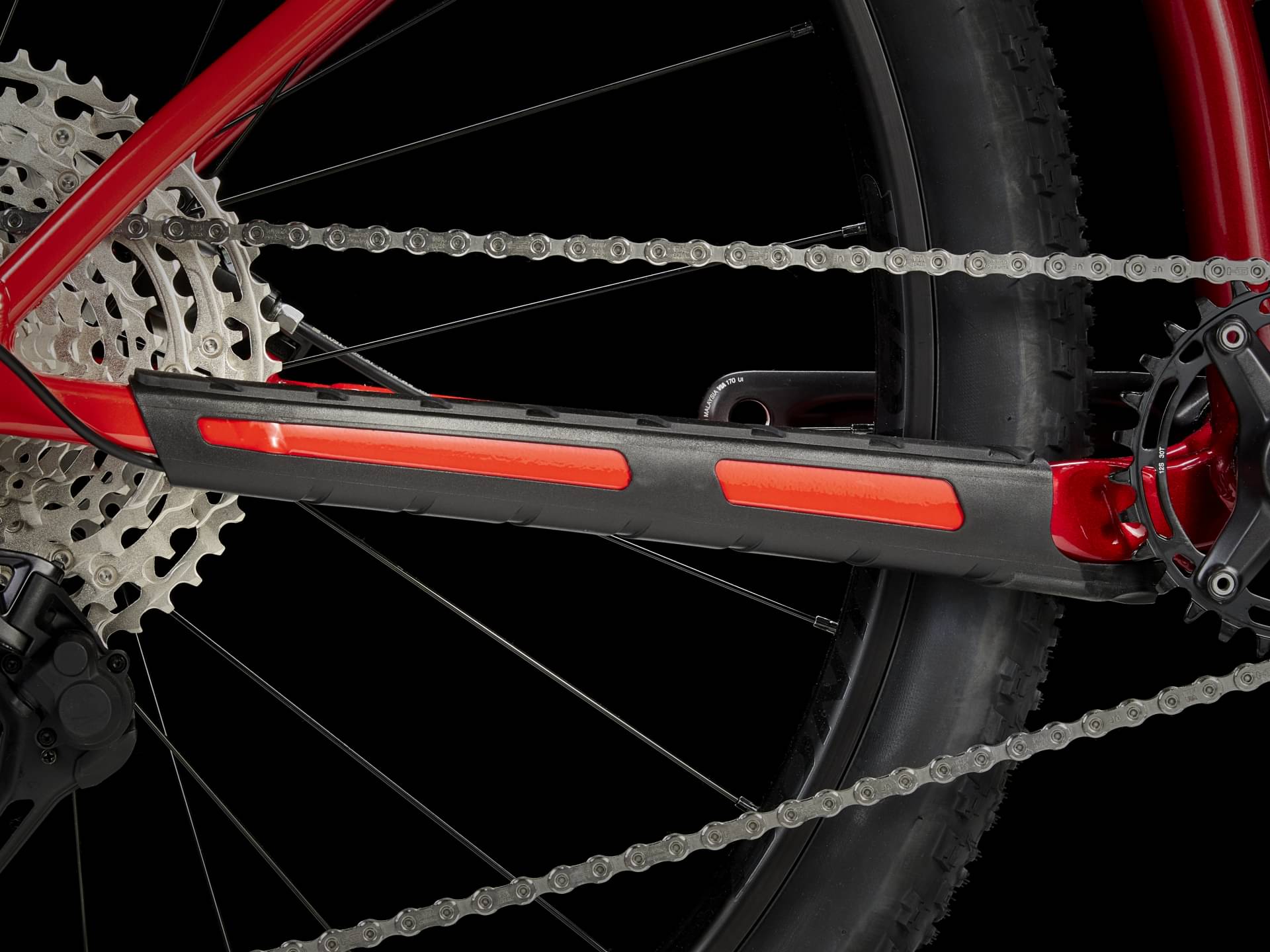

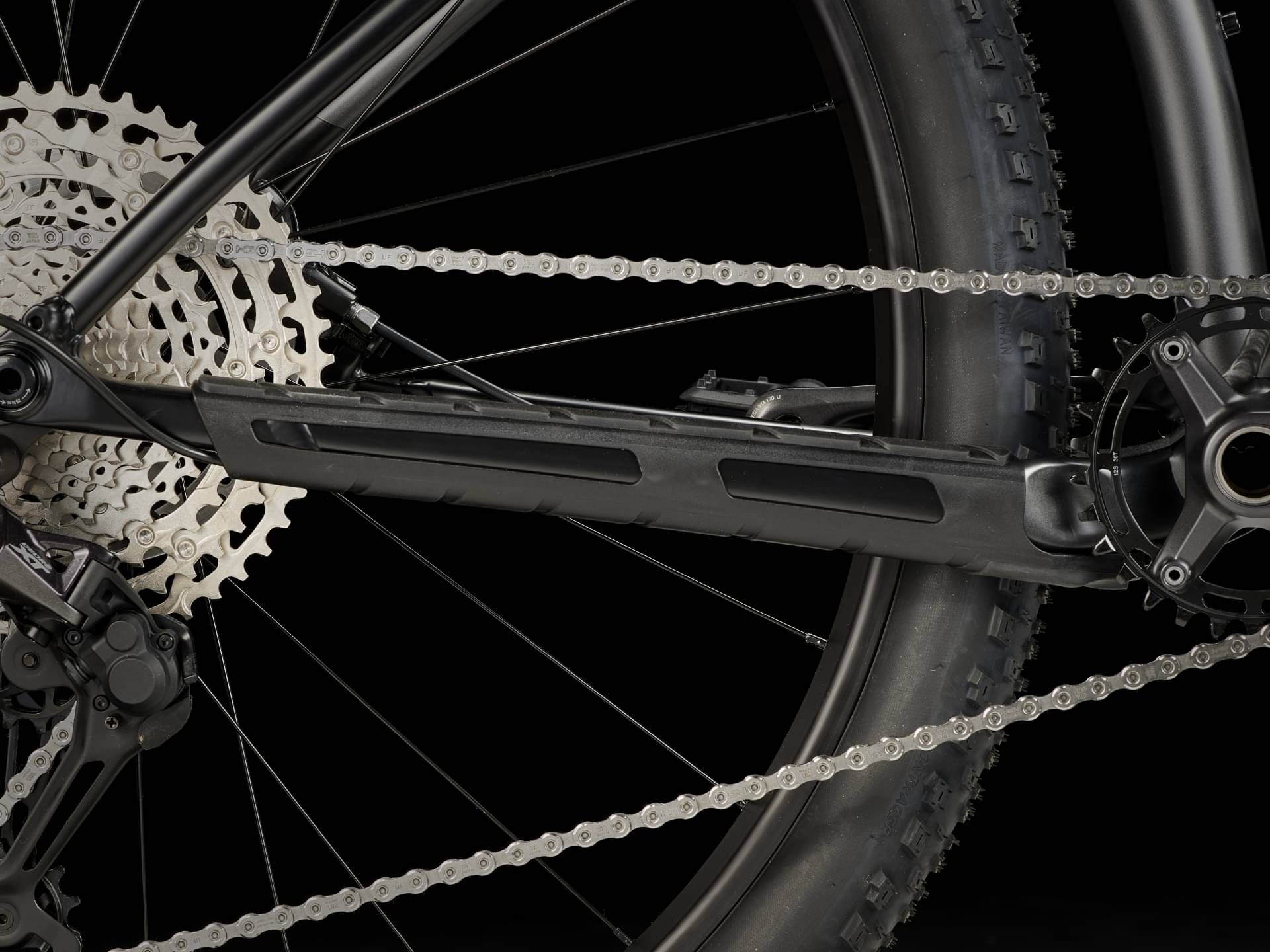

Drivetrain

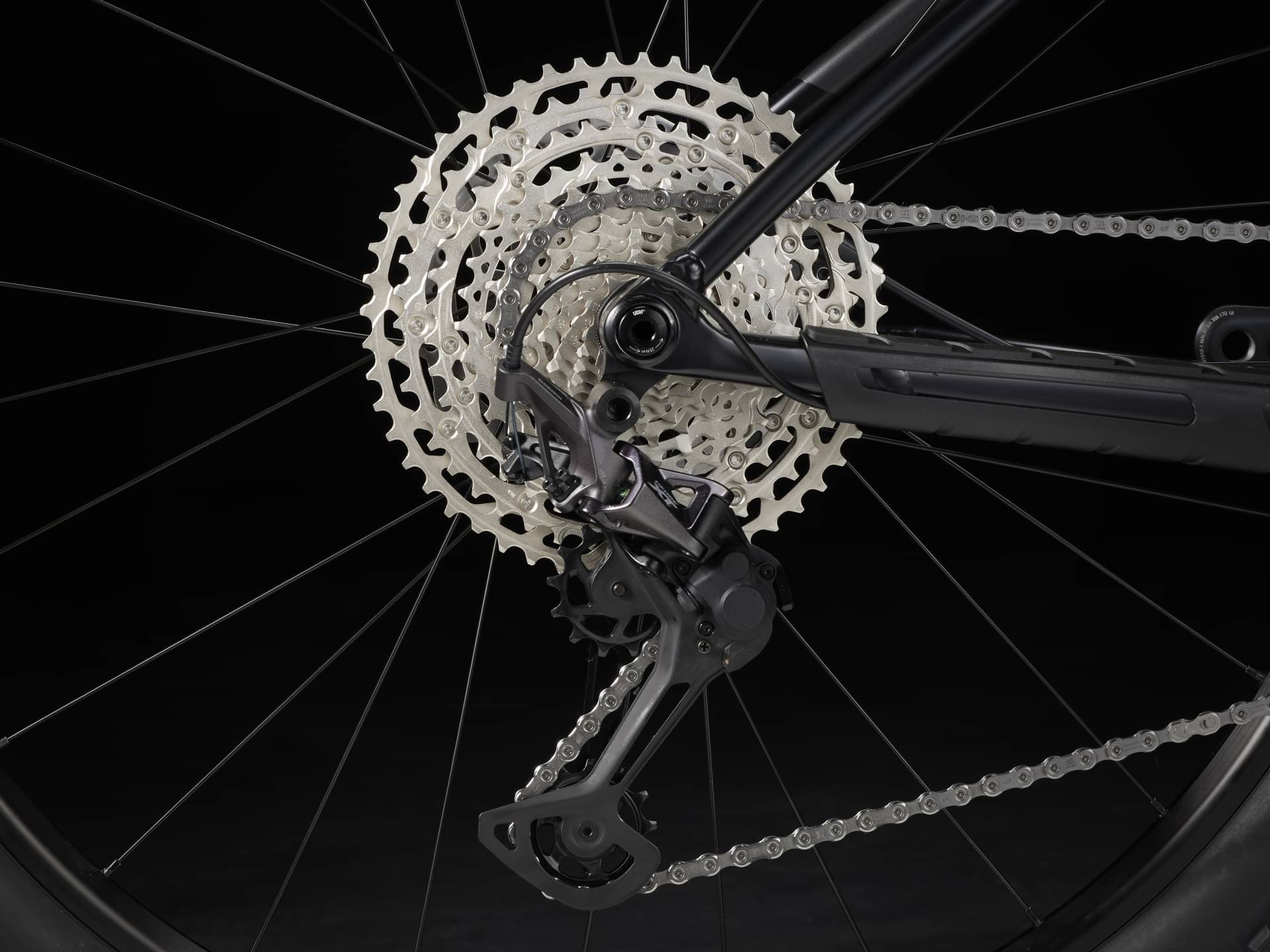

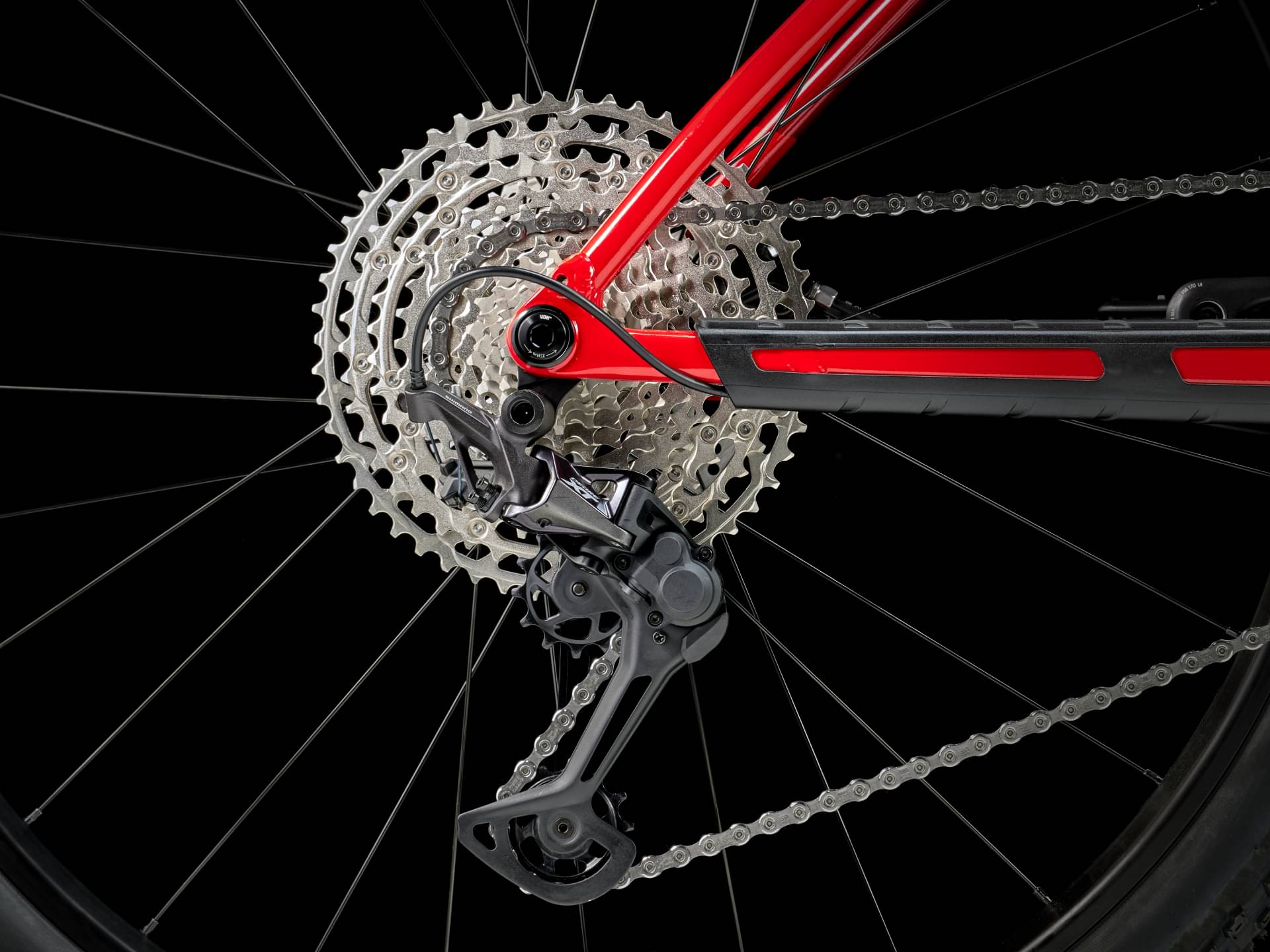

Rear Derailleur
Shimano XT M8100, long cage
Shift Levers
Shimano Deore M6100, 12-speed

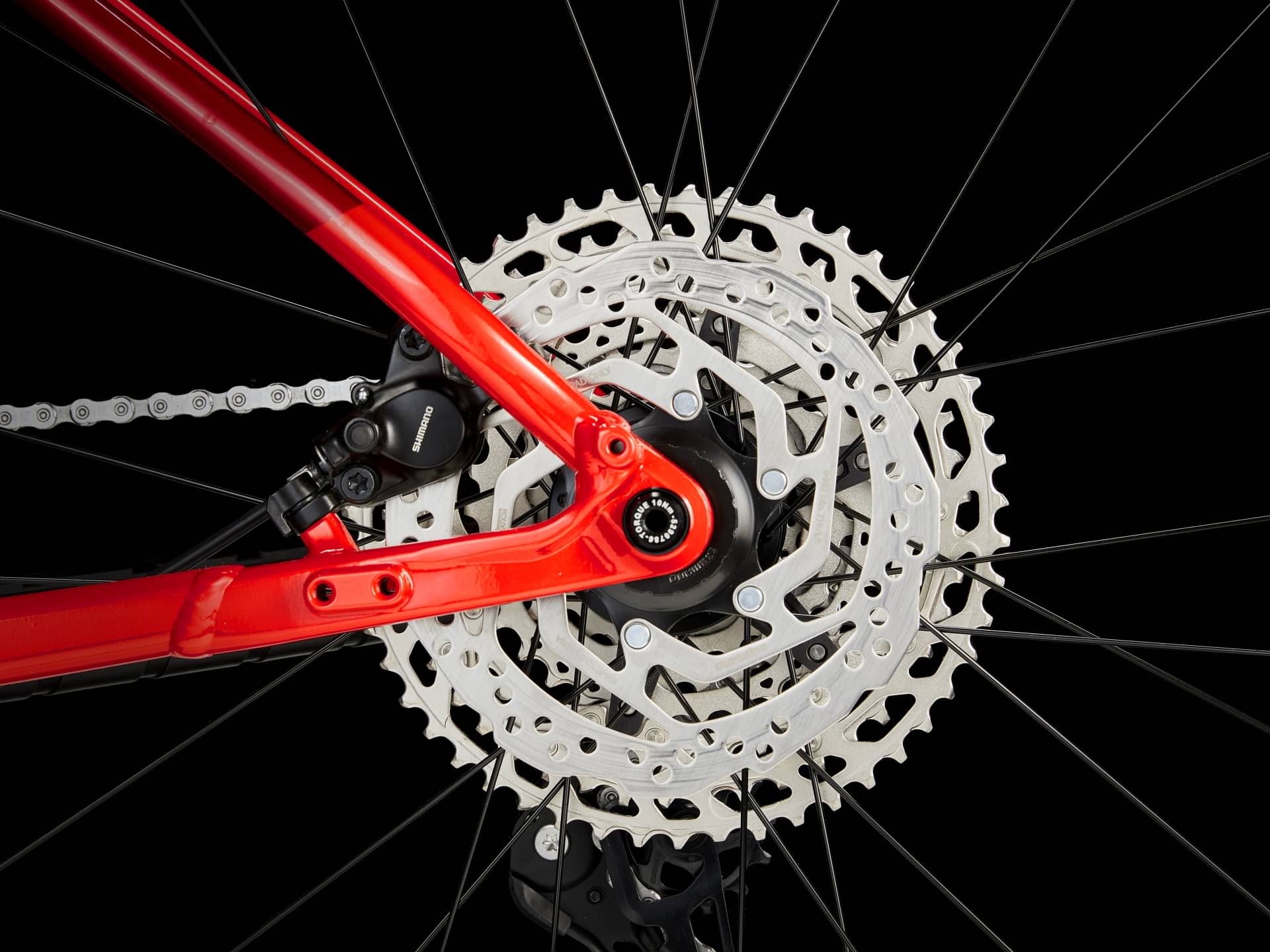

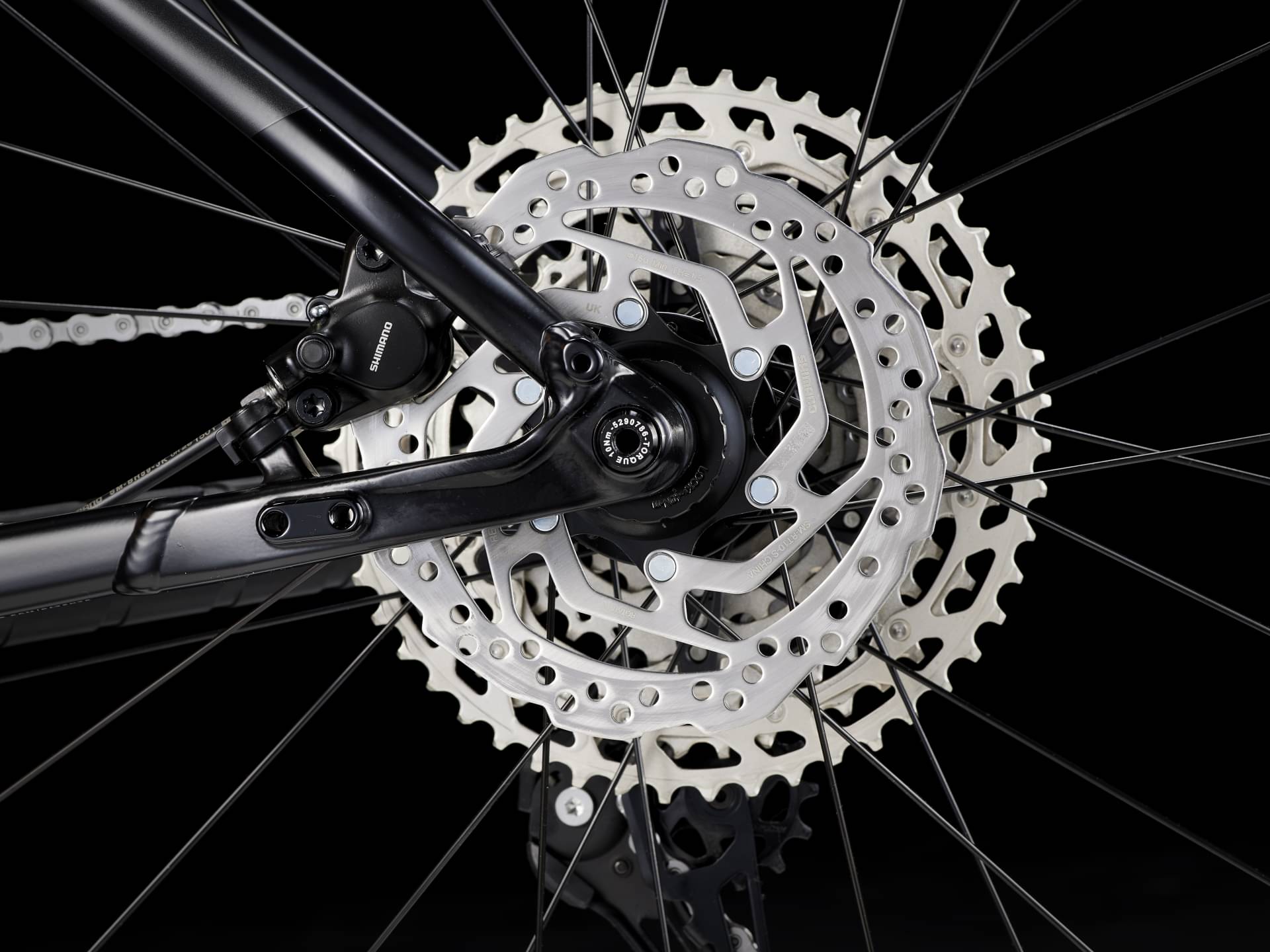

Cassette
Shimano Deore M6100, 10-51, 12-speed

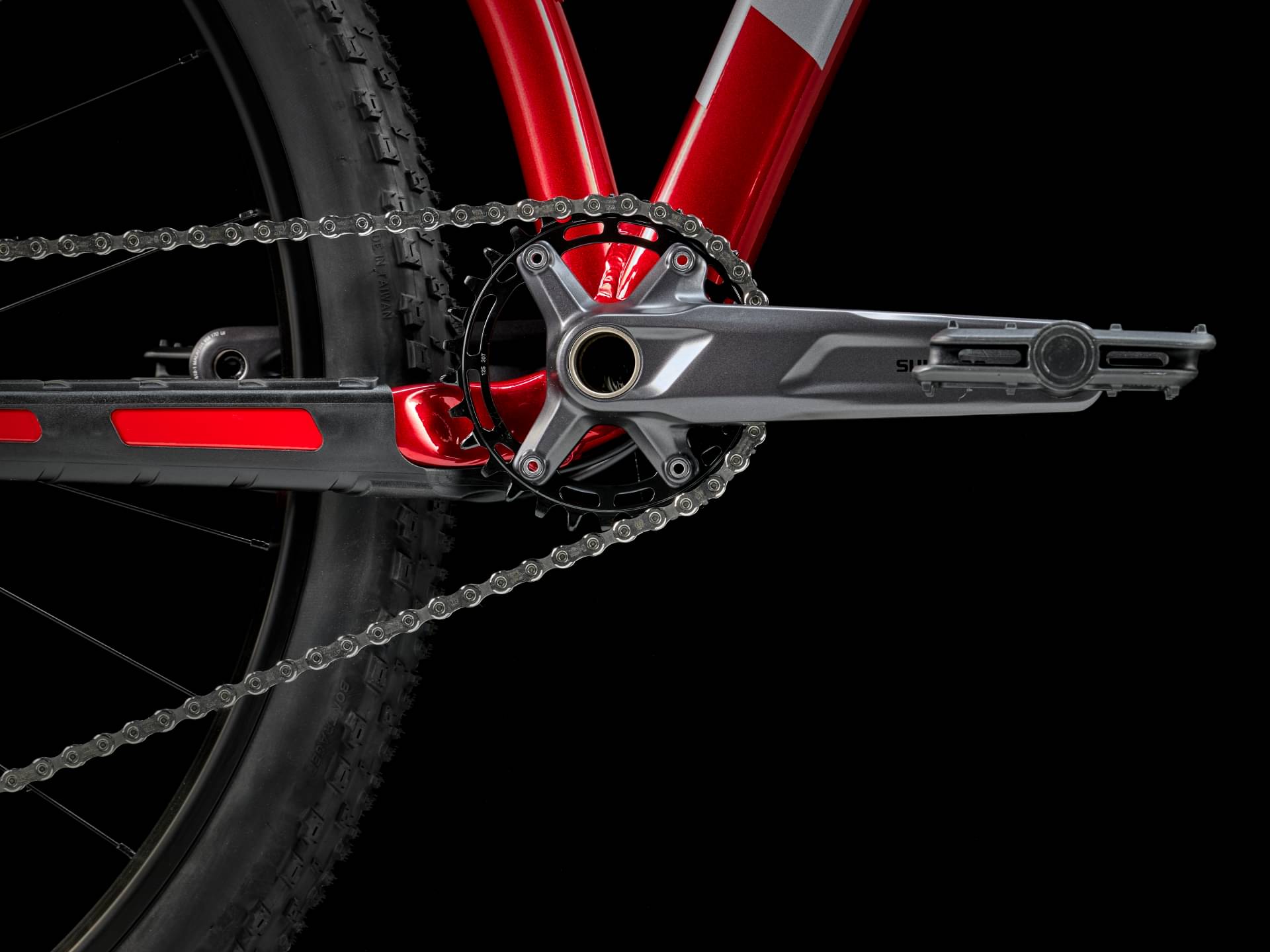

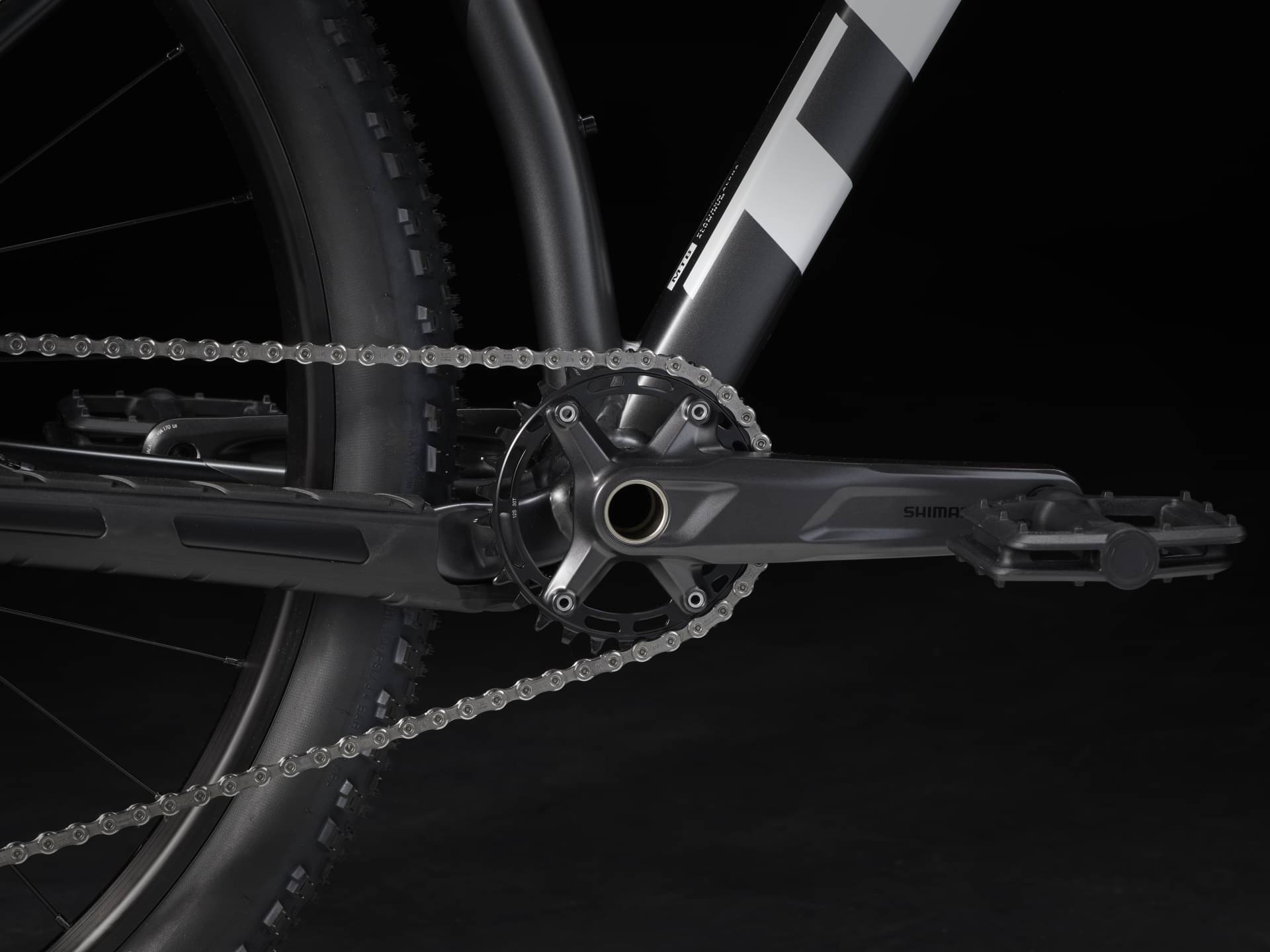

Crank
Size: S, M, Shimano MT512, 30T ring, 55 mm chain line, 170 mm length; Size: M/L, L, XL, Shimano MT512, 30T ring, 55 mm chain line, 175 mm length
Bottom Bracket
Shimano BB-MT501 BSA
Chain
Shimano Deore M6100, 12-speed
Pedals
VP-536 nylon platform
Wheels
Front Hub
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Rear Hub
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Rims
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve

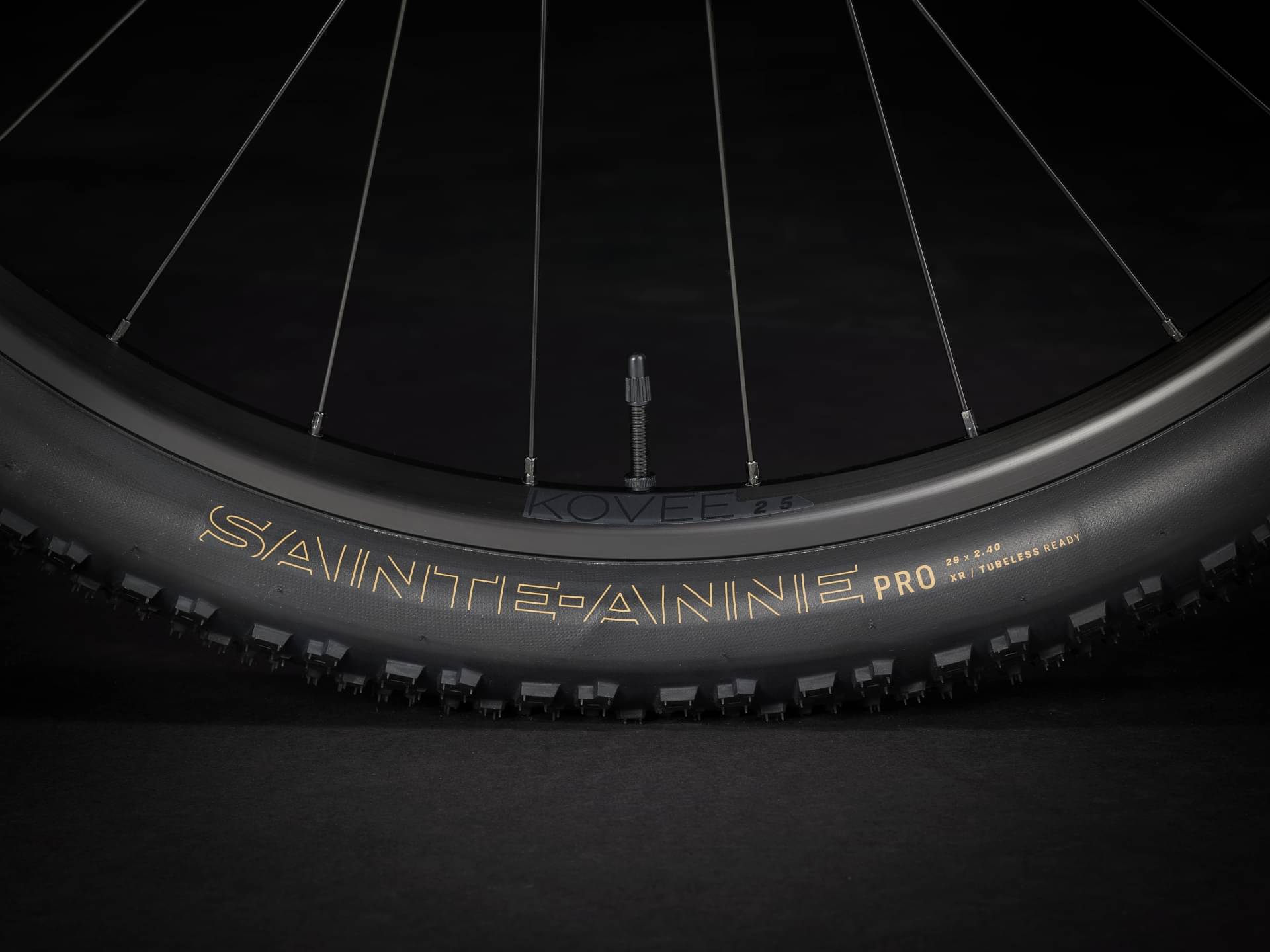

Tires
Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20"
Brakes
Brakes
Shimano MT200 hydraulic disc

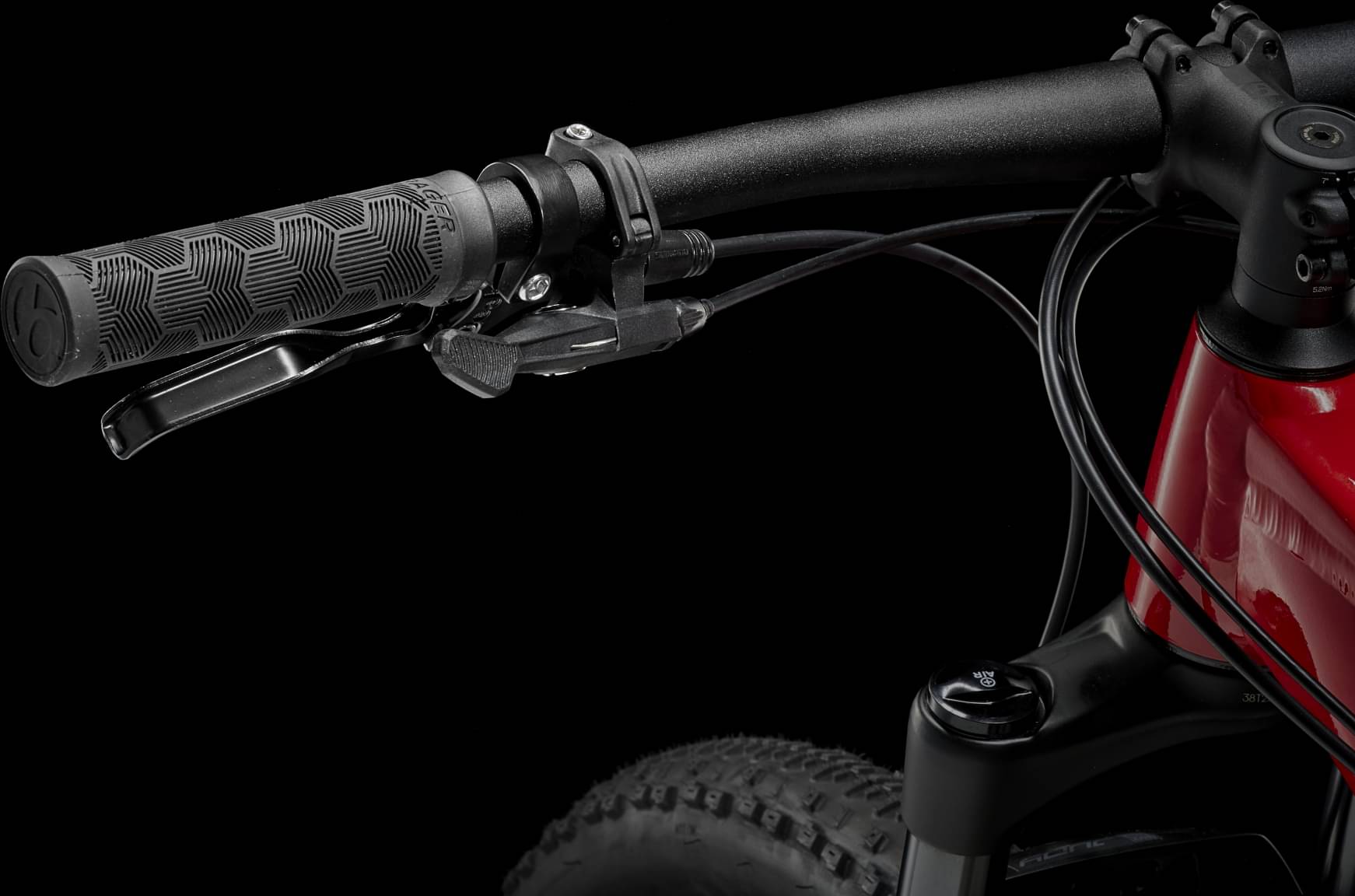

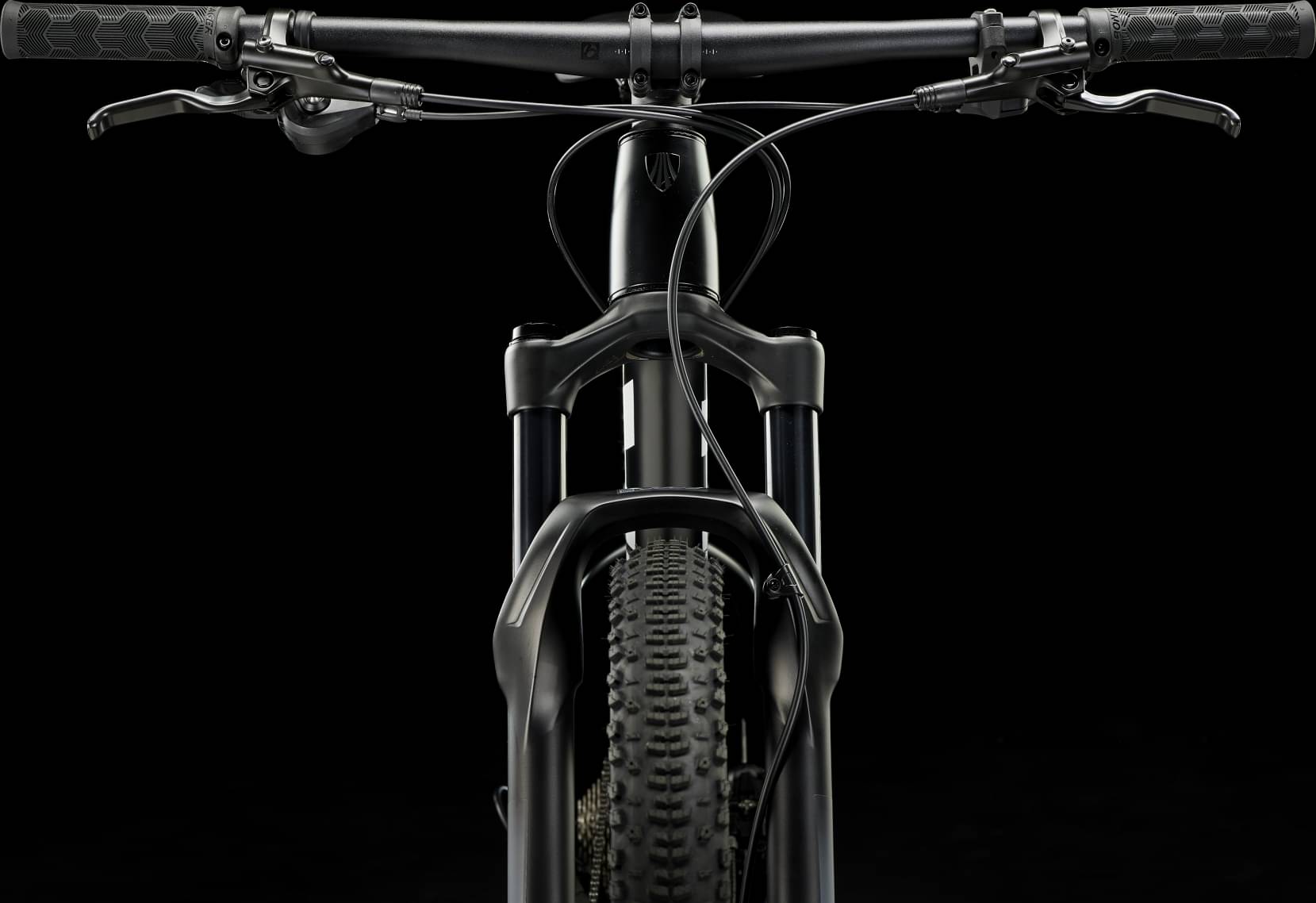

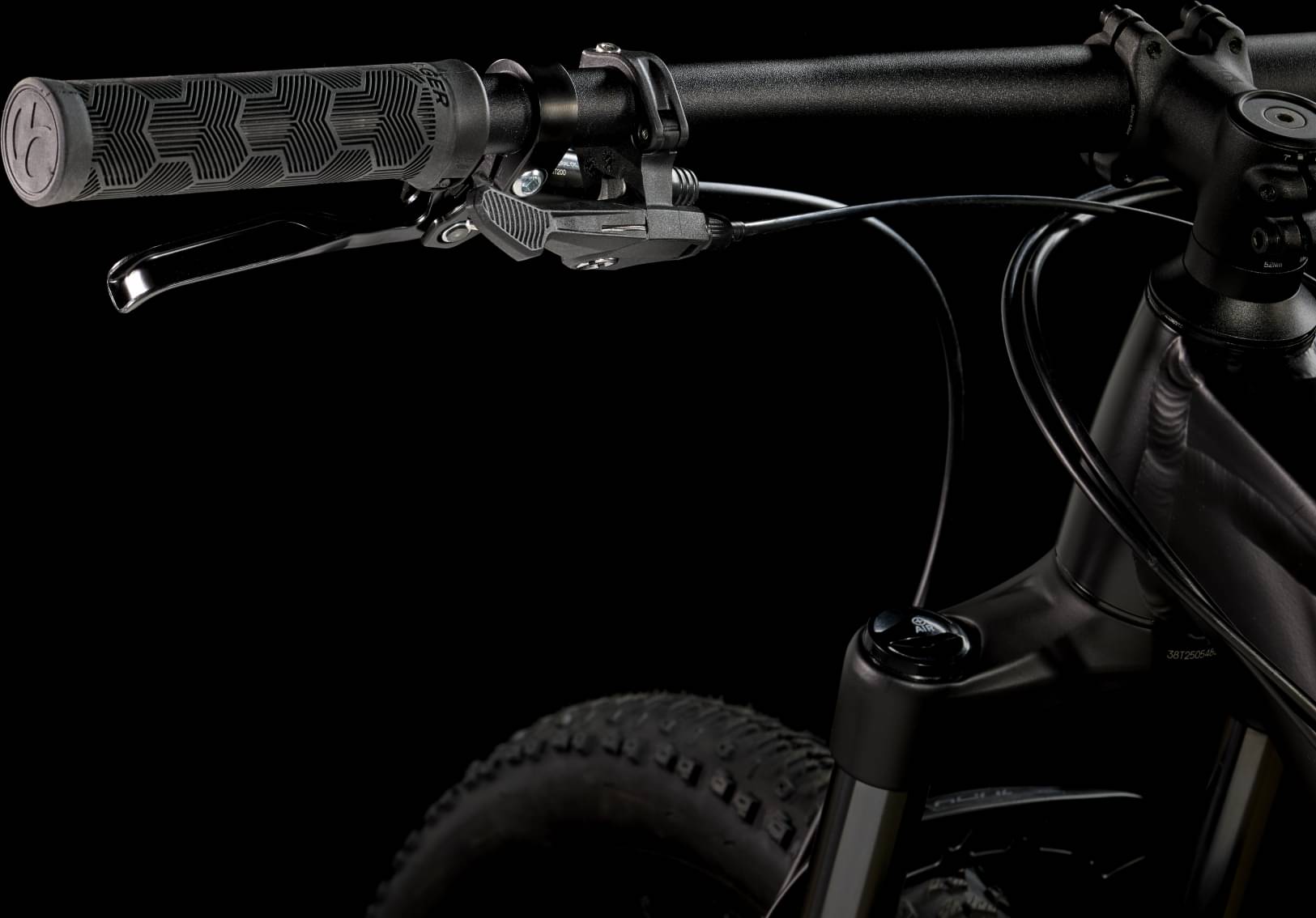

Cockpit
Stem
Size: S, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length; Size: M, M/L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length; Size: L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: XL, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width; Size: M/L, L, XL, Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Seat
Saddle
Verse Short, steel rails, 145 mm width
Seatpost
Size: S, M, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length; Size: M/L, L, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length; Size: XL, Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.516 mm | 1.428 mm | 1.38 mm | 1.335 mm | 1.284 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 688 mm | 713 mm | 728 mm | 743 mm | 794 mm |
| Rake | 43 mm | 43 mm | 43 mm | 44 mm | 43 mm |
| Trail | 112 mm | 112 mm | 112 mm | 111 mm | 112 mm |
| Stack | 614 mm | 614 mm | 614 mm | 614 mm | 642 mm |
| Reach | 405 mm | 430 mm | 445 mm | 460 mm | 500 mm |
| Top Tube Length | 577 mm | 598 mm | 613 mm | 628 mm | 677 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 435 mm | 435 mm | 440 mm |
| Wheelbase | 1110 mm | 1135 mm | 1155 mm | 1171 mm | 1227 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 747 mm | 749 mm | 758 mm | 763 mm | 791 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 173 cm | 177 cm | 187 cm |
| Rider Max Height | 166 cm | 176 cm | 180 cm | 189 cm | 195 cm |
Model Overview
Procaliber 6 is part of the Trek Procaliber model. Trek launched 66 bikes of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
The most economical model, the Trek Procaliber 6 2024 has a starting price of 1376$. Trek Procaliber 9.7 2024 on the other hand is the most expensive at 4023$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Trek Procaliber 6 price was 1376$. Comparing the average cost of a Trail bike to this one, you will see that Procaliber 6 price is 100.73% smaller.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 12.6 kg (27.78 lbs), the Procaliber 6 model is slightly lighter than average. In short, the average Trail bike weight is 3.02% higher than this one.

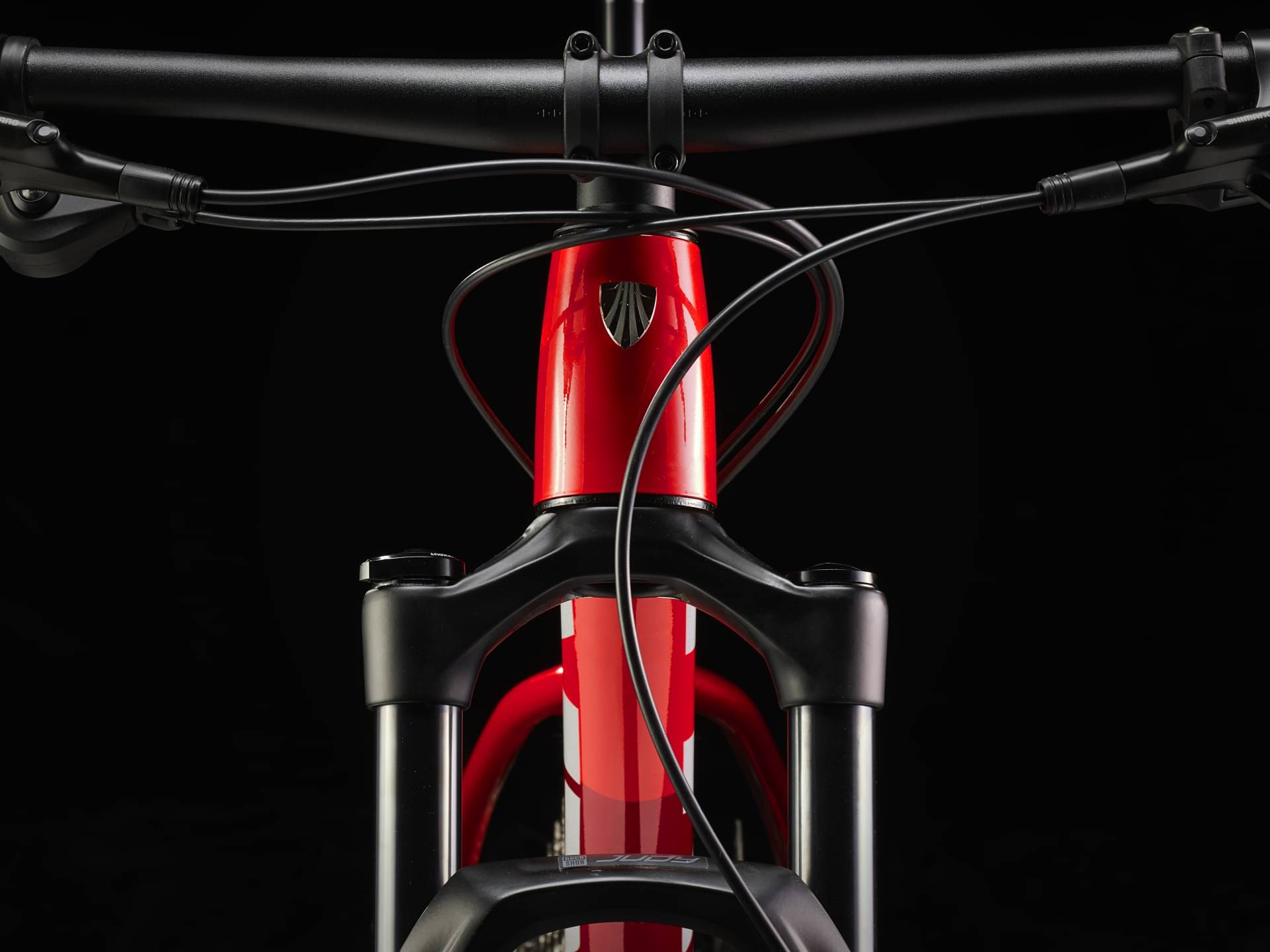

Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This bike has the RockShox Judy Silver TK fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Procaliber 6 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Procaliber 6 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 155 cm – 195 cm (5.09 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Trek Procaliber 6 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
