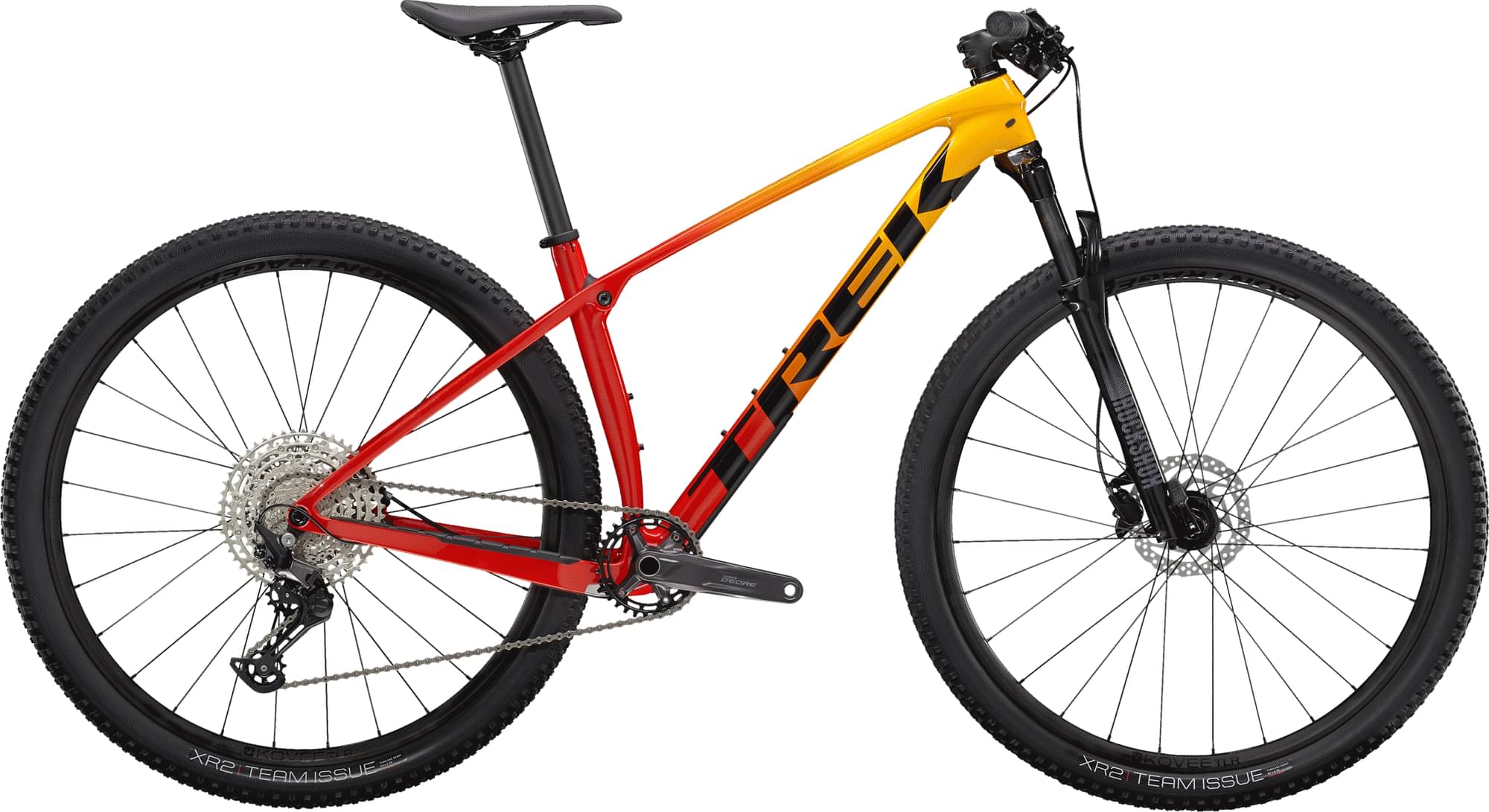

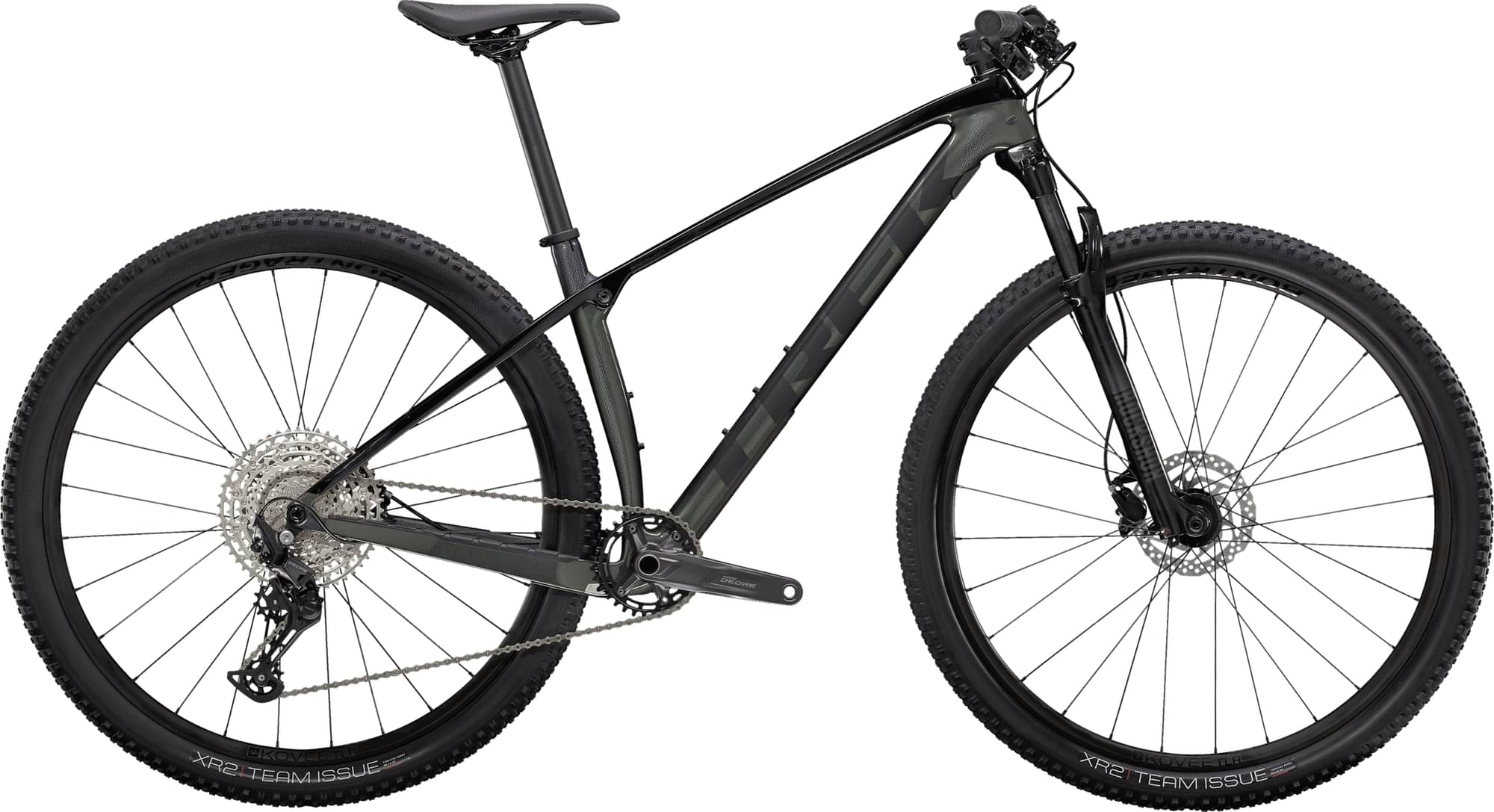

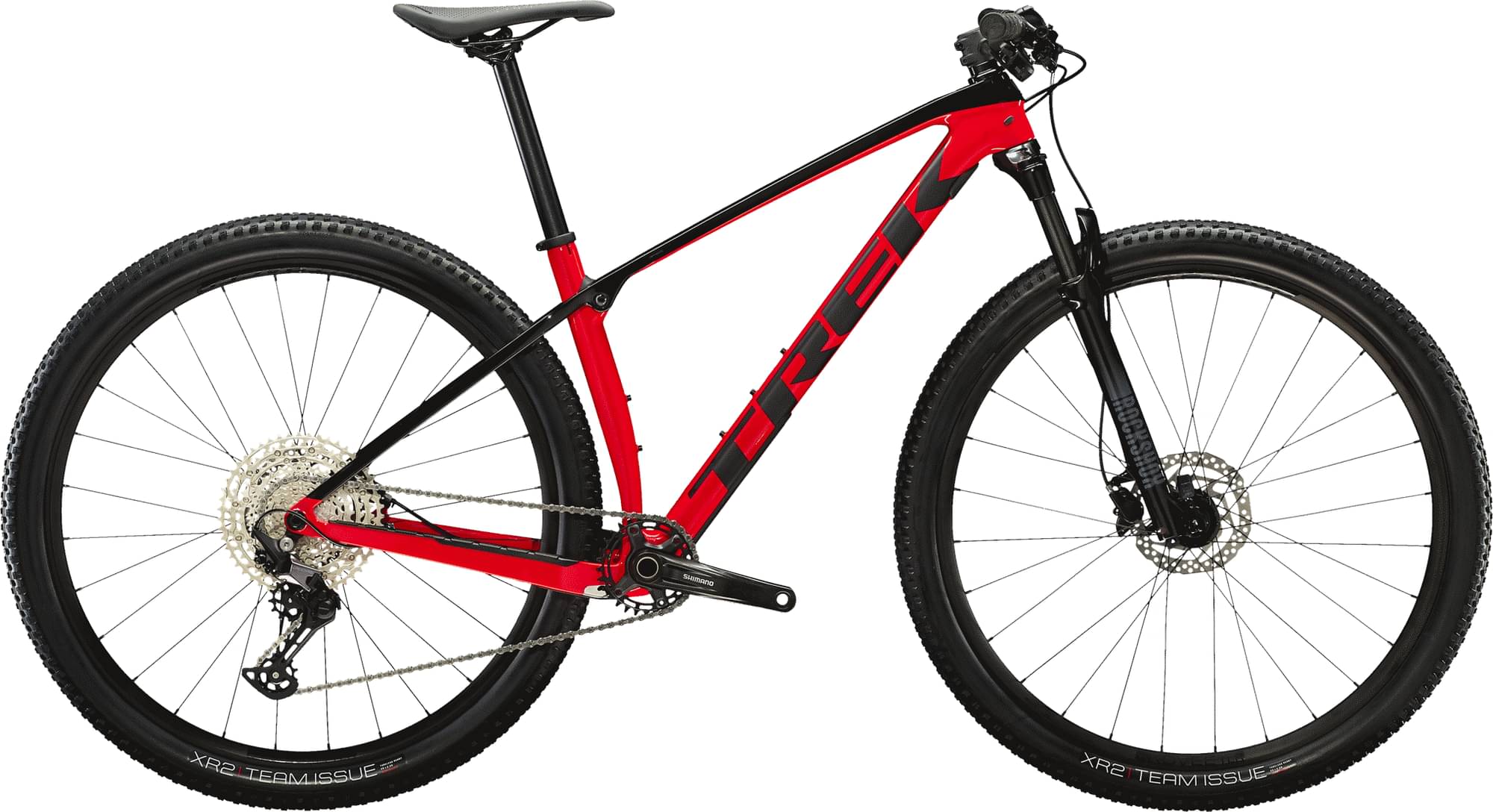

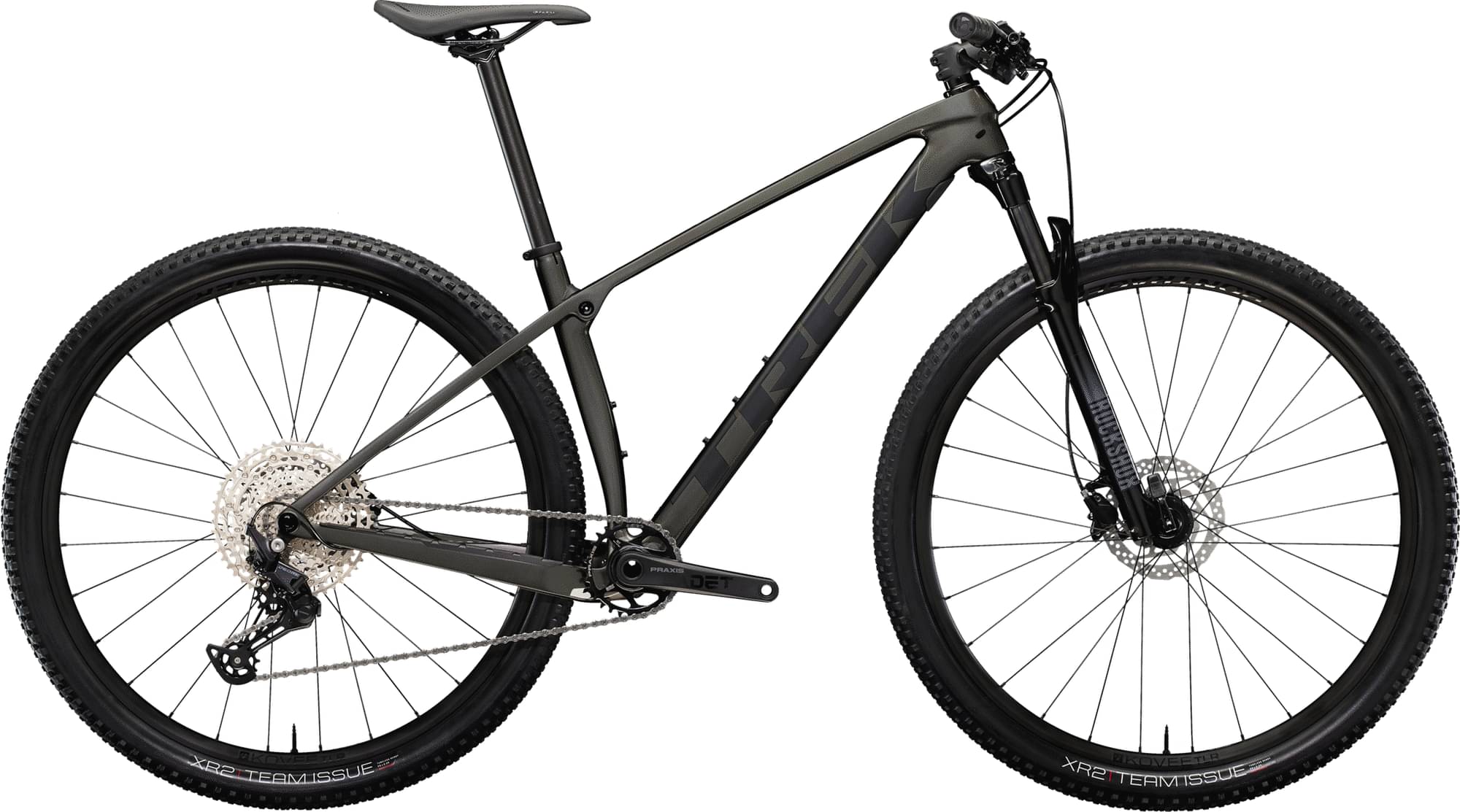

Trek Procaliber 9.5 2023
2023 Mountain
Estimate price |
2,449$
Weight | 11.88 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
155cm - 166cm
17.5"
164cm - 176cm
18.5"
173cm - 180cm
19.5"
177cm - 189cm
21.5"
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon frame
Suspension Fork
Size: S, M, M/L, L, XL, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15mm Maxle Stealth, 100mm travel; Size: S, M, M/L, L, XL, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
Drivetrain
Rear Derailleur
Shimano Deore M6100, long cage
Shift Levers
Shimano Deore M6100, 12 speed
Cassette
Shimano Deore M6100, 10-51, 12 speed
Crank
Size: S, M, Shimano MT511, 30T steel ring, 52mm chainline, 170mm length; Size: M/L, L, XL, Shimano MT511, 30T steel ring, 52mm chainline, 175mm length
Bottom Bracket
Shimano MT500, 92mm, PressFit
Chain
Shimano Deore M6100, 12 speed
Wheels
Front Hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Tires
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: S, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 60mm length; Size: M, M/L, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 70mm length; Size: L, XL, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 80mm length
Handlebar
Size: S, M, M/L, Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width; Size: L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Size: S, M, M/L, L, XL, Bontrager Arvada, steel rails, 138mm width; Size: S, M, M/L, L, XL, Bontrager Verse Comp, steel rails, 145mm width
Seatpost
Size: S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: M/L, L, XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.44 mm | 1.39 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 653 mm | 678 mm | 693 mm | 708 mm | 743 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 593 mm | 593 mm | 593 mm | 593 mm | 607 mm |
| Reach | 388 mm | 413 mm | 428 mm | 443 mm | 473 mm |
| Top Tube Length | 563 mm | 588 mm | 603 mm | 618 mm | 652 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 393 mm | 419 mm | 444 mm | 470 mm | 510 mm |
| Head Tube Angle | 68.8 ° | 68.8 ° | 68.8 ° | 68.8 ° | 68.8 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1071 mm | 1096 mm | 1111 mm | 1126 mm | 1161 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 708 mm | 748 mm | 758 mm | 777 mm | 807 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 173 cm | 177 cm | 187 cm |
| Rider Max Height | 166 cm | 176 cm | 180 cm | 189 cm | 196 cm |
About this model
Procaliber 9.5 completes the Trek Procaliber model. There are 63 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Trek Procaliber 9.5 2023 is the cheapest bike model and costs 2449$. Trek Procaliber 9.7 2023 is the most expensive one and costs 4499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 2449$. Comparing this to the average Crosscountry bike price, we see that the price is 28.56% more expensive.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Trek Procaliber 9.5 it’s weighing 11.88 kg (26.19 lbs). At this weight, is slightly lighter than average. In short, the average Crosscountry bike weight is 4.38% higher than this one.
Overview of components
Fork
Trek Procaliber 9.5 2023 bike is equipped with the RockShox Judy fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Procaliber 9.5 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Procaliber 9.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Procaliber 9.5 comes in 5 sizes, that range from 155 cm – 196 cm (5.09 ft – 6.43 ft). In short, you can easily find one that suits you.
