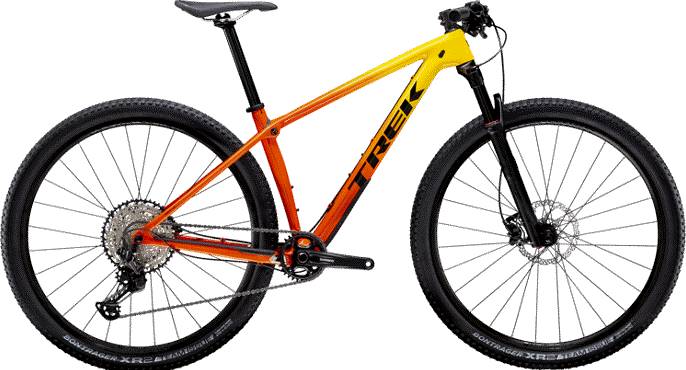

Trek Procaliber 9.6 2020
2020 Mountain
Estimate price |
2,599$
Weight | 11.05 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 166cm
MD
161cm - 172cm
MD/LG
165cm - 179cm
LG
177cm - 188cm
XL
186cm - 197cm
XXL
194cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, IsoSpeed, tapered head tube, internal derailleur routing, balanced post mount brake, Boost148, 12mm thru axle
Suspension Fork
RockShox Recon Gold, Motion Control damper, remote lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
Drivetrain
Rear Derailleur
Shimano XT M8100, long cage, 51T max cog
Shift Levers
Shimano SLX M7100, 12 speed
Cassette
Shimano SLX M7100, 10-51, 12 speed
Crank
Size: S, Shimano MT610, 30T steel ring, Boost (52mm chainline), 170mm; Size: M, ML, L, XL, XXL, Shimano MT610, 30T steel ring, Boost (52mm chainline), 175mm
Bottom Bracket
Shimano MT500, 92mm, PressFit
Chain
Shimano SLX M7100, 12 speed
Wheels
Front Hub
Bontrager alloy, sealed bearing, alloy axle, centerlock, Boost110, 15mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, centerlock, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve
Tires
Size: S, Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 27.5x2.20''; Size: M, ML, L, XL, XXL, Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Brakes
Brakes
Shimano hydraulic disc, MT401 lever, MT400 caliper
Cockpit
Stem
Size: S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: M, ML, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL, XXL, Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 100mm length
Handlebar
Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
FSA IS-2, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Arvada, hollow chromoly rails, 138mm width
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.44 mm | 1.39 mm | 1.36 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 302 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 633 mm | 669 mm | 684 mm | 703 mm | 725 mm | 737 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 49 mm | 47 mm |
| Trail | 85 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 565 mm | 597 mm | 597 mm | 606 mm | 630 mm | 634 mm |
| Reach | 384 mm | 414 mm | 429 mm | 444 mm | 459 mm | 473 mm |
| Top Tube Length | 560 mm | 601 mm | 619 mm | 640 mm | 661 mm | 675 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.3 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 368 mm | 419 mm | 444 mm | 470 mm | 521 mm | 559 mm |
| Head Tube Angle | 69.3 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.6 ° |
| Head Tube Length | 100 mm | 90 mm | 90 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 427 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1055 mm | 1100 mm | 1115 mm | 1134 mm | 1156 mm | 1168 mm |
| Bottom Bracket Drop | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 755 mm | 752 mm | 766 mm | 780 mm | 818 mm | 849 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 161 cm | 165 cm | 177 cm | 186 cm | 194 cm |
| Rider Max Height | 166 cm | 172 cm | 179 cm | 188 cm | 197 cm | 203 cm |
About this model
Procaliber 9.6 is a Trek Procaliber model. 63 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Trek Procaliber 6 2020 is the cheapest bike model and costs 1999$. Trek Procaliber 9.7 2020 is the most expensive one and costs 3779$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Trek Procaliber 9.6 price was 2599$. Comparing this to the average Crosscountry bike price, we see that the price is 36.43% higher.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek Procaliber 9.6 it’s weighing 11.05 kg (24.36 lbs). At this weight, is considerably lighter than average. In other words, this model is 12.22% lighter than the average Crosscountry bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Procaliber 9.6 components
Fork
The fork installed on this bike is the RockShox Recon Gold RL model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Procaliber 9.6 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Procaliber 9.6 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Trek Procaliber 9.6 bike has 6 sizes, in the range of 153 cm – 203 cm (5.02 ft – 6.66 ft). In conclusion, finding one for you shouldn’t be a problem.
