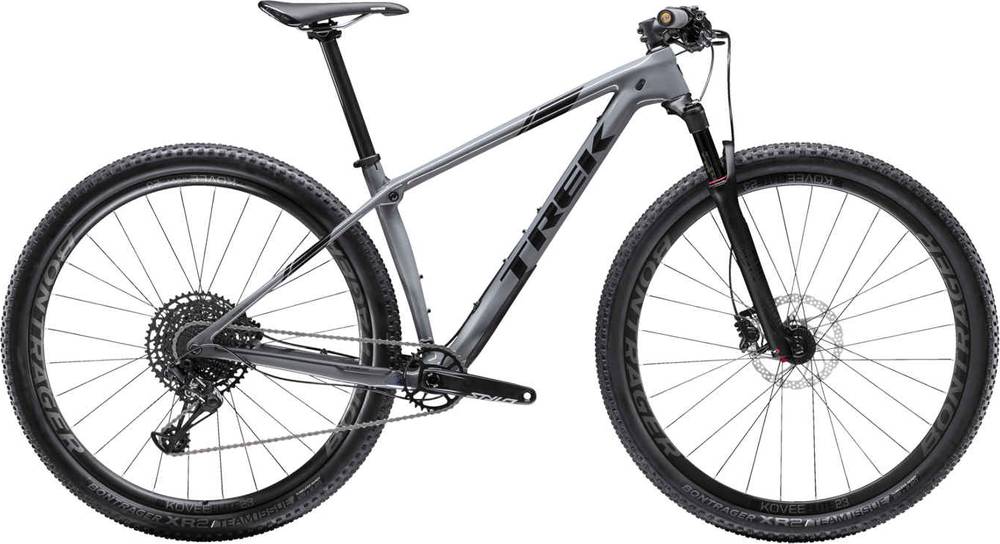

Trek Procaliber 9.7 2019
2019 Mountain
Estimate price |
3,779$
Weight | 10.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, IsoSpeed, tapered head tube, internal derailleur routing, balanced post mount brake, PF92, Boost148, G2 Geometry on 29ers (Sizes XS and XS: 142x12 rear spacing)
Suspension Fork
RockShox Reba RL, Solo Air, Motion Control damper, remote lockout, tapered steerer, G2 Geometry w/51mm offset on 29ers, Boost110, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX Eagle
Front Derailleur
Direct mount, none included
Shift Levers
SRAM NX Eagle, 12 speed
Cassette
SRAM XG-1230 Eagle, 11-50, 12 speed
Crank
Truvativ Stylo 6k Eagle Dub, 30T Direct Mount
Bottom Bracket
DUB PF92
Chain
SRAM NX Eagle
Chain Guide
No
Pedals
Not included
Wheels
Front Hub
Rapid Drive, 54 tooth, Boost 110 front, Boost 148 rear
Rear Hub
Rapid Drive, 54 tooth, Boost 110 front, Boost 148 rear
Rims
Bontrager Kovee Elite 23 carbon, Tubeless Ready, 54T Rapid Drive, Boost110 front, Boost148 rear, tubeless strips included, valves sold separately
Spokes
14/15G with Alpina alloy locking nipples
Tires
Bontrager XR2 Team Issue, Tubeless Ready, 120 tpi, aramid bead, 29x2.20? (13.5 & 15.5: 27.5x2.20?)
Brakes
Brakes
Shimano MT500 hydraulic disc
Brake Levers
Shimano MT500
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager Race Lite alloy, 31.8mm, 5mm rise
Grips
ESI Chunky
Headset
FSA IS-2, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Montrose Comp
Seatpost
Bontrager Pro, OCLV Carbon, 31.6mm, 0mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM | MD | MD | MD/LG | MD/LG | LG | LG | XL | XL | XXL | XXL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.48 mm | 1.48 mm | 1.45 mm | 1.45 mm | 1.4 mm | 1.4 mm | 1.37 mm | 1.37 mm | 1.38 mm | 1.38 mm | 1.35 mm | 1.35 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 617 mm | 633 mm | 633 mm | 669 mm | 669 mm | 684 mm | 684 mm | 703 mm | 703 mm | 725 mm | 725 mm | 737 mm | 737 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 49 mm | 49 mm | 47 mm | 47 mm |
| Trail | 87 mm | 85 mm | 85 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 557 mm | 557 mm | 557 mm | 589 mm | 589 mm | 589 mm | 589 mm | 598 mm | 598 mm | 622 mm | 622 mm | 626 mm | 626 mm |
| Reach | 364 mm | 376 mm | 376 mm | 406 mm | 406 mm | 421 mm | 421 mm | 436 mm | 436 mm | 451 mm | 451 mm | 465 mm | 465 mm |
| Top Tube Length | 535 mm | 552 mm | 552 mm | 593 mm | 593 mm | 611 mm | 611 mm | 632 mm | 632 mm | 653 mm | 653 mm | 667 mm | 667 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° | 72.3 ° | 72.3 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 343 mm | 368 mm | 368 mm | 419 mm | 419 mm | 444 mm | 444 mm | 470 mm | 470 mm | 521 mm | 521 mm | 559 mm | 559 mm |
| Head Tube Angle | 69 ° | 69.3 ° | 69.3 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.6 ° | 69.6 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 90 mm | 90 mm | 90 mm | 90 mm | 100 mm | 100 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1031 mm | 1047 mm | 1047 mm | 1092 mm | 1092 mm | 1107 mm | 1107 mm | 1126 mm | 1126 mm | 1148 mm | 1148 mm | 1160 mm | 1160 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 729 mm | 747 mm | 747 mm | 744 mm | 744 mm | 758 mm | 758 mm | 772 mm | 772 mm | 810 mm | 810 mm | 841 mm | 841 mm |
| Wheels | 27" | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Procaliber 9.7 completes the Trek Procaliber model. 63 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Trek Procaliber 6 2019 has a starting price of 1999$. Trek Procaliber 9.9 SL 2019 on the other hand is the most expensive at 8249$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 3779$. Comparing this to the average Crosscountry bike price, we see that the price is 98.37% more expensive.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 10.95 kg (24.14 lbs), the Procaliber 9.7 model is considerably lighter than average. In other words, this model is 13.24% lighter than the average Crosscountry bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Procaliber 9.7 components
Fork
The Procaliber 9.7 comes factory-installed with the RockShox Reba fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Procaliber 9.7 are the 27.5″ carbon type. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Procaliber 9.7 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
