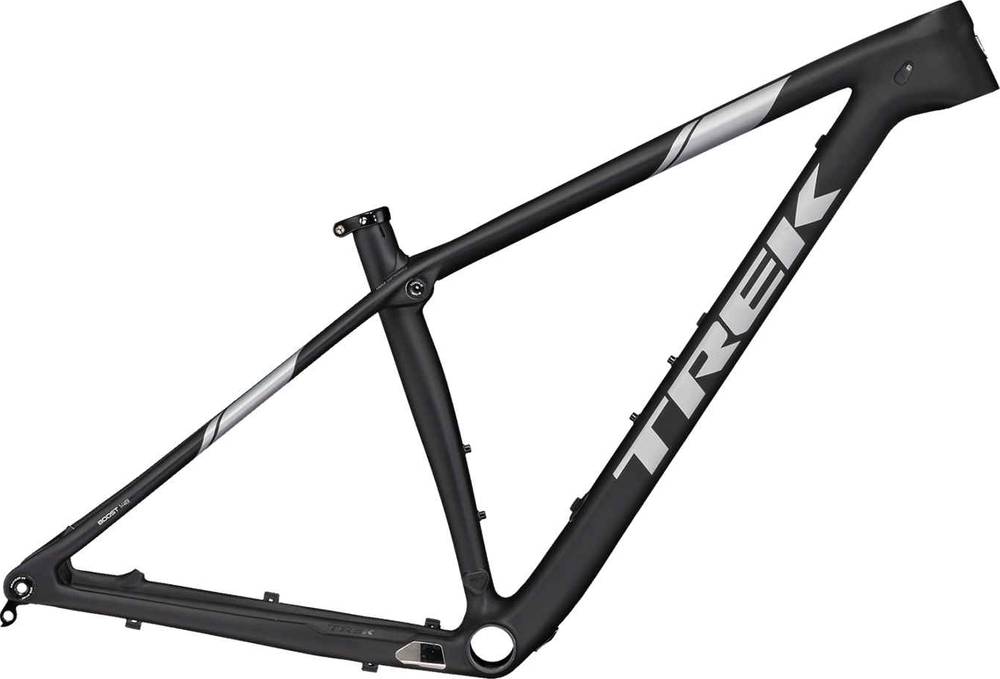

Trek Procaliber Frameset 2018
2018 Mountain
Estimate price |
1,579$
Weight | 1.5 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, IsoSpeed, E2 tapered head tube, internal derailleur routing, balanced post mount brake, PF92, Boost148, G2 Geometry on 29ers
Drivetrain
Bottom Bracket
PF92
Cockpit
Headset
FSA IS-2, 1-1/8? top, 1.5? bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.39 mm | 1.36 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 302 mm | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 633 mm | 669 mm | 684 mm | 703 mm | 725 mm | 737 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm | 49 mm | 50 mm |
| Trail | 85 mm | 83 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 585 mm | 597 mm | 597 mm | 606 mm | 630 mm | 625 mm |
| Reach | 384 mm | 414 mm | 429 mm | 444 mm | 459 mm | 473 mm |
| Top Tube Length | 566 mm | 601 mm | 619 mm | 640 mm | 661 mm | 675 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.3 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 368 mm | 419 mm | 444 mm | 470 mm | 521 mm | 559 mm |
| Head Tube Angle | 69.3 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.6 ° |
| Head Tube Length | 100 mm | 90 mm | 90 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 427 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1055 mm | 1100 mm | 1115 mm | 1134 mm | 1156 mm | 1168 mm |
| Bottom Bracket Drop | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 723 mm | 753 mm | 765 mm | 781 mm | 820 mm | 843 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Procaliber Frameset belongs to the Trek Procaliber model. There are 63 frames that carry this model name. You can easily view all of the Trek Procaliber frames models from 2018, here.
Model range prices
Trek Procaliber Frameset 2018 is the cheapest frame model and costs 1579$. Trek Procaliber SL Frameset 2018 is the most expensive one and costs 2499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry frames average price
According to our calculations, the average cost of a Crosscountry frame that is reliable is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1579$. Doing a quick comparison, we notice that Procaliber Frameset price is 6.97% lower than the average cost of a Crosscountry frame.
Average weight for Crosscountry frames
Crosscountry frames have an average weight of 2.04 kg (4.5 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 1.5 kg (3.31 lbs), the Procaliber Frameset model is much lighter than average. To sum up, it’s 36% lighter than the average weight of Crosscountry frames.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
