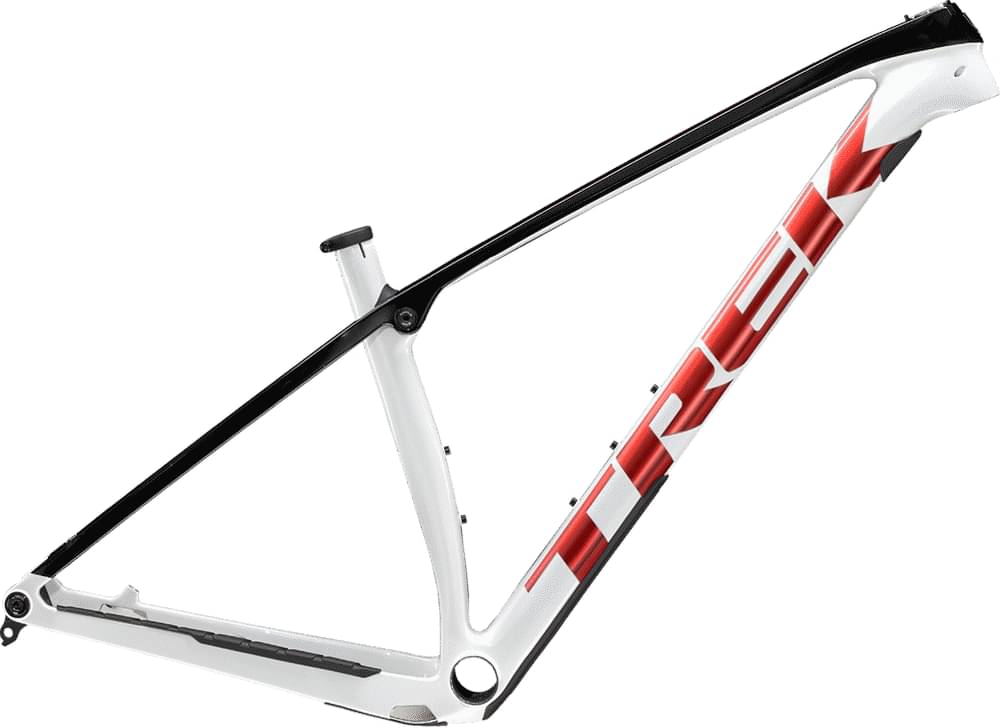

Trek Procaliber Frameset 2021
2021 Mountain
Estimate price |
1,499$
Weight | 1.35 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
153cm - 166cm
MD
161cm - 172cm
MD/LG
165cm - 179cm
LG
177cm - 188cm
XL
186cm - 197cm
XXL
194cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148
Cockpit
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.44 mm | 1.39 mm | 1.34 mm | 1.28 mm | 1.25 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 653 mm | 678 mm | 693 mm | 708 mm | 743 mm | 769 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 42 mm | 45 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 593 mm | 593 mm | 593 mm | 593 mm | 607 mm | 616 mm |
| Reach | 388 mm | 413 mm | 428 mm | 443 mm | 473 mm | 493 mm |
| Top Tube Length | 563 mm | 588 mm | 603 mm | 618 mm | 652 mm | 676 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 393 mm | 419 mm | 444 mm | 470 mm | 510 mm | 545 mm |
| Head Tube Angle | 68.8 ° | 68.8 ° | 68.8 ° | 68.8 ° | 68.8 ° | 68.8 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1071 mm | 1096 mm | 1111 mm | 1126 mm | 1161 mm | 1187 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 708 mm | 748 mm | 758 mm | 777 mm | 807 mm | 834 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 161 cm | 165 cm | 177 cm | 186 cm | 194 cm |
| Rider Max Height | 166 cm | 172 cm | 179 cm | 188 cm | 197 cm | 203 cm |
About this model
Procaliber Frameset completes the Trek Procaliber model. Trek released 63 frames variations of this model so far. Take a sneak peek at all Trek Procaliber frames models from 2021, by clicking here.
Model range prices
Trek Procaliber AL Frameset 2021 is the most economical model, with a starting price of 1099$. Trek Procaliber SL Frameset 2021 on the other hand costs 2699$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry frames
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, this doesn’t mean that if you spend less money on a Crosscountry frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 1499$. Comparing the average cost of a Crosscountry frame to this one, you will see that Procaliber Frameset price is 12.68% smaller.
Average weight for Crosscountry frames
The average weight for Crosscountry frames is 2.04 kg (4.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 1.35 kg (2.98 lbs), the Procaliber Frameset model is much lighter than average. In other words, this model is 51.11% lighter than the average Crosscountry frame.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Procaliber Frameset components
Sizes
Procaliber Frameset comes in 6 sizes, that range from 153 cm – 203 cm (5.02 ft – 6.66 ft). In conclusion, finding one for you shouldn’t be a problem.
