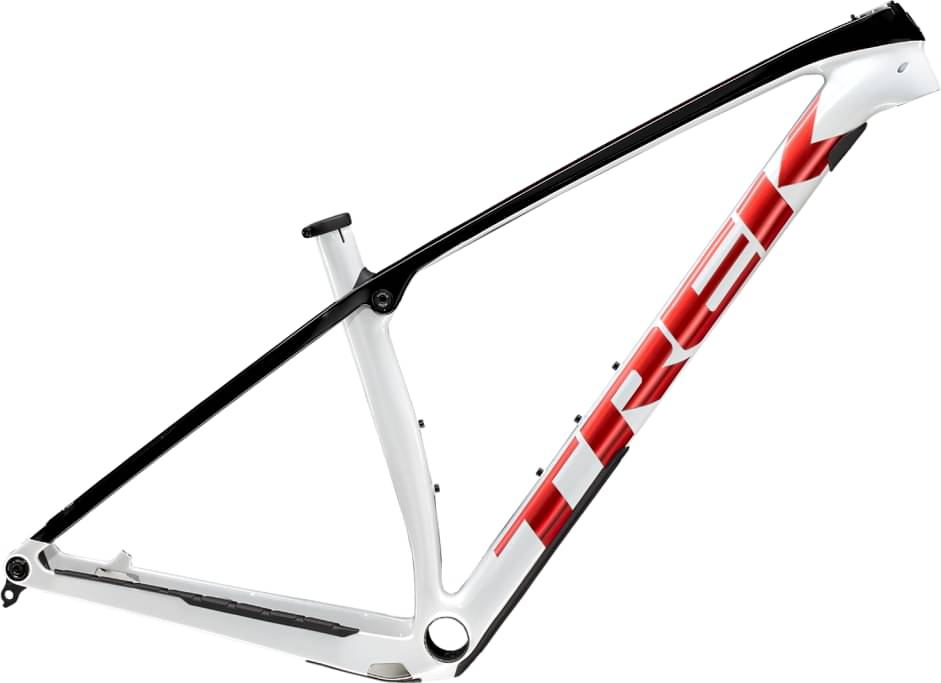

Trek Procaliber Frameset 2024
2024 Mountain
Estimate price |
1,849$
Weight | 1.35 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29"
Sizing
Recommended size guide.
15.5"
155cm - 166cm
17.5"
164cm - 176cm
18.5"
173cm - 180cm
19.5"
177cm - 189cm
21.5"
187cm - 196cm
23"
194cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148
Cockpit

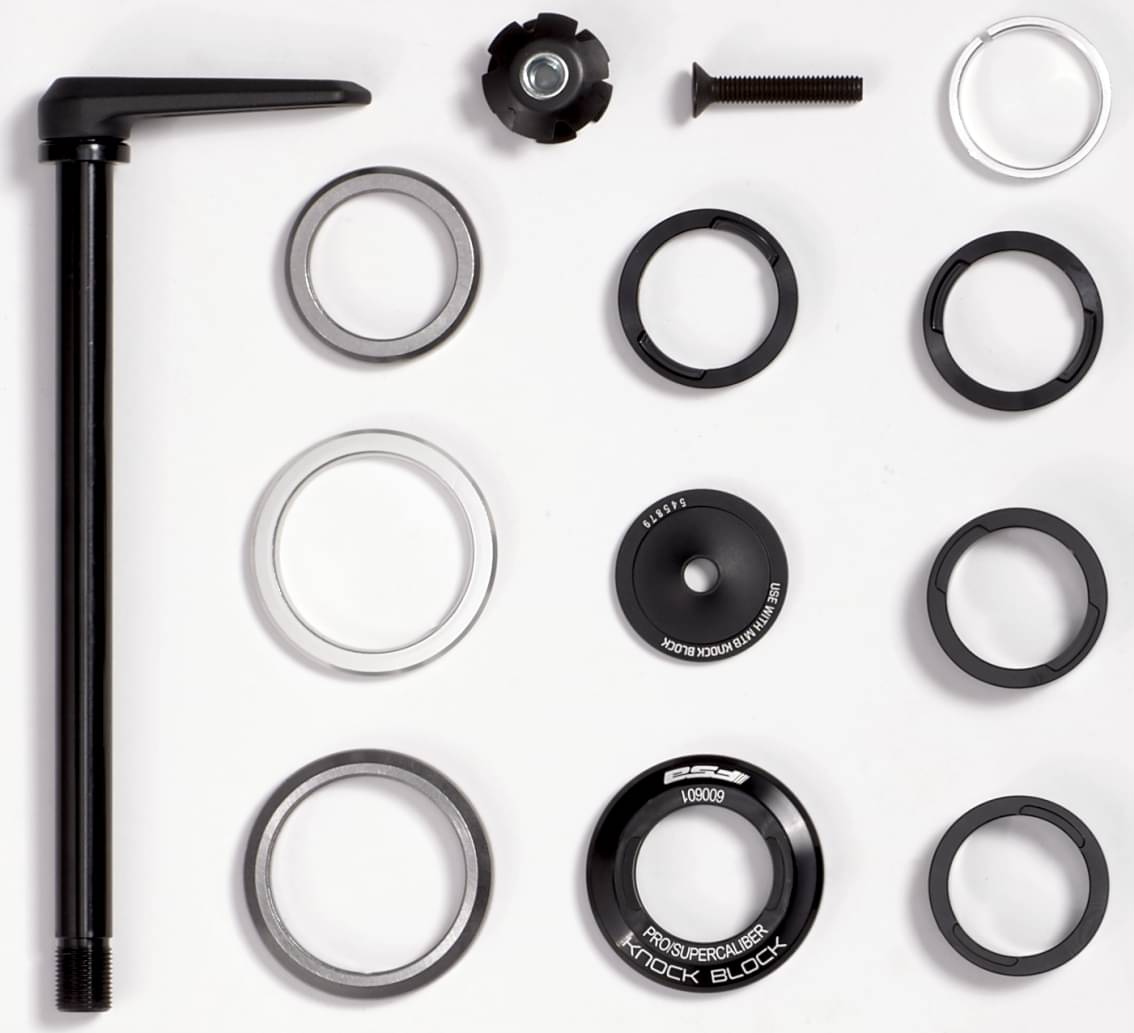

Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.44 mm | 1.39 mm | 1.34 mm | 1.28 mm | 1.25 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 653 mm | 678 mm | 693 mm | 708 mm | 743 mm | 769 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 42 mm | 45 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 593 mm | 593 mm | 593 mm | 593 mm | 607 mm | 616 mm |
| Reach | 388 mm | 413 mm | 428 mm | 443 mm | 473 mm | 493 mm |
| Top Tube Length | 563 mm | 588 mm | 603 mm | 618 mm | 652 mm | 676 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 393 mm | 419 mm | 444 mm | 470 mm | 510 mm | 545 mm |
| Head Tube Angle | 68.8 ° | 68.8 ° | 68.8 ° | 68.8 ° | 68.8 ° | 68.8 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1071 mm | 1096 mm | 1111 mm | 1126 mm | 1161 mm | 1187 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 708 mm | 748 mm | 758 mm | 777 mm | 807 mm | 834 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 173 cm | 177 cm | 187 cm | 194 cm |
| Rider Max Height | 166 cm | 176 cm | 180 cm | 189 cm | 196 cm | 203 cm |
Model Overview
Procaliber Frameset is part of the Trek Procaliber model. Trek released 63 frames variations of this model so far. You can easily view all of the Trek Procaliber frames models from 2024, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry frames average price
According to our math, the average price for a trustworthy Crosscountry frame is 1689$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1849$. Comparing this to the average Crosscountry frame price, we see that the price is 9.47% higher.
Average weight for Crosscountry frames
Crosscountry frames weigh an average of 1.98 kg (4.37 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 1.35 kg (2.98 lbs), Trek frame is much lighter than average. To sum up, it’s 46.67% lighter than the average weight of Crosscountry frames.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Procaliber Frameset components
Sizes
This frame is available in 6 sizes. They vary from 155 cm – 203 cm (5.09 ft – 6.66 ft). In short, it won’t be difficult to find the right one for you.
