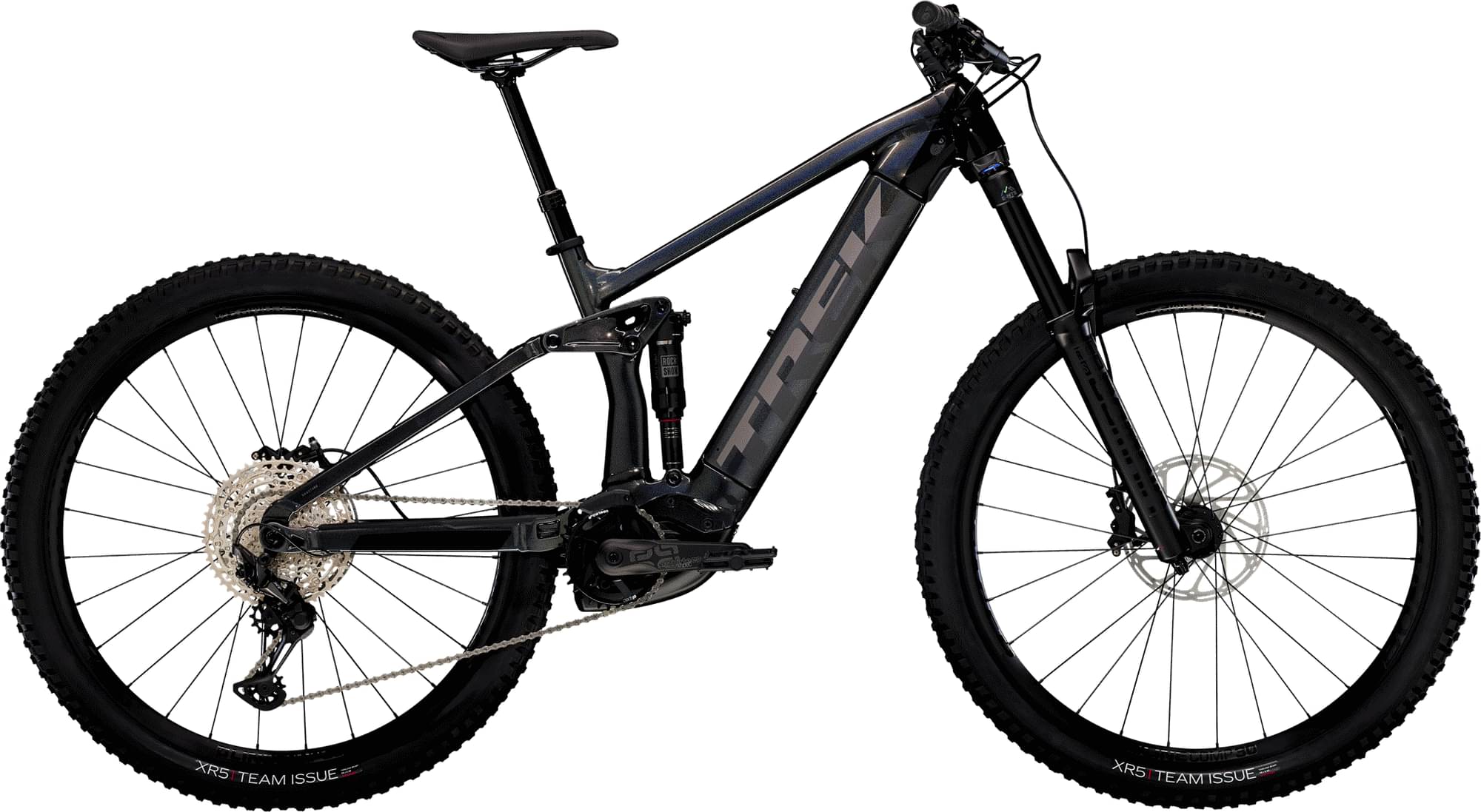

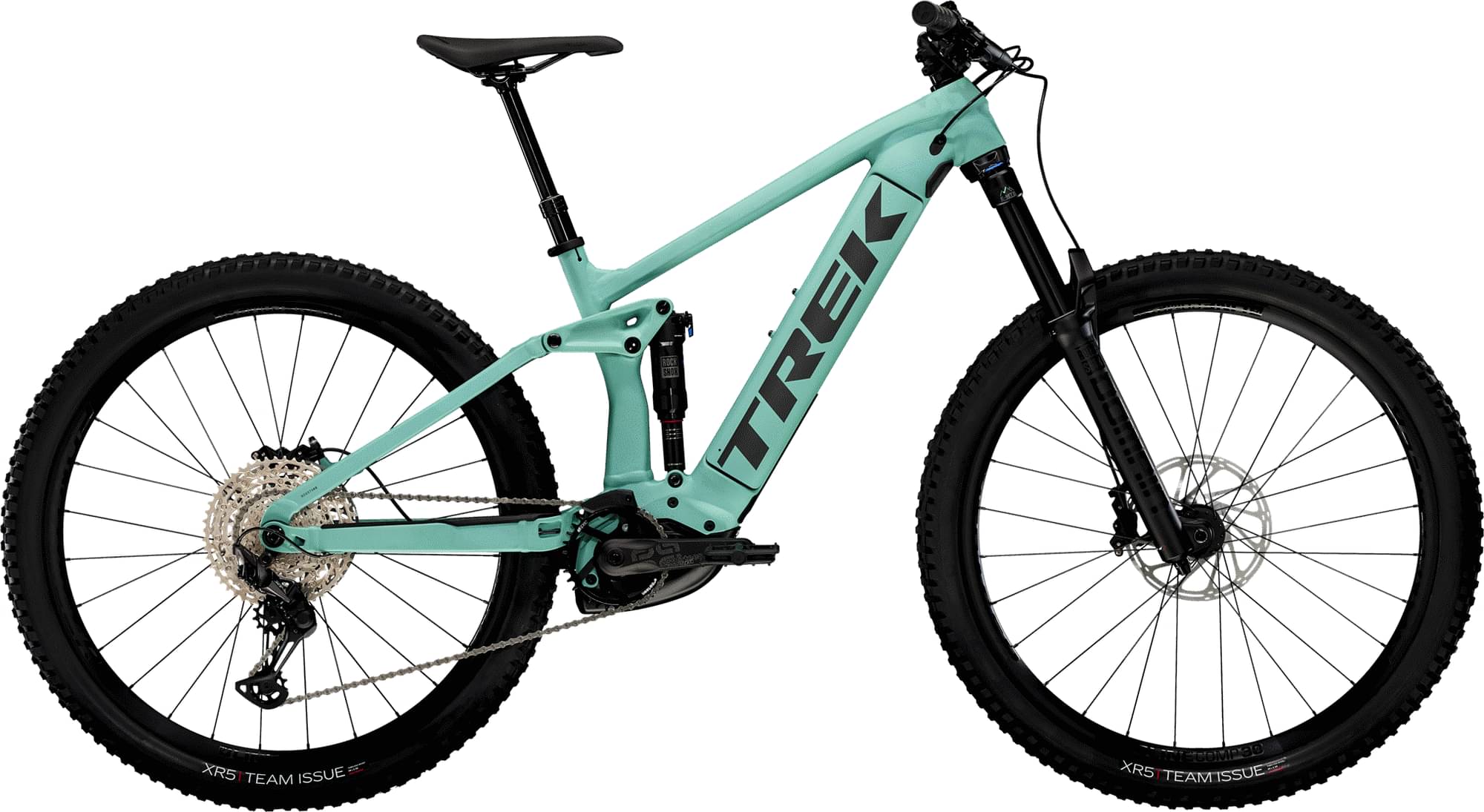

Trek Rail 7 Deore/XT Gen 3 2023
2023 E-bike
Estimate price |
6,649$
Weight | 24.73 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Domain
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625Wh, smart system -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Suspension Fork
RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
Rear Shock
RockShox Deluxe Select+ RT, 230mm x 57.5mm
Drivetrain
Rear Derailleur
Shimano XT M8100, long cage
Shift Levers
Shimano SLX M7100, 12 speed
Cassette
Shimano Deore M6100, 10-51, 12 speed
Crank
Size: S, M, L, XL, E*thirteen E*spec, 34T alloy, 55mm chainline; Size: S, M, L, E*thirteen, 34T, steel
Chain
Shimano Deore M6100, 12 speed
Pedals
Wellgo VPE-536
Wheels
Rims
Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Brakes
Brakes
Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
Cockpit
Stem
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Seat
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
Size: S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, L, XL, TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
Motor & Battery
Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC)
Battery
Bosch PowerTube 625Wh, smart system
Charger
Size: S, M, L, XL, Bosch standard 2A, 110V, smart system; Size: S, M, L, Bosch standard 4A, 110V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.39 mm | 1.41 mm | 1.34 mm | 1.36 mm | 1.28 mm | 1.3 mm |
| Bottom Bracket Height | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm |
| Front Center | 750 mm | 750 mm | 774 mm | 775 mm | 797 mm | 797 mm | 831 mm | 832 mm |
| Rake | 41 mm | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 43 mm | 44 mm |
| Trail | 127 mm | 131 mm | 127 mm | 131 mm | 127 mm | 131 mm | 127 mm | 131 mm |
| Stack | 616 mm | 619 mm | 615 mm | 619 mm | 620 mm | 623 mm | 629 mm | 632 mm |
| Reach | 418 mm | 413 mm | 443 mm | 438 mm | 463 mm | 458 mm | 492 mm | 488 mm |
| Top Tube Length | 580 mm | 581 mm | 604 mm | 606 mm | 626 mm | 627 mm | 658 mm | 659 mm |
| Seat Tube Angle | 75.4 ° | 75 ° | 75.4 ° | 75 ° | 75.4 ° | 75 ° | 75.4 ° | 75 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 450 mm | 450 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.9 ° | 64.5 ° | 64.9 ° | 64.5 ° | 64.9 ° | 64.5 ° | 64.9 ° | 64.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 440 mm | 441 mm | 440 mm | 441 mm | 440 mm | 441 mm | 440 mm | 441 mm |
| Wheelbase | 1188 mm | 1189 mm | 1213 mm | 1214 mm | 1236 mm | 1236 mm | 1270 mm | 1271 mm |
| Bottom Bracket Drop | 29 mm | 35 mm | 29 mm | 35 mm | 29 mm | 35 mm | 29 mm | 35 mm |
| Standover Height | 741 mm | 736 mm | 771 mm | 766 mm | 760 mm | 755 mm | 773 mm | 768 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Rail 7 Deore/XT Gen 3 is part of the Trek E Rail model. 66 e-bikes variations carry this model name so far. Take a sneak peek at all Trek E Rail e-bikes models from 2023, by clicking here.
Model range prices
Trek Rail 5 Gen 2 2023 is the cheapest e-bike model and costs 4699$. Trek Rail 9.9 XX1 AXS Gen 4 2023 is the most expensive one and costs 13799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6649$. Doing a quick comparison, we notice that Rail 7 Deore/XT Gen 3 price is 38.96% more expensive than the average cost of an Enduro e-bike.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit heavier than average, Rail 7 Deore/XT Gen 3 has a weight of 24.73 kg (54.52 lbs). In short, the average Enduro e-bike weight is 5.59% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Trek Rail 7 Deore/XT Gen 3 2023 e-bike is equipped with the RockShox Domain fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Trek Rail 7 Deore/XT Gen 3 e-bike has the RockShox Deluxe Select+ RT model installed, and has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Rail 7 Deore/XT Gen 3 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rail 7 Deore/XT Gen 3 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
