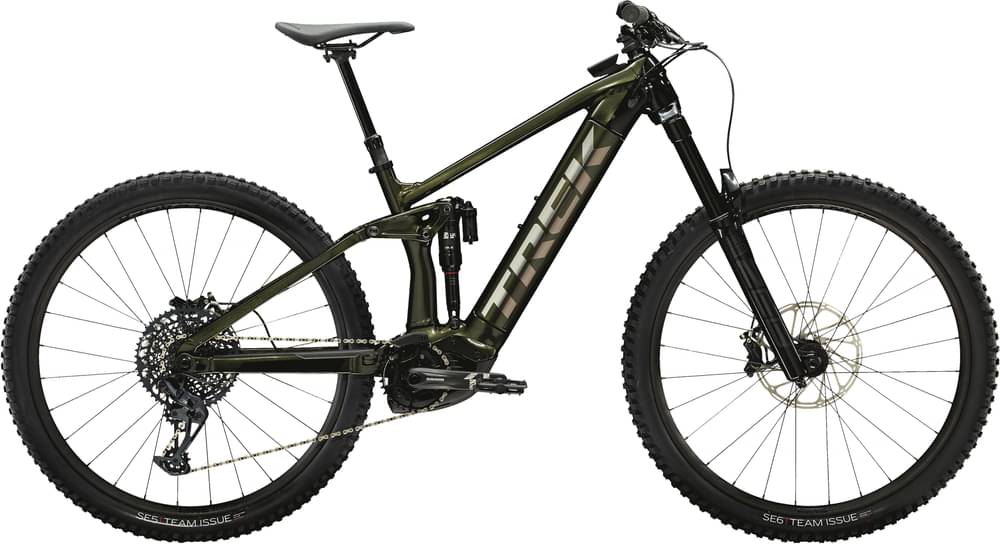

Trek Rail 9 2022
2022 E-bike
Estimate price |
7,796$
Weight | 23.42 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox ZEB Select
-
Groupset GX Eagle, X1 -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Suspension Fork
RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
Rear Shock
NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM Eagle XG-1275, 10-52, 12-speed
Crank
SRAM X1 1000, 34T, 165 mm length
Chain
SRAM GX Eagle, 12-speed
Wheels
Rims
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Tires
Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"; Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60"
Brakes
Brakes
SRAM Code R hydraulic disc
Disk Rotors
Size: S, M, L, XL, SRAM CenterLine, 6-bolt, round-edge, 180mm; Size: S, M, L, XL, SRAM CenterLine, 6-bolt, round edge, 200 mm
Cockpit
Stem
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Handlebar
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Seat
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Size: S, Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length; Size: M, Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 440 mm length; Size: L, XL, Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 480 mm length
Motor & Battery
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Battery
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.39 mm | 1.41 mm | 1.34 mm | 1.36 mm | 1.28 mm | 1.3 mm |
| Bottom Bracket Height | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm |
| Front Center | 750 mm | 750 mm | 774 mm | 775 mm | 797 mm | 797 mm | 831 mm | 832 mm |
| Rake | 41 mm | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 43 mm | 44 mm |
| Trail | 127 mm | 131 mm | 127 mm | 131 mm | 127 mm | 131 mm | 127 mm | 131 mm |
| Stack | 616 mm | 619 mm | 615 mm | 619 mm | 620 mm | 623 mm | 629 mm | 632 mm |
| Reach | 418 mm | 413 mm | 443 mm | 438 mm | 463 mm | 458 mm | 492 mm | 488 mm |
| Top Tube Length | 580 mm | 581 mm | 604 mm | 606 mm | 626 mm | 627 mm | 658 mm | 659 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 450 mm | 450 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.9 ° | 64.5 ° | 64.9 ° | 64.5 ° | 64.9 ° | 64.5 ° | 64.9 ° | 64.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 440 mm | 441 mm | 440 mm | 441 mm | 440 mm | 441 mm | 440 mm | 441 mm |
| Wheelbase | 1188 mm | 1189 mm | 1213 mm | 1214 mm | 1236 mm | 1236 mm | 1270 mm | 1271 mm |
| Bottom Bracket Drop | 29 mm | 35 mm | 29 mm | 35 mm | 29 mm | 35 mm | 29 mm | 35 mm |
| Standover Height | 741 mm | 736 mm | 771 mm | 766 mm | 760 mm | 755 mm | 773 mm | 768 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Rail 9 belongs to the Trek E Rail model. There are 66 e-bikes that carry this model name. You can easily view all of the Trek E Rail e-bikes models from 2022, here.
Model range prices
Trek Rail 5 2022 is the cheapest e-bike model and costs 4776$. Trek Rail 9.9 XX1 AXS 2022 is the most expensive one and costs 14439$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 7005$. In conclusion, this e-bike price is 46.39% more expensive than the price of the average Enduro e-bike.
Average weight for Enduro e-bikes
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 23.42 kg (51.63 lbs), Trek e-bike is equally heavier with average. In other words, this model is -0% heavier than the average Enduro e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the RockShox ZEB Select model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the NEW RockShox Super Deluxe Ultimate RT3 model, with a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Rail 9 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Rail 9 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
