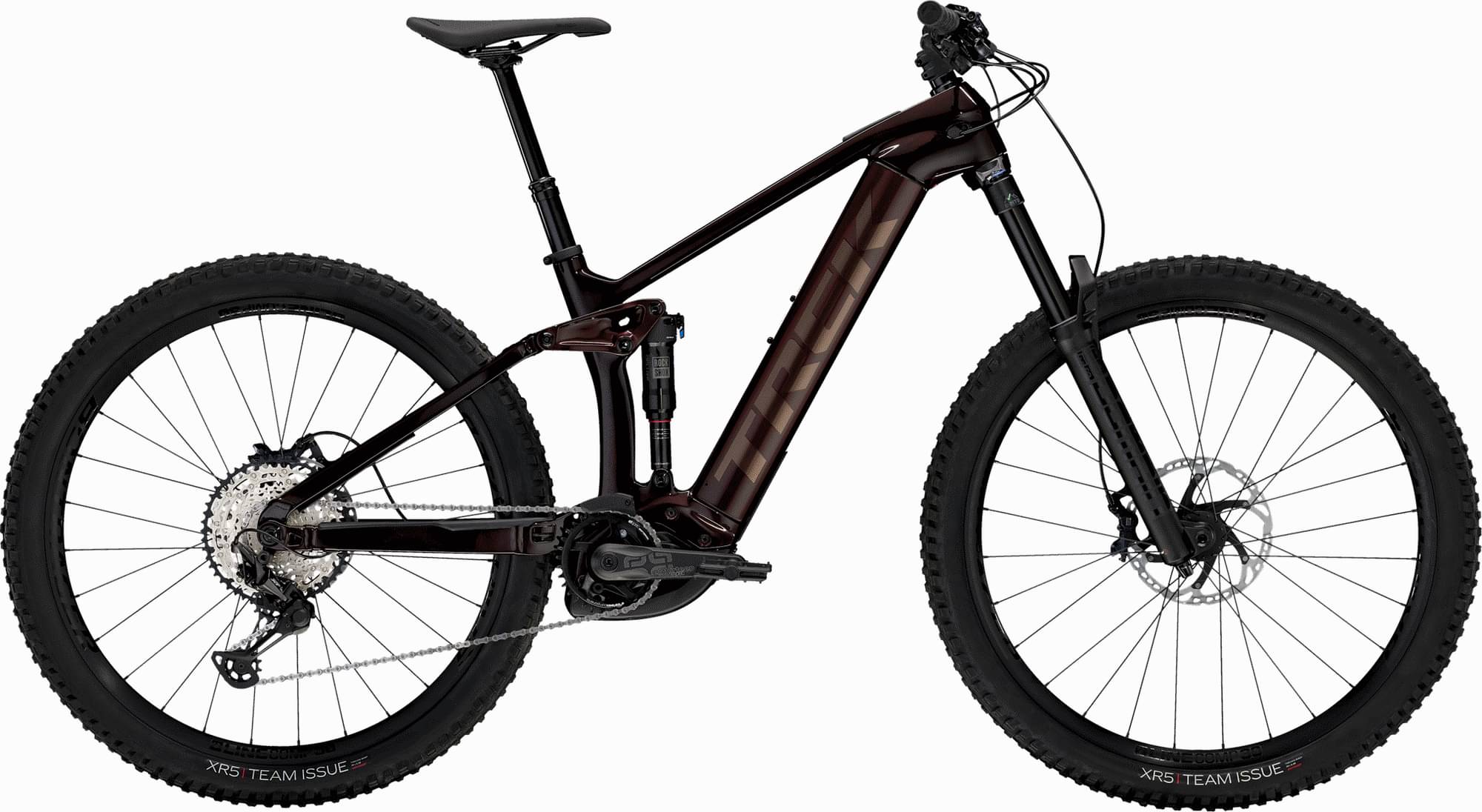

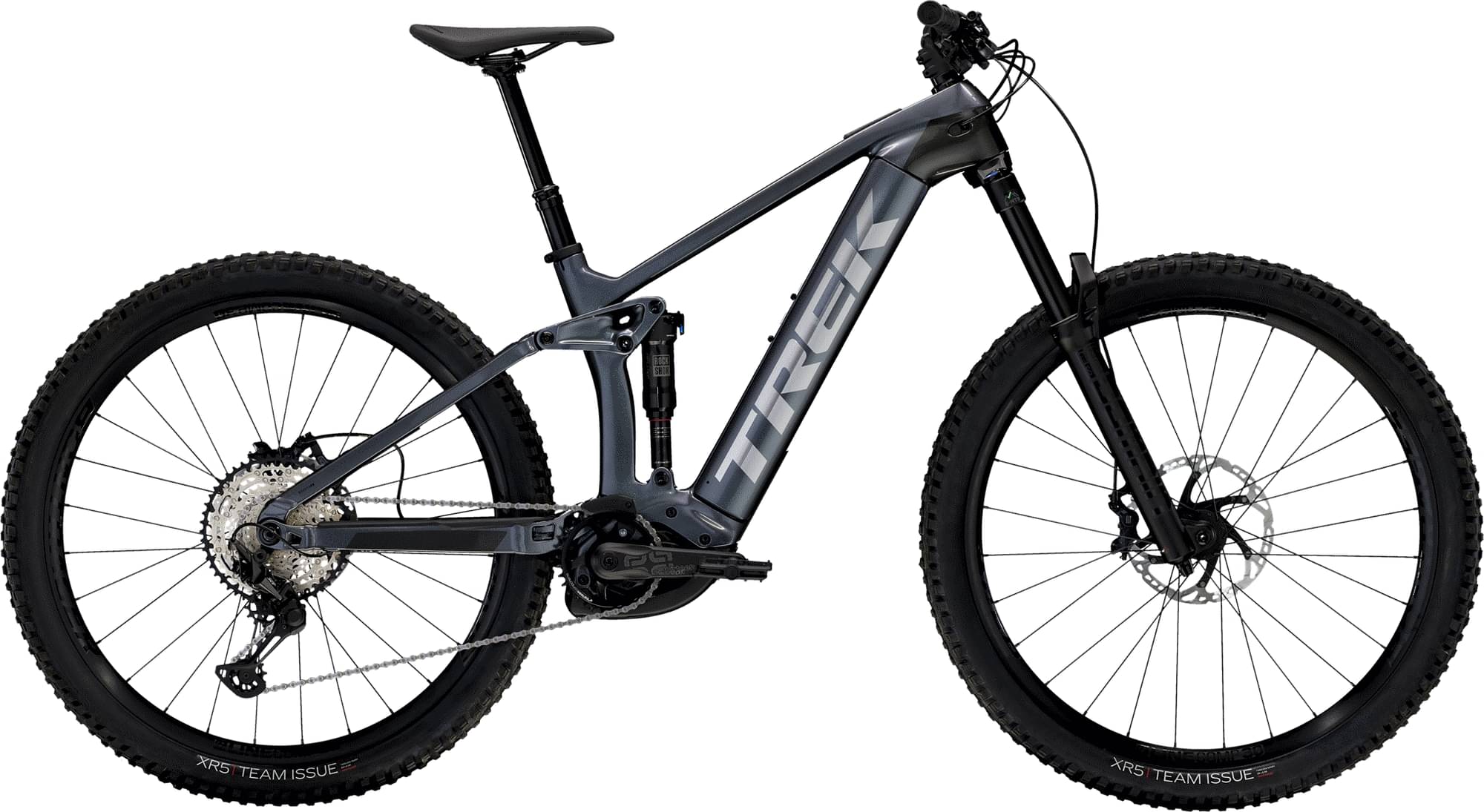

Trek Rail 9.7 Gen 4 2023
2023 E-bike
Estimate price |
7,549$
Weight | 24.65 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Domain
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Size: S, Bosch PowerTube 625Wh, smart system; Size: M, L, XL, Bosch PowerTube 750Wh, smart system -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Suspension Fork
RockShox Domain RC, DebonAir, Motion Control damper, lockout, 1.8'' oversized tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
Rear Shock
RockShox Deluxe Select+ RT, 230mm x 57.5mm
Drivetrain
Rear Derailleur
Shimano XT M8100, long cage
Shift Levers
Shimano SLX M7100, 12 speed
Cassette
Shimano SLX M7100, 10-51T, 12 speed
Crank
E*thirteen E*spec Plus, 165mm length
Bottom Bracket
Bosch, press-fit
Chain
Shimano SLX M7100, 12 speed
Pedals
VP-536 nylon platform
Wheels
Front Hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Rear Hub
Size: S, M, L, XL, Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle; Size: S, M, L, XL, Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Rims
Bontrager Line Comp 30, Tubeless Ready
Tires
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
Brakes
Brakes
Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
Cockpit
Stem
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
Handlebar
Bontrager Comp, alloy, 31.8mm, 15mm rise, 780mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Seat
Saddle
Size: S, M, L, XL, Bontrager Arvada, hollow chromoly rails, 138mm width; Size: S, M, L, XL, Bontrager Arvada, steel rails, 138mm width
Seatpost
Size: S, TranzX JD-YSP39, 100mm travel, internal routing, 34.9mm; Size: M, TranzX JD-YSP39, 150mm travel, internal routing, 34.9mm; Size: L, XL, TranzX JD-YSP39, 170mm travel, internal routing, 34.9mm
Motor & Battery
Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Battery
Size: S, Bosch PowerTube 625Wh, smart system; Size: M, L, XL, Bosch PowerTube 750Wh, smart system
Charger
Size: S, M, L, XL, Bosch standard 2A, 110V, smart system; Size: S, M, L, XL, Bosch standard 4A, 110V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.39 mm | 1.41 mm | 1.31 mm | 1.33 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 346 mm | 341 mm | 346 mm | 341 mm | 346 mm | 341 mm | 346 mm | 341 mm |
| Front Center | 767 mm | 768 mm | 790 mm | 790 mm | 831 mm | 832 mm | 867 mm | 868 mm |
| Rake | 42 mm | 43 mm | 43 mm | 42 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 130 mm | 133 mm | 130 mm | 133 mm | 130 mm | 133 mm | 130 mm | 133 mm |
| Stack | 618 mm | 621 mm | 622 mm | 626 mm | 636 mm | 639 mm | 649 mm | 653 mm |
| Reach | 429 mm | 425 mm | 449 mm | 445 mm | 484 mm | 480 mm | 514 mm | 510 mm |
| Top Tube Length | 572 mm | 573 mm | 593 mm | 594 mm | 631 mm | 632 mm | 664 mm | 666 mm |
| Seat Tube Angle | 77.1 ° | 76.7 ° | 77.1 ° | 76.7 ° | 77.1 ° | 76.7 ° | 77.1 ° | 76.7 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 450 mm | 450 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.6 ° | 64.2 ° | 64.6 ° | 64.2 ° | 64.6 ° | 64.2 ° | 64.6 ° | 64.2 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 110 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 440 mm | 441 mm | 440 mm | 441 mm | 440 mm | 441 mm | 440 mm | 441 mm |
| Wheelbase | 1206 mm | 1207 mm | 1229 mm | 1229 mm | 1270 mm | 1271 mm | 1306 mm | 1307 mm |
| Bottom Bracket Drop | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm |
| Standover Height | 754 mm | 749 mm | 766 mm | 761 mm | 763 mm | 758 mm | 761 mm | 756 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Rail 9.7 Gen 4 belongs to the Trek E Rail model. Trek launched 66 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Trek Rail 5 Gen 2 2023 is the cheapest e-bike model and costs 4699$. Trek Rail 9.9 XX1 AXS Gen 4 2023 is the most expensive one and costs 13799$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Trek released this model in 2023, its price was 7549$. Comparing this to the average Enduro e-bike price, we see that the price is 57.76% higher.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, Rail 9.7 Gen 4 has a weight of 24.65 kg (54.34 lbs). To sum up, it’s 5.25% heavier than the average weight of Enduro e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Rail 9.7 Gen 4 components
Fork
The RockShox Domain is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select+ RT, with a travel distance of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Rail 9.7 Gen 4 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Rail 9.7 Gen 4 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
Trek Rail 9.7 Gen 4 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
