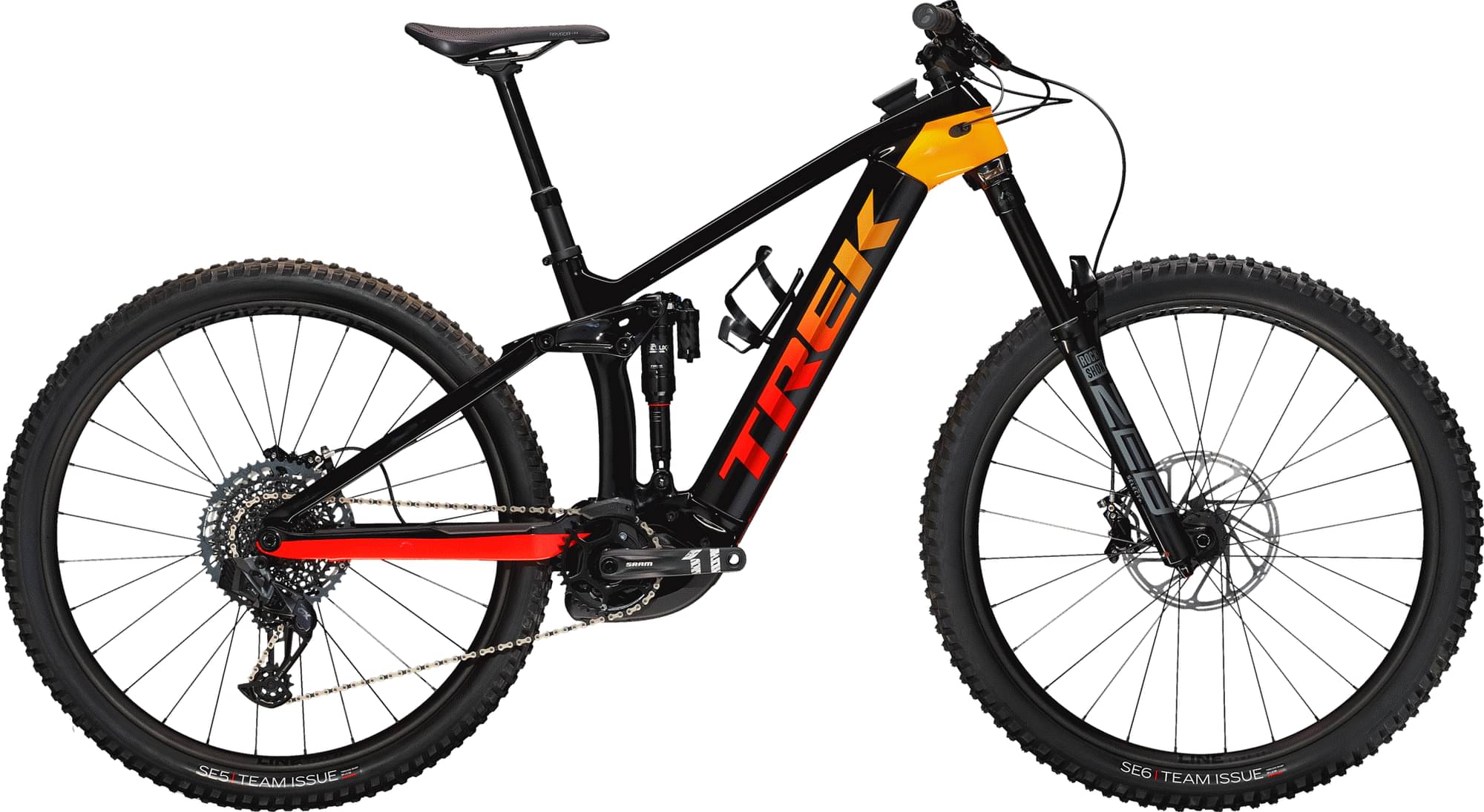

Trek Rail 9.8 GX AXS 2022
2022 E-bike
Estimate price |
11,124$
Weight | 23.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox ZEB Select
-
Groupset GX Eagle AXS, X1 -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Size: S, Bosch PowerTube 625Wh, smart system; Size: M, L, XL, Bosch PowerTube 750Wh, smart system -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NEW OCLV Mountain Carbon main frame, 1.8'' lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Suspension Fork
RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimized crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
Rear Shock
RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230mm x 57.5mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS
Shift Levers
SRAM GX Eagle AXS, 12 speed
Cassette
SRAM Eagle XG-1275, 10-52, 12 speed
Crank
SRAM X1 1000, 34T, 165mm length
Chain
SRAM GX Eagle, 12 speed
Wheels
Front Hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
Rims
Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Tires
Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''; Size: S, M, L, XL, Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Brakes
Brakes
SRAM Code R 4-piston hydraulic disc
Disk Rotors
Size: S, M, L, XL, SRAM CenterLine, 6-bolt, round-edge, 180mm; Size: S, M, L, XL, SRAM CenterLine, 6-bolt, round edge, 200mm
Cockpit
Stem
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Headset
Knock Block Integrated, cartridge bearing, 1-1/8'' top, 1.8'' bottom
Seat
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Motor & Battery
Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC)
Battery
Size: S, Bosch PowerTube 625Wh, smart system; Size: M, L, XL, Bosch PowerTube 750Wh, smart system
Charger
Bosch standard 4A, 110V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.4 mm | 1.31 mm | 1.32 mm | 1.26 mm | 1.27 mm |
| Bottom Bracket Height | 346 mm | 341 mm | 346 mm | 341 mm | 346 mm | 341 mm |
| Front Center | 790 mm | 790 mm | 831 mm | 832 mm | 867 mm | 868 mm |
| Rake | 43 mm | 42 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 130 mm | 133 mm | 130 mm | 133 mm | 130 mm | 133 mm |
| Stack | 632 mm | 636 mm | 646 mm | 649 mm | 659 mm | 663 mm |
| Reach | 459 mm | 455 mm | 494 mm | 490 mm | 524 mm | 520 mm |
| Top Tube Length | 603 mm | 604 mm | 641 mm | 642 mm | 674 mm | 676 mm |
| Seat Tube Angle | 77.1 ° | 76.7 ° | 77.1 ° | 76.7 ° | 77.1 ° | 76.7 ° |
| Seat Tube Length | 420 mm | 420 mm | 450 mm | 450 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.6 ° | 64.2 ° | 64.6 ° | 64.2 ° | 64.6 ° | 64.2 ° |
| Head Tube Length | 110 mm | 110 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 450 mm | 451 mm | 450 mm | 451 mm | 450 mm | 451 mm |
| Wheelbase | 1239 mm | 1239 mm | 1280 mm | 1281 mm | 1316 mm | 1317 mm |
| Bottom Bracket Drop | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm |
| Standover Height | 776 mm | 771 mm | 773 mm | 768 mm | 771 mm | 766 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Rail 9.8 GX AXS belongs to the Trek E Rail model. Trek released 66 e-bikes variations of this model so far. You can easily view all of the Trek E Rail e-bikes models from 2022, here.
Model range prices
Trek Rail 5 2022 is the most affordable e-bike of this model and has a price of 4776$. On the other hand, Trek Rail 9.9 XX1 AXS 2022, is the most expensive and costs 14439$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Trek released this model in 2022, its price was 10298$. In conclusion, this e-bike price is 115.21% more expensive than the price of the average Enduro e-bike.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, Rail 9.8 GX AXS has a weight of 23.4 kg (51.59 lbs). In short, the average Enduro e-bike weight is 0.09% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Rail 9.8 GX AXS components
Fork
The fork installed on this bike is the RockShox ZEB Select model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Super Deluxe Ultimate RT3, with a travel distance of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Rail 9.8 GX AXS e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Rail 9.8 GX AXS has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Rail 9.8 GX AXS. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
