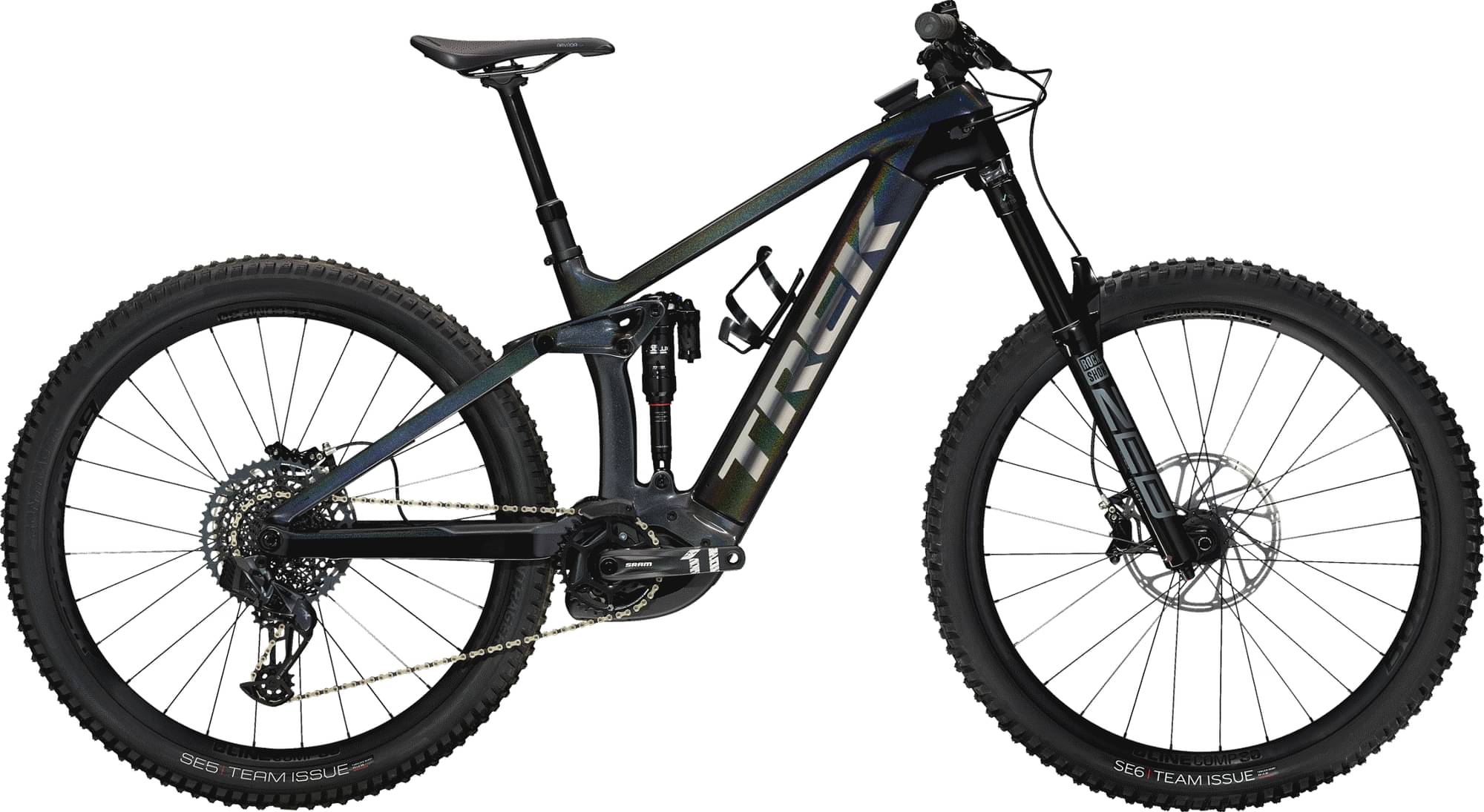

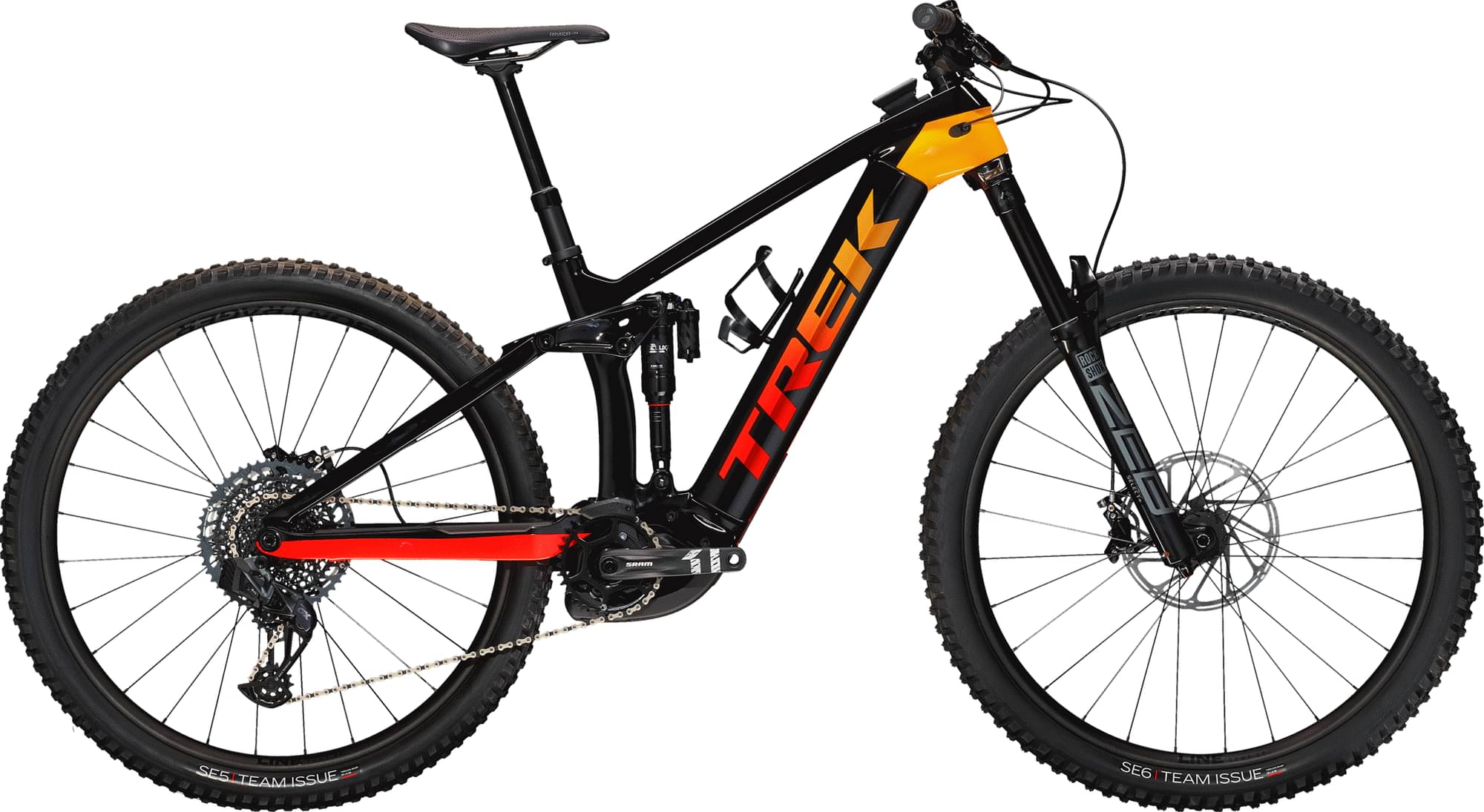

Trek Rail 9.8 GX AXS Gen 3 2023
2023 E-bike
Estimate price |
8,499$
Weight | 23.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox ZEB Select+
-
Groupset GX Eagle AXS, X1 -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh, smart system -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD High
165cm - 178cm
MD Low
165cm - 178cm
LG High
175cm - 189cm
LG Low
175cm - 189cm
XL High
187cm - 195cm
XL Low
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NEW OCLV Mountain Carbon main frame, 1.8'' lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Suspension Fork
RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimized crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
Rear Shock
RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230mm x 57.5mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS
Shift Levers
SRAM GX Eagle AXS, 12 speed
Cassette
SRAM Eagle XG-1275, 10-52, 12 speed
Crank
SRAM X1 1000, 34T, 165mm length
Chain
SRAM GX Eagle, 12 speed
Pedals
VP-536 nylon platform
Wheels
Front Hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
Rims
Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Tires
Size: M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''; Size: M, L, XL, Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Brakes
Brakes
SRAM Code R 4-piston hydraulic disc
Cockpit
Stem
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Headset
Knock Block Integrated, cartridge bearing, 1-1/8'' top, 1.8'' bottom
Seat
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Size: M, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Motor & Battery
Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Battery
Bosch PowerTube 750Wh, smart system
Charger
Bosch standard 4A, 110V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.4 mm | 1.31 mm | 1.32 mm | 1.26 mm | 1.27 mm |
| Bottom Bracket Height | 346 mm | 341 mm | 346 mm | 341 mm | 346 mm | 341 mm |
| Front Center | 790 mm | 790 mm | 831 mm | 832 mm | 867 mm | 868 mm |
| Rake | 43 mm | 42 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 130 mm | 133 mm | 130 mm | 133 mm | 130 mm | 133 mm |
| Stack | 632 mm | 636 mm | 646 mm | 649 mm | 659 mm | 663 mm |
| Reach | 459 mm | 455 mm | 494 mm | 490 mm | 524 mm | 520 mm |
| Top Tube Length | 603 mm | 604 mm | 641 mm | 642 mm | 674 mm | 676 mm |
| Seat Tube Angle | 77.1 ° | 76.7 ° | 77.1 ° | 76.7 ° | 77.1 ° | 76.7 ° |
| Seat Tube Length | 420 mm | 420 mm | 450 mm | 450 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.6 ° | 64.2 ° | 64.6 ° | 64.2 ° | 64.6 ° | 64.2 ° |
| Head Tube Length | 110 mm | 110 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 450 mm | 451 mm | 450 mm | 451 mm | 450 mm | 451 mm |
| Wheelbase | 1239 mm | 1239 mm | 1280 mm | 1281 mm | 1316 mm | 1317 mm |
| Bottom Bracket Drop | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm |
| Standover Height | 776 mm | 771 mm | 773 mm | 768 mm | 771 mm | 766 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 165 cm | 175 cm | 175 cm | 187 cm | 187 cm |
| Rider Max Height | 178 cm | 178 cm | 189 cm | 189 cm | 195 cm | 195 cm |
Model Overview
Rail 9.8 GX AXS Gen 3 completes the Trek E Rail model. Trek launched 66 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Trek Rail 5 Gen 2 2023 is the most economical model, with a starting price of 4699$. Trek Rail 9.9 XX1 AXS Gen 4 2023 on the other hand costs 13799$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Trek released this model in 2023, its price was 8499$. Doing a quick comparison, we notice that Rail 9.8 GX AXS Gen 3 price is 77.62% higher than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 23.4 kg (51.59 lbs), the Rail 9.8 GX AXS Gen 3 model is slightly lighter than average. In short, the average Enduro e-bike weight is 0.09% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Rail 9.8 GX AXS Gen 3 components
Fork
The Rail 9.8 GX AXS Gen 3 comes factory-installed with the RockShox ZEB Select+ fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Ultimate RT3 rear shock model, which has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Rail 9.8 GX AXS Gen 3 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rail 9.8 GX AXS Gen 3 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 6 sizes. They vary from 165 cm – 195 cm (5.41 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Rail 9.8 GX AXS Gen 3. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
