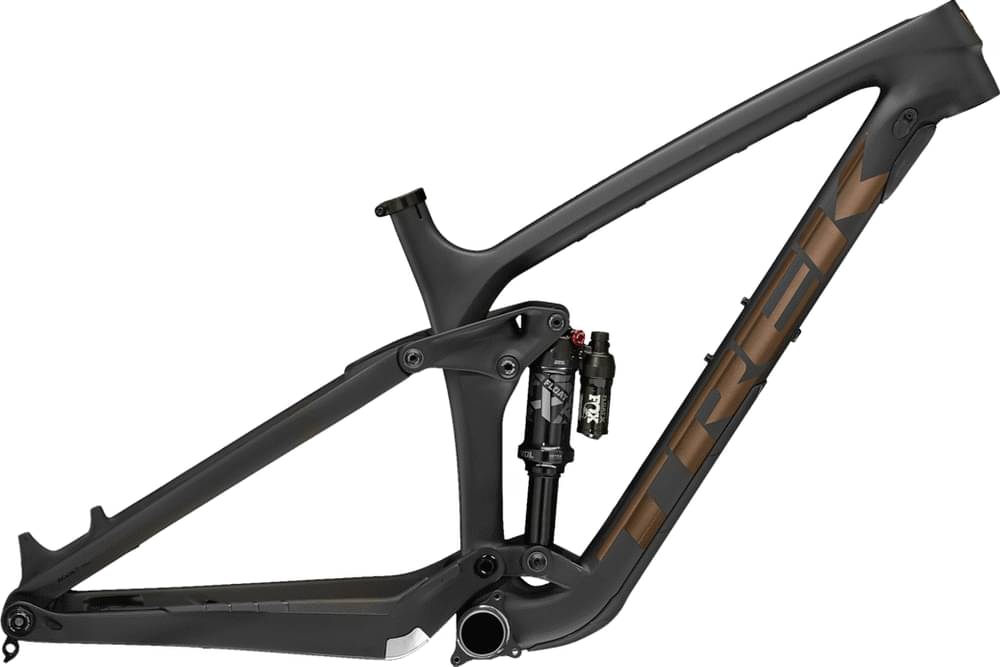

Trek Remedy 27.5 C Frame Set 2022
2022 Mountain
Estimate price |
4,587$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 150mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame and stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 150 mm travel
Rear Shock
Fox Performance Elite Float X, 2-position damper, open-mode adjustment, 230x57.5 mm
Cockpit
Stem
Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.49 mm | 1.39 mm | 1.42 mm | 1.35 mm | 1.38 mm | 1.3 mm | 1.33 mm | 1.27 mm | 1.3 mm |
| Bottom Bracket Height | 356 mm | 349 mm | 356 mm | 349 mm | 356 mm | 349 mm | 356 mm | 349 mm | 356 mm | 349 mm |
| Front Center | 722 mm | 705 mm | 749 mm | 732 mm | 766 mm | 749 mm | 788 mm | 771 mm | 814 mm | 797 mm |
| Rake | 90 mm | 46 mm | 90 mm | 46 mm | 90 mm | 47 mm | 90 mm | 46 mm | 90 mm | 46 mm |
| Trail | 112 mm | 115 mm | 112 mm | 115 mm | 112 mm | 115 mm | 112 mm | 115 mm | 112 mm | 115 mm |
| Stack | 577 mm | 581 mm | 582 mm | 586 mm | 586 mm | 590 mm | 591 mm | 595 mm | 604 mm | 609 mm |
| Reach | 395 mm | 389 mm | 420 mm | 414 mm | 435 mm | 429 mm | 455 mm | 449 mm | 475 mm | 469 mm |
| Top Tube Length | 554 mm | 556 mm | 580 mm | 582 mm | 597 mm | 598 mm | 618 mm | 619 mm | 642 mm | 643 mm |
| Seat Tube Angle | 74.7 ° | 74.2 ° | 74.7 ° | 74.2 ° | 74.7 ° | 74.2 ° | 74.7 ° | 74.2 ° | 74.7 ° | 74.2 ° |
| Seat Tube Length | 394 mm | 394 mm | 419 mm | 419 mm | 445 mm | 445 mm | 470 mm | 470 mm | 521 mm | 521 mm |
| Head Tube Angle | 66.1 ° | 65.5 ° | 66.1 ° | 65.6 ° | 66.1 ° | 65.6 ° | 66.1 ° | 65.6 ° | 66.1 ° | 65.6 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 105 mm | 105 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 427 mm | 429 mm | 427 mm | 429 mm | 427 mm | 429 mm | 427 mm | 429 mm | 427 mm | 429 mm |
| Wheelbase | 1133 mm | 1134 mm | 1160 mm | 1161 mm | 1177 mm | 1178 mm | 1199 mm | 1200 mm | 1225 mm | 1226 mm |
| Bottom Bracket Drop | 94 mm | 16 mm | 94 mm | 16 mm | 94 mm | 16 mm | 94 mm | 16 mm | 94 mm | 16 mm |
| Standover Height | 737 mm | 732 mm | 765 mm | 760 mm | 767 mm | 762 mm | 764 mm | 759 mm | 776 mm | 770 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Remedy 27.5 C Frame Set belongs to the Trek Remedy model. There are 134 frames that carry this model name. Take a sneak peek at all Trek Remedy frames models from 2022, by clicking here.
Model range prices
Trek Remedy 27.5 Al Frameset 2022 is the most affordable frame of this model and has a price of 2319$. On the other hand, Trek Remedy 27.5 C Frame Set 2022, is the most expensive and costs 4246$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro frames average price
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek Remedy 27.5 C Frame Set price was 4246$. If we compare this with the average Enduro frame cost we notice that the price is 124.06% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Remedy 27.5 C Frame Set components
Rear Shock
The shock that’s installed on this frame is Fox Performance Elite Float X, with a travel distance of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
