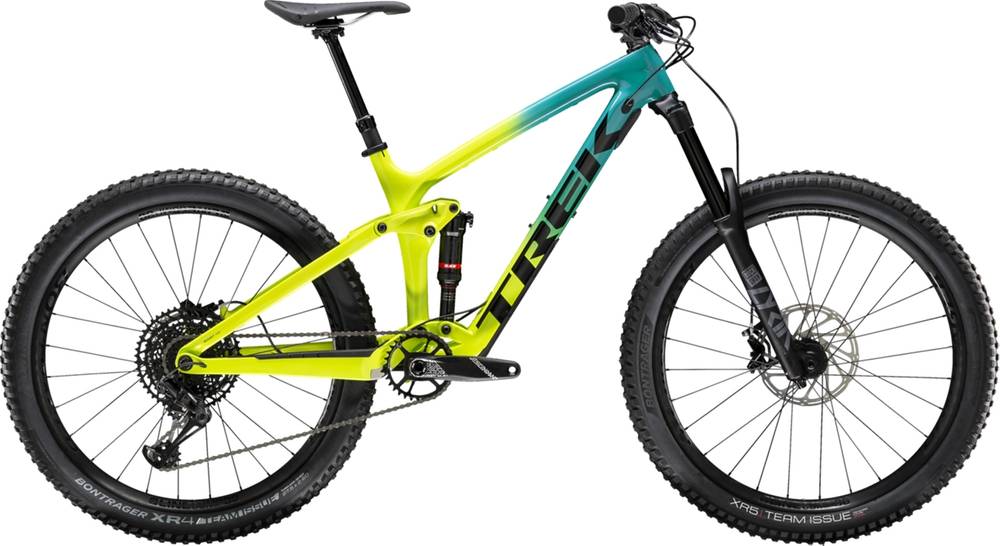

Trek Remedy 9.7 2020
2020 Mountain
Estimate price |
4,499$
Weight | 13.63 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 150mm travel
Suspension Fork
RockShox Lyrik Select+, DebonAir spring, Charger 2 RC damper, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
Rear Shock
RockShox Deluxe RT3, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 230x57.5 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle, 12 speed
Cassette
SRAM PG-1230 Eagle, 11-50, 12 speed
Crank
Size: S, Truvativ Descendant 6k Eagle, DUB, 32T steel ring, Boost (52mm chainline), 170mm length; Size: M, M/L, L, XL, Truvativ Descendant 6k Eagle, DUB, 32T steel ring, Boost (52mm chainline), 175mm length
Bottom Bracket
SRAM DUB, 92mm, PressFit
Chain
SRAM NX Eagle, 12 speed
Wheels
Rims
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tires
Size: S, M, M/L, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60''; Size: S, M, M/L, L, XL, Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60''
Brakes
Brakes
SRAM Guide R 4-piston hydraulic disc, 200mm front rotor, 180mm rear rotor
Disk Rotors
Size: S, M, M/L, L, XL, SRAM CenterLine, 6-bolt, round-edge, 180mm; Size: S, M, M/L, L, XL, SRAM CenterLine, 6-bolt, round-edge, 200mm
Cockpit
Stem
Bontrager Line, 35mm, Knock Block, 0 degree, 50mm length
Handlebar
Bontrager Line, alloy, 35mm, 27.5mm rise, 820mm width
Grips
Bontrager XR Trail Elite, alloy lock-on
Headset
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Arvada, hollow chromoly rails, 138mm width
Seatpost
Size: S, Bontrager Line Dropper, 100mm travel, internal routing, 31.6mm, 345mm length; Size: M, M/L, L, XL, Bontrager Line Dropper, 150mm travel, internal routing, 31.6mm, 440mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.49 mm | 1.39 mm | 1.42 mm | 1.35 mm | 1.38 mm | 1.3 mm | 1.33 mm | 1.27 mm | 1.3 mm |
| Bottom Bracket Height | 356 mm | 349 mm | 356 mm | 349 mm | 356 mm | 349 mm | 356 mm | 349 mm | 356 mm | 349 mm |
| Front Center | 722 mm | 705 mm | 749 mm | 732 mm | 766 mm | 749 mm | 788 mm | 771 mm | 814 mm | 797 mm |
| Rake | 90 mm | 46 mm | 90 mm | 46 mm | 90 mm | 47 mm | 90 mm | 46 mm | 90 mm | 46 mm |
| Trail | 112 mm | 115 mm | 112 mm | 115 mm | 112 mm | 115 mm | 112 mm | 115 mm | 112 mm | 115 mm |
| Stack | 577 mm | 581 mm | 582 mm | 586 mm | 586 mm | 590 mm | 591 mm | 595 mm | 604 mm | 609 mm |
| Reach | 395 mm | 389 mm | 420 mm | 414 mm | 435 mm | 429 mm | 455 mm | 449 mm | 475 mm | 469 mm |
| Top Tube Length | 554 mm | 556 mm | 580 mm | 582 mm | 597 mm | 598 mm | 618 mm | 619 mm | 642 mm | 643 mm |
| Seat Tube Angle | 74.7 ° | 74.2 ° | 74.7 ° | 74.2 ° | 74.7 ° | 74.2 ° | 74.7 ° | 74.2 ° | 74.7 ° | 74.2 ° |
| Seat Tube Length | 394 mm | 394 mm | 419 mm | 419 mm | 445 mm | 445 mm | 470 mm | 470 mm | 521 mm | 521 mm |
| Head Tube Angle | 66.1 ° | 65.5 ° | 66.1 ° | 65.6 ° | 66.1 ° | 65.6 ° | 66.1 ° | 65.6 ° | 66.1 ° | 65.6 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 105 mm | 105 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 427 mm | 429 mm | 427 mm | 429 mm | 427 mm | 429 mm | 427 mm | 429 mm | 427 mm | 429 mm |
| Wheelbase | 1133 mm | 1134 mm | 1160 mm | 1161 mm | 1177 mm | 1178 mm | 1199 mm | 1200 mm | 1225 mm | 1226 mm |
| Bottom Bracket Drop | 94 mm | 16 mm | 94 mm | 16 mm | 94 mm | 16 mm | 94 mm | 16 mm | 94 mm | 16 mm |
| Standover Height | 737 mm | 732 mm | 765 mm | 760 mm | 767 mm | 762 mm | 764 mm | 759 mm | 776 mm | 770 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Remedy 9.7 completes the Trek Remedy model. Trek launched 134 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Trek Remedy 7 2020 is the cheapest bike model and costs 3299$. Trek Remedy 9.9 27.5 2020 is the most expensive one and costs 7962$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Trek Remedy 9.7 price was 4499$. Comparing this to the average Enduro bike price, we see that the price is 25.01% more expensive.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 13.63 kg (30.05 lbs), Trek bike is slightly lighter than average. In short, the average Enduro bike weight is 4.7% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Remedy 9.7 components
Fork
The RockShox Lyrik Select is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is RockShox Deluxe RT3, with a travel distance of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Remedy 9.7 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Remedy 9.7 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Remedy 9.7. Therefore, climbing or descending will be a breeze.
