Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Platinum Series 6066 butted & hydroformed aluminum, eccentric BB, cold-forged dropouts, G2 29" Geometry
Drivetrain
Cassette
18T cog
Bottom Bracket
EBB, press-fit
Pedals
N/A
Wheels
Rims
Shimano M525, Bontrager Race Disc SS hubs, Bontrager Duster 29 rims 32h
Tires
Bontrager XDX 29x2.1, 120 TPI, aramid bead, tubeless ready
Brakes
Brakes
Avid BB7 mechanical disc, 185mm front/ 160mm rear rotors
Cockpit
Stem
Bontrager SSR OS
Handlebar
Bontrager Race Big Sweep, 620mm width, 12d backsweep, 31.8mm
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Race
Seatpost
Bontrager SSR, micro adjust, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

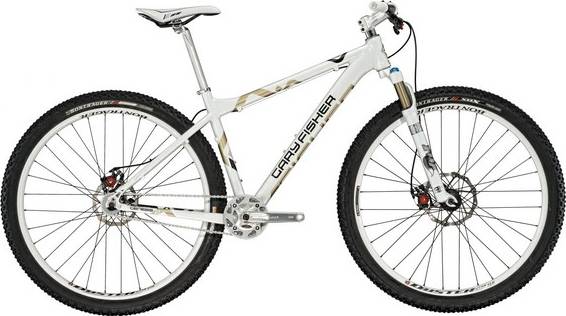

Rig Single Speed is part of the Trek Rig model. Trek released 10 bikes variations of this model so far. Take a sneak peek at all Trek Rig bikes models from 2010, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Rig Single Speed components
Wheels
When leaving the production line, the Rig Single Speed model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Rig Single Speed comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
