Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 140mm -
Fork Fox
-
Groupset XT, SLX -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6011 hydroformed butted aluminum mainframe & chainstays, TopSwing magnesium link, semi-integrated internally relieved E2 1-1/8"-1-1/2" HT design, cold-forged dropouts, G2 Geometry
Suspension Fork
Fox Talas 140RL, 140mm-120mm-100mm adjustable travel, E2 tapered 1-1/8"-1-1/2" alloy steerer, custom G2 offset
Drivetrain
Rear Derailleur
Shimano XT M772 Shadow SGS
Front Derailleur
Shimano SLX, down swing
Shift Levers
Shimano SLX, Rapidfire Plus
Cassette
SRAM PG970 11-34T, 9spd
Pedals
Custom Crank Bros Candy w/cleats
Wheels
Rims
Bontrager Rhythm Comp w/QR15 thru-axle front hub, 28mm tubeless ready* rims
Tires
Bontrager XDX, 26x2.4 (60/59), 120 TPI, tubeless ready, aramid folding bead
Brakes
Brakes
Avid Elixir R, hydraulic disc, integrated reservoir w/tools-free reach adjust, 185mm front/160mm rear G2 Clean Sweep 6-bolt rotors
Cockpit
Stem
Bontrager Race X Lite OS, 7d rise, 31.8mm
Handlebar
Bontrager Race Lite OS Riser, 40mm rise, 690mm width, 7d backsweep, 4d upsweep, 31.8mm
Headset
Cane Creek Frustum E2 1-1/8"-1-1/2", semi-integrated, cartridge bearings
Seat
Saddle
Bontrager Rhythm, hollow cromoly rails
Seatpost
Bontrager King Earl, 3D forged internally ovalized 7075 alloy shaft, two-bolt rocker head
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

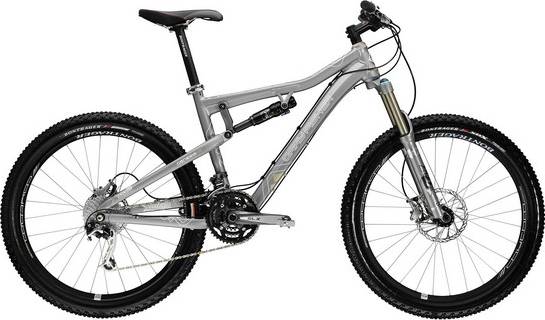

Model Overview
Roscoe II completes the Trek Roscoe model. Trek released 48 bikes variations of this model so far. Take a sneak peek at all Trek Roscoe bikes models from 2009, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Roscoe II components
Fork
The Fox is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Roscoe II has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the Roscoe II model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Roscoe II has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Roscoe II comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
