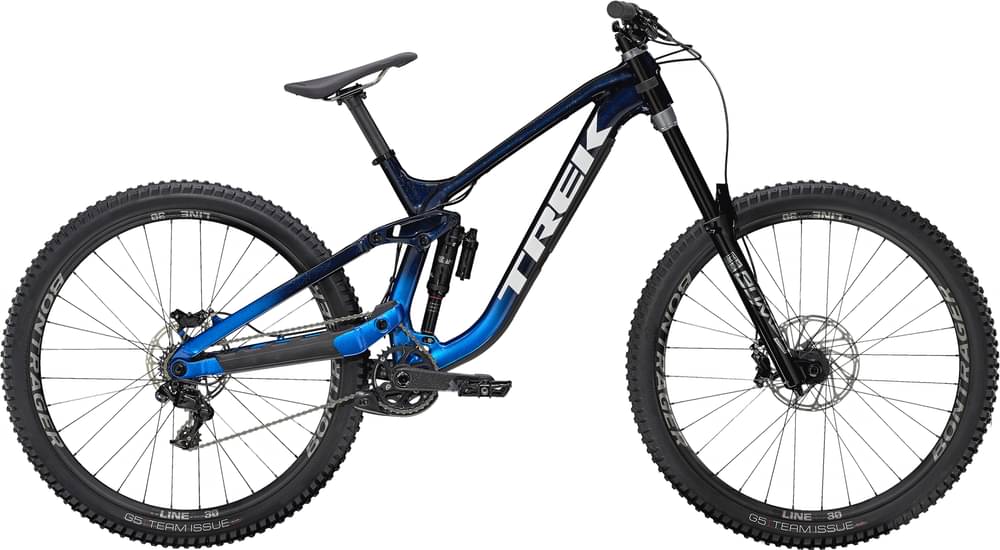

Trek Session 9 X01 2022
2022 Mountain
Estimate price |
6,999$
Weight | 17.08 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer Ultimate
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12mm thru axle, 200mm travel
Suspension Fork
RockShox Boxxer Ultimate, DebonAir spring, Charger 2.1 RC2 damper, straight steerer, 46mm offset, Boost, 110x20mm Maxle Stealth, 200mm travel
Rear Shock
RockShox Super Deluxe Ultimate DH, RC damper, 250mm x 72.5mm
Drivetrain
Rear Derailleur
SRAM X01 DH, medium cage
Shift Levers
SRAM X01 DH, 7 speed
Cassette
SRAM PG-720, 11-25, 7 speed
Crank
SRAM X01 DH, DUB 83, 34T alloy ring, 165mm length
Bottom Bracket
SRAM DUB, 83mm, BSA threaded
Chain
SRAM PC-1110, 11 speed
Wheels
Rims
Bontrager Line DH 30, Tubeless Ready, 6-bolt, 110x20mm Boost thru axle
Tires
Bontrager G5 Team Issue, wire bead, 2-ply 60tpi, 29x2.50''
Brakes
Brakes
SRAM Code RSC 4-piston hydraulic disc
Disk Rotors
Size: R1, R2, R3, SRAM CenterLine, 6-bolt, round edge, 180mm; Size: R1, R2, R3, SRAM CenterLine, 6-bolt, round edge, 200mm
Cockpit
Stem
Bontrager Line Pro, 35mm, Direct Mount, 50mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 820mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Seat
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Bontrager Rhythm Elite, 31.6mm, 0mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | R1 High | R1 Low | R2 High | R2 Low | R3 High | R3 Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.35 mm | 1.38 mm | 1.28 mm | 1.3 mm |
| Bottom Bracket Height | 359 mm | 350 mm | 359 mm | 350 mm | 359 mm | 350 mm |
| Front Center | 808 mm | 808 mm | 833 mm | 833 mm | 861 mm | 861 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 48 mm | 47 mm |
| Trail | 131 mm | 136 mm | 131 mm | 136 mm | 132 mm | 136 mm |
| Stack | 625 mm | 630 mm | 625 mm | 630 mm | 625 mm | 630 mm |
| Reach | 438 mm | 431 mm | 463 mm | 456 mm | 490 mm | 484 mm |
| Top Tube Length | 577 mm | 578 mm | 608 mm | 609 mm | 643 mm | 644 mm |
| Seat Tube Angle | 77.1 ° | 76.5 ° | 77.1 ° | 76.5 ° | 77.1 ° | 76.5 ° |
| Seat Tube Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Head Tube Angle | 63.6 ° | 63 ° | 63.6 ° | 63 ° | 63.6 ° | 63 ° |
| Head Tube Length | 117 mm | 117 mm | 117 mm | 117 mm | 117 mm | 117 mm |
| Chainstay Length | 426 mm | 430 mm | 432 mm | 436 mm | 439 mm | 443 mm |
| Wheelbase | 1234 mm | 1237 mm | 1265 mm | 1268 mm | 1300 mm | 1303 mm |
| Bottom Bracket Drop | 12 mm | 21 mm | 12 mm | 21 mm | 12 mm | 21 mm |
| Standover Height | 746 mm | 738 mm | 750 mm | 742 mm | 748 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Session 9 X01 belongs to the Trek Session model. Trek launched 88 bikes of this model so far. You can easily view all of the Trek Session bikes models from 2022, here.
Model range prices
The most economical model, the Trek Session 8 29 GX 2022 has a starting price of 4999$. Trek Session 9 X01 2022 on the other hand is the most expensive at 6999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Downhill bikes average price
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6999$. Comparing this to the average Downhill bike price, we see that the price is 106.4% more expensive.
Average weight for Downhill bikes
Downhill bikes weigh an average of 15.89 kg (35.03 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Trek Session 9 X01 it’s weighing 17.08 kg (37.65 lbs). At this weight, is a bit heavier than average. To sum up, it’s 7.49% heavier than the average weight of Downhill bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Session 9 X01 components
Fork
The Session 9 X01 comes factory-installed with the RockShox BoXXer Ultimate fork. This has a travel range of 200mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Trek Session 9 X01 bike has the RockShox Super Deluxe Ultimate DH model installed, and has a travel of 200mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Trek Session 9 X01 2022, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Session 9 X01 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
