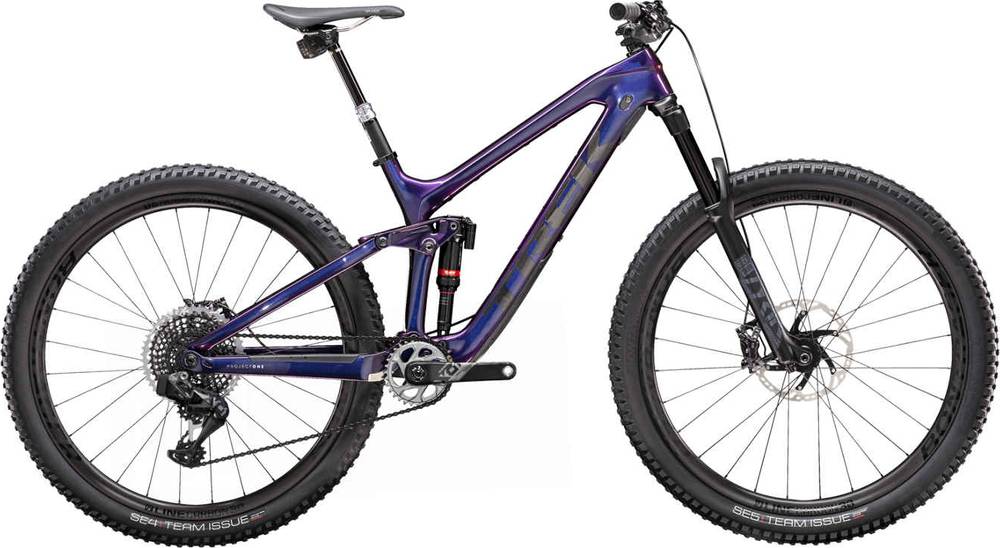

Trek Slash 9.9 X01 AXS 2020
2020 Mountain
Estimate price |
8,999$
Weight | 13.18 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 150mm travel
Suspension Fork
RockShox Lyrik Ultimate, DebonAir spring, Charger 2 RC2 damper, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
Rear Shock
RockShox Deluxe RT3, DebonAir spring, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 230x57.5mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS
Shift Levers
SRAM Eagle AXS, wireless, 12-speed
Cassette
SRAM XG-1295 Eagle, 10-50, 12 speed
Crank
Size: S, SRAM X01 Eagle AXS Carbon, DUB, 32T alloy ring, Boost (52mm chainline), 170mm length; Size: M, L, XL, SRAM X01 Eagle AXS Carbon, DUB, 32T alloy ring, Boost (52mm chainline), 175mm length
Bottom Bracket
SRAM DUB, 92mm, PressFit
Chain
SRAM XX1 Eagle, 12 speed
Wheels
Rims
Bontrager Line Carbon 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tires
Size: S, M, L, XL, Bontrager SE4 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.40''; Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60''
Brakes
Brakes
Shimano XT M8120 4-piston hydraulic disc
Disk Rotors
Size: S, M, L, XL, Shimano RT76, 180mm, 6-bolt; Size: S, M, L, XL, Shimano RT76, 203mm, 6-bolt
Cockpit
Stem
Bontrager Line Pro, 35mm, Knock Block, 0 degree, 50mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width
Grips
Bontrager XR Trail Elite, alloy lock-on
Headset
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Size: S, RockShox Reverb AXS, 100mm travel, wireless, 31.6mm, 340mm length; Size: M, RockShox Reverb AXS, 125mm travel, wireless, 31.6mm, 390mm length; Size: XL, RockShox Reverb AXS, 170mm travel, wireless, 31.6mm, 480mm length; Size: L, RockShox Reverb AXS, 150mm travel, wireless, 31.6mm, 440mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.42 mm | 1.45 mm | 1.35 mm | 1.38 mm | 1.32 mm | 1.34 mm |
| Bottom Bracket Height | 352 mm | 345 mm | 352 mm | 345 mm | 352 mm | 345 mm | 352 mm | 345 mm |
| Front Center | 739 mm | 738 mm | 754 mm | 753 mm | 787 mm | 785 mm | 815 mm | 814 mm |
| Rake | 51 mm | 52 mm | 51 mm | 52 mm | 52 mm | 51 mm | 52 mm | 52 mm |
| Trail | 114 mm | 117 mm | 114 mm | 117 mm | 114 mm | 117 mm | 114 mm | 117 mm |
| Stack | 602 mm | 606 mm | 602 mm | 606 mm | 612 mm | 616 mm | 625 mm | 629 mm |
| Reach | 410 mm | 404 mm | 425 mm | 419 mm | 453 mm | 447 mm | 475 mm | 469 mm |
| Top Tube Length | 583 mm | 585 mm | 598 mm | 600 mm | 629 mm | 631 mm | 655 mm | 657 mm |
| Seat Tube Angle | 74.1 ° | 73.6 ° | 74.1 ° | 73.6 ° | 74.1 ° | 73.6 ° | 74.1 ° | 73.6 ° |
| Seat Tube Length | 394 mm | 394 mm | 419 mm | 419 mm | 470 mm | 470 mm | 521 mm | 521 mm |
| Head Tube Angle | 65.6 ° | 65.1 ° | 65.6 ° | 65.1 ° | 65.6 ° | 65.1 ° | 65.6 ° | 65.1 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 427 mm | 429 mm | 427 mm | 429 mm | 427 mm | 429 mm | 427 mm | 429 mm |
| Wheelbase | 1165 mm | 1166 mm | 1180 mm | 1181 mm | 1213 mm | 1213 mm | 1241 mm | 1242 mm |
| Bottom Bracket Drop | 21 mm | 28 mm | 21 mm | 28 mm | 21 mm | 28 mm | 21 mm | 28 mm |
| Standover Height | 751 mm | 745 mm | 753 mm | 747 mm | 764 mm | 758 mm | 775 mm | 769 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Slash 9.9 X01 AXS is part of the Trek Slash model. There are 117 bikes that carry this model name. Take a sneak peek at all Trek Slash bikes models from 2020, by clicking here.
Model range prices
Trek Slash 8 2020 is the most affordable bike of this model and has a price of 3699$. On the other hand, Trek Slash 9.9 X01 AXS 2020, is the most expensive and costs 8999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Trek released this model in 2020, its price was 8999$. Comparing this to the average Enduro bike price, we see that the price is 150.04% higher.
Average weight for Enduro bikes
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.18 kg (29.06 lbs), the Slash 9.9 X01 AXS model is a bit lighter than average. To sum up, it’s 8.27% lighter than the average weight of Enduro bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Slash 9.9 X01 AXS components
Fork
The fork installed on this bike is the RockShox Lyrik Ultimate model. The travel on this model is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Slash 9.9 X01 AXS has a rear shock with a travel of 150mm. The model RockShox Deluxe RT3 is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Slash 9.9 X01 AXS model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Trek Slash 9.9 X01 AXS comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
