Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex, SRAM -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
200 Series Alpha Aluminum, KVF (Kammtail Virtual Foil) tube design, SC Speed Box & Bento Box compatible
Suspension Fork
Bontrager Race Lite E2 Tri Speed Concept, carbon, SpeedTrap compatible
Drivetrain
Rear Derailleur
SRAM Apex
Front Derailleur
SRAM Apex, braze-on
Shift Levers
SRAM 500 TT, bar end control, 10 speed
Cassette
SRAM PG-1050 11-28, 10 speed
Crank
SRAM Apex, 50/34 (compact)
Pedals
n/a
Wheels
Rims
Alloy hubs, Bontrager Approved alloy rims (XS: 650c)
Tires
Bontrager R1, 700x23c (XS: Bontrager Race Lite, 650x25c)
Brakes
Brakes
Alloy dual-pivot front brake; chainstay-mounted rear brake w/Bontrager Race Lite aero levers
Cockpit
Stem
Bontrager Race Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race Bullhorn w/Race Lite clip-ons
Headset
Integrated, sealed bearings, 1" top, 1-1/8" bottom
Seat
Saddle
Bontrager Race Lite TT WSD
Seatpost
Bontrager Speed Concept Race X Lite, carbon, +/-10mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model

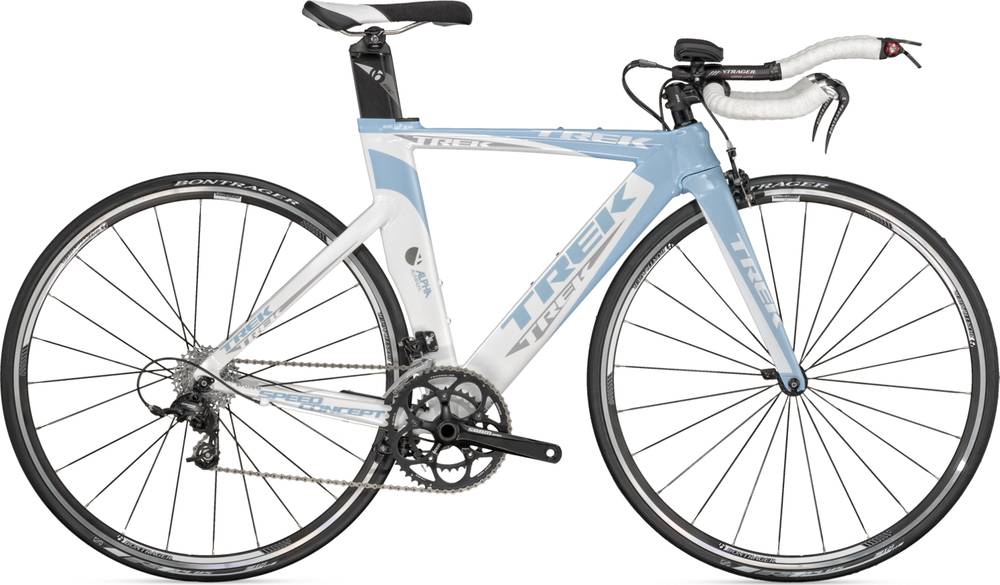

Speed Concept 2.5 WSD completes the Trek Speed model. There are 112 bikes that carry this model name. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Triathlon bikes average price
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
Speed Concept 2.5 WSD has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Speed Concept 2.5 WSD model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Speed Concept 2.5 WSD is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, you can easily find one that suits you.
