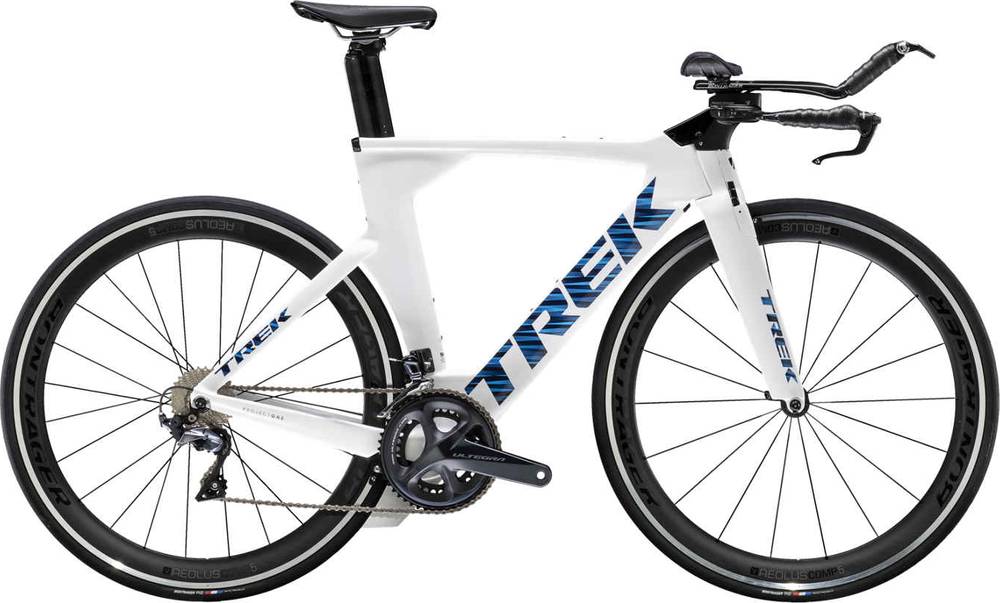

Trek Speed Concept 2020
2020 Road
Estimate price |
4,699$
Weight | 9.09 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
154cm - 168cm
MD
166cm - 176cm
LG
174cm - 187cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, BB90, Speed Fin compatible, DuoTrap compatible, SC Draft Box 2 & SC Speed Box 2 compatible
Suspension Fork
SC full foil carbon, integrated brake & stem
Drivetrain
Rear Derailleur
Shimano Ultegra R8000, short cage, 30T max cog
Front Derailleur
Shimano Ultegra R8000, braze-on
Shift Levers
Shimano Dura-Ace, bar end, 11 speed
Cassette
Shimano Ultegra R8000, 11-28, 11 speed
Crank
Size: S, Shimano Ultegra R8000, 50/34 (compact), 165mm length; Size: M, Shimano Ultegra R8000, 50/34 (compact), 170mm length; Size: L, Shimano Ultegra R8000, 50/34 (compact), 172.5mm length; Size: XL, Shimano Ultegra R8000, 50/34 (compact), 175mm length
Bottom Bracket
Trek BB90
Chain
Shimano Ultegra HG701, 11-speed
Wheels
Rims
Bontrager Aeolus Comp, OCLV Carbon, Tubeless Ready, 100x5mm QR
Tires
Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25c
Brakes
Brakes
Bontrager Speed Limit integrated, Bontrager Race Lite aero levers
Brake Levers
Bontrager Race Lite aero
Cockpit
Stem
Size: S, Bontrager Speed Concept, direct mount, 69mm rise, 67mm reach; Size: S, M, L, XL, Bontrager Speed Concept, direct mount [p]; Size: M, L, XL, Bontrager Speed Concept, direct mount, 61mm rise, 110mm reach
Handlebar
Bontrager Speed Concept KVF aero bar, carbon, direct mount, UCI legal
Seat
Saddle
Bontrager Hilo Comp, hollow chromoly rails
Seatpost
Size: S, Bontrager Speed Concept Race Lite, alloy, +/-20mm offset, 275mm length; Size: M, L, XL, Bontrager Speed Concept Race Lite, alloy, +/-20mm offset, 335mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.26 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm |
| Front Center | 575 mm | 598 mm | 623 mm | 650 |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 60 mm | 60 mm | 60 mm |
| Stack | 493 mm | 518 mm | 542 mm | 566 mm |
| Reach | 391 mm | 409 mm | 427 mm | 446 mm |
| Top Tube Length | 496 mm | 519 mm | 542 mm | 566 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 503 mm | 529 mm | 553 mm | 578 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 65 mm | 90 mm | 115 mm | 140 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm |
| Wheelbase | 962 mm | 986 mm | 1011 mm | 1038 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 751 mm | 776 mm | 800 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 166 cm | 174 cm | 185 cm |
| Rider Max Height | 168 cm | 176 cm | 187 cm | 198 cm |
Model Overview
Speed Concept is a Trek Speed model. There are 112 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Triathlon bikes average price
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, this doesn’t mean that if you spend less money on a Triathlon bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Trek released this model in 2020, its price was 4699$. If we compare this with the average Triathlon bike cost we notice that the price is 12.5% more expensive.
Average weight for Triathlon bikes
The average weight for Triathlon bikes is 8.9 kg (19.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 9.09 kg (20.04 lbs), the Speed Concept model is slightly heavier than average. In other words, this model is 2.13% heavier than the average Triathlon bike.
Speed Concept components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Speed Concept 2020 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 198 cm (5.05 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
